MS-9A97

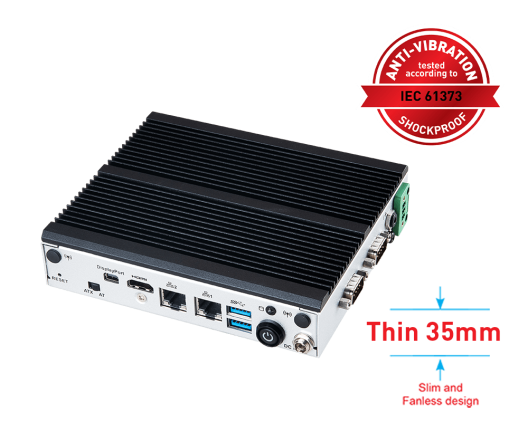

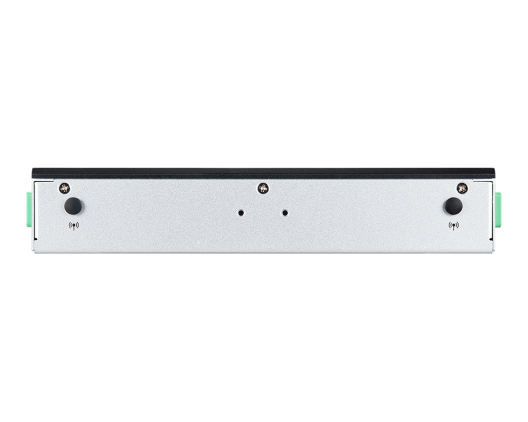

Din Rail Slim Box PC with Intel® Apollo Lake Series SoC Platform for IoT Edge Computer

  • Intel® Apollo Lake Series SoC
  • LPDDR4 2133 MHz onboard memory up to 4GB
  • Dual independent displays: Mini-DP, HDMI™
  • 2 GbE LAN with RJ-45
  • 1 Mini-PCIe (Full size, with SIM Holder), 1 Mini-PCIe (Half size, with mSATA) slots
  • 2 USB 3.2 Gen 1, 2 USB 2.0, 2 COM(RS-485), GPIO, Audio
  • Anti-Vibration & Shockproof Design to compliance IEC 61373
  • DC-IN 12V
  • Ultra-Compact & fanless design wtih thinness 35mm
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9A97-SKU1
  • MS-9A97-SKU2

System Processor

  • CPU
  • Intel® Atom™ x5 Processor E3940, QC, 9.5W
  • Intel® Celeron® Processor J3455, QC, 10W
  • Frequency
  • 1.6 GHz up to 1.8 GHz
  • 1.5 GHz, up to 2.3 GHz
  • L2 Cache
  • 2MB
  • 2MB
  • CPU Type
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC
  • Integrated in SoC
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel LPDDR4 2133MHz
  • Single-channel LPDDR4 2133MHz
  • Max. Capacity
  • Up to 4GB
  • Up to 4GB
  • Socket
  • Onboard
  • Onboard

Display

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 2 independent displays
  • 2 independent displays
  • Display Interface
  • HDMI™ up to 3840 x 2160 @30Hz
    Mini-DP up to 4096 x 2160 @60Hz
  • HDMI™ up to 3840 x 2160 @30Hz
    Mini-DP up to 4096 x 2160 @60Hz

Ethernet

  • Controller
  • 2 x Intel® I211-AT GbE LAN
  • 2 x Intel® I211-AT GbE LAN

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer

Expansion Slot

  • Mini-PCIe
  • 1 x Full-size (w/ NANO SIM Holder)
    1 x Half-size (w/ mSATA)
  • 1 x Full-size (w/ NANO SIM Holder)
    1 x Half-size (w/ mSATA)

Storage

  • mSATA
  • 64G (default)
  • 64G (default)

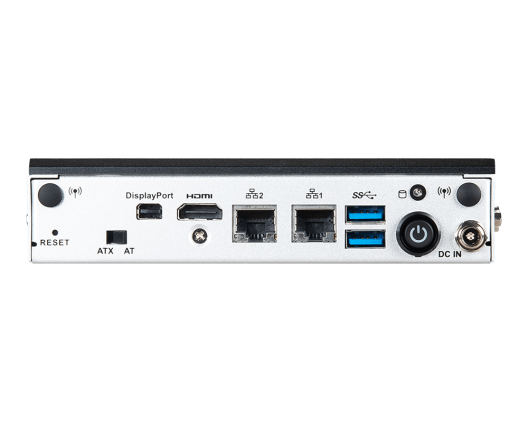

I/O Interface

  • RJ-45
  • 2
  • 2
  • Audio
  • 1 x Line-out
  • 1 x Line-out
  • USB
  • 2 x USB 2.0
    2 x USB 3.2 Gen 1
  • 2 x USB 2.0
    2 x USB 3.2 Gen 1

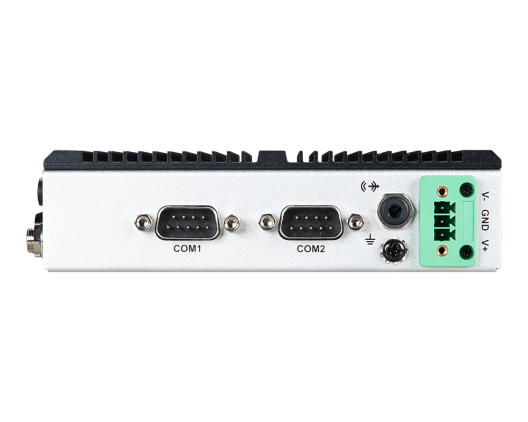

  • Serial
  • 2 x COM ports
    COM1: RS-232/422/485, 0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
  • 2 x COM ports
    COM1: RS-232/422/485, 0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
  • GPIO
  • 8-bit (4*GPI; 4*GPO), 5V
  • 8-bit (4*GPI; 4*GPO), 5V
  • HDMI
  • 1
  • 1
  • DisplayPort
  • 1 (Mini-DP)
  • 1 (Mini-DP)
  • Antenna
  • 4 opening reserved antennas
  • 4 opening reserved antennas

Power Supply

  • DC Input
  • DC-in 12V Jack (5.5mm/2.5mm) / Phoenix pluggable with latch (Option support OCP/OVP Protection)
  • DC-in 12V Jack (5.5mm/2.5mm) / Phoenix pluggable with latch (Option support OCP/OVP Protection)

Environment

  • Operating Temperature
  • -10~55°C (mSATA)
    -10~65°C (w/ WT devices)
    Note: Thermal w/ Airflow:0.7m/s
  • -10~55°C (
    -10~65°C (w/ WT devices)
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Vibration
  • IEC61373 Category 1, Class A
  • IEC61373 Category 1, Class A
  • Shock
  • IEC61373 Category 1, Class A
  • IEC61373 Category 1, Class A

Physical Characteristics

  • Dimensions
  • 153 x 130 x 35 mm
  • 153 x 130 x 35 mm
  • Weight
  • 0.841 kg
  • 0.841 kg
  • Mounting
  • DIN-rail mount(STD)/Wall mount (by BOM option)/VESA mount(by BOM option)
  • DIN-rail mount(STD)/Wall mount (by BOM option)/VESA mount(by BOM option)

Certification

  • EMC
  • FCC Class A, CE, RCM, VCCI, BSMI
  • FCC Class A, CE, RCM, VCCI, BSMI
  • Safety
  • BSMI
  • BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSB/CBB 1607 (64-bit, RS1)
    Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux Fedora 25 (by request)
    Linux Ubuntu 16.04 (by request)
  • Windows 10 IoT Enterprise LTSB/CBB 1607 (64-bit, RS1)
    Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux Fedora 25 (by request)
    Linux Ubuntu 16.04 (by request)

Ordering Information

  • Part Number
  • Description
  • 9S9-9A97-001
  • MS-9A97\709-9A97-010\829-9A97-002 VER 10 Egde, Fullsystem, FANLESS, Memory 4G, mSATA 64G, Apollo lake-I E3940, DIN-RAIL, 4*JUMPERS, 2*TERMINAL BLOCK, 12V/36W ADAPTER, USA POWER CORD, W/O MSI LOGO SINGLE
  • 9S9-9A97-002
  • MS-9A97\709-9A97-010\829-9A97-003 VER 10 Egde, Fullsystem, FANLESS, Memory 4G, mSATA 64G, Apollo lake-I E3940, DIN-RAIL, 4*JUMPERS, 2*TERMINAL BLOCK, 12V/36W ADAPTER, EU POWER CORD, W/O MSI LOGO SINGLE

Packing List

  • Part Number
  • Description
  • Quantity
  • K33-3001020-I45
  • Power Cord, US, 1800mm (by BOM)
  • 1
  • K33-3001021-I45
  • Power Cord, EU, 1800mm (by BOM)
  • 1
  • S93-0408920-S14
  • Adaptor 12V/36W
  • 1
  • OE2-9A77001-000
  • DIN Rail
  • 1
  • E43-1306044-P65
  • DIN Rail Screw
  • 2
  • NA1-1020051-PC1
  • Phoenix Terminal Plugged, 1*2pin
  • 1
  • NA1-1030063-SR2
  • Phoenix Terminal Plugged, 1*3pin
  • 1
  • N33-1020531-H06
  • Jumpers for connector
  • 4

Optional Item

  • Part Number
  • Description
  • E22-9A97010-LA2
  • Wall Mounting, 2pc
  • E43-1065016-P65
  • Wall Mounting Screw, 4pc
  • E25-9B01030-K23
  • Wall Mounting Rubber, 4pc
