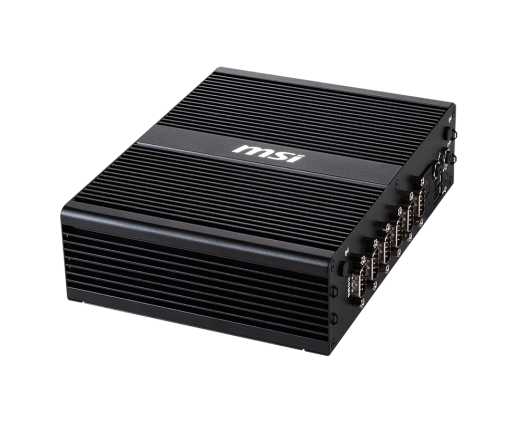

MS-9A69 V2.0

Compact-Size Box PC with Intel® Kaby Lake-U or Apollo Lake Series Processor for Ultra Low-Power Fanless Solution

  • Intel® Apollo Lake/Apollo Lake-I Series SoC
  • DDR3L 1866/1600 MHz SODIMM Slot up to 8GB
  • Triple independent displays: DP++, HDMI™, LVDS (by option)
  • 2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
  • Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
  • SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
  • 4 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
  • 4 opening resrved for antennas
  • Anti-Vibration & Shockproof Design to Compliance IEC 61373
  • Wide Voltage DC-IN 12~24V
  • Ultra-Compact with fanless design

  • Intel® 7th Gen Kaby Lake-U Series
  • DDR4 2133 MHz SODIMM Slot up to 16GB
  • Triple independent displays: DP++, HDMI™, LVDS/DVI-I (by option)
  • 2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
  • Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
  • 2 SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
  • SATA RAID 0/1
  • 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
  • 4 opening resrved for antennas
  • Anti-Vibration & Shockproof Design to Compliance IEC 61373
  • Wide Voltage DC-IN 12~24V
  • Ultra-Compact with fanless design
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9A69-A1
  • MS-9A69-U2
  • MS-9A69-U3

System Processor

  • CPU
  • Intel® Celeron® Processor J3455, QC, 10W
  • Intel® Kaby Lake-U Core™ i3-7100U Processor, DC, 15W
  • Intel® Kaby Lake-U Core™ i5-7300U Processor, DC, 15W
  • Frequency
  • 1.5 GHz, up to 2.3 GHz
  • 2.4 GHz
  • 2.6 GHz, up to 3.5 GHz
  • L2 Cache
  • 2MB
  • 3MB
  • 3MB
  • CPU Type
  • BGA
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC Process
  • Integrated in SoC Process
  • Integrated in SoC Process
  • BIOS
  • AMI
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel DDR3L 1866/1600 MHz
  • Single-channel DDR4 2133 MHz
  • Single-channel DDR4 2133 MHz
  • Max. Capacity
  • Up to 8GB
  • Up to 16GB
  • Up to 16GB
  • Socket
  • 1 x 204-pin SO-DIMM
  • 1 x 260-pin SO-DIMM
  • 1 x 260-pin SO-DIMM

Graphic

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • HDMI™ up to 3840 x 2160 @30Hz
    DP up to 4096 × 2160 @60Hz
    LVDS up to 1920 x 1200 @60Hz (optional by cable)
  • HDMI™ 1.4 up to 4096 x 2160 @24Hz
    DP up to 3840 x 2160 @60Hz (Support DP++)
    LVDS up to 1920 x 1200 @60Hz (optional by cable)
  • HDMI™ 1.4 up to 4096 x 2160 @24Hz
    DP up to 3840 x 2160 @60Hz (Support DP++)
    LVDS up to 1920 x 1200 @60Hz (optional by cable)

Display

  • LVDS
  • 1 (optional)
  • 1 (optional)
  • 1 (optional)

Ethernet

  • Controller
  • 2 x Intel® I211-AT GbE LAN
  • 1 x Intel® I210-AT GbE LAN
    1 x Intel® I219-LM GbE LAN PHY
  • 1 x Intel® I210-AT GbE LAN
    1 x Intel® I219-LM GbE LAN PHY

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD Bay
  • 1 x 2.5" HDD/SSD Bay
  • 1 x 2.5" HDD/SSD Bay
  • mSATA
  • 1 x Full-size
  • 1 x Full-size
  • 1 x Full-size

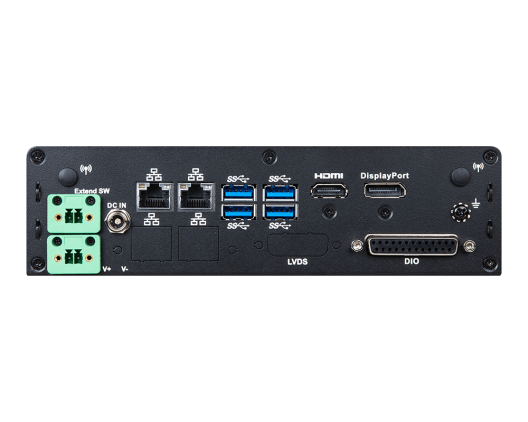

I/O Interface

  • RJ-45
  • 4 (LAN1/2 Standard, LAN3/4 by Option)
  • 4 (LAN1/2 Standard, LAN3/4 by Option)
  • 4 (LAN1/2 Standard, LAN3/4 by Option)
  • Audio
  • 1 x Line-out
    1 x Mic-in
  • 1 x Line-out
    1 x Mic-in
  • 1 x Line-out
    1 x Mic-in
  • USB
  • 2 x USB 2.0
    4 x USB 3.2 Gen 1
  • 2 x USB 2.0
    4 x USB 3.2 Gen 1
  • 2 x USB 2.0
    4 x USB 3.2 Gen 1

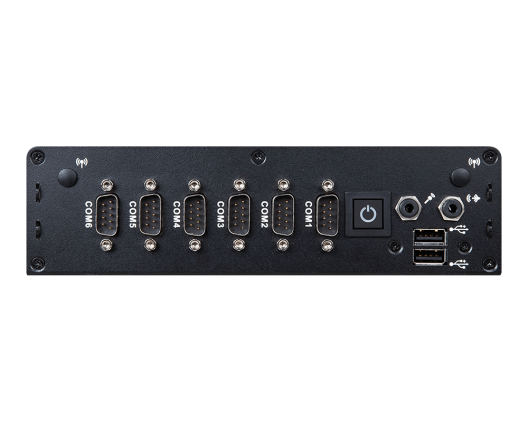

  • Serial
  • 6 x COM ports
    COM1&2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, 0V/5V/12V
  • 6 x COM ports
    COM1&2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, 0V/5V/12V
  • 6 x COM ports
    COM1&2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, 0V/5V/12V
  • GPIO
  • 16-bit (8*GPI; 8*GPO), 5V
  • 16-bit (8*GPI; 8*GPO), 5V
  • 16-bit (8*GPI; 8*GPO), 5V
  • HDMI
  • 1
  • 1
  • 1
  • DisplayPort
  • 1
  • 1
  • 1
  • Antenna
  • 4 openings reserved for antennas
  • 4 openings reserved for antennas
  • 4 openings reserved for antennas

Power Supply

  • DC Input
  • DC-in 12V~24V
  • DC-in 12V~24V
  • DC-in 12V~24V

Environment

  • Operating Temperature
  • -10 ~ 45°C (HDD)
    -10 ~ 55°C (w/ WT devices)
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 45°C (HDD)
    -10 ~ 55°C (w/ WT devices)
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 45°C (HDD)
    -10 ~ 55°C (w/ WT devices)
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Vibration
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B
  • Shock
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B

Physical Characteristics

  • Dimensions
  • 200 x 150 x 55 mm
  • 200 x 150 x 55 mm
  • 200 x 150 x 55 mm
  • Weight
  • 1.39 kg
  • 1.39 kg
  • 1.39 kg
  • Mounting
  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)

Certification

  • EMC
  • CE, FCC, VCCI, RCM, BSMI
  • CE, FCC, VCCI, RCM, BSMI
  • CE, FCC, VCCI, RCM, BSMI
  • Safety
  • BSMI
  • BSMI
  • BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Windows 10 IoT Core (32/64-bit) (by request)
    Linux Kernel 4.19 (64-bit) (by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux Ubuntu 18.04 LTS (by reuqest)
    Linux Kernel 4.14 (64-bit) (by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux Ubuntu 18.04 LTS (by reuqest)
    Linux Kernel 4.14 (64-bit) (by request)

Ordering Information

  • Part Number
  • Description
  • 939-9A69-021
  • MS-9A69\709-9A69-100\829-9A69-025\STD VER20 , BB, FANLESS, CPU KBL-U i3-7100U, W/O MSI LOGO, BLACK, ADAPTER 19V/65W, SINGLE, For Channel
  • 939-9A69-022
  • MS-9A69\709-9A69-110\829-9A69-026\STD VER20 , BB, FANLESS, CPU APL J3455, W/O MSI LOGO, BLACK, ADAPTER 19V/65W, SINGLE, For Channel
  • 939-9A69-014
  • MS-9A69\709-9A69-090\829-9A69-018\STD VER20, BB, FANLESS, CPU KBL-U i5-7300U, W/O MSI LOGO, BLACK, ADAPTER 19V/65W, SINGLE, For Channel

Packing List

  • Part Number
  • Description
  • 939-9A69-010
  • 939-9A69-011
  • 939-9A69-014
  • K1D-3012009-V03
  • SATA Cable with Power, 150mm
  • 1
  • 1
  • 1
  • S93-0401780-S14
  • Adaptor 19V/65W
  • 1
  • 1
  • 1
  • E22-9A69040-T81
  • Wall Mounting Bracket
  • 2
  • 2
  • 2
  • NA1-1020051-PC1
  • Phoenix Terminal Plugged
  • 2
  • 2
  • 2
  • E49-1303007-P65
  • Screw for HDD
  • 4
  • 4
  • 4
  • E24-9B02010-P09
  • DIN Rail
  • 2
  • 2
  • 2
  • E41-1356002-P65
  • Screw for DIN Rail
  • 4
  • 4
  • 4

Optional Item

  • Part Number
  • Description
  • S51-0800120-I69
  • Dual LAN Expansion Module (Wide Temperature)
  • S93-0406560-S14
  • Adaptor 19V/90W
  • K19-3040087-V03
  • LVDS Cable
  • E22-9A95080-C22
  • VESA Mounting
