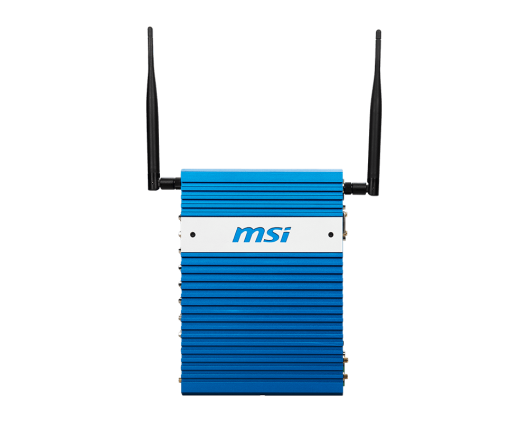

MS-9B17

In-Vehicle/Transportation Box PC with Intel® Apollo Lake-I for 2 PoE Ports, 2 CANBus 2.0B & Ultra Slim Fanless Solution

  • Intel® Apollo Lake-I SoC
  • LPDDR4 2133 MHz onboard memory up to 8GB
  • Triple independent displays : DVI-D, HDMI (DP by option)
  • 2 PoE/GbE LAN with RJ-45 (IEEE 802.11af compliant)
  • 1 Mini-PCIe (Full size, with NANO SIM-Holder), 1 M.2 B Key (with NANO SIM-Holder)
  • SATA 3.0 (1 x 2.5" HDD/SSD), M.2 M Key for storage
  • 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
  • 7 openings reserved for antennas
  • Onboard TPM 2.0
  • Dual channel CANBus 2.0B
  • Wide operating temperature : -20~70°C
  • Wide voltage DC-IN 12~48V
  • ESD: Contact 6KV/ Air 8KV
  • Power on/off delay control for ignition (by option)

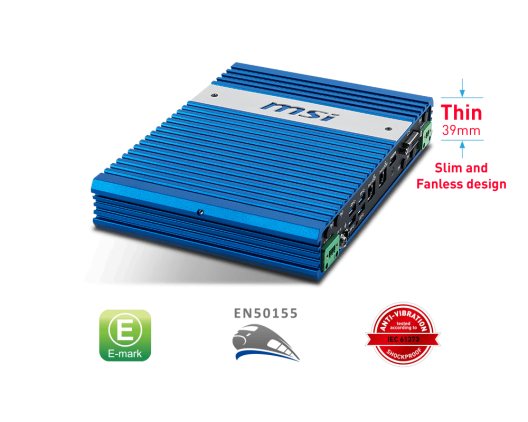

  • Anti-Vibration & Shockproof Design to Compliance IEC61373
  • Railway design to Compliance EN50155 TX Class
  • E-Mark certified for in-vehicle applications
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9B17

System Processor

  • CPU
  • Intel® Atom™ x7 Processor E3950, QC, 12W
  • Frequency
  • 1.6 GHz, up to 2.0 GHz
  • L2 Cache
  • 2MB
  • CPU Type
  • BGA
  • Chipset
  • Integrated in SoC
  • BIOS
  • AMI

Memory

  • Technology
  • Single-channel LPDDR4 2133 MHz
  • Max. Capacity
  • Onboard 4GB, up to 8GB
  • Socket
  • Onboard

Graphic

  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Multiple Display
  • 2 independent displays
  • Display Interface
  • DVI-D up to 1920 x 1200 @60 Hz
    HDMI up to 3840 x 2160 @30Hz

Ethernet

  • Controller
  • 2 x Intel® I210-IT GbE LAN (W/ PoE IEEE 802.3af)

Audio

  • Controller
  • Realtek® ALC887 HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer

TPM

  • Controller
  • Infineon SLB9665XT 2.0

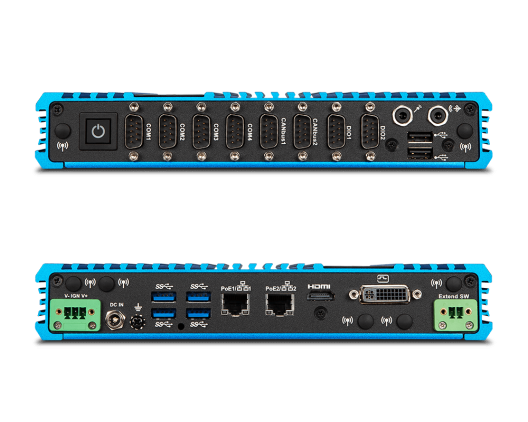

I/O Interface

  • CANbus
  • 2 x CANBus 2.0B
  • RJ-45
  • 2
  • PoE
  • 2 x IEEE 802.3af
  • Audio
  • 1 x Mic-in
    1 x Line-out
  • USB
  • 2 x USB 2.0
    4 x USB 3.2 Gen 1
  • Serial
  • 4 x COM ports
    COM1~2: RS-232/422/485
    COM3~4: RS-232
  • GPIO
  • 16-bit (8*GPI; 8*GPO), 5V
  • HDMI
  • 1
  • DVI
  • 1 (DVI-D)
  • DisplayPort
  • 1 (Co-lay HDMI by option)
  • Antenna
  • 7

Expansion Slot

  • M.2
  • 1 x M Key (SATA 3.0), 2242
    1 x B Key (PCIe x1, USB2.0), 3042
  • Mini-PCIe
  • 1 x Full-size (w/ SIM holder)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD Bay

Power Supply

  • DC Input
  • DC-in 12~48V Wide-Range
    Phoenix pluggable connectors with latch (V-, IGN, V+)

Environment

  • Operating Temperature
  • -20 ~ 70 ° C (w/ WT SSD/mSATA)
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80 ° C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • Vibration
  • IEC61373 Category 1, Class B
  • Shock
  • IEC61373 Category 1, Class B

Physical Characteristics

  • Dimensions
  • 235 x 170 x 39 mm
  • Weight
  • 1.52 kg
  • Mounting

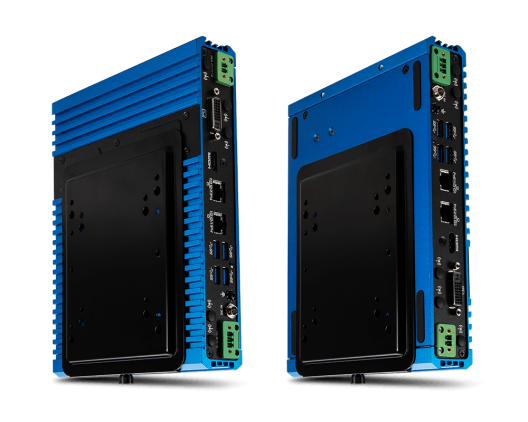

  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)

Certification

  • EMC
  • CE, FCC, VCCI, RCM, BSMI
    E-mark & EN50155 (by request)
  • Safety
  • BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux Fedora 25 (by request)
    Linux Ubuntu 16.04 (by request)
