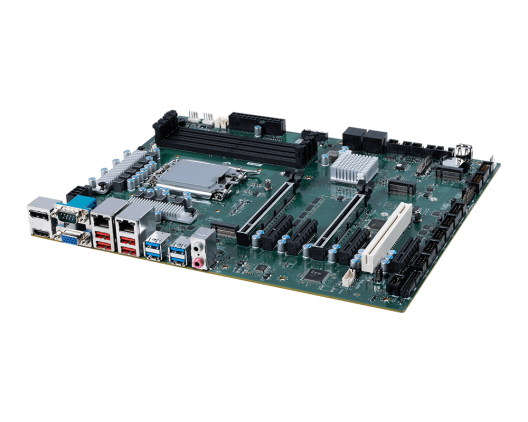

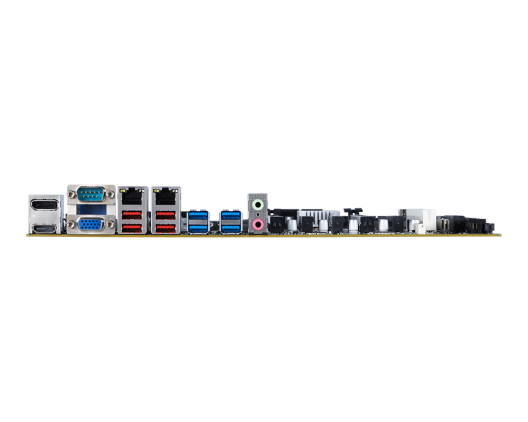

ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® Q670E for High-Performance Solution
- Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series with Q670E
- 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB
- Triple independent displays: VGA, DP, HDMI
- 2 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 1 PCIe x4 (Gen 4), 3 PCIe x4 (Gen 3),1 PCI slot, 1 M.2 B key slot
- 2 M.2 M key, 4 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
- Onboard TPM 2.0
- SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
- ATX Power
- Product Specifications
Product Specifications
- Part Number
- MS-CF05-V2.0-SKU1
Processor
- CPU
- 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
- Frequency
- P-Core 1.1GHz~5.0GHz (Depends on CPU)
E-Core 0.9GHz~3.8GHz (Depends on CPU)
- L2 Cache
- 4MB~30MB (Depends on CPU)
- CPU Type
- Socket (LGA1700)
- Chipset
- Intel® Q670E Express
- BIOS
- AMI UEFI
Memory
- Technology
- Dual-channel DDR5 (non-ECC) 4400 MT/s
- Max. Capacity
- Up to 128GB
- Socket
- 4 x 288-pin UDIMMs
Display
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- --
- eDP
- --
- VGA
- 1
- DVI
- --
- HDMI
- 1
- DisplayPort
- 1
- Multiple Display
- 3 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
Ethernet
- Controller
- 2 x Intel® I226-LM 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- FINTEK F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon® SLB9672VU2.0
I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 8 x USB 3.2 Gen 2 x1 (8 x rear)
2 x USB 3.2 Gen 1 Ports (2 x internal)
3 x USB 2.0 (3 x internal with one Vertical Type-A Connector)
- Parallel
- Yes
- Serial
- 6 x COM ports (1 x rear, 5 x internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
COM3~6: RS-232, 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
- PCIe x8
- --
- PCIe x4
- 4
- PCIe x1
- --
- PCI
- 1
- M.2
- 1 x M key (Signal from CPU) 2280/22110, 1 x M key (Signal Shared by PCIe Slot5) 2242/2280
1 x B key (PCIe x1), 2242/2280
- Mini-PCIe
- --
Storage
- SATA
- 4 x SATA 3.0 (RAID 0/1/5/10)
- IDE
- --
- eSATA
- --
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- --
- ATX
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 305 x 244 mm (ATX)
- Weight
- 0.779 Kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
Software Platform
- OS Support
- Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
Windows 11 IoT Enterprise 24H2 LTSC(64-bit)
Linux (Support by request)
Noted : All driver base on Intel & chip vendor supported
