MS-9Z03

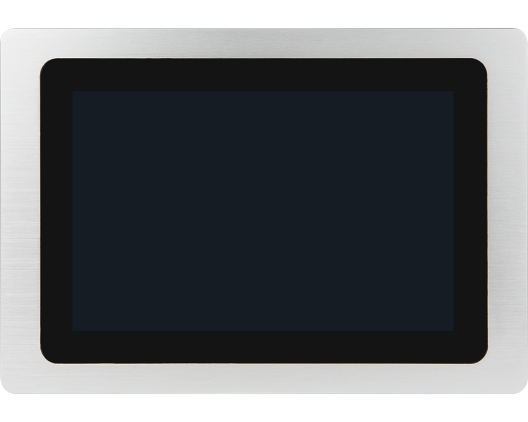

10.1" Fanless HMI Projective Capacitive Panel PC with Intel® Atom™ Processor

  • Low-power and fanless design perfectly fit industrial applications
  • 10.1" 1280x800 WXGA resolution LCD display
  • Projective Capacitive multi-touch solution
  • Surface Hardness:7H
  • IP65 dust/water-proof design for front panel
  • Support DC-in 12V/19V/24V
  • Intel® Celeron® Processor J1900, 2.00 GHz, Quad Core
Check HMI Panel PC Series promotion DM
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9Z03

Display

  • LCD Size
  • 10.1"
  • Resolution
  • 1280x800
  • Brightness (cd/m2)
  • 300
  • Contrast Ratio
  • 1300:1
  • Support Colors
  • 262K
  • Pixel Pitch (H/Vmm)
  • 0.1695X0.1695
  • Viewing Angle
  • H: 160 degree
    V: 160 degree
  • Touch Panel
  • Projective Capacitive tocuch panel

System Processor

  • CPU
  • Intel® Celeron® Processor J1900, QC, 10W
  • Frequency
  • 2.0 GHz, up to 2.42 GHz
  • L2 Cache
  • 2MB
  • Chipset
  • SoC

Memory

  • Technology
  • Single-channel DDR3L 1333 MHz
  • Max. Capacity
  • Up to 8 GB
  • Socket
  • 1 x 204-pin SO-DIMM

Graphic

  • Display Interface
  • VGA up to 2560 x 1600 @60Hz
    HDMI™ up to 1920 x 1080 @60Hz

Ethernet

  • Controller
  • 2 x Intel® I210-AT GbE LAN

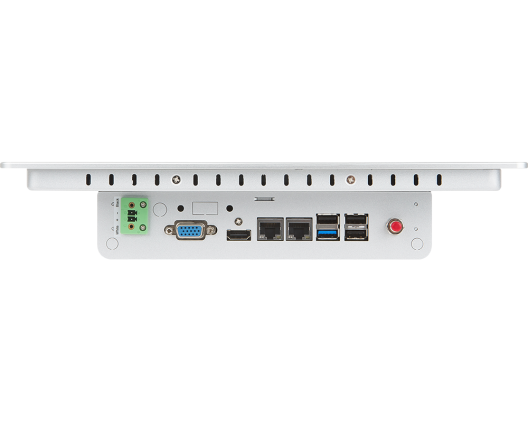

I/O Interface

  • VGA
  • 1
  • RJ-45
  • 2
  • USB
  • 1 x USB 3.0
    3 x USB 2.0

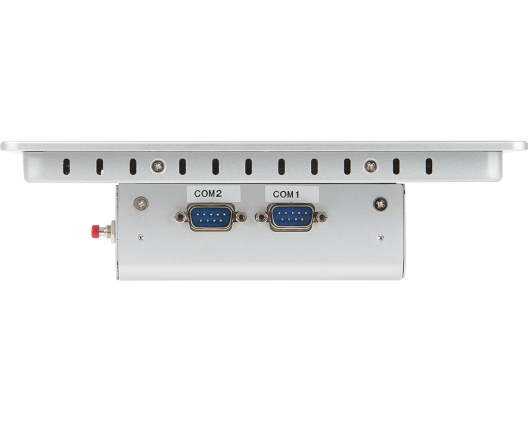

  • Serial
  • 2 x COM ports
    COM1: RS-232/422/485, 0V/5V/12V
    COM2: RS-232, 0V/5V/12V
  • HDMI
  • 1
  • Antenna
  • 1 opening reserved for antenna

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size (one w/ mSATA)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD
  • mSATA
  • 1

Power Supply

  • DC Input
  • DC-in 12V/19V/24V

Environment

  • IP Rating
  • IP65 Front
  • Operating Temperature
  • 0 ~ 45°C
  • Operating Humidity
  • 20%~90% RH
  • Storage Temperature
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing

Form Factor

  • Housing
  • Aluminum
  • Dimensions
  • 301.7 x 207.8 x57.5mm
  • Weight
  • 4 kg
  • Mounting
  • VESA 75, Panel Mount, Clip mount

Certification

  • EMC
  • CE (Class A)

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64-bit)

Ordering Information

  • Part Number
  • Description
  • S98-0100100-K99
  • 10.1", Projected Capacitive Touch Panel PC, Barebone, Baytrail J1900, USA power cord
  • S98-0100170-K99
  • 10.1", Projected Capacitive Touch Panel PC, Barebone, Baytrail J1900, EU power cord

Packing List

  • Part Number
  • Description
  • Coming soon
  • Adaptor 12V/60W
  • Coming soon
  • Power cable, USA
  • Coming soon
  • SATA Cable with Power
  • Coming soon
  • HDD Screw x 4
  • Coming soon
  • Clip Mount x 8
  • Coming soon
  • System Driver CD
  • Coming soon
  • Touch Panel Driver CD

BIOS

Attention:

Users who download BIOS from here (not using Live Update) should use the flash utility included in the downloaded compressed file when doing the BIOS update. To avoid BIOS update failure, please do not use older versions of the update utility or utilities not provided by MSI. We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2023-01-10

Version

120

File Size

3.32 MB

Type

BIOS

OS

Note

For 64Bit support Audio codec ALC888s

Driver

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

OS
  • All
  • Win10 64
  • Win8 64
  • Win 7 64
Lan Driver
Release Date

2018-01-23

Version

21.0

File Size

64.6 MB

Type

LAN Drivers

OS

Win10 64

Note

Lan Driver
Release Date

2018-01-23

Version

19.1

File Size

52.73 MB

Type

LAN Drivers

OS

Win 7 64

Note

Graphics Driver
Release Date

2018-01-23

Version

37.15.0.1073

File Size

66.28 MB

Type

On-Board VGA Drivers

OS

Win 7 64

Note

Graphics Driver
Release Date

2018-01-23

Version

15.33.43.64.4425

File Size

191.92 MB

Type

On-Board VGA Drivers

OS

Win10 64

Note

Audio Driver
Release Date

2016-07-25

Version

7841 PG445

File Size

317.71 MB

Type

On-Board Audio Drivers

OS

Win10 64

Note

TXE Driver
Release Date

2015-10-08

Version

1.1.4.1145

File Size

34.69 MB

Type

Others Drivers

OS

Win10 64

Note

USB 3.0 Driver
Release Date

2014-08-08

Version

3.0.0.34

File Size

11.65 MB

Type

Others Drivers

OS

Win 7 64

Note

MBI Driver
Release Date

2014-08-08

Version

1.70.305.16316

File Size

2.52 MB

Type

Others Drivers

OS

Win8 64

Note

Chipset Driver
Release Date

2014-07-01

Version

10.0.17

File Size

2.34 MB

Type

System & Chipset Drivers

OS

Win 7 64

Note

TXE Driver
Release Date

2014-07-01

Version

1.1.0.1113

File Size

35.12 MB

Type

Others Drivers

OS

Win 7 64

Note

Chipset Driver
Release Date

2014-01-27

Version

9.4.4.1006

File Size

5.86 MB

Type

System & Chipset Drivers

OS

Win8 64

Note

Data Sheet

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.

Release Date

2018-03-21

Version

File Size

0.34 MB

Language
