MS-9Z06

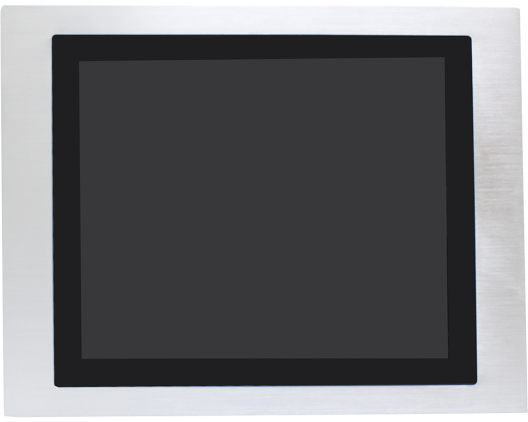

15" Front IP65 Fanless HMI Panel PC with Intel® Atom™ Processor

  • Low-power and fanless design perfectly fit industrial applications
  • 15" 1024x768 XGA resolution LCD display 5 wires resistive single-touch solution or Projective Capacitive touch panel
  • Surface Hardness: resistive 3H, P-CAP 7H
  • IP65 dust/water-proof design for front panel
  • Support DC-in 12V
  • Intel® Celeron® Processor J1900, 2.00 GHz, Quad Core
Check HMI Panel PC Series promotion DM
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-HMIC150A
  • MS-HMIR150A

Display

  • LCD Size
  • 15"
  • 15"
  • Resolution
  • 1024x768
  • 1024x768
  • Brightness (cd/m2)
  • 400
  • 400
  • Contrast Ratio
  • 700:1
  • 700:1
  • Support Colors
  • 16.2 M
  • 16.2 M
  • Pixel Pitch (H/Vmm)
  • 0.297 x 0.297
  • 0.297 x 0.297
  • Viewing Angle
  • H: 160 degree
    V: 140 degree
  • H: 160 degree
    V: 140 degree
  • Touch Panel
  • Projective Capacitive touch panel
  • 5-wire resistive touch panel

System Processor

  • CPU
  • Intel® Celeron® Processor J1900, QC, 10W
  • Intel® Celeron® Processor J1900, QC, 10W
  • Frequency
  • 2.0 GHz, up to 2.42 GHz
  • 2.0 GHz, up to 2.42 GHz
  • L2 Cache
  • 2MB
  • 2MB
  • Chipset
  • SoC
  • SoC

Memory

  • Technology
  • Dual-channel DDR3L 1333 MHz
  • Dual-channel DDR3L 1333 MHz
  • Max. Capacity
  • Up to 8GB
  • Up to 8GB
  • Socket
  • 1 x 204-pin SO-DIMMs(Optional 1)
  • 1 x 204-pin SO-DIMMs(Optional 1)

Graphic

  • Display Interface
  • VGA up to 2560 x 1600 @60Hz
  • VGA up to 2560 x 1600 @60Hz

Ethernet

  • Controller
  • 1 x Realtek® RTL8111G-CG GbE LAN
    Optional : 1
  • 1 x Realtek® RTL8111G-CG GbE LAN
    Optional : 1

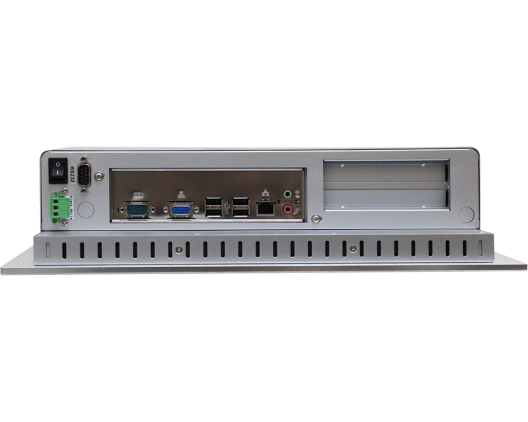

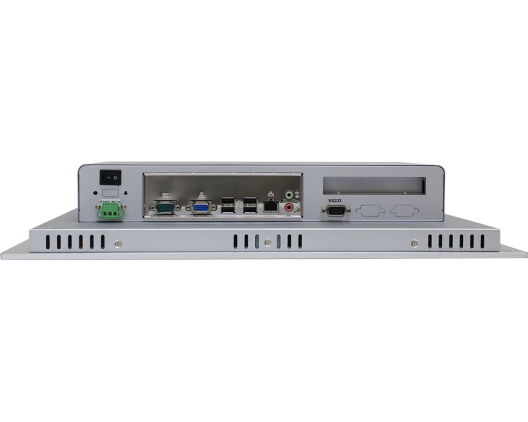

I/O Interface

  • PS/2
  • --
  • --
  • VGA
  • 1
  • 1
  • RJ-45
  • 2 (Optional 1)
  • 2 (Optional 1)
  • Audio
  • 1 x Mic-in, 1 x Line-out
  • 1 x Mic-in, 1 x Line-out
  • USB
  • 4 x USB 2.0
  • 4 x USB 2.0
  • Serial
  • 2 x COM ports
    COM1: RS-232, 0V/5V/12V
    COM2: RS-232, w/o power
  • 2 x COM ports
    COM1: RS-232, 0V/5V/12V
    COM2: RS-232, w/o power
  • HDMI
  • --
  • --
  • DVI
  • --
  • --
  • DisplayPort
  • --
  • --
  • Antenna
  • 1 opening reserved for antenna
  • 1 opening reserved for antenna

Expansion Slot

  • M.2
  • --
  • --
  • Mini-PCIe
  • 1 x Full-size (w/ mSATA)
  • 1 x Full-size (w/ mSATA)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD
  • 1 x 2.5" HDD/SSD
  • CFast
  • --
  • --
  • mSATA
  • 1
  • 1
  • CompactFlash
  • --
  • --

Power Supply

  • DC Input
  • DC-in 12V
  • DC-in 12V

Environment

  • IP Rating
  • IP65 Front
  • IP65 Front
  • Operating Temperature
  • 0°C ~ 45°C
  • 0°C ~ 45°C
  • Operating Humidity
  • 10% ~ 90% non-condensing
  • 10% ~ 90% non-condensing
  • Storage Humidity
  • 10% ~ 90% non-condensing
  • 10% ~ 90% non-condensing
  • Storage Temperature
  • -10°C ~ 70°C
  • -10°C ~ 70°C

Physical Characteristics

  • Housing
  • Aluminum
  • Aluminum
  • Dimensions
  • 441 x 322 x 81.1mm
  • 400.9 x 303.7 x 93mm
  • Weight
  • 10 kg
  • 9 kg
  • Mounting
  • VESA 100, Panel Mount, Clip mount
  • VESA 100, Panel Mount, Clip mount

Certification

  • EMC
  • CE (Class A)
  • CE (Class A)
  • Safety
  • --
  • --

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64-bit)
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64-bit)

Ordering Information

  • Part Number
  • Description
  • Coming soon
  • 15", 5-wire resistive Panel PC, 4GB memory, 120GB SSD, Baytrail J1900
  • Coming soon
  • 15", 5-wire resistive Panel PC, 4GB memory, 120GB SSD, Kaby Lake-U Core™ i3-7100U
  • Coming soon
  • 15", Projective Capacitive Panel PC, 4GB memory, 120GB SSD, Baytrail J1900
  • Coming soon
  • 15", Projective Capacitive Panel PC, 4GB memory, 120GB SSD, Kaby Lake-U Core™ i3-7100U

Packing List

  • Part Number
  • Description
  • Coming soon
  • Adaptor 12V/96W
  • Coming soon
  • Power cable, USA
  • Coming soon
  • USB 2.0 M12 Cable 1.2M x2
  • Coming soon
  • LAN M12 Cable 1.2M
  • Coming soon
  • COM M12 Cable 1.2M
