MS-9Z11

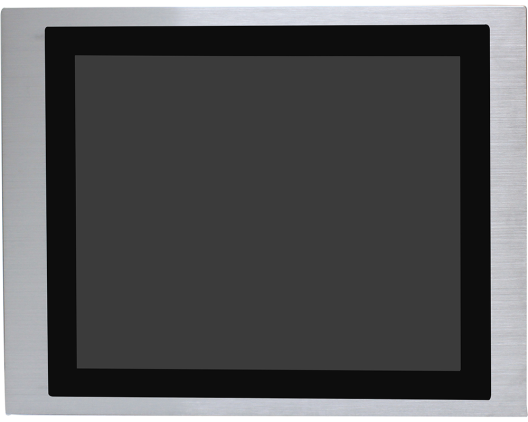

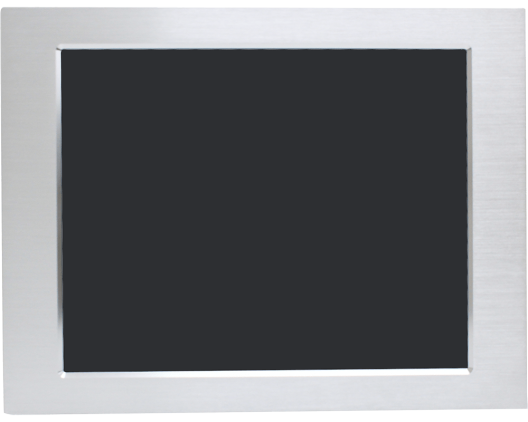

19" Front IP65 Fanless HMI Panel PC with Intel® Atom™ Processor
- Low-power and fanless design perfectly fit industrial applications
- 19" 1280x1024 SXGA resolution LCD display 5 wires resistive single-touch solution or Projective Capacitive touch panel
- Surface Hardness: resistive 3H, P-CAP 7H
- IP65 dust/water-proof design for front panel
- Support DC-in 12V
- Intel® Celeron® Processor J1900, 2.00 GHz, Quad Core
Products Specifications
- Part Number
- MS-HMIC190A
- MS-HMIR190A
Display
- LCD Size
- 19"
- 19"
- Resolution
- 1280x1024
- 1280x1024
- Brightness (cd/m2)
- 250
- 250
- Contrast Ratio
- 1000:1
- 1000:1
- Support Colors
- 16.7 M
- 16.7 M
- Pixel Pitch (H/Vmm)
- 0.294 x 0.294
- 0.294 x 0.294
- Viewing Angle
- H: 170 degree
V: 160 degree - H: 170 degree
V: 160 degree
- Touch Panel
- Projective Capacitive tocuch panel
- 5-wire resistive touch panel
System Processor
- CPU
- Intel® Celeron® Processor J1900, QC, 10W
- Intel® Celeron® Processor J1900, QC, 10W
- Frequency
- 2.0 GHz, up to 2.42 GHz
- 2.0 GHz, up to 2.42 GHz
- L2 Cache
- 2MB
- Chipset
- SoC
- SoC
Processor
- L2 Cache
- N/A
- 2MB
Memory
- Technology
- Dual-channel DDR3L 1333 MHz
- Dual-channel DDR3L 1333 MHz
- Max. Capacity
- Up to 8 GB
- Up to 8 GB
- Socket
- 1 x 204-pin SO-DIMMs (Optional 1)
- 1 x 204-pin SO-DIMMs
Optional : 1
Graphic
- Display Interface
- VGA up to 2560 x 1600
- VGA up to 2560 x 1600 @60Hz
Ethernet
- Controller
- Realtek® RTL8111G-CG GbE LAN
Optional : 1 - 1 x Realtek® RTL8111G-CG GbE LAN
Optional : 1

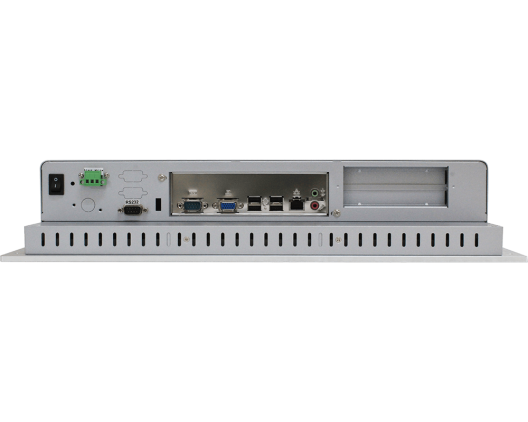

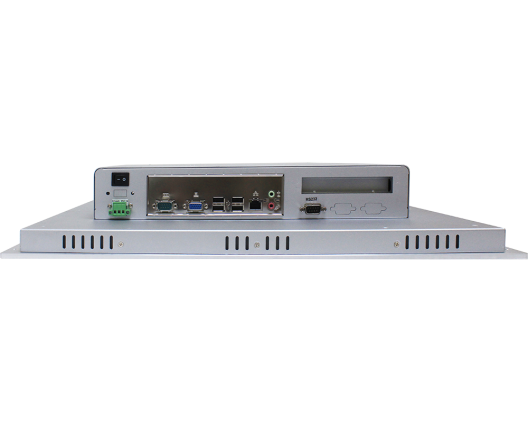

I/O Interface
- VGA
- 1
- 1
- RJ-45
- 2 (Optional 1)
- 2 (Optional 1)
- Audio
- 1 x Mic-in, 1 x Line-out
- 1 x Mic-in, 1 x Line-out
- USB
- 4 x USB 2.0
- 4 x USB 2.0
- Serial
- 2 x COM ports
COM1: RS-232, 0V/5V/12V
COM2: RS-232, w/o power - 2 x COM ports
COM1: RS-232, 0V/5V/12V
COM2: RS-232, w/o power
- Antenna
- 1 opening reserved for antenna
- 1 opening reserved for antenna
Expansion Slot
- Mini-PCIe
- 1 x Full-size (w/ mSATA)
- 1 x Full-size (w/ mSATA)
Storage
- SATA
- 1 x 2.5" HDD/SSD
- 1 x 2.5" HDD/SSD
- mSATA
- 1
- 1
Power Supply
- DC Input
- DC-in 12V
- DC-in 12V
- ATX
- 0 ~ 45°C
Environment
- IP Rating
- IP65 Front
- IP65 Front
- Operating Temperature
- 10 ~ 90%, non-condensing
- 0 ~ 45°C
- Operating Humidity
- -10 ~ 70°C
- 10 ~ 90%, non-condensing
- Storage Temperature
- 10 ~ 90%, non-condensing
- -10 ~ 70°C
- Storage Humidity
- N/A
- 10 ~ 90%, non-condensing
Form Factor
- Housing
- Aluminum
- Aluminum
- Dimensions
- 528 x 414 x 85mm
- 483 x 376.8 x 93.9mm
- Weight
- 14.5 kg
- 13.5 kg
- Mounting
- VESA 100, Panel Mount, Clip mount
- VESA 100, Panel Mount, Clip mount
Certification
- EMC
- CE (Class A)
- CE (Class A)
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit) - Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit)
