MS-9Z06

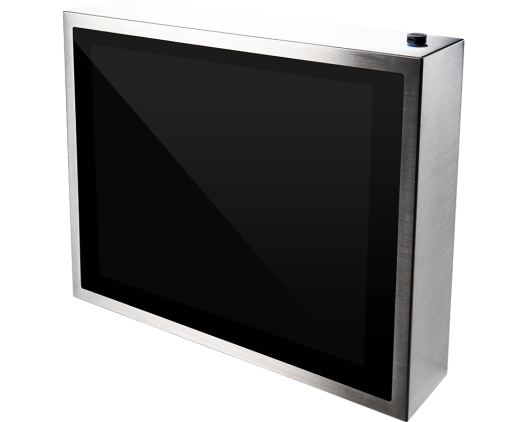

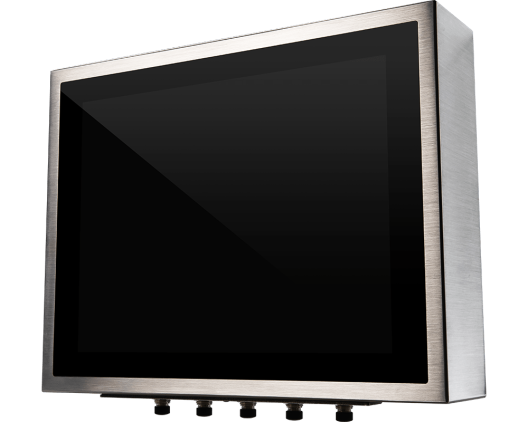

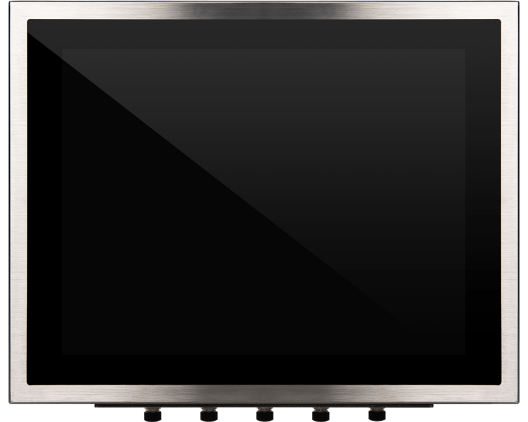

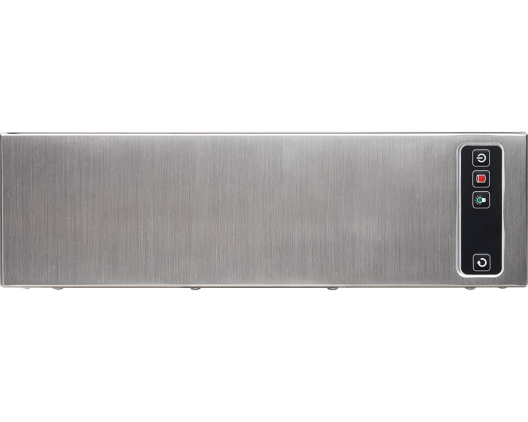

15" Full IP65 Fanless HMI Panel PC with Intel® Processor
- Low-power and fanless design perfectly fit industrial
- 15" 1024x768 XGA resolution LCD display
- 5 wires resistive single-touch solution or Projective Capacitive touch panel
- Surface Hardness: resistive 3H, P-CAP 6H
- IP65 dust/water-proof design for full system
- Support DC-in 12V
- Intel® Celeron® Processor J1900, 2.00 GHz, QC or Kaby Lake-U Core™ i3-7100U, 2.40 GHz, DC
Products Specifications
- Part Number
- MS-9Z06-SKU1
- MS-9Z06-SKU2
Display
- LCD Size
- 15"
- 15"
- Resolution
- 1024x768
- 1024x768
- Brightness (cd/m2)
- 300
- 300
- Contrast Ratio
- 2500:1
- 2500:1
- Support Colors
- 16.7 M
- 16.7 M
- Pixel Pitch (H/Vmm)
- 0.297 x 0.297
- 0.297 x 0.297
- Viewing Angle
- H: 176 degree
V: 176 degree - H: 176 degree
V: 176 degree
- Touch Panel
- 5-wire resistive touch panel or Projective Capacitive touch panel
- 5-wire resistive touch panel or Projective Capacitive touch panel
System Processor
- CPU
- Intel® Celeron® Processor J1900, QC, 10W
- 7th Gen Intel® Embedded Mobile Kaby
Lake-U Core™ i3-7100U Processor, DC, 15W
- Frequency
- 2.0 GHz, up to 2.42 GHz
- 2.40 GHz
- L2 Cache
- 2MB
- 3MB
- Chipset
- SoC
- SoC
Memory
- Technology
- Single-channel DDR3L 1333 MHz
- Single-channel DDR4 2133MHz
- Max. Capacity
- Up to 8 GB (Default 4GB)
- Up to 16 GB (Default 4GB)
- Socket
- 1 x 204-pin SO-DIMMs
- 1 x 260-pin SO-DIMM
Ethernet
- Controller
- 1 x Intel® I210-AT GbE LAN
- 1 x Intel® I210-AT GbE LAN
Expansion Slot
- Mini-PCIe
- 1 x Full-size
- 2 x Full-size
(Mini-PCIe1 Slot w/ NANO SIM-Holder)
(Mini-PCIe2 Slot w/ mSATA)
Storage
- SATA
- 1 x 2.5" HDD/SSD (Default 128GB SSD)
- 1 x 2.5" HDD/SSD (Default 128GB SSD)
- mSATA
- --
- 1 (Shared with Mini-PCIe2)

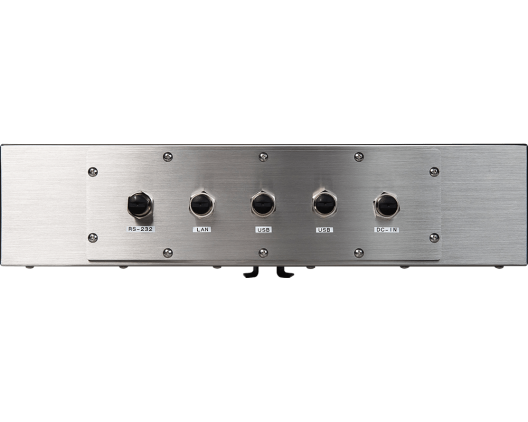

I/O Interface
- RJ-45
- 1
- 1
- USB
- 2 x USB 2.0
- 2 x USB 2.0
- Serial
- 1 x COM
COM1: RS-232, w/o power - 1 x COM
COM1: RS-232, w/o power
Power Supply
- DC Input
- DC-in 12V
- DC-in 12V
Environment
- IP Rating
- Full IP65
- Full IP65
- Operating Temperature
- 0° ~ 50°C
- 0° ~ 50°C
- Operating Humidity
- 10% ~ 90% non-condensing
- 10% ~ 90% non-condensing
- Storage Humidity
- 10% ~ 90% non-condensing
- 10% ~ 90% non-condensing
- Storage Temperature
- -20° ~ 60°C
- -20° ~ 60°C
Physical Characteristics
- Housing
- Stainless-Steel 304
- Stainless-Steel 304
- Dimensions
- 388.6mm x 303mm x 90mm
- 388.6mm x 303mm x 90mm
- Weight
- 8.5 Kg
- 8.5 Kg
- Mounting
- VESA 75
- VESA 75
Certification
- EMC
- FCC, CE Class B
- FCC, CE Class B
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit) - Windows 10 (64-bit)
