MS-9Z11

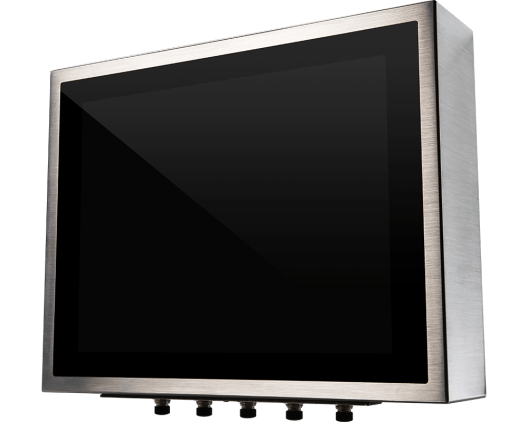

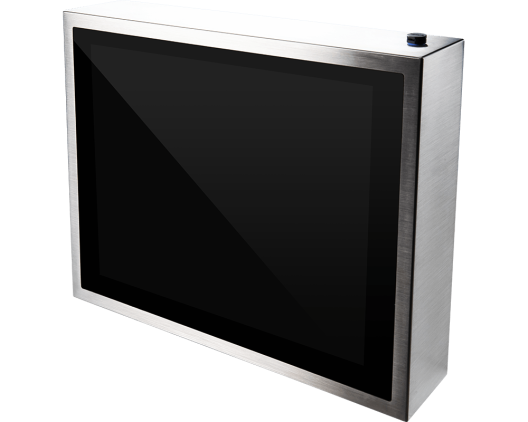

19" Full IP65 Fanless HMI Panel PC with Intel® Processor

  • Low-power and fanless design perfectly fit industrial
  • 19" 1280x1024 XGA resolution LCD display
  • 5 wires resistive single-touch solution or Projective Capacitive touch panel
  • Surface Hardness: resistive 3H, P-CAP 6H
  • IP65 dust/water-proof design for full system
  • Support DC-in 12V
  • Intel® Celeron® Processor J1900, 2.00 GHz, QC or Kaby Lake-U Core™ i3-7100U, 2.40 GHz, DC
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9Z11-SKU1
  • MS-9Z11-SKU2

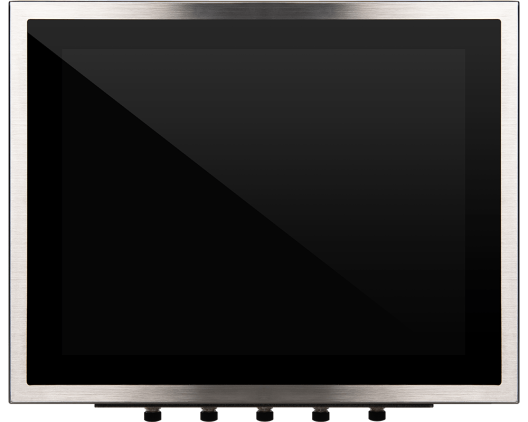

Display

  • LCD Size
  • 19"
  • 19"
  • Resolution
  • 1280x1024
  • 1280x1024
  • Brightness (cd/m2)
  • 350
  • 350
  • Contrast Ratio
  • 1000:1
  • 1000:1
  • Support Colors
  • 16.7M
  • 16.7M
  • Pixel Pitch (H/Vmm)
  • 0.294 x 0.294
  • 0.294 x 0.294
  • Viewing Angle
  • H: 170 degree
    V: 160 degree
  • H: 170 degree
    V: 160 degree
  • Touch Panel
  • 5-wire resistive touch panel or Projective Capacitive touch panel
  • 5-wire resistive touch panel or Projective Capacitive touch panel

System Processor

  • CPU
  • Intel® Celeron® Processor J1900, QC, 10W
  • 7th Gen Intel® Embedded Mobile Kaby
    Lake-U Core™ i3-7100U Processor, DC, 15W
  • Frequency
  • 2.0 GHz, up to 2.42 GHz
  • 2.40 GHz
  • L2 Cache
  • 2MB
  • 3MB
  • Chipset
  • SoC
  • SoC

Memory

  • Technology
  • Single-channel DDR3L 1333 MHz
  • Single-channel DDR4 2133MHz
  • Max. Capacity
  • Up to 8 GB (Default 4GB)
  • Up to 16 GB (Default 4GB)
  • Socket
  • 1 x 204-pin SO-DIMMs
  • 1 x 260-pin SO-DIMM

Ethernet

  • Controller
  • 1 x Intel® I210-AT GbE LAN
  • 1 x Intel® I210-AT GbE LAN

Expansion Slot

  • Mini-PCIe
  • 1 x Full-size
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD (Default 128GB SSD)
  • 1 x 2.5" HDD/SSD (Default 128GB SSD)
  • mSATA
  • 1 (Shared with Mini-PCIe2)

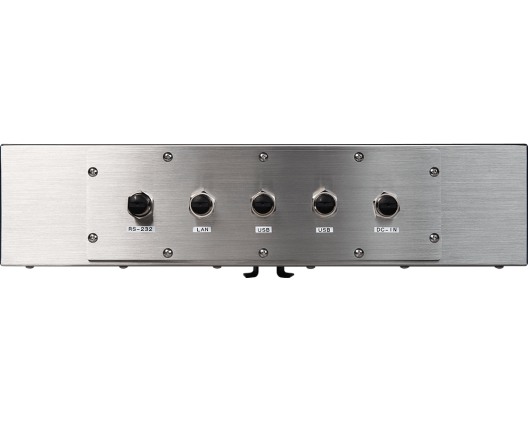

I/O Interface

  • RJ-45
  • 1
  • 1
  • USB
  • 2 x USB 2.0
  • 2 x USB 2.0
  • Serial
  • 1 x COM
    COM1: RS-232, w/o power
  • 1 x COM
    COM1: RS-232, w/o power

Power Supply

  • DC Input
  • DC-in 12V
  • DC-in 12V

Environment

  • IP Rating
  • Full IP65
  • Full IP65
  • Operating Temperature
  • 0° ~ 50°C
  • 0° ~ 50°C
  • Operating Humidity
  • 10% ~ 90% non-condensing
  • 10% ~ 90% non-condensing
  • Storage Temperature
  • -20° ~ 60°C
  • -20° ~ 60°C
  • Storage Humidity
  • 10% ~ 90% non-condensing
  • 10% ~ 90% non-condensing

Physical Characteristics

  • Housing
  • Stainless-Steel 304
  • Stainless-Steel 304
  • Dimensions
  • 437.8mm x 392mm x 90mm
  • 437.8mm x 392mm x 90mm
  • Weight
  • 12 Kg
  • 12 Kg
  • Mounting
  • VESA 75
  • VESA 75

Certification

  • EMC
  • FCC, CE Class B
  • FCC, CE Class B

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64-bit)
  • Windows 10 (64-bit)

Ordering Information

  • Part Number
  • Description
  • Coming soon
  • 19", 5-wire resistive Panel PC, 4GB memory, 120GB SSD, Baytrail J1900
  • Coming soon
  • 19", 5-wire resistive Panel PC, 4GB memory, 120GB SSD, Kaby Lake-U Core™ i3-7100U
  • Coming soon
  • 19", Projective Capacitive Panel PC, 4GB memory, 120GB SSD, Baytrail J1900
  • Coming soon
  • 19", Projective Capacitive Panel PC, 4GB memory, 120GB SSD, Kaby Lake-U Core™ i3-7100U

Packing List

  • Part Number
  • Description
  • Coming soon
  • Adaptor 12V/96W
  • Coming soon
  • Power cable, USA
  • Coming soon
  • USB 2.0 M12 Cable 1.2M x2
  • Coming soon
  • LAN M12 Cable 1.2M
  • Coming soon
  • COM M12 Cable 1.2M
