MS-9A95

Slim Fanless Box PC with Intel® Skylake/Kaby Lake ULT, High Performance & Low-Power for 4K2K Digital Signage Player, KIOSK, Automation & AIoT Edge Computer

  • Intel® 7th/6th Gen Kaby Lake-U/Skylake-U Series
  • 2 DDR4 2133 MHz SODIMM slots up to 32GB
  • Triple independent displays: DVI-I, 2 DP(2 HDMI™ by option)
  • HDMI™ 2.0
  • 2 GbE LAN with RJ-45
  • 1 M.2 E Key, 1 Mini-PCIe (Full size, with mSATA/SIM Holder) slots, 1 Mini-PCIe (Half size) slots
  • mSATA, 1 SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
  • 4 USB 3.2 Gen 1, 2 USB 2.0, 2 COM, Audio, S/PDIF
  • Onboard TPM 1.2
  • Easy access all on bottom side for 2 Memory, 2 Mini-PCIe, SIM Card Slot, 2.5”HDD
  • Cableless design with proprietary board
  • DC-IN 19V
  • Slim & fanless design with thinness 29mm

Products Specifications

  • Part Number
  • MS-9A95

System Processor

  • CPU
  • 7th/6th Gen Intel® Mobile Kaby Lake-U/Skylake-U Core™ i7/i5/i3/ Celeron® Processor, DC, 15W
  • Frequency
  • 2.0GHz~3.9GHz (Depends on CPU)
  • L2 Cache
  • 2MB~4MB (Depends on CPU)
  • CPU Type
  • BGA
  • Chipset
  • ntegrated
  • BIOS
  • AMI

Memory

  • Technology
  • Dual-channel for DDR4 2133 MHz
  • Max. Capacity
  • Up to 32GB
  • Socket
  • 2 x 260-pin SO-DIMMs

Graphic

  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Multiple Display
  • 3 independent displays
  • Display Interface
  • HDMI™ up to 4096 x 2160 @60Hz
    DP up to to 4096x 2304 @60Hz
    DVI-I up to 1920x 1200 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I219LM GbE LAN PHY
    1 x Intel® I210-AT GbE LAN

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer

TPM

  • Controller
  • Infineon SLB9665TT2.0

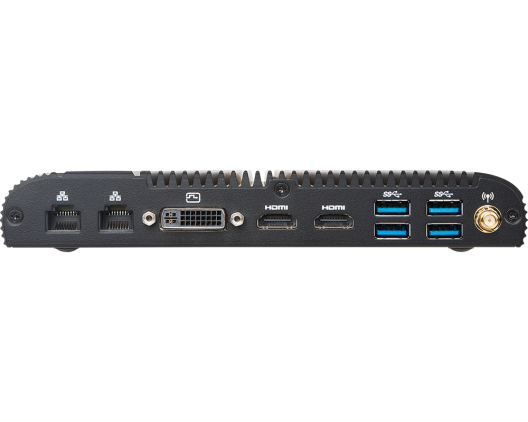

I/O Interface

  • VGA
  • 1 (DVI-I to VGA dongle)
  • RJ-45
  • 2
  • Audio
  • 1 x SPDIF-out
    1 x Line-out(Mic-in by AP driver)
  • USB
  • 2 x USB 2.0
    4 x USB 3.2 Gen 1
  • Serial
  • 2 x COM ports
    COM1: RS-232/422/485, 0V/5V/12V
    COM2: RS-232, 0V
  • HDMI
  • 2 (Co-lay with DP)
  • DVI
  • 1 (DVI-I)
  • DisplayPort
  • 2(Colay with HDMI™)
  • Antenna
  • 2 openings reserved for antennas

Expansion Slot

  • M.2
  • 1 x E Key (PCIe x2, USB 2.0), 2230
  • Mini-PCIe
  • 1 x Full-size (one w/ SIM holder or mSATA)
    1 x Half-size

Storage

  • SATA
  • 1 x 2.5" HDD/SSD (7mm)
  • mSATA
  • 1 (shared with mini-PCIe)

Power Supply

  • DC Input
  • DC-in 19V with Lockable DC Jack

Environment

  • IP Rating
  • Full IP40
  • Operating Temperature
  • -10 ~ 50°C (SSD), -10 ~ 40°C (HDD)
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • Vibration
  • Operating: IEC 60068-2-64: 2 Grms, 5 ~500 Hz, 1hr/axis (w/ SSD)
  • Shock
  • Operating: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)

Physical Characteristics

  • Dimensions
  • 196 x 285 x 29mm
  • Weight
  • 2.25 Kg
  • Mounting
  • VESA/Wall mount, DIN Rail

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • Safety
  • BSMI, CB

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (64-bit)
    Windows 10 (64-bit)
    Linux Fedora 25
    Linux Ubuntu 17.04
