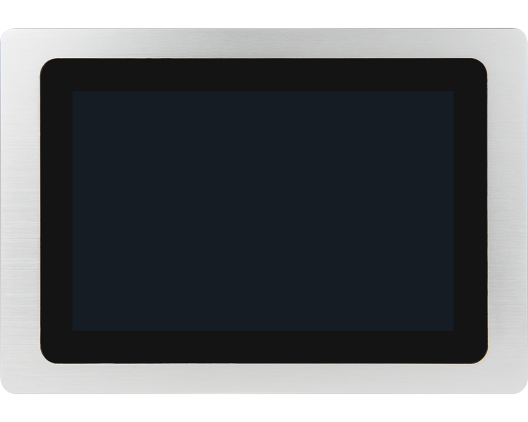

MS-9Z01
7" Fanless HMI Projective Capacitive Panel PC with Intel® Atom™ Processor
- Low-power and fanless design perfectly fit industrial applications
- 7" 1024x600 WSVGA resolution LCD display
- Projective Capacitive multi-touch solution
- Surface Hardness:7H
- IP65 dust/water-proof design for front panel
- Support DC-in 12V/19V/24V
- Intel® Celeron® Processor J1900, 2.00 GHz, Quad Core
Products Specifications
- Part Number
- MS-9Z01
Display
- LCD Size
- 7"
- Resolution
- 1024x600
- Brightness (cd/m2)
- 320
- Contrast Ratio
- 500:1
- Support Colors
- 16.7 M
- Pixel Pitch (H/Vmm)
- 0.15 x 0.15
- Viewing Angle
- H: 150 degree
V: 145 degree
- Touch Panel
- Projective Capacitive tocuch panel
System Processor
- CPU
- Intel® Celeron® Processor J1900, QC, 10W
- Frequency
- 2.0 GHz, up to 2.42 GHz
- L2 Cache
- 2MB
- Chipset
- SoC
Memory
- Technology
- Single-channel DDR3L 1333 MHz
- Max. Capacity
- Up to 8 GB
- Socket
- 1 x 204-pin SO-DIMM
Graphic
- Display Interface
- VGA up to 2560 x 1600 @60Hz
HDMI™ up to 1920 x 1080 @60Hz
Ethernet
- Controller
- 2 x Intel® I210-AT GbE LAN

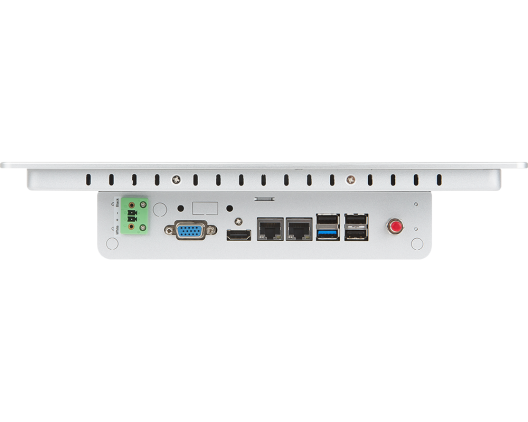

I/O Interface
- VGA
- 1
- RJ-45
- 2
- USB
- 1 x USB 3.0
3 x USB 2.0

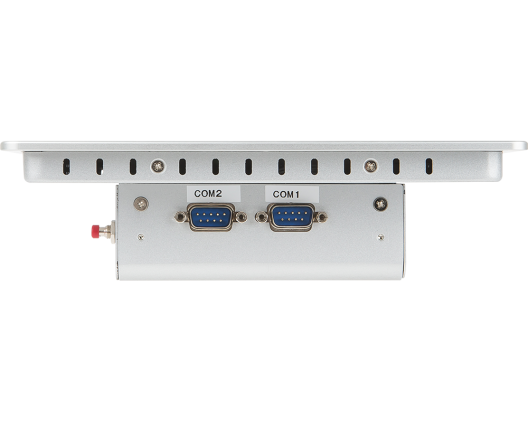

- Serial
- 2 x COM ports
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232, 0V/5V/12V
- HDMI
- 1
- Antenna
- 1 opening reserved for antenna
Expansion Slot
- Mini-PCIe
- 2 x Full-size (one w/ mSATA)
Storage
- SATA
- 1 x 2.5" HDD/SSD
- mSATA
- 1
Power Supply
- DC Input
- DC-in 12V/19V/24V
Environment
- IP Rating
- IP65 Front
- Operating Temperature
- 0 ~ 45°C
- Operating Humidity
- 20%~90% RH
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Housing
- Aluminum
- Dimensions
- 232.3 x 166 x 62mm
- Weight
- 3 kg
- Mounting
- VESA 75, Panel Mount, Clip mount
Certification
- EMC
- CE (Class A)
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit)
