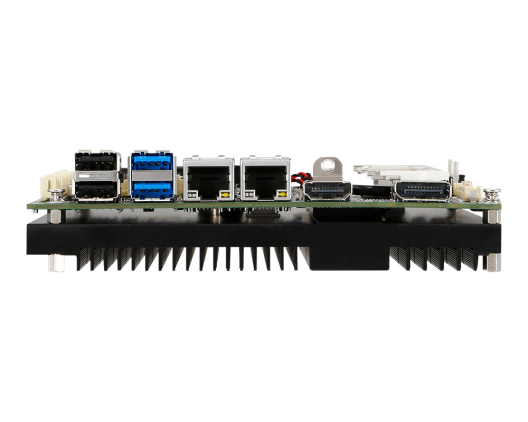

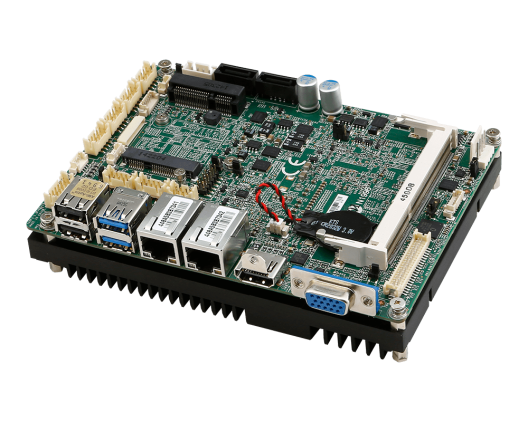

MS-98F3

3.5" SBC with Intel® HSW/BDW ULT Series Platform for High-Performance, Low-Power & Fanless Solution

  • Intel® Haswell/Broadwell ULT Series
  • DDR3L 1333/1600 MHz SODIMM up to 8GB
  • Triple independent displays: VGA(DP by option), HDMI, LVDS
  • 2 GbE LAN with RJ-45
  • 2 USB 3.2 Gen 1, 4 USB 2.0, 4 COM (1 RS-485), GPIO, PS/2
  • Mini-PCIe (Full-size with mSATA), Mini-PCIe (Half-size) Slots
  • 2 SATA 3.0 for storage
  • DC-IN 12/19/24V
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-98F3

Processor

  • CPU
  • Intel® Core™ i5-4300U/i3-4010U Processors, DC, 15W
    Intel® Core™ i7-5650U/i5-5350U/i3- 5010U/3765U Processors, DC, 15W
  • Frequency
  • i5-4300U, 1.9GHz, up to 2.9GHz
    i3-4010U, 1.7GHz
    i7-5650U, 2.2GHz, up tp 3.1GHz
    i5-5350U, 1.8GHz, up to 2.9GHz
    i3-5010U, 2.1GHz
    3765U, 1.9GHz
  • L2 Cache
  • 2MB~4MB (Depends on CPU)
  • CPU Type
  • BGA
  • BIOS
  • AMI

Memory

  • Technology
  • Single-channel DDR3L 1600 MHz
  • Max. Capacity
  • Up to 8GB
  • Socket
  • 1 x 204-pin SO-DIMMs

Display

  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • LVDS
  • Dual channel 18/24-bit
  • VGA
  • 1 (optional)
  • HDMI
  • 1
  • DisplayPort
  • 1 (optional)
  • Multiple Display
  • 3 Independent Displays
  • Display Interface
  • VGA up to 1920 x 1200 @60Hz
    HDMI up to 2560 x 1600 @60Hz
    LVDS up to 1920 x 1200 @60Hz
    DP up to 3840 x 2160 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I210-AT GbE LAN
    1 x Intel® I218-LM GbE LAN PHY

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec

Super I/O

  • Controller
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer

I/O Interface

  • PS/2
  • 1 (pin header)
  • USB
  • 4 x USB 2.0 (2 x internal; 2 x rear)
    2 x USB 3.2 Gen 1 (2 x rear with USB 2.0 signal)
  • Serial
  • 4 x COM (internal)
    COM1: RS-232/422/485, 0V/5V/12V
    COM2~4: RS-232, 0V/5V/12V
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

  • Mini-PCIe
  • 1 x Full-size (w/ mSATA)
    1 x Half-size

Storage

  • SATA
  • 2 x SATA 3.0
  • mSATA
  • 1

Power Supply

  • DC Input
  • DC-in 12V/19V/24V

Environment

  • Operating Temperature
  • 0 ~ 60°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • 20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing

Form Factor

  • Dimensions
  • 146 x 102mm (3.5")
  • Weight
  • 0.56 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 7 (64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64-bit)
    Linux Fedora 19 (by request)
    Linux Ubuntu 13.04 (by request)

Ordering Information

  • Part Number
  • Description
  • 919-98F3-009
  • MS-98F3\609-98F3-110\809-98F3-008 VER11 STD Intel HSW ULT i3-4010U,DDR3 SO DIMM+VGA+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-011
  • MS-98F3\609-98F3-130\809-98F3-008 VER11 OPT:B Intel HSW ULT i5-4300U,DDR3 SO DIMM+VGA+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-013
  • MS-98F3\609-98F3-150\809-98F3-010 VER11 OPT:D Intel BDW ULT i3-5010U,DDR3 SO DIMM+VGA+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-014
  • MS-98F3\609-98F3-160\809-98F3-010 VER11 OPT:E Intel BDW ULT i7-5650U,DDR3 SO DIMM+VGA+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-015
  • MS-98F3\609-98F3-170\809-98F3-010 VER11 OPT:F Intel BDW ULT i3-5010U,DDR3 SO DIMM+DP+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-016
  • MS-98F3\609-98F3-180\809-98F3-010 VER11 OPT:G Intel BDW ULT i5-5350U,DDR3 SO DIMM+VGA+HDMI+LVDS+2*Mini- PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V
  • 919-98F3-017
  • MS-98F3\609-98F3-210\809-98F3-010 VER11 OPT:J Intel BDW ULT 3765U 3.5" DDR3L SO-DIMM, VGA+HDMI+LVDS+2*Mini-PCIe+2*L AN+2*SATA3+2*USB3+4*USB2+4*COM+DC-IN 12V/19V/24V, SATA CABLE+SATA POWER CABLE+USB CABLE+COM CALBE+DC POWER CABLE, CD, SINGLE
  • 919-98F3-018
  • MS-98F3\609-98F3-220\809-98F3-010 VER11 OPT:K Intel BDW ULT i7-5650U,DDR3 SO DIMM+DP+HDMI+LVDS+2*Mini-PCIe+2*LAN+ 2*SATA3.0+2*USB3.0+4*USB 2.0+4*COM,DC 12V/19V/24V

Packing List

  • Part Number
  • Description
  • Quantity
  • G71-SEDC161-N56(HSW ULT SKU)
    G71-SEDC162-N56(BDW ULT SKU)
  • Driver DVD
  • 1
  • K10-3002145-V03
  • DC Power Cable, 120mm
  • 1
  • K14-1009062-V03
  • COM Port Cable, 250mm
  • 1
  • K1B-3008034-V03
  • USB Cable, 150mm
  • 1
  • K1D-1012064-V03
  • SATA Cable with Power, 200mm
  • 1
  • K1D-3008006-V03
  • SATA Cable, 300mm
  • 1

BIOS

Attention:

Users who download BIOS from here (not using Live Update) should use the flash utility included in the downloaded compressed file when doing the BIOS update. To avoid BIOS update failure, please do not use older versions of the update utility or utilities not provided by MSI. We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2016-08-08

Version

210

File Size

5.7 MB

Type

BIOS

OS

Note

For Boardwell ULT SKU

Release Date

2014-09-26

Version

100

File Size

5.46 MB

Type

BIOS

OS

Note

For Haswell ULT SKU

Driver

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

OS
  • All
  • Win10 64
  • Win8.1 64
  • Win8.1 32
  • Win7 64
  • Win7 32
Lan Driver
Release Date

2016-08-08

Version

19.0

File Size

31.71 MB

Type

LAN Drivers

OS

Win7 64, Win8.1 64

Note

Lan Driver
Release Date

2016-08-08

Version

19.0

File Size

20.69 MB

Type

LAN Drivers

OS

Win8.1 32

Note

VGA Driver
Release Date

2016-08-08

Version

3496

File Size

213.54 MB

Type

On-Board VGA Drivers

OS

Win7 64, Win8.1 64, Win8.1 32

Note

ME Driver
Release Date

2016-08-08

Version

9.5.21.1754

File Size

68.56 MB

Type

Others Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

VGA Driver
Release Date

2016-08-08

Version

15.40.25.64.4463

File Size

202.69 MB

Type

On-Board VGA Drivers

OS

Win10 64

Note

RST Driver
Release Date

2016-08-08

Version

13.2.0.1016

File Size

13.46 MB

Type

Others Drivers

OS

Win7 32

Note

RST Driver
Release Date

2016-08-08

Version

13.2.0.1016

File Size

14.53 MB

Type

Others Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

MEI Driver
Release Date

2016-08-08

Version

10.0.30.1072

File Size

101.02 MB

Type

Others Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

Chipset Driver
Release Date

2016-08-08

Version

10.0.22

File Size

5.21 MB

Type

System & Chipset Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note



VGA Driver
Release Date

2016-08-08

Version

15.36.13.64.4062

File Size

189.31 MB

Type

On-Board VGA Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

Audio Driver
Release Date

2016-08-08

Version

R2.75

File Size

221.84 MB

Type

On-Board Audio Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

Audio Driver
Release Date

2016-07-25

Version

7841 PG445

File Size

317.71 MB

Type

On-Board Audio Drivers

OS

Win10 64

Note

Chipset Driver
Release Date

2016-07-25

Version

10.1.1.27

File Size

2.94 MB

Type

System & Chipset Drivers

OS

Win10 64

Note

AMT Driver
Release Date

2016-06-15

Version

11.0.5.1192

File Size

121.98 MB

Type

Others Drivers

OS

Win10 64

Note

RST Driver
Release Date

2016-06-01

Version

14.8.0.1042

File Size

13.42 MB

Type

Others Drivers

OS

Win10 64

Note

LAN Driver
Release Date

2015-10-29

Version

19.5

File Size

54.27 MB

Type

On-Board VGA Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

LAN Driver
Release Date

2015-10-06

Version

20.2

File Size

77.57 MB

Type

LAN Drivers

OS

Win10 64

Note

USB 3.0 Driver
Release Date

2015-04-07

Version

3.0.2.54

File Size

5.23 MB

Type

Others Drivers

OS

Win7 32, Win7 64

Note

Audio Driver
Release Date

2014-09-26

Version

R2.73

File Size

195.37 MB

Type

On-Board Audio Drivers

OS

Win7 64, Win8.1 64, Win8.1 32

Note

Chipset Driver
Release Date

2014-09-26

Version

9.4.0.1027

File Size

5.23 MB

Type

System & Chipset Drivers

OS

Win7 32, Win7 64, Win8.1 64, Win8.1 32

Note

RST Driver
Release Date

2014-09-26

Version

13.0.0.1098

File Size

13.69 MB

Type

Others Drivers

OS

Win7 64, Win8.1 64, Win8.1 32

Note

USB 3.0 Driver
Release Date

2014-09-26

Version

3.0.0.19

File Size

6.4 MB

Type

Others Drivers

OS

Win7 64

Note

Audio Driver
Release Date

2014-09-26

Version

R2.75

File Size

221.89 MB

Type

On-Board Audio Drivers

OS

Win7 32

Note

VGA Driver
Release Date

2014-09-26

Version

15.33.26.3855

File Size

68.14 MB

Type

On-Board VGA Drivers

OS

Win7 32

Note

LAN Driver
Release Date

2014-08-08

Version

19.1

File Size

52.73 MB

Type

LAN Drivers

OS

Win7 32

Note

USB 3.0 Driver
Release Date

2014-08-08

Version

3.0.0.34

File Size

11.65 MB

Type

Others Drivers

OS

Win7 32

Note

Utility

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

MSI HIDAC Utility
Release Date

2020-01-31

Version

20200131

File Size

0.43 MB

Type

Utility

OS

Note

Manual

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.An easy guide for you to assemble your PC step by step, please refer to "Quick Installation Guide"..

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2018-08-20

Version

2.1

File Size

1.48 MB

Type

Manual

Data Sheet

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.

Release Date

2020-02-07

Version

File Size

0.55 MB

Language

Inquiry
