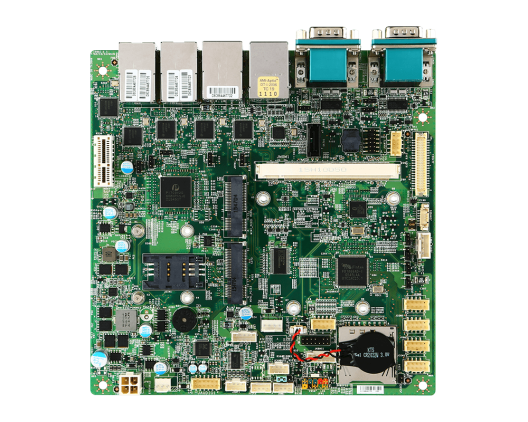

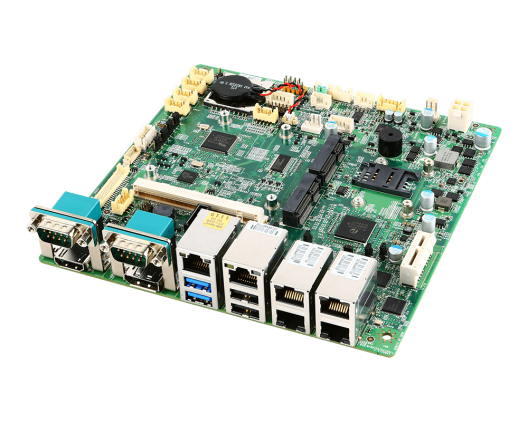

MS-99A1

Qseven R2.0 Compliant Carrier Board in Mini-ITX for 6 GLAN & 7 COM Solution

  • Triple independent displays: DP/DP++, HDMI™, eDP
  • 6 GbE LAN with RJ-45 (one for Qseven module board)
  • 1 PCIe x1, 1 Mini-PCIe (Full/Half size, with SIM Holder), 1 Mini- PCIe (Full/Half size, with mSATA) slots
  • mSATA, SATA 3.0, SD for storage
  • 2 USB 3.2 Gen 1, 3 USB 2.0, 7 COM (1 for Qseven module board), PS/2, Audio
  • SMBus, I2C, CAN Bus expansion
  • Compliant with Qseven specifications revision 2.0
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-99A1

Processor

  • BIOS
  • AMI

Display

  • LVDS
  • Dual channel 18/24-bit (depends on module board)
  • HDMI
  • 1
  • DisplayPort
  • 1
  • Multiple Display
  • 3 independent displays
  • Display Interface
  • Depends on module board

Ethernet

  • Controller
  • 5 x Intel® I211-AT GbE LAN (6 GLAN SKU)
    1 x Intel® I211-AT GbE LAN (2 GLAN SKU)

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec

Super I/O

  • Controller
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes

TPM

  • Controller
  • Pin header

I/O Interface

  • PS/2
  • 1 (box header)
  • USB
  • 3 x USB 2.0 (2 x rear; 1 x internal)
    2 x USB 3.2 Gen 1 (rear)
  • Serial
  • 6 x COM ports
    COM1: RS-232/422/485, 0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, 0V/5V/12V
    1 x UART Port (from Qseven module board)
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

  • PCIe x1
  • 1
  • Mini-PCIe
  • 2 x Full-size (one w/ mSATA)

Storage

  • SATA
  • 1 x SATA 3.0
  • mSATA
  • 1

Power Supply

  • DC Input
  • DC-in 12V

Environment

  • Operating Temperature
  • -10 ~ 60°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing

Form Factor

  • Dimensions
  • 170 x 170mm (Mini-ITX)
  • Weight
  • 0.242 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Depends on CPU Module Board

Ordering Information

  • Part Number
  • Description
  • 919-99A1-002
  • MS-99A1 VER 12 STD QSEVEN CARRIER BOARD, MXM CONNECTOR,DP,HDMI™,LVDS,6GLAN,5USB, 6COM,UART,PCIe x1,Mini-PCIe,mSATA,SIM Holder, SMBus,I2C,DC-IN 12V,SATA CABLE ,SATA POWER CABLE,DC-IN CABLE,CD,SINGLE

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-3008006-V03
  • SATA Power Cable, 300mm
  • 1
  • K1D-1008261-V03
  • SATA Cable, 500mm
  • 1
  • K10-3004215-V03
  • DC-IN Cable, 160mm
  • 1

Optional Item

  • Part Number
  • Description
  • K14-1018003-V03
  • COM Port Cable, 300mm
