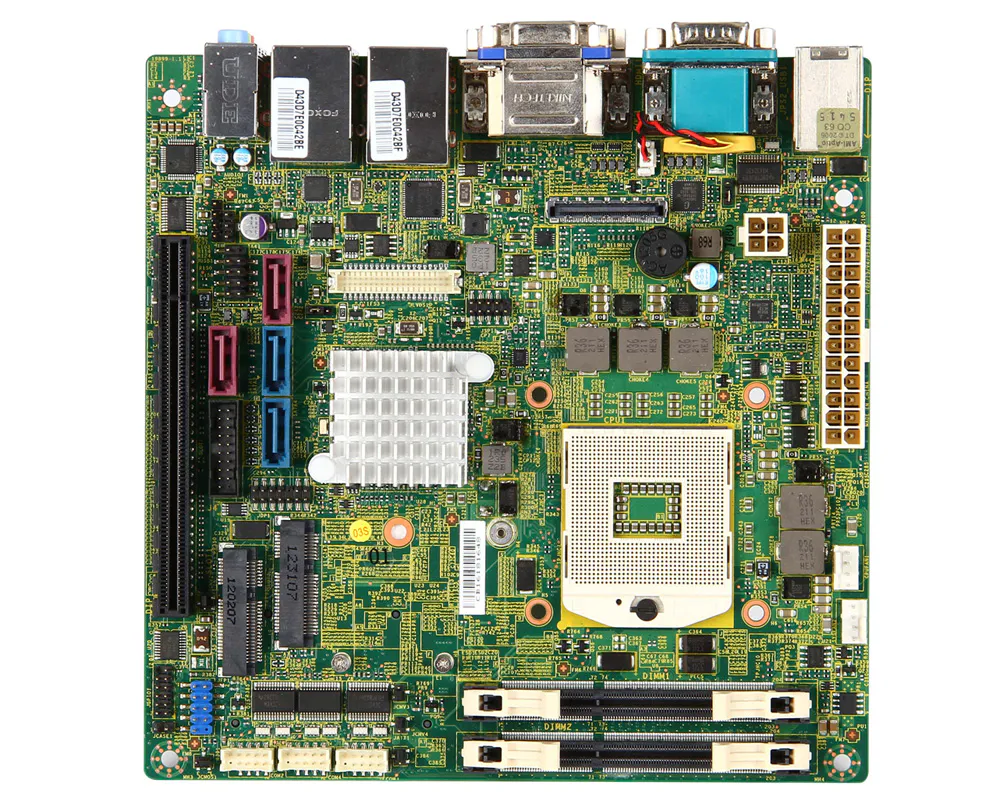

Mini-ITX with 3rd Gen Intel® Core™ & Celeron® Processor and Intel® HM76/QM77 for Multi-Displays
- Supports Intel® Ivy Bridge and Sandy Bridge Mobile series CPU
- Supports standard and low-voltage DDR3 SO-DIMM memory up to 16GB
- 4 types of display interface: VGA, HDMI™, DVI and LVDS
- Supports SATA 3.0, mSATA, and CFast slots
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
- MS-9899
Processor
- CPU
- 3rd Intel® Core™ i7/i5/i3 Mobile Processor
- Frequency
- Depends on CPU
- L2 Cache
- Depends on CPU
- CPU Type
- Socket G2 (rPGA 989)
- Chipset
- Intel® QM77/HM76 Express
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3/DDR3L 1066/1333/1600MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Shared system memory up to 1.7 GB SDRAM
- LVDS
- Dual channel 24-bit
- VGA
- 1
- DVI
- 1 (DVI-D; only for QM77)
- HDMI
- 1 (only for QM77)
- Multiple Display
- 2 Independent displays
- Display Interface
- LVDS up to 1920 x 1200 @60 Hz
DVI-D up to 2560 x 1600 @60 Hz
VGA up to 2560 x 1600 @60 Hz
HDMI™ up to 2560 x1600 @60 Hz
Ethernet
- Controller
- 1 x Intel® 82579LM GbE LAN PHY iAMT 8.0 (QM77 only)
1 x Intel® 82583V GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header

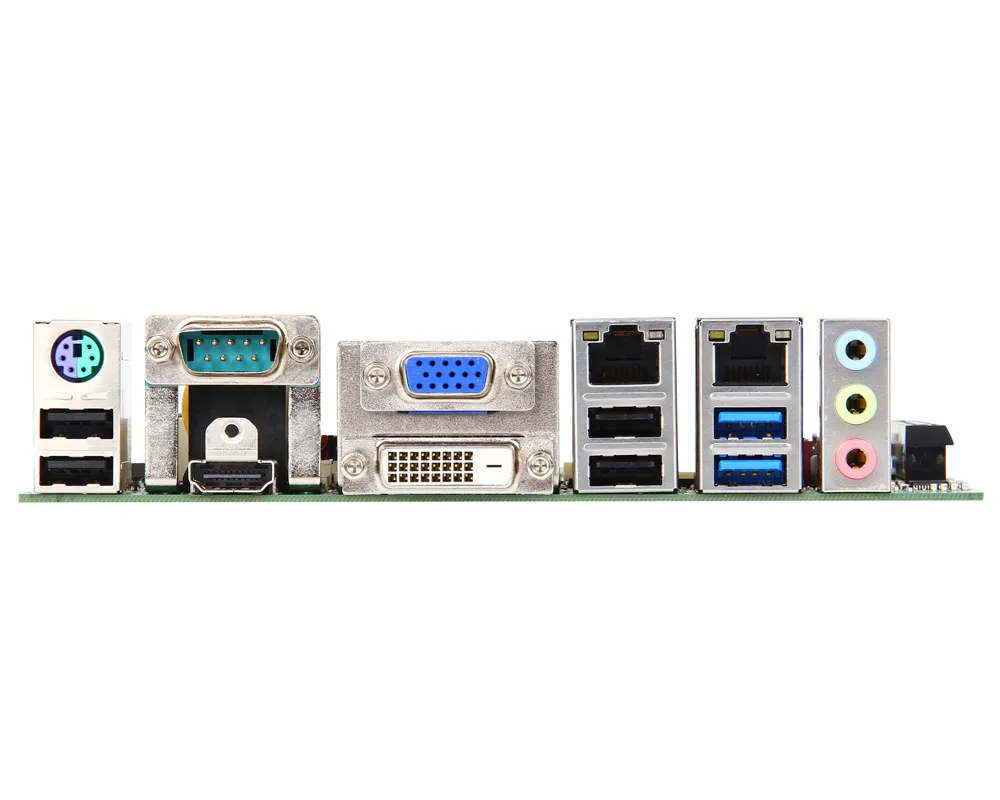

I/O Interface
- PS/2
- 1
- USB
- 4 x USB 3.0 (2 x rear; 2 x internal)
6 x USB 2.0 (4 x rear; 2 x internal)
- Serial
- 4 x COM ports (COM1: rear, COM2~4: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232, 0V/5V/12V (no power selection jumper for HM76)
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1
- Mini-PCIe
- 1
Storage
- SATA
- 2 x SATA 3.0
2 x SATA 2.0
- CFast
- 1 (QM77 only)
- mSATA
- 1
Power Supply
- ATX
- ATX-Power 24P, 12V-4P
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170mm (Mini-ITX)
- Weight
- 0.37 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32/64-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Ordering Information
- Part Number
- Description
- 919-9899-001
- MS-9899 QM77, SNB/IVB Mbl, 2x DDR3 SO-DIMM, VGA/DVI-D/HDMI™,4x SATA,2x GbE LAN,10x USB,4xCOM ATX Power (ROHS)
- 919-9899-002
- MS-9899 HM76, SNB/IVB Mbl, 2x DDR3 SO-DIMM, VGA, 4x SATA,1x GbE LAN,10x USB,4xCOM ATX Power (ROHS)
- 919-9899-003
- MS-9899 QM77, SNB/IVB Mb, 2x DDR3 SO-DIMM, VGA/DVI-D/HDMI™,4x SATA, 2x GbE LAN, 10x USB, 4xCOM, No CFast, ATX Power (ROHS)
Packing List
- Part Number
- Description
- E32-0800383-A21
- FANSINK,60*60*25mm
- K1D-1008132-V03
- SATA CABLE, 500mm
- E21-9899010-C22
- I/O shield for QM77
- E21-9899020-C22
- I/O shield for HM76
- E93-0000039-H06
- RETENTION BACKPLATE
- K14-1018003-V03
- COM PORT CABLE, 300mm
- K39-3002004-E06
- PS2 Y CABLE, 190mm
Optional Item
- Part Number
- Description
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
