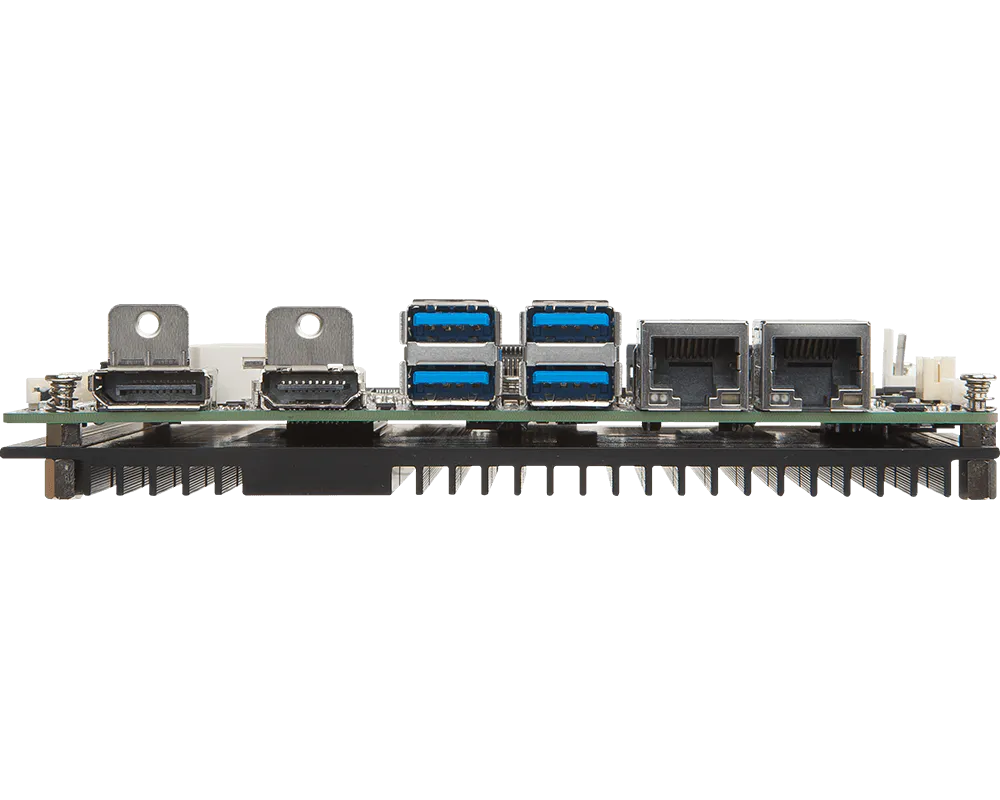

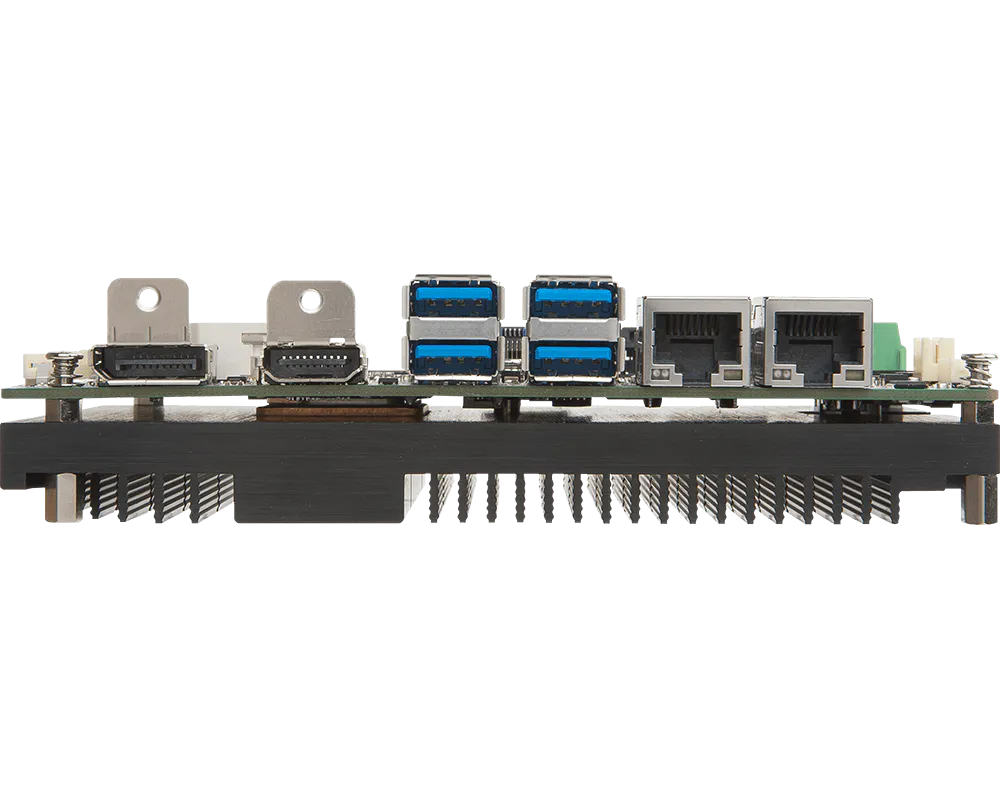

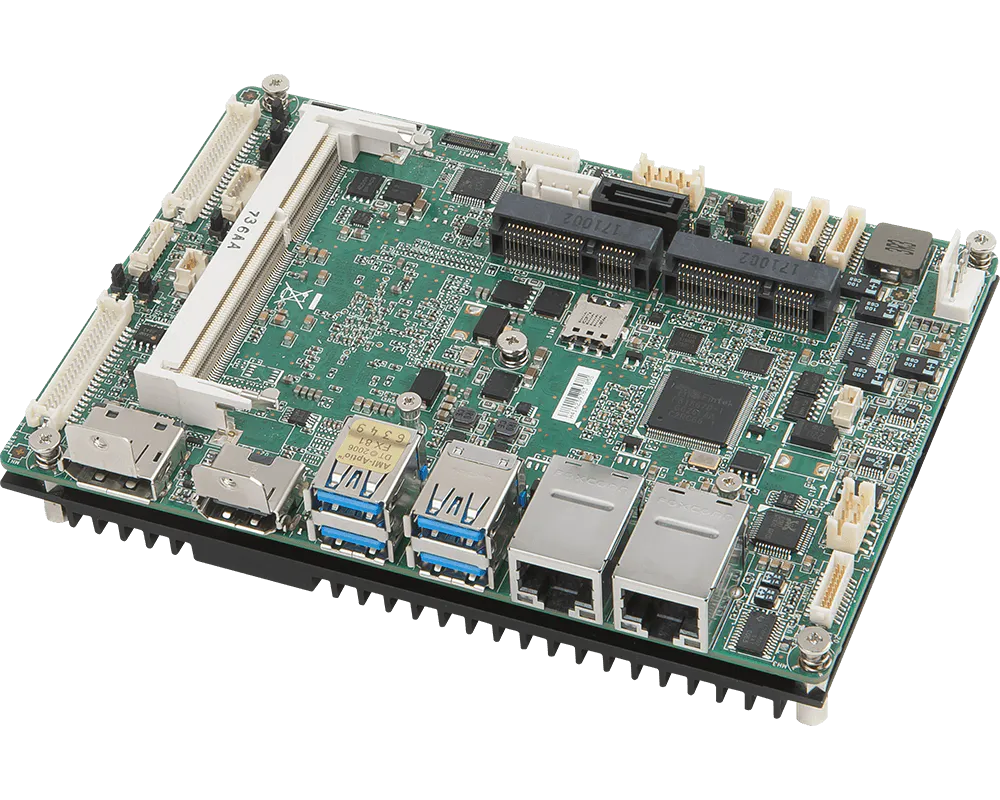

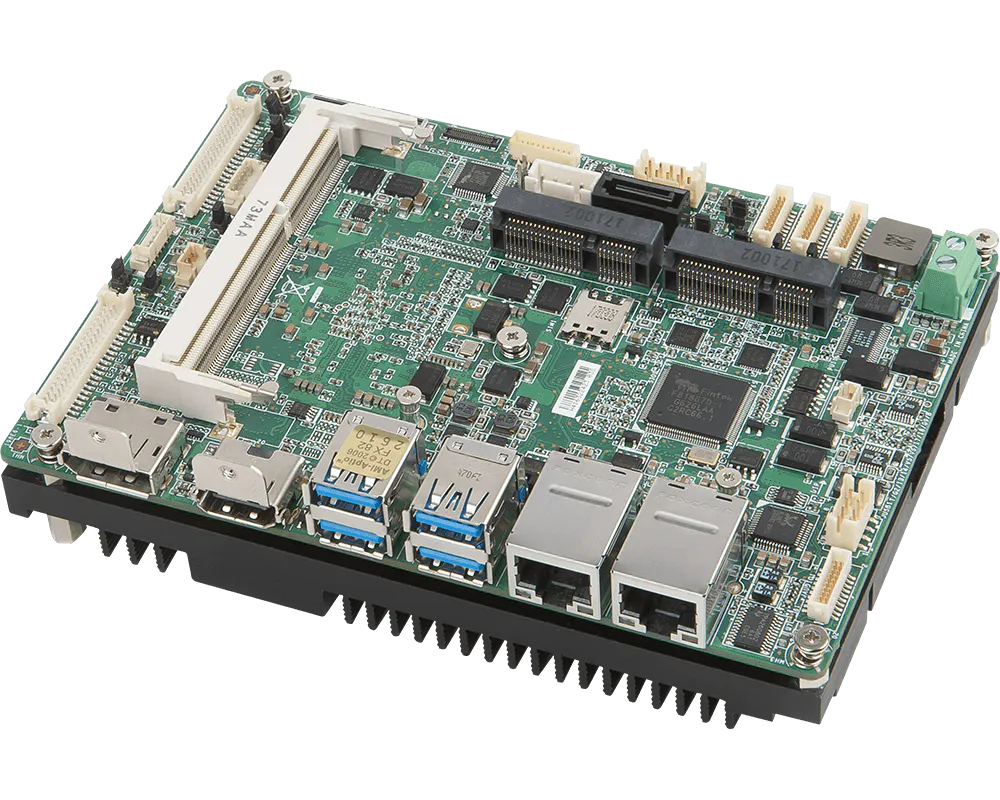

3.5" SBC with Intel® Apollo Lake/Apollo Lake-I for Fanless, Ultra Low-Power, High-Performance & Wide Temperature Solution

  • Intel® Apollo Lake/Apollo Lake-I Series SoC
  • DDR3L 1866/1600 MHz SODIMM Slot up to 8GB
  • Triple independent displays: DP, HDMI™, LVDS(eDP by option)
  • 2 GbE LAN with RJ-45
  • 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Full size, with Nano SIM Holder) Slots
  • SATA 3.0, Micro SD for storage
  • 4 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (1 RS-485), GPIO, Audio
  • Wide operating temperature : -40 ~ 85°C
  • Wide Voltage DC-IN 12~24V
Wide Temperature Solutions promotion DM
  • Product Specifications
  • Ordering-Information
  • Packing-List
  • Optional-Items

Product Specifications

  • Part Number
  • MS-98E6-Apollo Lake SKUs
  • MS-98E6-Apollo Lake-I SKUs

Processor

  • CPU
  • Intel® Pentium® Processor N4200, QC, 6W
    Intel® Celeron® Processor N3350, DC, 6W
    Intel® Celeron® Processor J3455, QC, 10W
  • Intel® Atom™ x7 Processor E3950, QC, 12W
    Intel® Atom™ x5 Processor E3940, QC, 9.5W
    Intel® Atom™ x5 Processor E3930, DC, 6.5W
  • Frequency
  • N4200, 1.1 GHz, up to 2.5 GHz
    N3350, 1.1 GHz, up to 2.4 GHz
    J3455, 1.1 GHz, up to 2.3 GHz
  • E3950, 1.6 GHz, up to 2.0 GHz
    E3940, 1.6 GHz, up to 1.8 GHz
    E3930, 1.3 GHz, up to 1.8 GHz
  • L2 Cache
  • 1M~2M (Depends on CPU)
  • 1M~2M (Depends on CPU)
  • CPU Type
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC
  • Integrated in SoC
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel DDR3L 1866/1600 MHz
  • Single-channel DDR3L 1866/1600 MHz
  • Max. Capacity
  • Up to 8 GB
  • Up to 8 GB
  • Socket
  • 1 x 204-pin SO-DIMMs
  • 1 x 204-pin SO-DIMMs

Display

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 2 x Dual Channel 18/24-bit
    (LVDS1 Share with eDP Signal, LVDS2 Share with DP1 Signal)
  • 2 x Dual Channel 18/24-bit
    (LVDS1 Share with eDP Signal, LVDS2 Share with DP1 Signal)
  • eDP
  • 1 (Share with LVDS1 Signal)
  • 1 (Share with LVDS1 Signal)
  • HDMI
  • 1 (HDMI™1 Co-lay DP1/LVDS2 by Optional, HDMI™2 Co-lay DP2 by Optional)
  • 1 (HDMI™1 Co-lay DP1/LVDS2 by Optional, HDMI™2 Co-lay DP2 by Optional)
  • DisplayPort
  • 1 (HDMI™1 Co-lay DP1/LVDS2 by Optional, HDMI™2 Co-lay DP2 by Optional)
  • 1 (HDMI™1 Co-lay DP1/LVDS2 by Optional, HDMI™2 Co-lay DP2 by Optional)
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • LVDS1/LVDS2 up to 1920 x 1200 @60Hz
    eDP up to 4096 x 2160 @60Hz
    HDMI™1/HDMI™2 up to 3840 x 2160 @30Hz
    DP1/DP2 up to 4096 × 2160 @60Hz
  • LVDS1/LVDS2 up to 1920 x 1200 @60Hz
    eDP up to 4096 x 2160 @60Hz
    HDMI™1/HDMI™2 up to 3840 x 2160 @30Hz
    DP1/DP2 up to 4096 × 2160 @60Hz

Ethernet

  • Controller
  • 2 x Intel® I211-AT GbE LAN
  • 2 x Intel® I210-IT GbE LAN

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec

Super I/O

  • Controller
  • Fintek F81867AD-I
  • Fintek F81867AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Pin header
  • Pin header

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)

Storage

  • SATA
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • mSATA
  • 1 (Shared with Mini-PCIe2)
  • 1 (Shared with Mini-PCIe2)

I/O Interface

  • USB
  • 2 x USB 2.0 (internal)
    4 x USB 3.2 Gen 1 (rear)
  • 2 x USB 2.0 (internal)
    4 x USB 3.2 Gen 1 (rear)
  • Serial
  • 6 x COM (Internal)
    COM1: RS-232/422/485, 0V/5V/12V, support auto flow control
    COM2~6: RS-232, 0V/5V/12V (RS-422/485 by Optional)
  • 6 x COM (Internal)
    COM1: RS-232/422/485, 0V/5V/12V, support auto flow control
    COM2~6: RS-232, 0V/5V/12V (RS-422/485 by Optional)
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Power Supply

  • DC Input
  • DC-in 12~24V (Box header with 4pin)
  • DC-in 12~24V (Phoenix connector with 2pin)

Environment

  • Operating Temperature
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -40 ~ 85°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -40 ~ 85°C

Form Factor

  • Dimensions
  • 146 x 102 mm (3.5")
  • 146 x 102 mm (3.5")
  • Weight
  • 0.34 kg
  • 0.59 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-98E6-007
  • MS-98E6\609-98E6-180\809-98E6-007 VER12 OPT:A Intel Apollo Lake-I E3950,F1,DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini-PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, WT
  • 919-98E6-008
  • MS-98E6\609-98E6-190\809-98E6-007 VER12 OPT:B Intel Apollo Lake-I E3940,F1,DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini- PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, WT
  • 919-98E6-009
  • MS-98E6\609-98E6-200\809-98E6-007 VER12 OPT:C Intel Apollo Lake-I E3930, F1, DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini-PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, WT
  • 919-98E6-010
  • MS-98E6\609-98E6-210\809-98E6-008 VER12 OPT:D Intel Apollo Lake-I E3940,　F1,　DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini- PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, Non-WT
  • 919-98E6-011
  • MS-98E6\609-98E6-220\809-98E6-008 VER12 OPT:E Intel Apollo Lake N4200,F1,DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini-PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, Non-WT
  • 919-98E6-012
  • MS-98E6\609-98E6-230\809-98E6-008 VER12 OPT:F Intel Apollo Lake N3350,F1,DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini-PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, Non-WT
  • 919-98E6-013
  • MS-98E6\609-98E6-240\809-98E6-008 VER12 OPT:G Intel Apollo Lake J3455,F1,DDR3L SO DIMM+DP+HDMI™+2LVDS+eDP+2Mini-PCIe+2LAN+SATA3.0+4USB3.0+2USB 2.0+6COM+MIPI+Micro SD, DC 12V~24V, Non-WT

Packing List

  • Part Number
  • Description
  • Quantity
  • K1B-3008034-V03
  • USB Cable, 150mm
  • 1
  • K1D-1012064-V036
  • SATA Cable with Power, 200mm
  • 1
  • K14-3018001-V03
  • COM PORT Cable, 150mm
  • 1
  • K1G-3002031-V03
  • DC Power Cable, 150mm (For 919-98E6-007/008/009 )
  • 1
  • K1G-3004069-V03
  • DC Power Cable, 150mm (For 919-98E6-010/011/012/013 )
  • 1

Optional Item

  • Part Number
  • Description
  • E31-0805840-K08
  • Heatspreader (For Apollo Lake-I)
  • E31-0805850-K08
  • Heatspreader (For Apollo Lake)
The MSI MS-98E6 is a 3.5” Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, capable of operating within a wide temperature range. It is powered by the Intel® Apollo Lake/Apollo Lake-I Series SoC and supports up to 8GB of DDR3L memory through a single 1866/1600 MHz SODIMM slot. The board enables triple independent displays via DisplayPort, HDMI™, and LVDS (with an eDP option). Networking capabilities include two GbE LAN ports with RJ-45. Expansion options feature two full-size Mini-PCIe slots, one with mSATA and one with a Nano SIM holder. For storage, it provides a SATA 3.0 port and a Micro SD slot. Connectivity options include four USB 3.2 Gen 1 ports, two USB 2.0 ports, six COM ports (including one RS-485), GPIO, and audio. The board supports a wide operating temperature range from -40 to 85°C and a wide voltage DC-IN range of 12-24V, making it suitable for various industrial environments.
