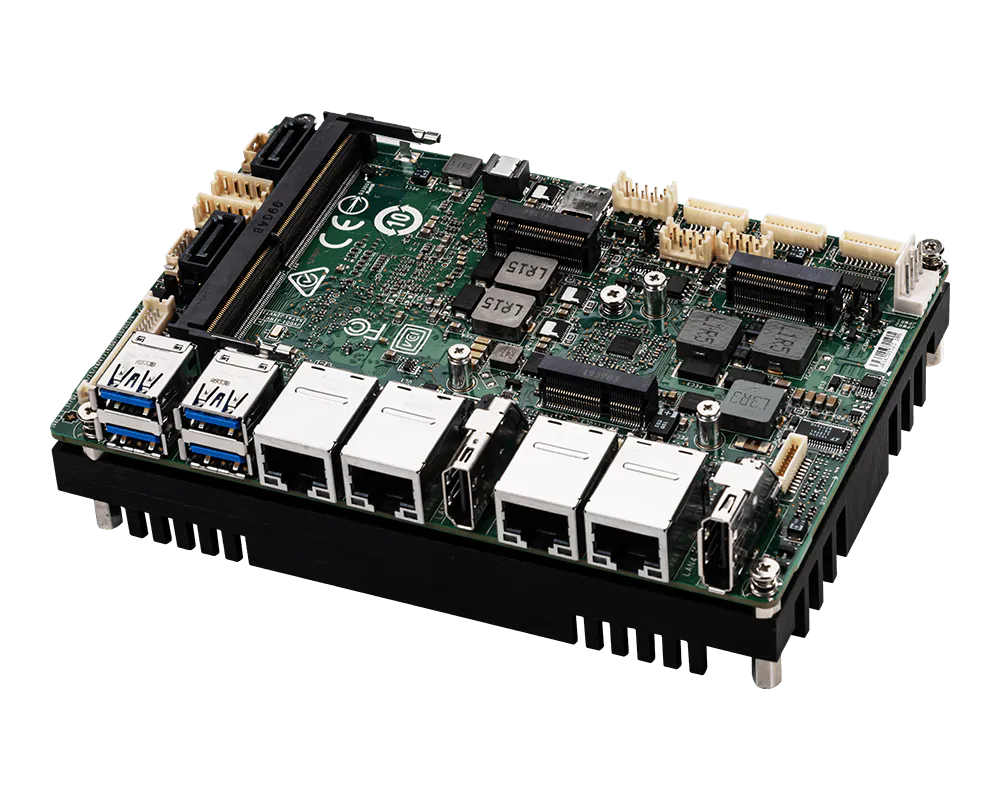

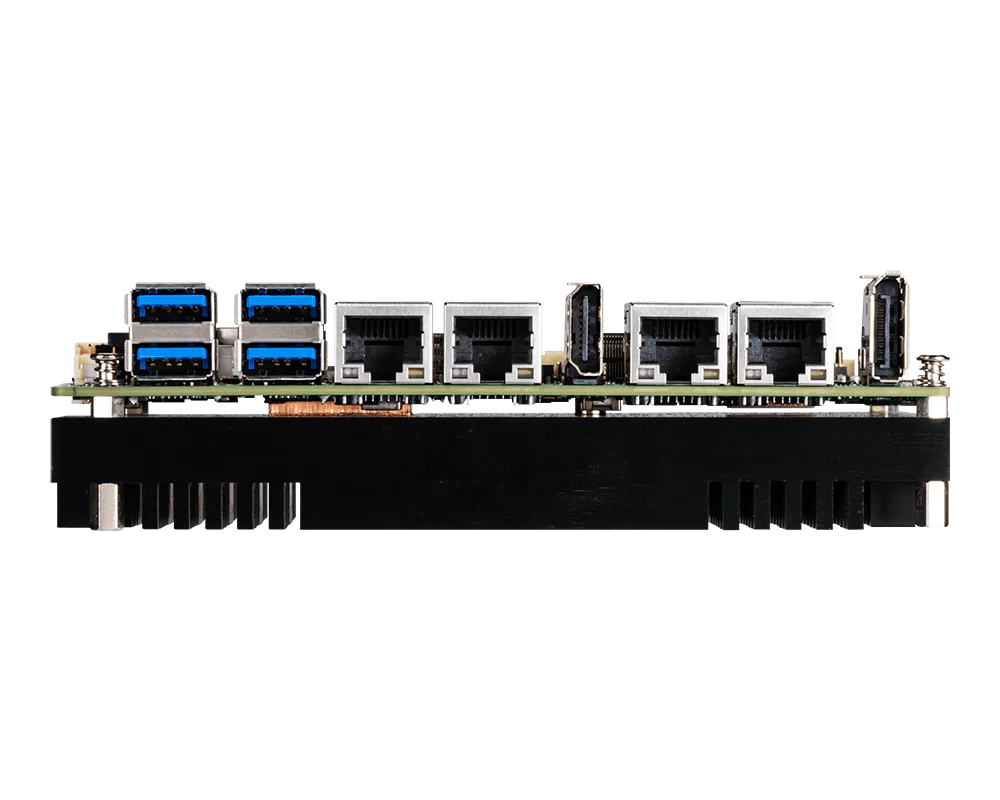

MS-98L3
3.5" SBC with Intel® Whiskey Lake-U for Fanless, Ultra Low-Power & High-Performance Solution
- Intel® 8th Gen Whiskey Lake-U Series
- DDR4 2400 MHz SODIMM Slot up to 32GB
- Triple independent displays: DP++ , HDMI™, LVDS
- 4 GbE LAN for RJ-45
- 1 M.2 B key (with NANO SIM-holder), 1 M.2 E key (with CNVi)
- M.2 M key, 2 SATA 3.0, Micro SD for storage SATA RAID 0/1 (Supported by i7/i5 SKUs)
- 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), GPIO, Audio
- Onboard TPM 2.0
- Wide Voltage DC-IN 12~24V (OCP & OVP)
Products Specifications
- Part Number
- MS-98L3
System Processor
- CPU
- 8th Gen Intel® IOTG Mobile Whiskey Lake-U Core™ i7-8665UE/i5-8365UE, QC, 15W
8th Gen Intel® IOTG Mobile Whiskey Lake-U Core™ i3-8145UE/Celeron® 4305UE, DC, 15W
- Frequency
- 1.8GHz~4.6GHz (Depends on CPU)
- L2 Cache
- 4MB~8MB (Depends on CPU)
- CPU Type
- BGA
- BIOS
- AMI
Memory
- Technology
- Single-channel DDR4 2400MHz
- Max. Capacity
- Up to 32GB
- Socket
- 1 x 260-pin SO-DIMM
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual Channel 18/24-bit
- HDMI
- 1
- DisplayPort
- 1 (Support DP++)
- Display Interface
- LVDS up to 1920 x 1200 @60 Hz
HDMI™ up to 4096 x 2160 @24Hz
DP up to 4096 x 2160 @60Hz
Ethernet
- Controller
- 1 x Intel® I219LM GbE-PHY LAN (AMT 12.0 supported by i7/i5 SKUs)
3 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon SLB9670TT2.0
Expansion Slot
- M.2
- 1 x M.2 M key (SATA), 2242
1 x M.2 B key (PCIe x1, USB 3.2 Gen 2, USB 2.0 w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
Storage
- SATA
- 2 x SATA 3.0 (RAID 0/1 supported by i7/i5 SKUs)
I/O Interface
- USB
- 4 x USB 2.0 (internal)
4 x USB 3.2 Gen 2 (rear)
- Serial
- 4 x COM ports (internal)
COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
Power Supply
- DC Input
- DC-in 12~24V (OCP & OVP)
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- Weight
- 0.64 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Ordering Information
Packing List
Optional Item
The MSI MS-98L3 is a 3.5” Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, featuring the Intel® 8th Gen Whiskey Lake-U Series processors. It supports up to 32GB of DDR4 2400 MHz memory through a single SODIMM slot. The board supports triple independent displays via DP++, HDMI™, and LVDS. Networking capabilities include four GbE LAN ports with RJ-45. Expansion options include one M.2 B key slot (with Nano SIM holder), one M.2 E key slot (with CNVi), and one M.2 M key slot. For storage, it provides two SATA 3.0 ports, a Micro SD slot, and supports SATA RAID 0/1 (supported by i7/i5 SKUs). Connectivity options include four USB 3.2 Gen 2 ports, four USB 2.0 ports, four COM ports (all RS-485), GPIO, and audio. The board features onboard TPM 2.0 and supports a wide voltage DC-IN range of 12-24V with Over-Current Protection (OCP) and Over-Voltage Protection (OVP), making it suitable for various industrial applications.
