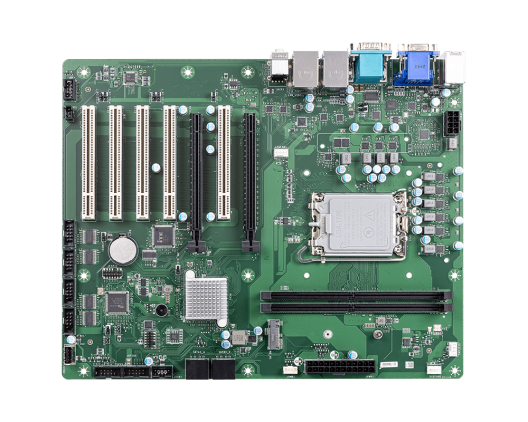

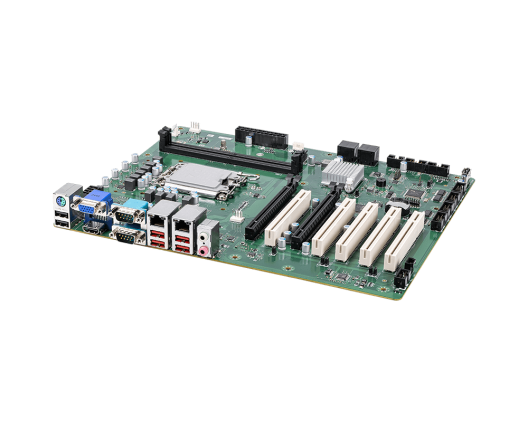

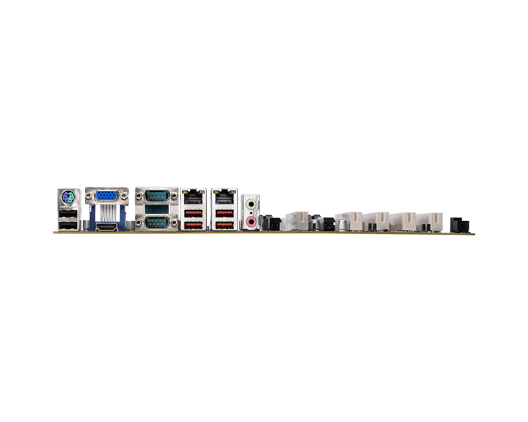

ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/ Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron®, Bartlett Lake-S Core™ i7/i5/i3/300 Processor & Intel® H610E for Mainstream Solution
- Intel®14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series/Bartlett Lake-S with H610E
- 2 DDR5 5600 MT/s non-ECC UDIMM slots up to 64GB
- Dual independent displays: VGA, HDMI
- 1 2.5GbE LAN with RJ-45, 1 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) , 1 PCIe x4 (Gen3), 5 PCI
- 1 M.2 M key, 4 SATA 3.0 for storage
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (1 RS-485), GPIO, PS/2, Audio, 2 System FAN
- Onboard TPM 2.0
- SMBus, Chassis Intrusion
- ATX Power
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-CF06 V2.0
Processor
- CPU
- 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
Intel® Bartlett Lake-S i7/i5/i3/300 IOTG Series Processor, Max 65W
- Frequency
- P-Core 1.1GHz~5.6GHz (Depends on CPU)
E-Core 0.9GHz~4.4GHz (Depends on CPU)
- L2 Cache
- 4MB~36MB (Depends on CPU)
- CPU Type
- Socket (LGA1700)
- Chipset
- Intel® H610E Express
- BIOS
- AMI UEFI
Memory
- Technology
- Dual-channel DDR5 (non-ECC) 5600 MT/s
- Max. Capacity
- Up to 64GB
- Socket
- 2 x 288-pin UDIMMs
Display
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Display Mode
- VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @24Hz
Graphic
- LVDS
- --
- eDP
- --
- VGA
- 1
- DVI
- --
- HDMI
- 1
- DisplayPort
- --
- Multiple Display
- 2 independent displays
Ethernet
- Controller
- 1 x Intel® I219LM GbE LAN PHY 1 x Intel®® I226-V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- FINTEK F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon® SLB9672VU2.0
I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 2 x USB 3.2 Gen 2 x1 (2 x rear)
2 x USB 3.2 Gen 1 x1 (2 x rear)
5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A)
- Parallel
- --
- Serial
- 6 x COM ports (2 rear, 4 x internal)
COM1: RS-232/422/485 0V/5V/12V, Auto-flow Control
COM2: RS-232, 0V/5V/12V
COM3~6: RS-232
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1
- PCIe x8
- --
- PCIe x4
- 1
- PCIe x1
- --
- PCI
- 5
- M.2
- 1 x M.2 M key (SATA 3.0, signal shared with SATA port 1), 2242/2280
- Mini-PCIe
- --
Storage
- SATA
- 4 x SATA 3.0 (SATA port 1 shared with M.2 M Key)
- IDE
- --
- eSATA
- --
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- --
- ATX
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- -20 ~ 80°C
- Storage Temperature
- 10 ~ 90%, non-condensing
Physical Characteristics
- Dimensions
- 305 x 244 mm (ATX)
- Weight
- 0.728 Kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
Software Platform
- OS Support
- Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
Linux (Support by request)
Noted : All driver base on Intel & chip vendor supported
Ordering Information
- Part Number
- Description
- 916-CF06-102
- Intel ADL-S, RPL-S, BTL-S, H610E, 2*DDR5,HDMI+VGA,1*M.2 M key, 1*PCIe x16,1*PCIe x 4,5*PCI,1*GbE,1*2.5GbELAN,4*SATA 3.0, 4*USB 3.2,5*USB 2.0,4*COM,TPM2.0, ATX BULK
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA CABLE, SIGNAL, 500mm
- 2
- E21-CF06010-C22
- I/O SHIELDING
- 1
