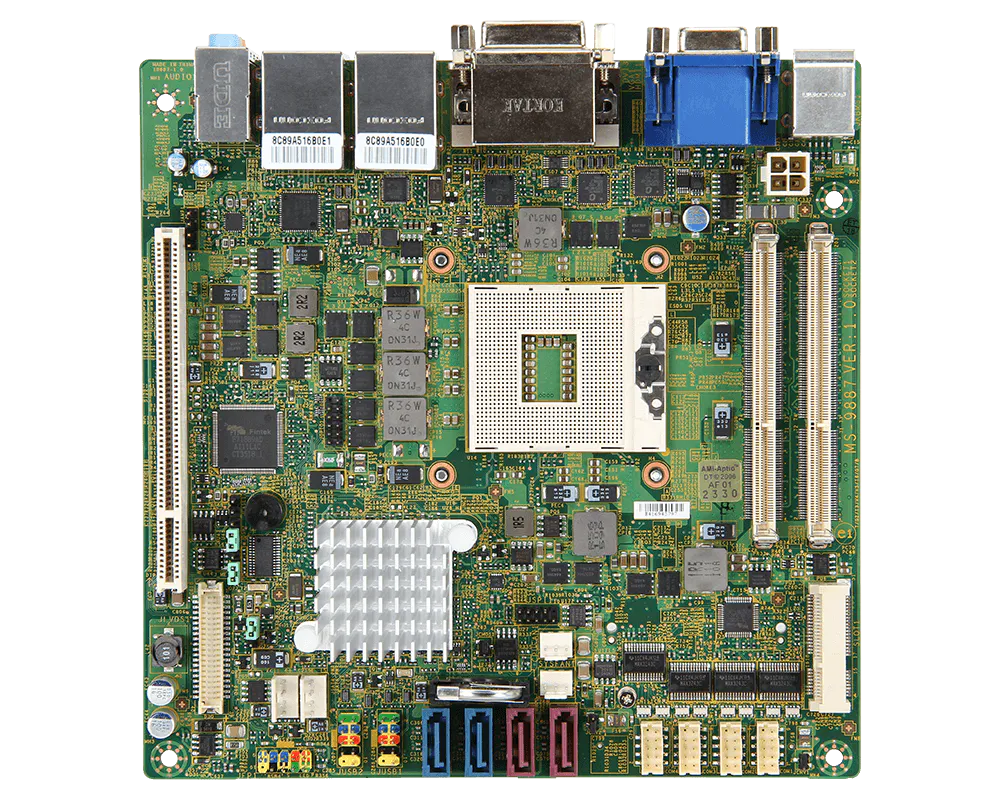

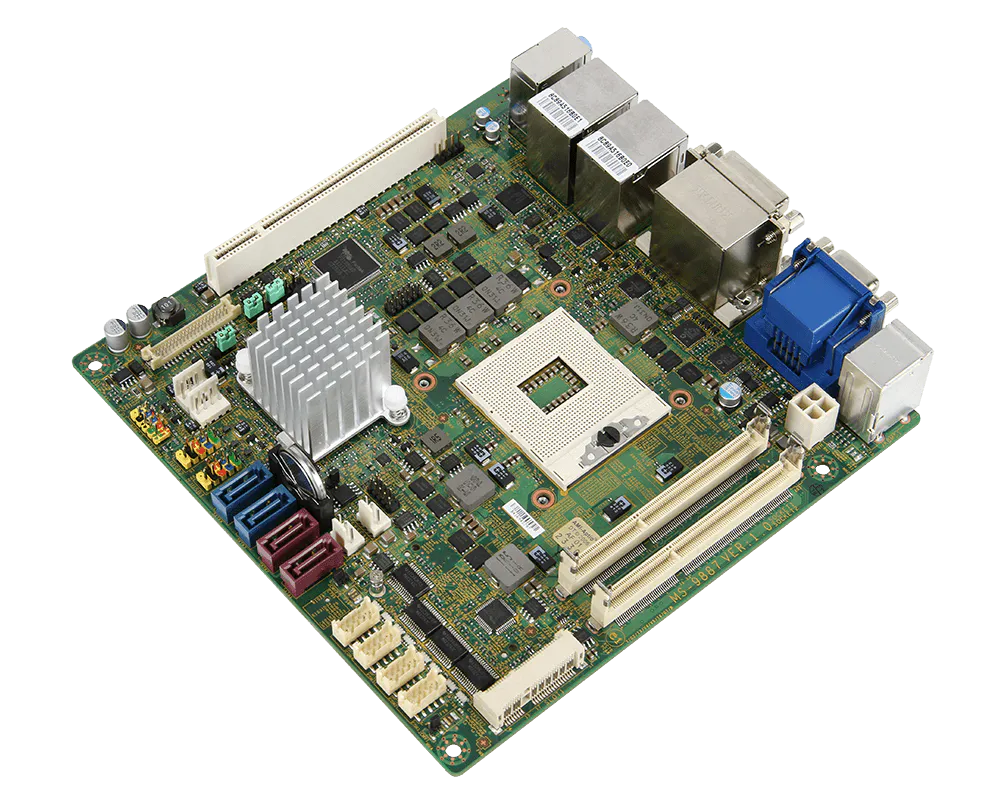

Mini-ITX with 2nd Gen Intel® Mobile Huron River Platform for Multi-Displays Solution
- Intel® Socket G2 Core™ i3/i5/i7 processor
- 12V DC power input
- Supports iAMT 7.0
- Supports SATA RAID 0/1/5/10
- AMI UEFI BIOS supported

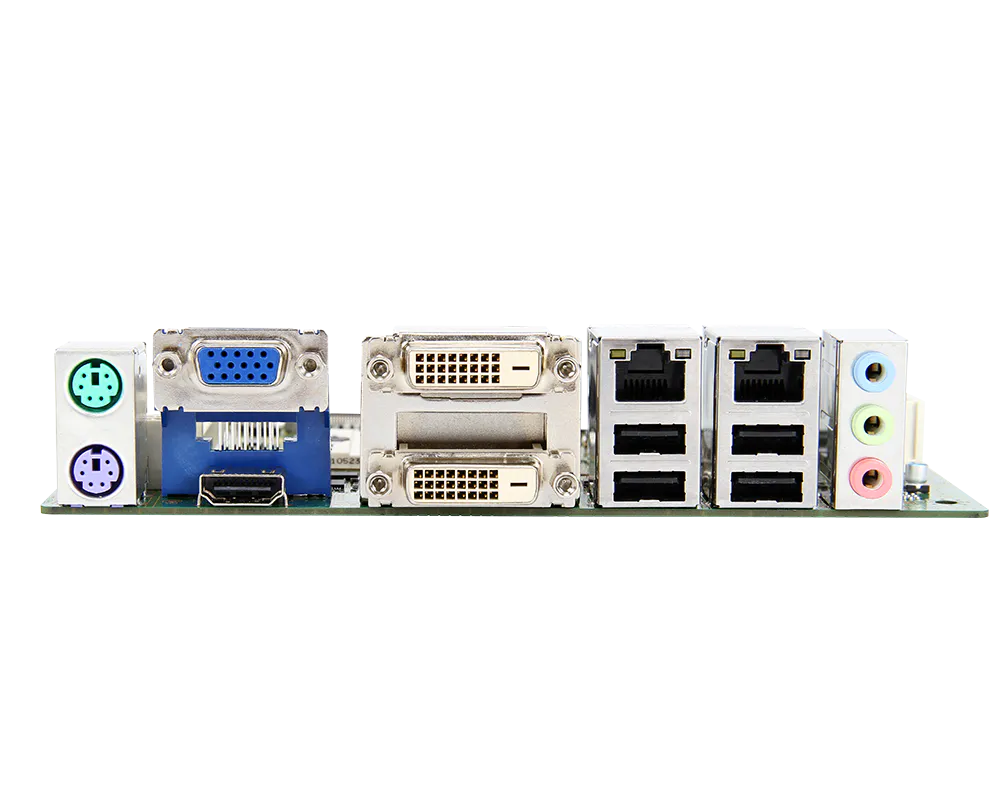

- Dual independent displays w/ multiple display ports
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
 |
|||
| ‧ Processor | CPU | 2nd Gen Intel® Mobile Sandy Bridge Core™ i7/i5/i3/Pentium®/Celeron® Processor, Max. 55W | |
| Frequency | 1.1 GHz~3.7 GHz (Depends on CPU) | ||
| L2 Cache | 1.5M~8M (Depends on CPU) | ||
| CPU Type | Socket G2 (rPGA-989) | ||
| Chipset |
Intel® HM65 Express (without iAMT function) Intel® QM67 Express (wth iAMT 7.0) |
||
| BIOS | AMI | ||
| ‧System Memory | Technology | Dual-channel DDR3 1066/1333/1600MHz (non-ECC) | |
| Max. Capacity | up to 16 GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| LVDS | Dual channel 18/24-bit | ||
| VGA | 1 | ||
| DVI | 2 (DVI-D) | ||
| HDMI™ | 1 | ||
| Display Interface |
LVDS up to 1920 x1080 VGA up to 1920 x 1080 DVI-D up to 2560 x 1600 HDMI™ up to 1920 x 1200 |
||
| ‧Ethernet | Controller | 1 x Intel® 82579LM GbE LAN PHY | |
| 1 x Intel® 82574L GbE LAN | |||
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F71889AD | |
| ‧H/W Monitor | Watchdog Timer | 255-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | Infineon SLB9635TT1.2 | |
| ‧I/O Interface | USB | 8 x USB 2.0 (4 x rear; 4 x internal) | |
| Serial |
4 x COM ports (internal) COM1: RS-232/422/485, 0V/5V/12V COM2~4: RS-232, 0V/5V/12V |
||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO) | ||
| ‧Expansion Slot | PCI | 1 | |
| M.2 | NA | ||
| Mni-PCIe | 1 x Full-size | ||
| ‧Storage | SATA | 2 x SATA 3.0; 2 x SATA 2.0 (all support RAID 0, 1, 5, 10) | |
| CFast | 1 | ||
| ‧ Power Supply | DC | DC-in 12V | |
| ATX | N/A | ||
| ‧ Environment | Operating Temperature | 0 ~ 60°C | |
| Storage Temperature | -20 ~ 80°C | ||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) | |
| Weight | 0.32 kg | ||
| ‧ Certification | EMC | FCC Class A, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support |
Windows XP (32/64-bit) Windows 7 (32/64-bit) |
|
 |
||
| ‧ Part Number | Description | |
| 919-9887-003 |
MS-9887, QM67, 2 x DDR3 SO-DIMM, 2 x SATA 2.0, 2 x SATA 3.0, 1 x CFast Card, 2xGbE LAN, 8 x USB, 4xCOM, DC power |
|
| 919-9887-004 |
MS-9887, HM65, 2 x DDR3 SO-DIMM, 2 x SATA 2.0, 2 x SATA 3.0, 1 x CFast Card, 2xGbE LAN, 8 x USB, 4xCOM, DC power |
|
 |
||
| ‧ Part Number | Description | Quantity |
| G71-SEDC049-J24 | PACK CD | 1 |
| E32-0800381-A21 | MECH FANSINK | 1 |
| G18-S100124-H36 | PACK ACCESSORY BOX | 1 |
| K14-1018003-V03 | COM PORT CABLE, 300mm | 1 |
| E21-9887010-C22 | I/O SHEILDING | 1 |
| E93-0000039-H06 | RETENTION BACKPLATE | 1 |
 |
||
| ‧ Part Number | Description | |
| K10-3004215-V03 | DC-In Cable, 160mm | |
| K1B-3008012-E06 | USB 2.0 Cable, 330mm | |
Product Specifications
- Part Number
- MS-9887
Processor
- CPU
- 2nd Gen Intel® Mobile Sandy Bridge Core™ i7/i5/i3/Pentium®/Celeron® Processor, Max. 55W
- Frequency
- 1.1 GHz~3.7 GHz (Depends on CPU)
- L2 Cache
- 1.5M~8M (Depends on CPU)
- CPU Type
- Socket G2 (rPGA-989)
- Chipset
- Intel® HM65 Express (without iAMT function)
Intel® QM67 Express (wth iAMT 7.0)
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3 1066/1333/1600MHz (non-ECC)
- Max. Capacity
- up to 16 GB
- Socket
- 2 x 204-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Shared system memory up to 1.7 GB SDRAM
- LVDS
- Dual channel 18/24-bit
- VGA
- 1
- DVI
- 2 (DVI-D)
- HDMI
- 1
- Multiple Display
- LVDS up to 1920 x 1080
VGA up to 1920 x 1080
DVI-D up to 2560 x 1600
HDMI™ up to 1920 x 1200
Ethernet
- Controller
- 1 x Intel® 82579LM GbE LAN PHY
1 x Intel® 82574L GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F71889AD
H/W Monitor
- Watchdog Timer
- 255-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon SLB9635TT1.2
I/O Interface
- PS/2
- 1
- USB
- 8 x USB 2.0 (4 x rear; 4 x internal)
- Serial
- 4 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO)
Expansion Slot
- PCI
- 1
- Mini-PCIe
- 1 x Full-size
Storage
- SATA
- 2 x SATA 3.0
2 x SATA 2.0 (all support RAID 0, 1, 5, 10)
- CFast
- 1
Power Supply
- DC Input
- DC-in 12V
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170mm x 170mm (Mini-ITX)
- Weight
- 0.32 kg
Certification
- EMC
- FCC Class A, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32/64-bit)
Windows 7 (32/64-bit)
Ordering Information
- Part Number
- Description
- 919-9887-003
- MS-9887, QM67, 2 x DDR3 SO-DIMM, 2 x SATA 2.0, 2 x SATA 3.0, 1 x CFast Card, 2xGbE LAN, 8 x USB, 4xCOM, DC power
- 919-9887-004
- MS-9887, HM65, 2 x DDR3 SO-DIMM, 2 x SATA 2.0, 2 x SATA 3.0, 1 x CFast Card, 2xGbE LAN, 8 x USB, 4xCOM, DC power
Packing List
- Part Number
- Description
- Quantity
- G71-SEDC049-J24
- PACK CD
- 1
- E32-0800381-A21
- MECH FANSINK
- 1
- G18-S100124-H36
- PACK ACCESSORY BOX
- 1
- K14-1018003-V03
- COM PORT CABLE, 300mm
- 1
- E21-9887010-C22
- I/O SHEILDING
- 1
- E93-0000039-H06
- RETENTION BACKPLATE
- 1
Optional Item
- Part Number
- Description
- K10-3004215-V03
- DC-In Cable, 160mm
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
