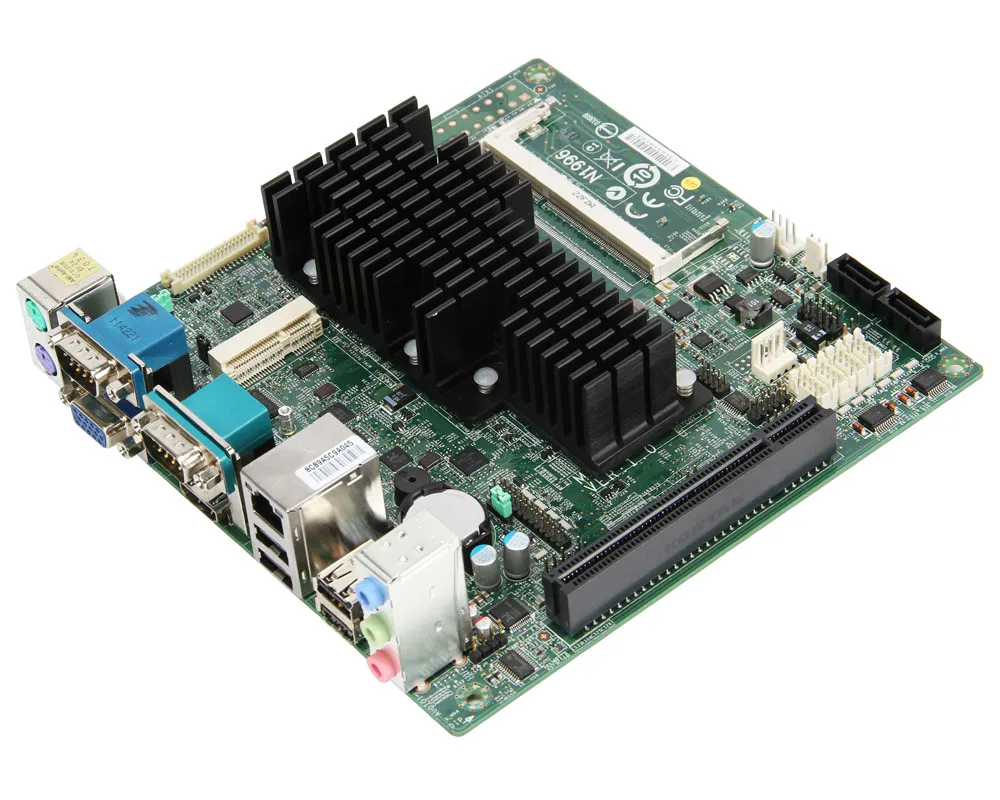

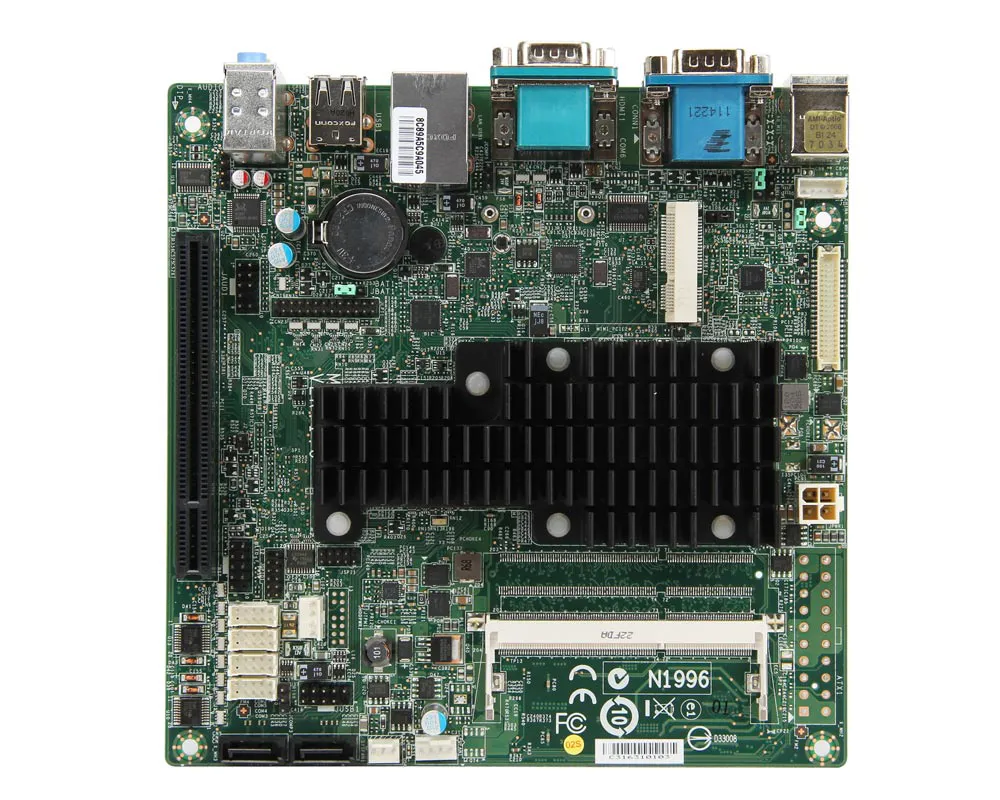

Mini-ITX with Intel® Atom™ Cedar Tail for High-Performance and Low-Power Solutions
- Intel® Atom™ D2550 Dual Core CPU to maximize performance
- Supports DDR3 SO-DIMM up to 1066MHz
- One Mini-PCIe with mSATA storage function supported
- 2 independent displays with VGA/HDMI™/LVDS
- Optional DC/ATX power input by BOM
- Overview
- Product Specifications
 |
|||
| ‧ Processor | CPU |
Intel® Atom™ Processor D2550, DC, 10W Intel® Atom™ Processor N2800, DC, 6.5W |
|
| Frequency |
D2550, 1.86 GHz N2800, 1.86 GHz |
||
| L2 Cache | 1 MB | ||
| CPU Type | BGA | ||
| Chipset | Intel® NM10 Express | ||
| BIOS | AMI | ||
| ‧Memory | Technology | Single-channel DDR3 1067MHz | |
| Max. Capacity | Up to 4GB | ||
| Socket | 1 x 204-pin SO-DIMM | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 759 MB SDRAM | ||
| LVDS | Singlel channel 18/24-bit | ||
| VGA | 1 x rear I/O | ||
| HDMI™ | 1 | ||
| Multiple Display | 2 independent displays | ||
| Display Interface |
VGA up to 1920 x 1200 LVDS up to 1440 x 900 HDMI™ up to 1920 x 1200 |
||
| ‧Ethernet | Controller | 2 x Realtek® RTL8111-E-VL-CG GbE LAN | |
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F81865-I | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| ‧TPM | Controller | Pin header | |

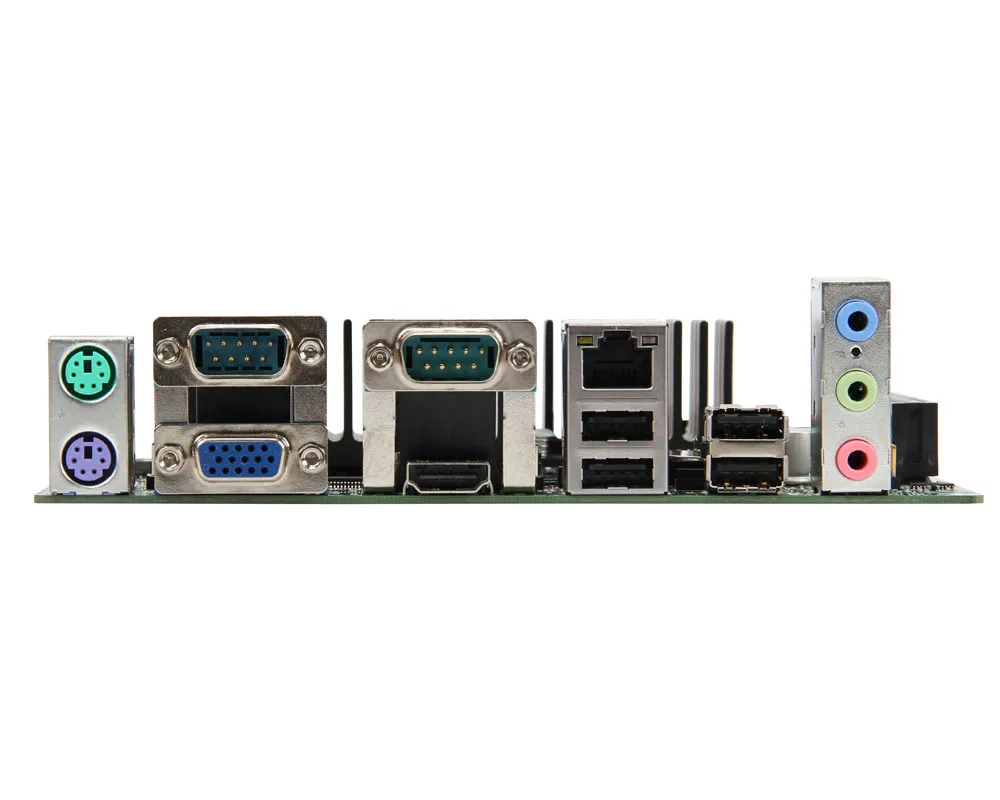

| ‧I/O Interface | USB | 6 x USB 2.0 (2 x internal, 4 x rear I/O) | |
| Serial |
6 x COM (COM1&6: rear; COM2~5: internal) COM1: RS-232/422/485, 0V/5V/12V, with WOR function COM2~5: RS-232 pin header, 0V/5V/12V COM6: RS-232, 0V/5V/12V |
||
| Parallel | 1 | ||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | ||
| ‧Expansion Slot | PCI | 1 | |
| M.2 | N/A | ||
| Mni-PCIe | 1 (with mSATA function) | ||
| ‧Storage | SATA | 2 x SATA 2.0 | |
| mSATA | 1 | ||
| ‧ Power Supply | DC | DC-in 12V for D2550/N2800 SKU | |
| ATX | ATX-Power 20P for D2550 SKU only | ||
| ‧ Environment | Operating Temperature | 0 ~ 60°C | |
| Storage Temperature | -20 ~ 80°C | ||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) | |
| Weight | 0.42 Kg | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support |
Windows XP (32-bit) Windows 7 (32-bit) |
|
 |
|||
| ‧ Part Number | Description | ||
| 919-9893-007 | MS-9893 12 OPT: G D2550+2*DDR3 DIMM+1*PCI+2*- SATA 2.0+1*HDMI™+1*VGA+6*USB 2.0+6*COM+1*Mini PCIE+1*Gbe LAN+ATX Power | ||
| 919-9893-008 | MS-9893 12 OPT: H D2550+2*DDR3 DIMM+1*PCI+2*- SATA 2.0+1*HDMI™+1*VGA+6*USB 2.0+6*COM+1*Mini PCIE+2*Gbe LAN+DC Power | ||
| 919-9893-009 | MS-9893 12 OPT: I N2800+2*DDR3 DIMM+1*PCI+2*- SATA 2.0+1*HDMI™+1*VGA+6*USB 2.0+6*COM+1*Mini PCIE+1*Gbe LAN+DC Power | ||
 |
|||
| 809-9893-003 | |||
| ‧ Part Number | Description | Quantity | |
| K1D-1012033-V03 | INT SATA CABLE, 150mm | 1 | |
| E21-9893010-C22 | I/O SHIELDING | 1 | |
| K10-3004215-V03 | INT OTHER CABLE,ROUND/4/160mm | 1 | |
| K14-1018003-V03 | INT COM PORT CABLE, 300mm | 1 | |
| 809-9893-004 | |||
| ‧ Part Number | Description | Quantity | |
| K1D-1008055-E06 | INT SATA CABLE, SIGNAL, 500mm | 1 | |
| K1D-1008269-V03 | INT SATA CABLE, 500mm | 1 | |
| K14-1018003-V03 | INT COM PORT CABLE, 300mm | 1 | |
| E21-9893010-C22 | I/O SHIELDING | 1 | |
| 809-9893-005 | |||
| ‧ Part Number | Description | Quantity | |
| E21-9893020-C22 | I/O SHIELDING FOR MS-9893 | 1 | |
| K10-3004215-V03 | INT OTHER CABLE,ROUND/4/160mm | 1 | |
| K14-1018003-V03 | INT COM PORT CABLE, 300mm | 1 | |
| K1D-1012033-V03 | INT SATA CABLE, 150mm | 1 | |
Product Specifications
- Part Number
- MS-9893
