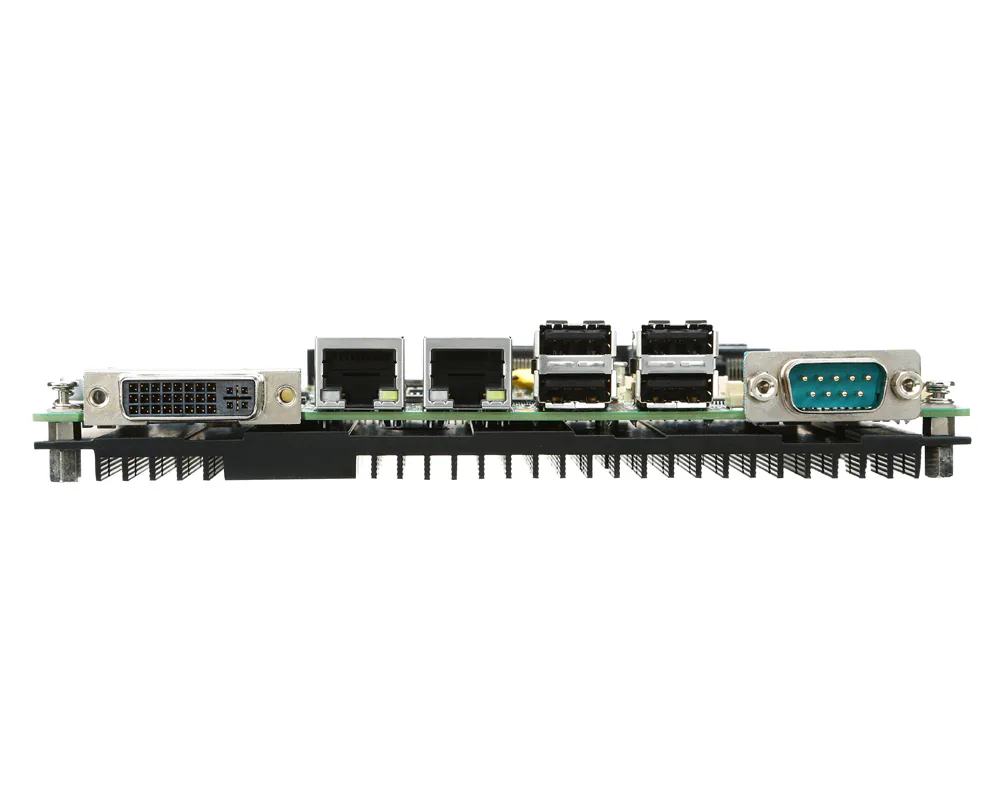

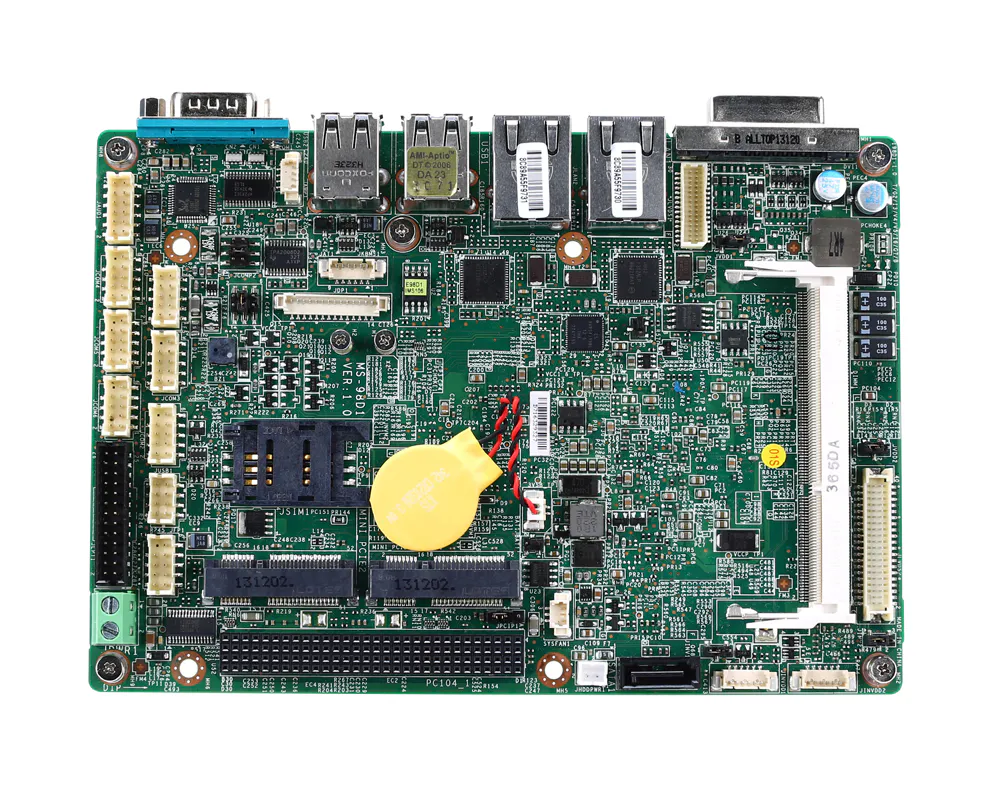

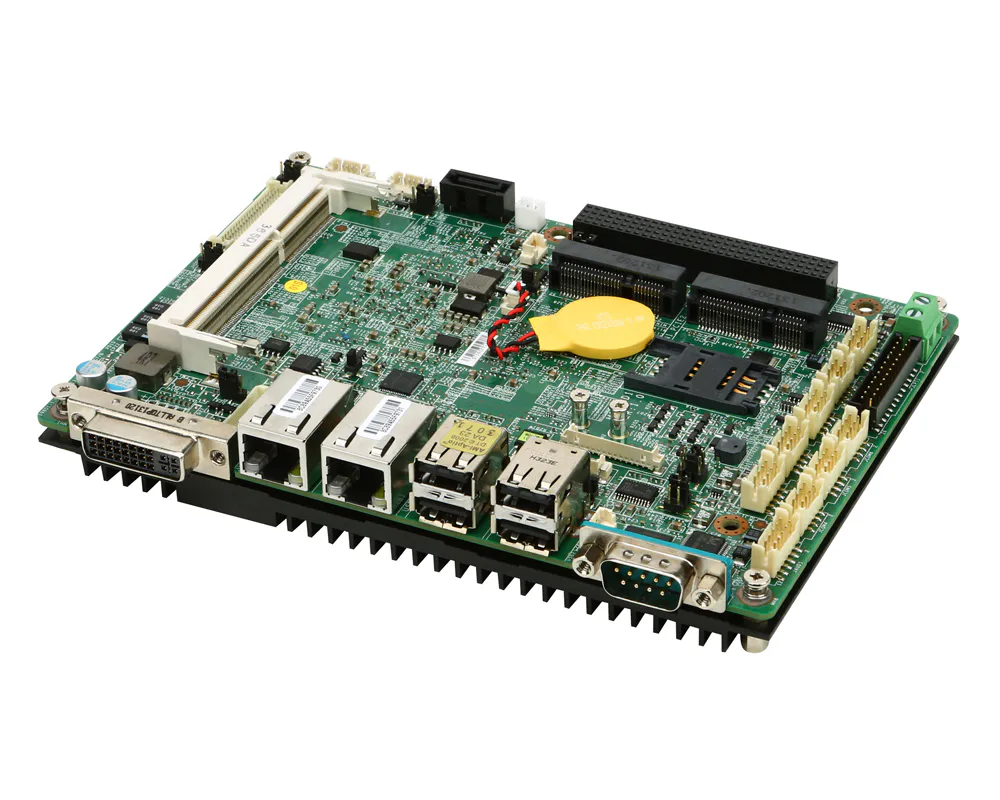

EPIC SBC with Intel® Cedar Trail Platform for Low-Power & Fanless Solution
- Intel® D2550/N2800/N2600 Dual Core processor
- Supports DDR3 1066MHz SO-DIMM memory up to 4GB
- 2 independent displays with VGA, DVI, and dual LVDS outputs
- Supports dual Intel® GbE LAN and dual Mini-PCIe
- Supports SATA 2.0, mSATA, 6 COM, 6 USB 2.0
- Wide input voltage: 9~36 VD
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
 |
||
| ‧ Processor | CPU | Intel® Atom™ Processor D2550, DC, 10W Intel® Atom™ Processor N2800, DC, 6.5W Intel® Atom™ Processor N2600, DC, 3.5W |
| Frequency | D2550/N2800, 1.86 GHz N2600, 1.6 GHz |
|
| L2 Cache | 1MB | |
| CPU Type | BGA | |
| Chipset | Intel® NM10 Express | |
| BIOS | AMI | |
| ‧ Memory | Technology | Single-channel DDR3 1066MHz (DDR3 800MHz for N2600) |
| Max. Capacity | Up to 4 GB (for D2550/N2800) Up to 2 GB (for N2600) | |
| Socket | 1 x 204-pin SO-DIMM | |
| ‧Display | Controller | Intel® GMA3650 Graphics |
| Graphic Memory | Shared system memory up to 759 MB SDRAM | |
| LVDS | 2 x LVDS (LVDS1/LVDS2) LVDS1: single-channel 24-bit (for D2550); single-channel 18-bit (for N2800/ N2600) LVDS2: dual-channel 24-bit (add chrontel 7511B chipset) |
|
| DVI | Yes (DVI-I) | |
| Multiple Display | 2 independent displays | |
| Display Mode | LVDS1 up to 1440 x 900 (for D2550); up to 1366 x 768 (for N2800/N2600) LVDS2 up to 1366 x 768 DVI-I up to 1920 x 1200 | |
| ‧Ethernet | Controller | 2 x Intel® I210-AT GbE LAN |
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec |
| ‧Super I/O | Controller | Fintek F81866 |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer |
| Smart Fan | Yes | |
| ‧I/O Interface | USB | 6 x USB 2.0 (4 x rear, 2 x internal) |
| Serial | 6 x COM (COM1: rear; COM2~6: internal) COM1: RS-232/422/485, 0V/5V/12V COM2~6: RS-232, 0V/5V/12V |
|
| Parallel | 1 | |
| PS/2 | 1 (pin header) | |
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | |
| ‧Expansion Slot | PCI | * (1 x PCI-104) |
| Mni-PCIe | 2 x Full-size (one w/ SIM holder; one w/ mSATA) | |
| ‧Storage | SATA | 1 x SATA 2.0 |
| mSATA | 1 | |
| ‧ Power Supply | DC | DC-in 9-36V Wide-Range |
| ATX | N/A | |
| ‧ Environment | Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 80°C | |
| Operating Humidity | 10 ~ 90%, non-condensing | |
| Storage Humidity | 10 ~ 90%, non-condensing | |
| ‧ Form Factor | Dimensions | 165mm x 115mm (EPIC) |
| Weight | 0.37 Kg | |
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI |
| ‧ Software Platform | OS Support | Windows XP (32-bit) Windows 7 (32-bit) Fedora 14 Ubuntu 12.04 |
 |
||
| ‧ Part Number | Description | |
| 919-98D1-001 | Cedarview D2550 1.86G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI | |
| 919-98D1-002 | Cedarview N2800 1.86G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI | |
| 919-98D1-003 | Cedarview N2600 1.60G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI | |
 |
||
| ‧ Part Number | Description | |
| K1D-3010001-V03 | SATA cable with Power, 150mm | |
| K14-1009062-V03 | COM port cable, 250mm | |
| K1G-3002013-V03 | DC JACK Power Cable, 120mm | |
Product Specifications
- Part Number
- MS-98D1
Processor
- CPU
- Intel® Atom™ Processor D2550, DC, 10W
Intel® Atom™ Processor N2800, DC, 6.5W
Intel® Atom™ Processor N2600, DC, 3.5W
- Frequency
- D2550/N2800, 1.86 GHz N2600, 1.6 GHz
- L2 Cache
- 1MB
- CPU Type
- BGA
- Chipset
- Intel® NM10 Express
- BIOS
- AMI
Memory
- Technology
- Single-channel DDR3 1066MHz (DDR3 800MHz for N2600)
- Max. Capacity
- Up to 4 GB (for D2550/N2800) Up to 2 GB (for N2600)
- Socket
- 1 x 204-pin SO-DIMM
Display
- Controller
- Intel® GMA3650 Graphics
- Graphic Memory
- Shared system memory up to 759 MB SDRAM
- LVDS
- 2 x LVDS (LVDS1/LVDS2)
LVDS1: single-channel 24-bit (for D2550)
single-channel 18-bit (for N2800/ N2600)
LVDS2: dual-channel 24-bit (add chrontel 7511B chipset)
- DVI
- Yes (DVI-I)
- Multiple Display
- 2 independent displays
- Display Mode
- LVDS1 up to 1440 x 900 (for D2550)
up to 1366 x 768 (for N2800/N2600)
LVDS2 up to 1366 x 768
DVI-I up to 1920 x 1200
Ethernet
- Controller
- 2 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
I/O Interface
- PS/2
- 1 (pin header)
- USB
- 6 x USB 2.0 (4 x rear, 2 x internal)
- Parallel
- 1
- Serial
- 6 x COM (COM1: rear; COM2~6: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~6: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCI
- * (1 x PCI-104)
- Mini-PCIe
- 2 x Full-size (one w/ SIM holder; one w/ mSATA)
Storage
- SATA
- 1 x SATA 2.0
- mSATA
- 1
Power Supply
- DC Input
- DC-in 9-36V Wide-Range
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 65mm x 115mm (EPIC)
- Weight
- 0.37 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32-bit)
Windows 7 (32-bit)
Fedora 14
Ubuntu 12.04
Ordering Information
- Part Number
- Description
- 919-98D1-001
- Cedarview D2550 1.86G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI
- 919-98D1-002
- Cedarview N2800 1.86G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI
- 919-98D1-003
- Cedarview N2600 1.60G CPU + NM10, 1*PCI-104, 2*LVDS, 1*VGA, 1*SATA, 1*MSATA, 2*MINI-PCI
Packing List
- Part Number
- Description
- K1D-3010001-V03
- SATA cable with Power, 150mm
- K14-1009062-V03
- COM port cable, 250mm
- K1G-3002013-V03
- DC JACK Power Cable, 120mm
