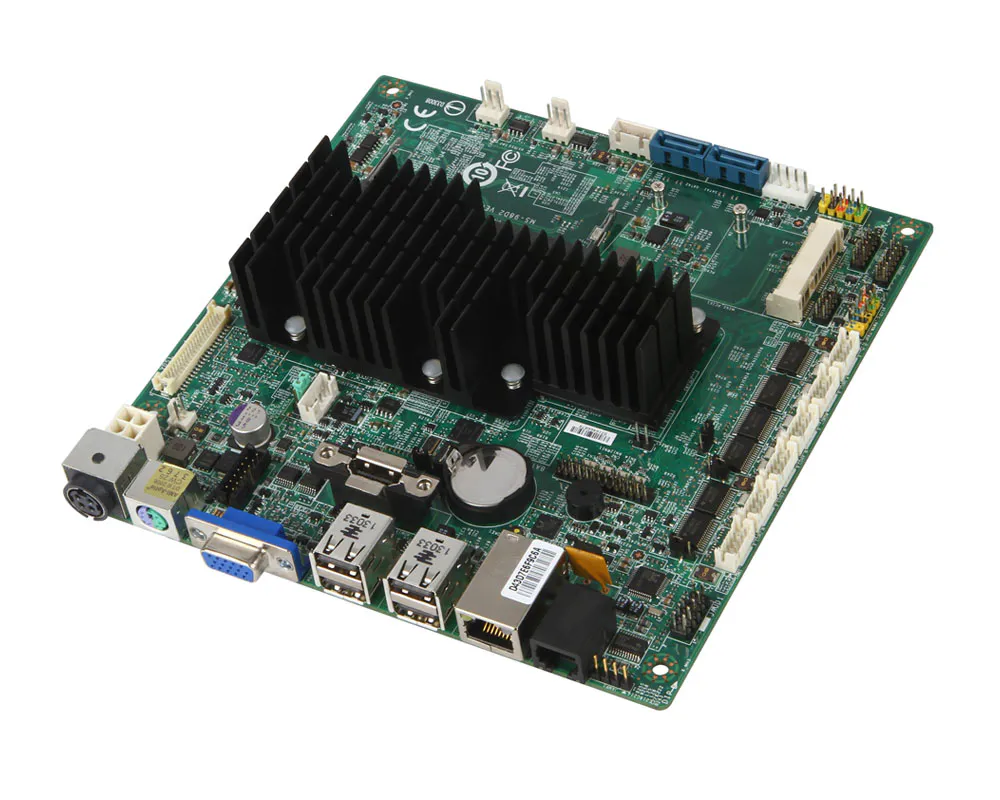

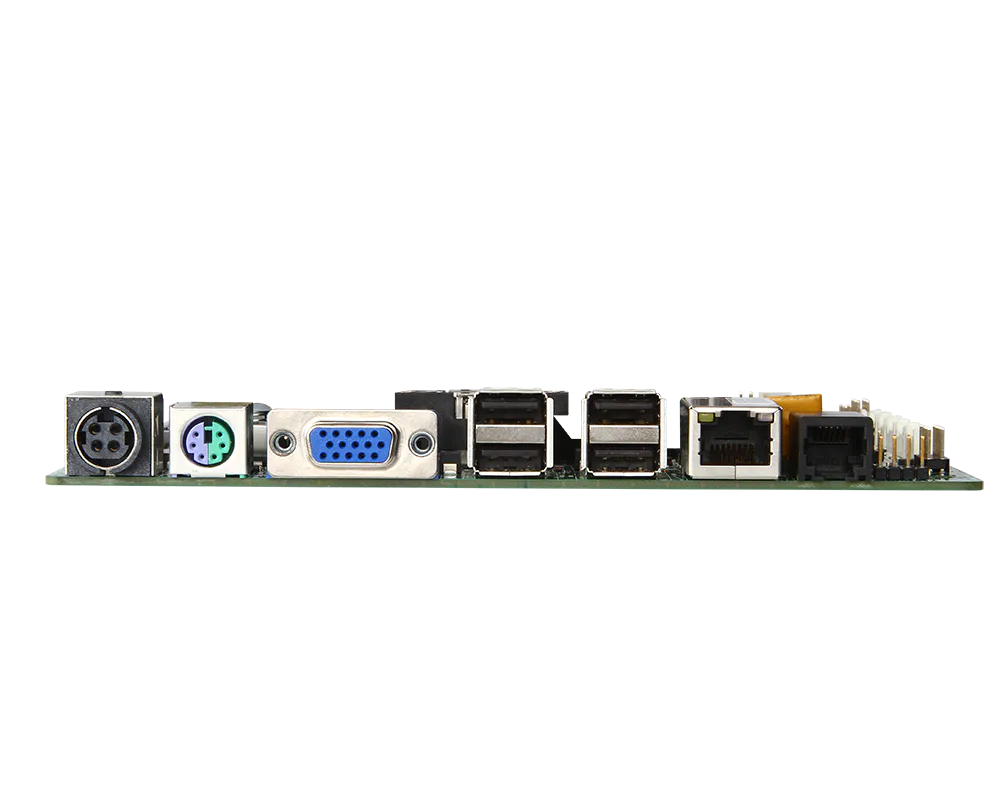

Mini-ITX with Intel® Atom™ Cedar Trail for Thin and Low-Power POS Application
- Standard thin Mini-ITX form factor (low-profile)
- COM1 to COM4 support power selection by BIOS (more user friendly without the need to remove chassis)
- Multiple video outputs: VGA, LVDS, and internal VGA
- Supports DC 12V out for second monitor (for POS application)
- Lockable DC-in 12V (Mini-DIM type power jack)
- Supports cash drawer with RJ11 (for POS application)
- Overview
- Product Specifications
 |
|||
| ‧ Processor | CPU | Intel® Atom™ Processor D2550, DC, 10W | |
| Frequency | D2550, 1.86 GHz | ||
| L2 Cache | 1 MB | ||
| CPU Type | BGA | ||
| Chipset | Intel® NM10 Express | ||
| BIOS | AMI | ||
| ‧System Memory | Technology | Single-channel DDR3 1066MHz | |
| Max. Capacity | Up to 4GB | ||
| Socket | 1 x 204-pin SO-DIMMs | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Yes (D2550: single channel 18/24-bit; N2800: single channel 18-bit) | ||
| LVDS | Singlel channel 18/24-bit | ||
| VGA | 1 x rear I/O; 1 x internal | ||
| HDMI™ | 1 (internal vertical type) | ||
| Multiple Display | 2 independent displays | ||
| Display Interface |
VGA up to 1920 x 1200 LVDS up to 1440 x 900 |
||
| ‧Ethernet | Controller | 1 x Realtek® RTL8111E-VL-CG GbE LAN | |
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F81866AD-I | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| ‧TPM | Controller | Pin header | |
| ‧I/O Interface | USB | 7 x USB 2.0 (4 x rear; 3 x internal) | |
| Serial |
6 x COM (internal) COM1: RS-232/422/485, 0V/5V/12V COM2~4: RS-232, 0V/5V/12V (selected by BIOS) COM5~6: RS-232, without power (COM1 & COM2 support WOR) |
||
| Parallel | 1 | ||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | ||
| ‧Expansion Slot | M.2 | N/A | |
| Mni-PCI E | 1 x Full-size | ||
| ‧Storage | SATA | 2 x SATA 2.0 | |
| ‧ Power Supply | DC |
DC-in 12V DC-out 12V-2P |
|
| ATX | N/A | ||
| ‧ Environment | Operating Temperature | 0 ~ 60°C | |
| Storage Temperature | -20 ~ 80°C | ||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (thin-Mini-ITX) | |
| Weight | 0.42 Kg | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support |
Windows XP (32-bit) Windows 7 (32-bit) |
|
 |
|||
| ‧ Part Number | Description | ||
| 919-98D2-001 | MS-98D2\MS-98D2\609-98D2-010\809-98D2-001\MS- 98D2 VER 11 STANDARD FOR SHIPPING SINGLE | ||
 |
|||
| ‧ Part Number | Description | ||
| K14-1018003-V03 | COM PORT CABLE, 300mm | ||
| K1D-3008006-V03 | SATA CABLE,POWER, 200/300mm | ||
| K1D-1008055-E06 | SATA CABLE, 500mm | ||
| E21-98D2010-C22 | IO SHIELD FOR MS-98D2 | ||
Product Specifications
- Part Number
- MS-98D2
