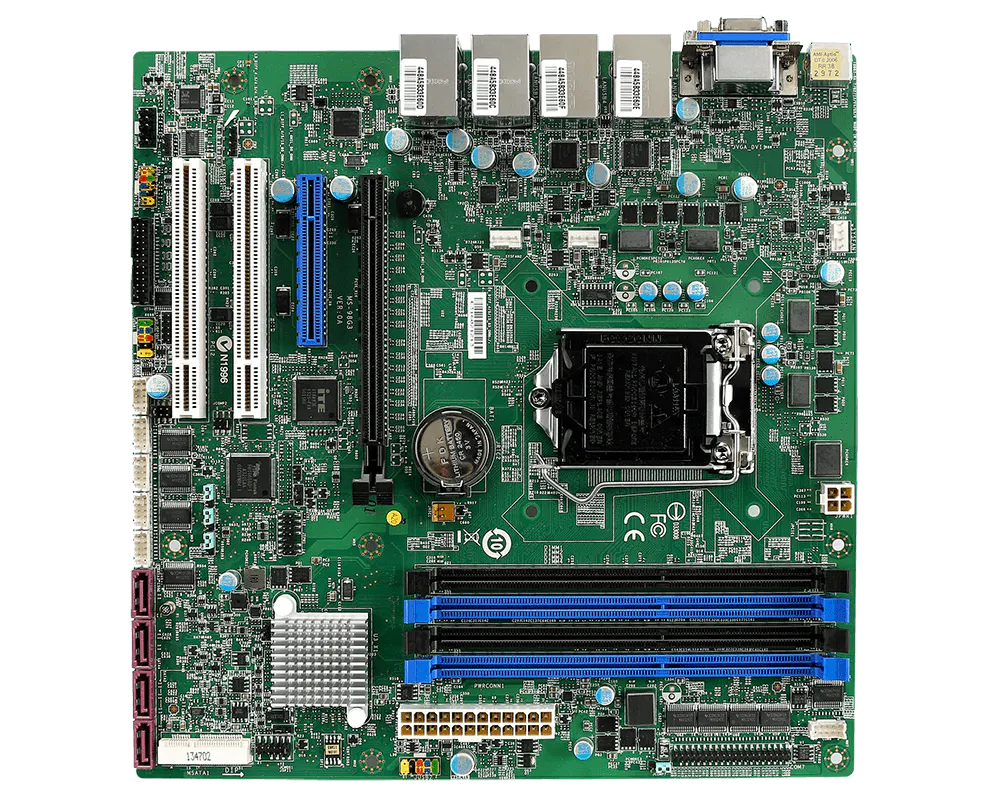

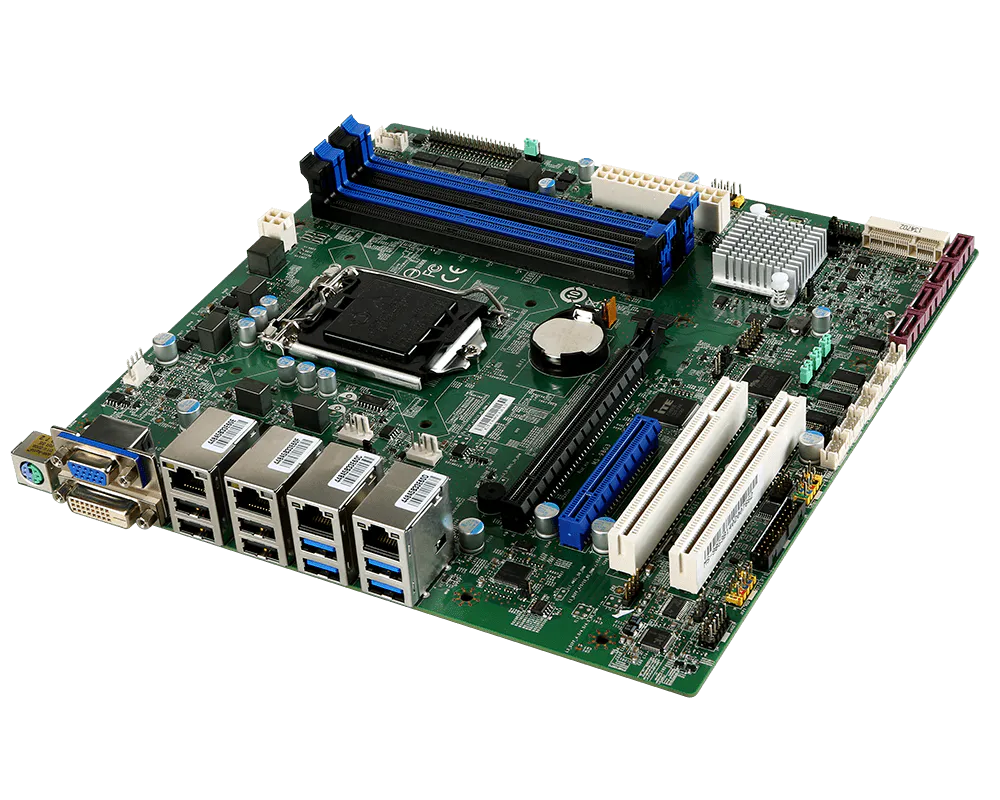

Micro-ATX with 4th Gen Intel® Haswell/Haswell Refresh Platform for Q87, 4 LAN, 10 COM & USB 3.0 for Vision Applications
- Intel® 4th Gen Haswell Refresh-S/Haswell-S Series with Q87
- 4 DDR3 1600/1333/1066 MHz UDIMM slots up to 32GB
- Dualindependent displays: DVI-I, 2 DP
- 2 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3), 1 PCIe x8 (Gen 2), 2 PCI, 1 Mini-PCIe (Full size, with mSATA) slots
- mSATA, 4 SATA 3.0 for storage
- SATA RAID 0/1/5
- 4 USB 3.2 Gen 1, 8 USB 2.0, 10 COM(2 RS485), Audio, GPIO, LPT, PS/2, 2 System FAN
- ATX Power
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-98G3
Processor
- CPU
- 4th Gen Intel® Desktop Haswell/ Haswell Refresh Core™ i7/i5/i3/Celeron®/ Pentium® Processors, Max. 95W
- Frequency
- 2.2GHz~4.4GHz (Depends on CPU)
- L2 Cache
- 2M ~ 8M (Depends on CPU)
- CPU Type
- Socket (LGA 1150)
- Chipset
- Intel® Q87 Express
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3 1066/1333/1600MHz
- Max. Capacity
- Up to 32GB
- Socket
- 4 x 240-pin Long-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- VGA
- 1
- DVI
- 1 (DVI-D)
- Multiple Display
- 2 independent displays
- Display Interface
- VGA up to 1920 x 1080
DVI up to 2560 x 1600
Ethernet
- Controller
- 1 x Intel® I217-LM GbE-PHY
3 x Intel® I210-AT PCIe GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I + F81216AD
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header

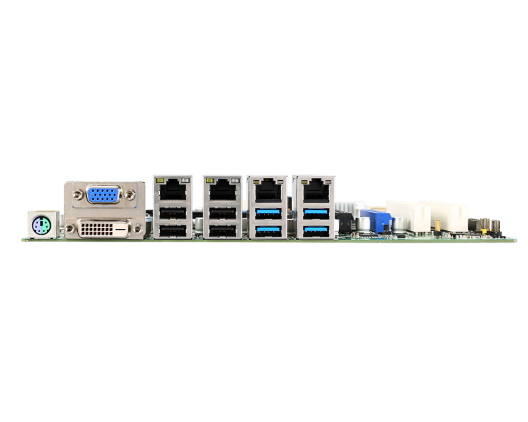

I/O Interface
- PS/2
- 1
- USB
- 8 x USB 2.0 (4 x rear, 4 x internal)
4 x USB 3.2 Gen 1 (4 x rear)
- Parallel
- 1
- Serial
- 10 x COM (internal)
COM1~COM4: RS-232, 0V/5V/12V
COM5: RS-232/422/485, 0V/5V/12V
COM6: RS-232/422/485, without power
COM7~COM10: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI, 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1
- PCIe x8
- 1 (PCIe x1 signal)
- PCI
- 2
- Mini-PCIe
- 1 x Full-size, mSATA
Storage
- SATA
- 1 x Full-size (mSATA)
- mSATA
- 1 (shared w/ Mini-PCIe)
Power Supply
- ATX
- ATX-Power 24P, 12V-4P
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 244 mm x 244 mm (uATX)
- Weight
- 0.6 kg
Certification
- EMC
- FCC, CE, C-Tick, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Ordering Information
- Part Number
- Description
- 919-98G3-001
- MS-98G3, Q87 Haswell / Haswell Re-Flash Desktop CPU, 4 x DDR3 Long DIMM, VGA/DVI-D, 4 x SATA3.0, 4 x GbE LAN, 10 x COM, 4 x USB3.0, 8 x USB2.0
Packing List
- Part Number
- Description
- Quantity
- K14-1018003-V03
- COM PORT CABLE, 300mm
- 1
- K1D-1008261-V03
- SATA CABLE,SIGNAL, 500mm
- 2
- E21-98G3010-C22
- IO Shielding
- 1
- G71-SEDC125-X03
- Driver CD
- 1
