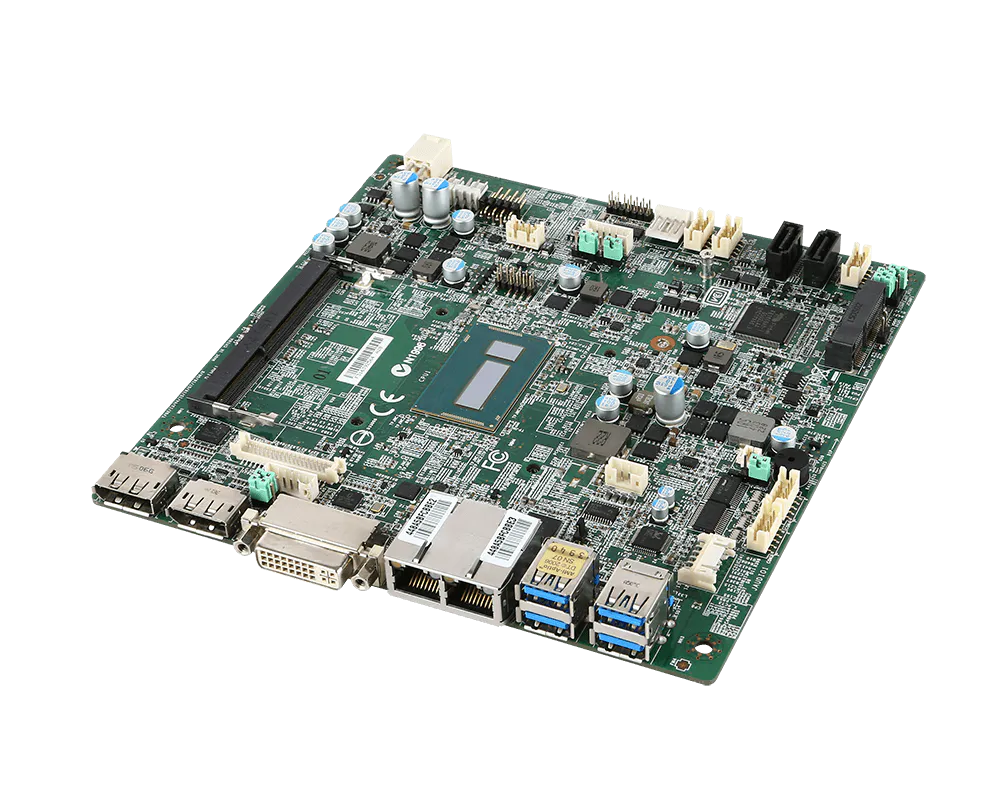

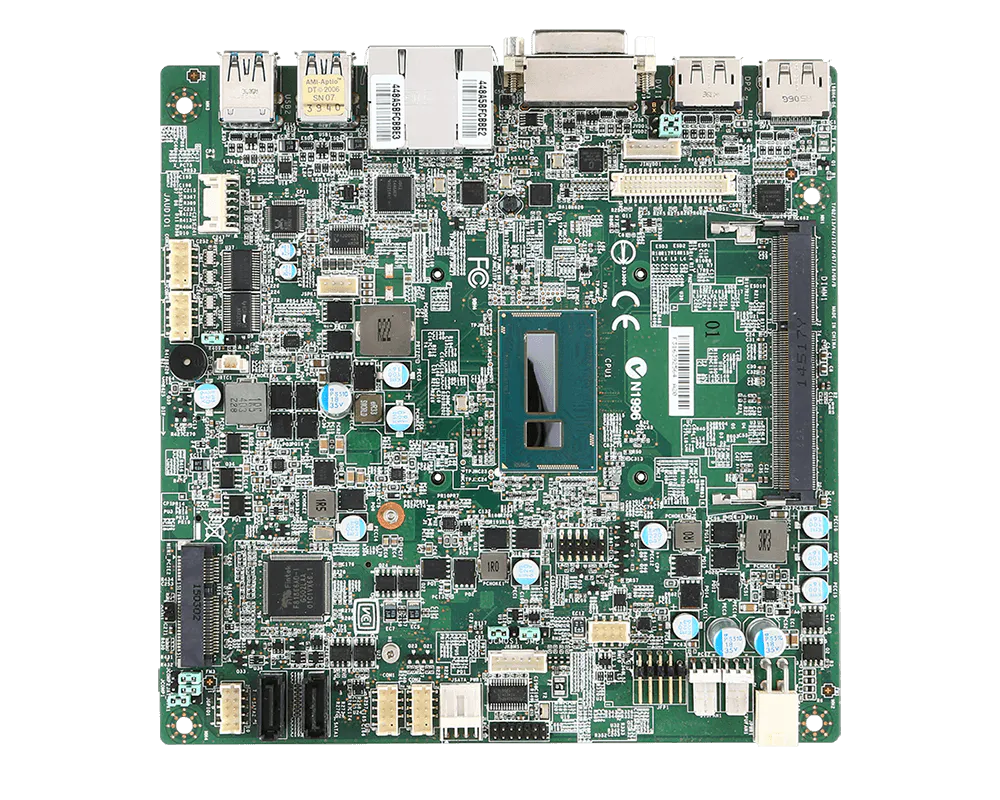

MS-98H4

Mini-ITX with 5th Gen Intel® Broadwell ULT Platform for Multi-Displays

  • 5th Gen Intel® Broadwell ULT SoC processors
  • Embedded Mini-ITX Motherboard for Fanless computer in Digital Signage, touch panel PC, tablet appliction
  • Supports DDR3L 1600MHz SO-DIMM memory up to 16GB
  • 3 independent displays with multiple video outputs(LVDS, HDMI™, DP, VGA, DVI-D)
  • 2 x GbE LAN, 4 x USB 3.0, 4 x COM (w/ Power)
  • 2xSATA 3.0, 2xfull-size Mini-PCIe (one shared mSATA or SIM holder)
  • Supports wide voltage DC-in 12/19/24V
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-98H4

Processor

  • CPU
  • 5th Gen Intel® Mobile Broadwell ULT Core™ i3/i5/i7 processor
  • Frequency
  • Depends on CPU
  • L2 Cache
  • Depends on CPU
  • CPU Type
  • BGA
  • Chipset
  • Integrated
  • BIOS
  • AMI

Memory

  • Technology
  • Dual-channel for DDR3L 1333/1600 MHz
  • Max. Capacity
  • Up to 16GB
  • Socket
  • 2 x 204-pin SO-DIMMs

Display

  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Shared system memory up to 1.7 GB SDRAM
  • LVDS
  • 1 x Dual channel 18/24-bit (Colay with DP)
  • VGA
  • 1 (shared w/ DVI-D)
  • DVI
  • 1 (DVI-D, shared w/ VGA)
  • DisplayPort
  • 2
  • Multiple Display
  • 3 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60Hz
    HDMI™ up to 4096 x 2304 @30Hz
    DP up to to 3840x 2160 @60Hz
    DVI-I up to 1920x 1200 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I218LM GbE LAN PHY
    1 x Intel® I210-AT GbE LAN

Audio

  • Controller
  • Realtek® ALC887/888S HD Audio Codec

Super I/O

  • Controller
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes

TPM

  • Controller
  • Infineon SLB9635TT 1.2 (by BOM option)

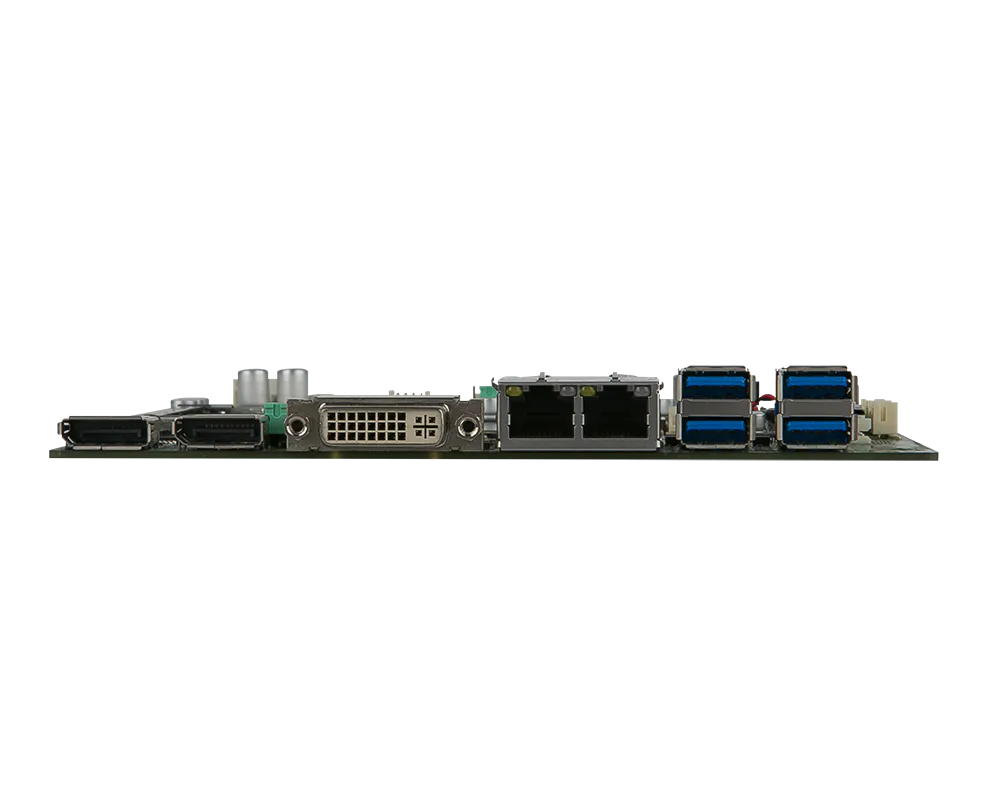

I/O Interface

  • PS/2
  • 1 (pin header)
  • USB
  • 4 x USB 3.0 (rear)
    2 x USB 2.0 (internal)
  • Serial
  • 4 x COM ports (by SKU)
    COM1: RS-232/422/485, 0V/5V/12V
    COM2~4: RS-232, 0V/5V/12V
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size (one w/ SIM holder or mSATA)

Storage

  • SATA
  • 2 x SATA 3.0
  • mSATA
  • 1 (shared w/ Mini-PCIe)

Power Supply

  • DC Input
  • DC-in 12V/19V/24V

Environment

  • Operating Temperature
  • -10 ~ 60°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing

Form Factor

  • Dimensions
  • 170mm x 170mm (Mini-ITX)
  • Weight
  • 0.37 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (32/64-bit)
    Linix Fedora Core 21
    Ubuntu 15.04

BIOS

Attention:

Users who download BIOS from here (not using Live Update) should use the flash utility included in the downloaded compressed file when doing the BIOS update. To avoid BIOS update failure, please do not use older versions of the update utility or utilities not provided by MSI. We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2016-11-01

Version

5.00

File Size

5.48 MB

Type

BIOS

OS

Note

Driver

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

OS
  • All
  • Win10 64
  • Win8.1 64
  • Win8.1 32
  • Win 7 64
  • Win 7 32
AMT10 Driver
Release Date

2015-10-06

Version

10.0.45.1022

File Size

121.02 MB

Type

Others Drivers

OS

Win10 64

Note

Audio Driver
Release Date

2015-10-06

Version

7564_PG431

File Size

287.86 MB

Type

On-Board Audio Drivers

OS

Win10 64

Note

Chipset Driver
Release Date

2015-10-06

Version

10.1.1.9

File Size

2.7 MB

Type

System & Chipset Drivers

OS

Win10 64

Note

LAN Driver
Release Date

2015-10-06

Version

20.2

File Size

77.57 MB

Type

LAN Drivers

OS

Win10 64

Note

RST Driver
Release Date

2015-10-06

Version

14.5.0.1081

File Size

15.7 MB

Type

Others Drivers

OS

Win10 64

Note

Chipset Driver
Release Date

2015-08-03

Version

10.0.26

File Size

2.6 MB

Type

System & Chipset Drivers

OS

Win 7 32, Win 7 64, Win8.1 64, Win8.1 32

Note

VGA Driver
Release Date

2015-08-03

Version

4251

File Size

181.97 MB

Type

On-Board VGA Drivers

OS

Win 7 32, Win 7 64, Win8.1 64, Win8.1 32

Note

iAMT10
Release Date

2015-08-03

Version

10.0.28.1006

File Size

99.97 MB

Type

Others Drivers

OS

Win 7 32, Win 7 64, Win8.1 64, Win8.1 32

Note

RST Driver
Release Date

2015-08-03

Version

13.6.2.1001

File Size

12.46 MB

Type

Others Drivers

OS

Win 7 32, Win 7 64, Win8.1 64, Win8.1 32

Note

USB 3.0 Driver
Release Date

2015-08-03

Version

3.0.4.65

File Size

5.23 MB

Type

Others Drivers

OS

Win 7 32, Win 7 64

Note

LAN Driver
Release Date

2015-03-31

Version

19.5

File Size

54.27 MB

Type

LAN Drivers

OS

Win 7 32, Win 7 64, Win8.1 64, Win8.1 32

Note

Manual

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.An easy guide for you to assemble your PC step by step, please refer to "Quick Installation Guide"..

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2015-05-08

Version

1.0

File Size

0.24 MB

Type

Manual

Data Sheet

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.

Release Date

2017-11-07

Version

File Size

0.38 MB

Language
