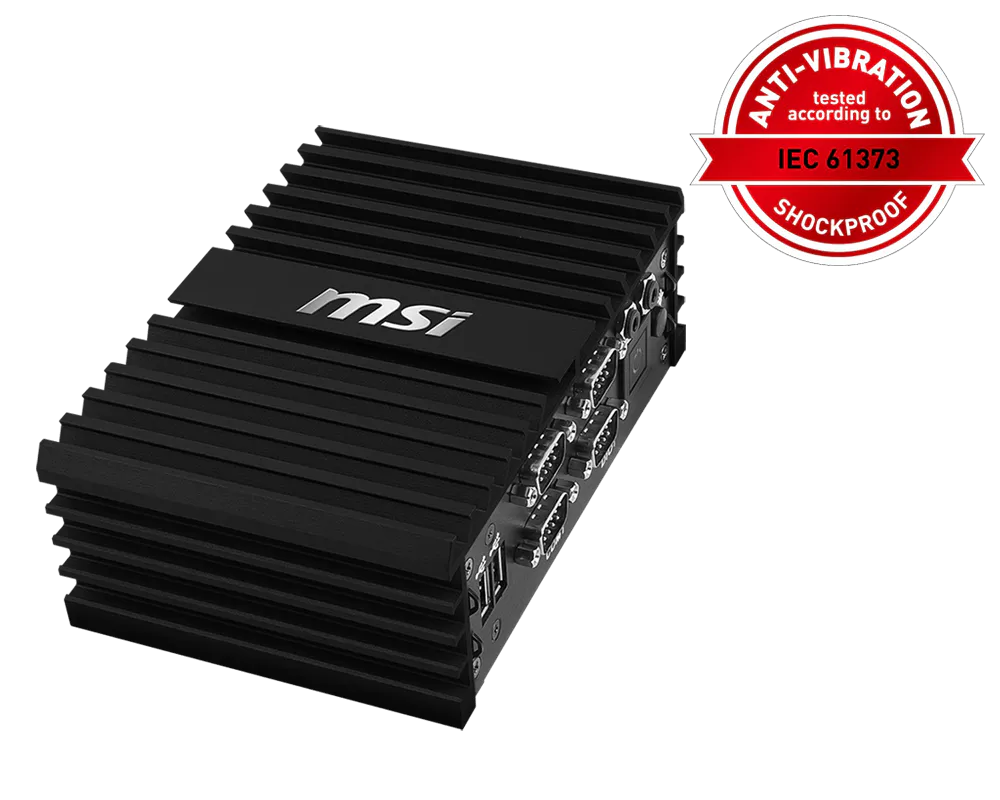

Palm-Size Box PC with Intel® Braswell N3160 SoC Platform for Ultra Low-Power Fanless Solution
- Ultra low power with fanless design
- Supports Onboard 2GB DDR3L memory
- 2 or 3 independent displays:HDMI™, DP and DVI-I/LVDS(Optional)
- Supports 16-bit GPIO (8*GPI; 8*GPO)
- Supports 1 Intel® GbE LAN, 2 USB 3.0, 2 USB 2.0 and 2 COM ports
- Supports Flexible DC-in 12V input
- Anti-Vibration & Shockproof Design
- Compliance IEC 61373 body mount class A
- 3 openings reserved for antennas
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
 |
|||
| ‧ System Processor | CPU | Intel® Celeron® Processor N3160, QC, 6W | |
| Frequency | 1.6 GHz up to 2.24 GHz | ||
| L2 Cache | 2MB | ||
| CPU Type | BGA | ||
| Chipset | Integrated in SoC Processor | ||
| BIOS | AMI | ||
| ‧Memory | Technology | Single-Channel DDR3L 1600MHz | |
| Max. Capacity | Onboard 2 GB | ||
| Socket | N/A | ||
| ‧Graphic | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| Multiple Display | 3 independent displays | ||
| Display Interface | HDMI™ up to 3840 x 2160 @30Hz DP1.1a up to 3840 x 2160 @30Hz LVDS up to 1920 x 1200 @60 Hz (optional by cable) DVI-I up to 1920 x 1200 @60 Hz (optional by MS-99C0) |
||
| ‧Ethernet | Controller | 1 x Intel®I211-AT GbE LAN | |
| ‧Audio | Controller | Realtek® ALC887-VD2-CG HD Audio Codec | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| ‧TPM | Controller | Pin Header | |
| ‧Expansion Slot | M.2 | N/A | |
| Mini-PCIe | 1 x Half-size | ||
| ‧Storage | SATA | 1 x 2.5" HDD/SSD Bay | |
| mSATA | 1 x Full-size | ||

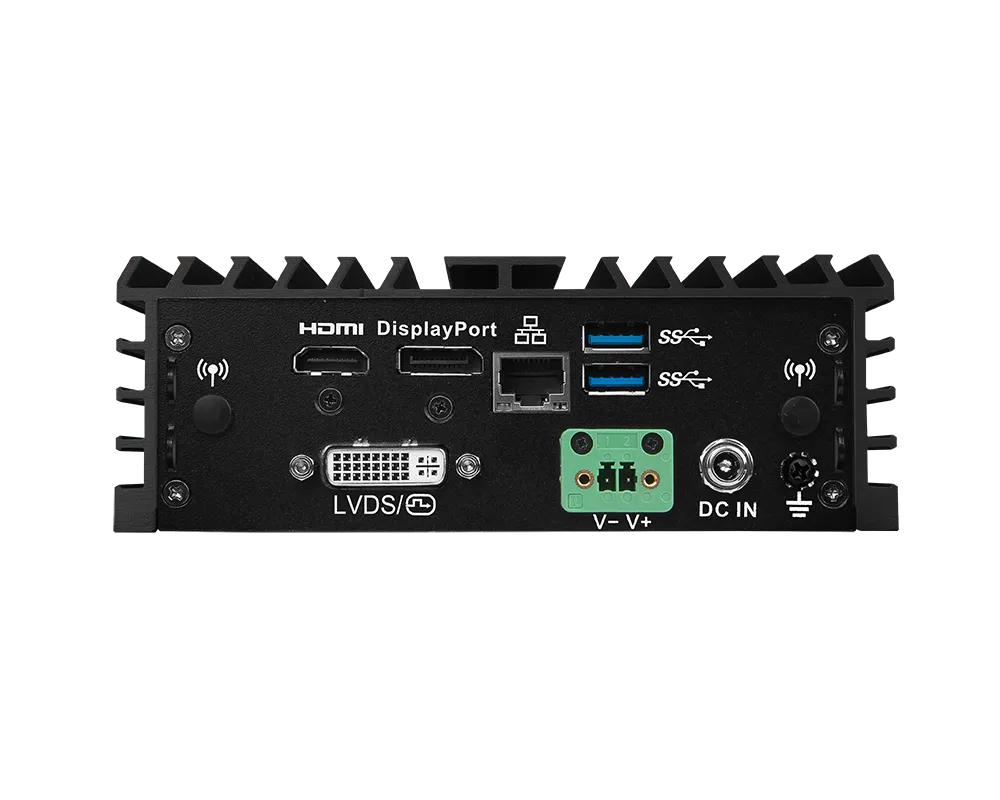

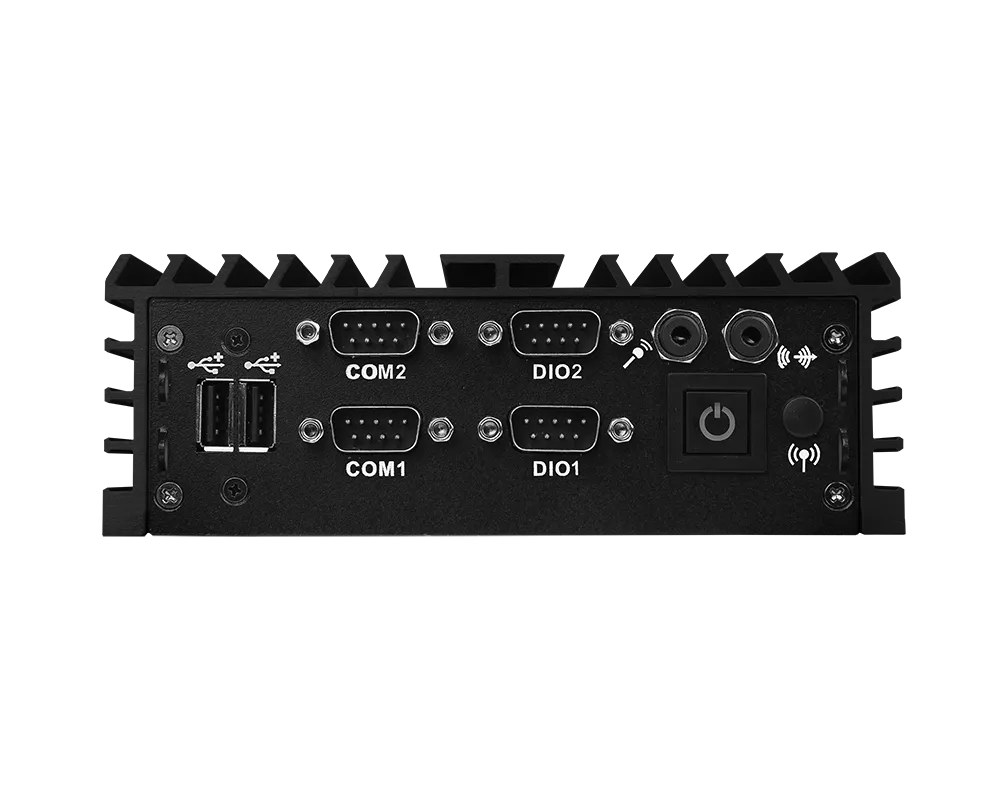

| ‧I/O Interface | RJ-45 | 1 | |
| PoE | N/A | ||
| Audio | 1 x Line-out, 1 x Mic-in | ||
| USB | 2 x USB 3.0, 2 x USB 2.0 | ||
| Serial | 2 x COM Ports COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232/422/485, 0V/5V/12V |
||
| GPIO | 16-bit (8*GPI; 8*GPO), 5V | ||
| HDMI™ | 1 | ||
| LVDS | 1 (option) | ||
| DVI | 1 (DVI-I by option) | ||
| DisplayPort | 1 | ||
| Antenna | 3 Openings Reserved for Antennas | ||
| ‧ Power Supply | DC Input | DC-in 12V Jack (5.5mm/2.5mm) / Phoenix Pluggable with Latch (Support OCP&OVP Protection) | |
| AC Input | N/A | ||
| ‧ Environment | IP Rating | N/A | |
| Operating Temperature | -10 ~ 45°C (2.5" HDD) -10 ~ 55°C (2.5" SSD or mSATA) |
||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| Vibration | Operating: 0.5 Grms, 5-300Hz, 3axes (w/ HDD) Operating: 5 Grms, 5-300Hz, 3axes (w/ SSD) |
||
| Shock | Operating, 3 G, half sine 11 ms duration (w/ HDD) | ||
| ‧ Form Factor | Dimensions (W x D x H) | 155 x 105 x 55 mm | |
| Weight | 0.9 Kg | ||
| Mounting | Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option) | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| Safety | BSMI | ||
| Software Platform | OS Support | Windows 7 (32/64-bit), Windows 8.1 (32/64-bit) Windows 10 (64 Bit) Linux Fedora 21 Linux Ubuntu14.04 |
|
 |
|||
| ‧ Part Number | Description | ||
| 939-9A59-001 | MS-9A59\MS-9A59\709-9A59-010\829- 9A59-004\STD MS-9A59 VER 1.1 HEATSINK, 1*SATA CABLE, 2*WALL MOUNT, CD, 12V/36W ADAPTER, POWER CORD USA SINGLE | ||
| 939-9A59-002 | MS-9A59\MS-9A59\709-9A59-010\829- 9A59-005\STD MS-9A59 VER 1.1 HEATSINK, 1*SATA CABLE, 2*WALL MOUNT, CD, 12V/36W ADAPTER, POWER CORD EU SINGLE | ||
 |
|||
| ‧ Part Number | Description | 939-9A59-001 | 939-9A59-002 |
| K33-3001020-I45 | Power Cord, USA, 1800mm | 1 | |
| K33-3001021-I45 | Power Cord, EU, 1800mm | 1 | |
| K1D-3010018-V03 | SATA Cable with power, 120mm | 1 | 1 |
| NA1-1020051-PC1 | Phoenix Terminal Plugged | 1 | 1 |
| S93-0408870-S14 | Adapter 12V/36W | 1 | 1 |
| G71-SEDC165-N56 | Driver DVD | 1 | 1 |
| E22-9A59010-LA2 | Wall Mounting Bracket | 2 | 2 |
| E25-9B01030-K23 | Rubber for Wall Mounting | 4 | 4 |
| E49-1068001-P65 | Screw for Wall Mounting | 4 | 4 |
| E24-9B02010-P09 | DIN Rail | 2 | 2 |
| E41-1356002-P65 | Screw for DIN Rail | 4 | 4 |
 |
|||
| ‧ Part Number | Description | ||
| E22-9A25031-C22 | VESA Mount | ||
| E24-9B02010-P09 | DIN Rail | ||
| E41-1356002-P65 | Screw for DIN Rail | ||
Product Specifications
- Part Number
- MS-9A59
System Processor
- CPU
- Intel® Celeron® Processor N3160, QC, 6W
- Frequency
- 1.6 GHz up to 2.24 GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC Processor
- BIOS
- AMI
Memory
- Technology
- Single-Channel DDR3L 1600MHz
- Max. Capacity
- Onboard 2 GB
Graphic
- Controller
- Intel® HD Graphics
- Graphic Memory
- Shared system memory up to 1.7 GB SDRAM
- Multiple Display
- 3 independent displays
- Display Interface
- HDMI™ up to 3840 x 2160 @30Hz
DP1.1a up to 3840 x 2160 @30Hz
LVDS up to 1920 x 1200 @60 Hz (optional by cable)
DVI-I up to 1920 x 1200 @60 Hz (optional by MS-99C0)
Ethernet
- Controller
- 1 x Intel® I211-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
TPM
- Controller
- Pin Header
I/O Interface
- LVDS
- 1 (option)
- RJ-45
- 1
- Audio
- 1 x Line-out, 1 x Mic-in
- USB
- 2 x USB 3.0, 2 x USB 2.0
- Serial
- 2 x COM Ports
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
- HDMI
- 1
- GPIO
- 16-bit (8*GPI; 8*GPO), 5V
- DVI
- 1 (DVI-I by option)
- DisplayPort
- 1
- Antenna
- 3 Openings Reserved for Antennas
Expansion Slot
- Mini-PCIe
- 1 x Half-size
Storage
- SATA
- 1 x 2.5" HDD/SSD Bay
- mSATA
- 1 x Full-size
Power Supply
- DC Input
- DC-in 12V Jack (5.5mm/2.5mm) / Phoenix Pluggable with Latch (Support OCP&OVP Protection)
Environment
- Operating Temperature
- -10 ~ 45°C (2.5" HDD)
-10 ~ 55°C (2.5" SSD or mSATA)
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating: 0.5 Grms, 5-300Hz, 3axes (w/ HDD)
Operating: 5 Grms, 5-300Hz, 3axes (w/ SSD)
- Shock
- Operating, 3 G, half sine 11 ms duration (w/ HDD)
Form Factor
- Dimensions
- 155 x 105 x 55 mm
- Weight
- 0.9 kg
- Mounting
- Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
- Safety
- BSMI
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64 Bit)
Linux Fedora 21
Linux Ubuntu14.04
Ordering Information
- Part Number
- Description
- 939-9A59-001
- MS-9A59\MS-9A59\709-9A59-010\829- 9A59-004\STD MS-9A59 VER 1.1 HEATSINK, 1*SATA CABLE, 2*WALL MOUNT, CD, 12V/36W ADAPTER, POWER CORD USA SINGLE
- 939-9A59-002
- MS-9A59\MS-9A59\709-9A59-010\829- 9A59-005\STD MS-9A59 VER 1.1 HEATSINK, 1*SATA CABLE, 2*WALL MOUNT, CD, 12V/36W ADAPTER, POWER CORD EU SINGLE
Packing List
- Part Number
- Description
- 939-9A59-001
- 939-9A59-002 939-9A59-002
- K33-3001020-I45
- Power Cord, USA, 1800mm
- 1
- K33-3001021-I45
- Power Cord, EU, 1800mm
- 1
- K1D-3010018-V03
- SATA Cable with power, 120mm
- 1
- 1
- NA1-1020051-PC1
- Phoenix Terminal Plugged
- 1
- 1
- S93-0408870-S14
- Adapter 12V/36W
- 1
- 1
- G71-SEDC165-N56
- Driver DVD
- 1
- 1
- E22-9A59010-LA2
- Wall Mounting Bracket
- 2
- 2
- E25-9B01030-K235
- Rubber for Wall Mounting
- 4
- 4
- E49-1068001-P65
- Screw for Wall Mounting
- 4
- 4
- E24-9B02010-P09
- DIN Rail
- 2
- 2
- E41-1356002-P65
- Screw for DIN Rail
- 4
- 4
Optional Item
- Part Number
- Description
- E22-9A25031-C22
- ESA Mount
- E24-9B02010-P09
- IN Rail)
- 41-1356002-P65
- Screw for DIN Rail
