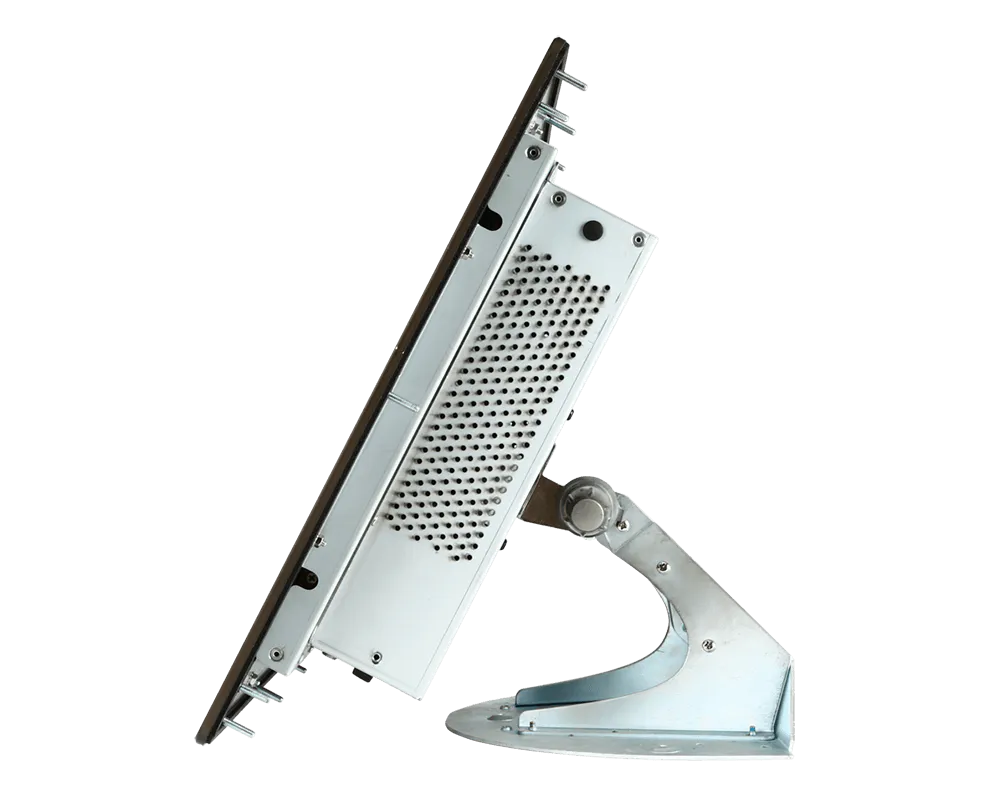

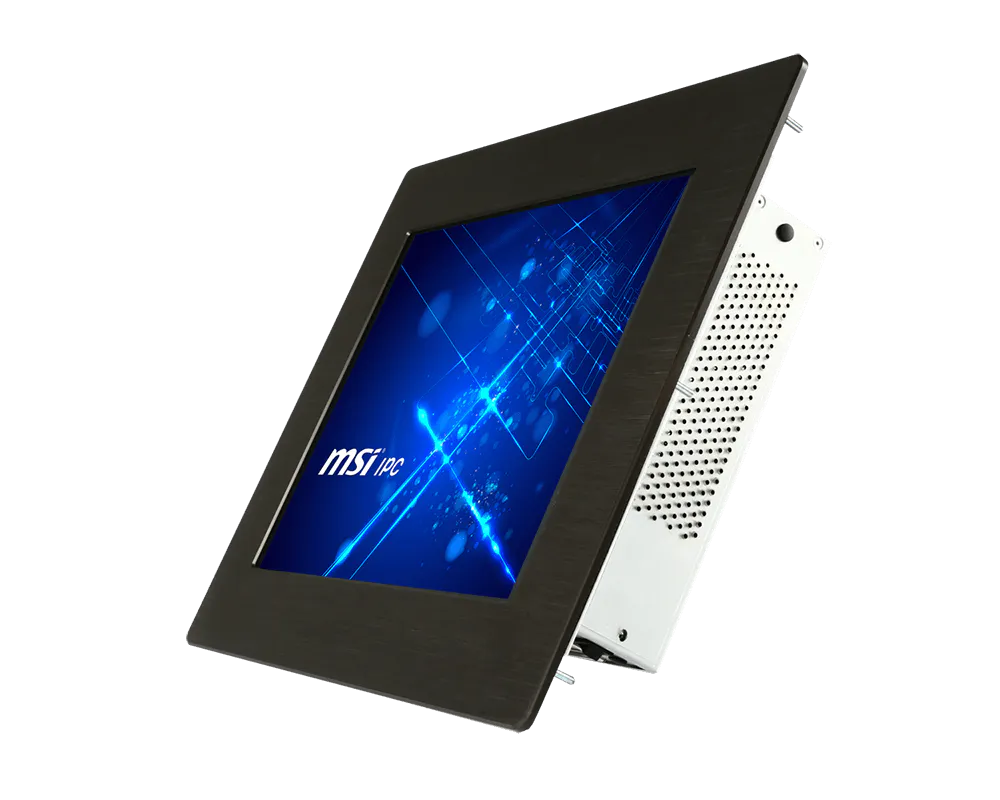

15" Fanless HMI Panel PC with Intel® Mainstream Mobile CPU
- Intel® mainstream mobile CPU
- 15" TFT LCD with 5-wire resistive touch panel
- Flexible storage interfaces (HDD/SSD/mSATA/SATA DOM)
- Fanless design with excellent ventilation
- Support DC-in 12V
- Open-frame panel PC or with bezel (optional)
- IP65 front panel for water-proof applications
- Overview
- Product Specifications
 |
|||
| ‧ Model | MS-9A61-D2550-FS | MS-9A61-D2550-BS | |
| ‧ Display | LCD Size | 15" | |
| Resolution | 1024x768 | ||
| Brightness (cd/m2) | 250 | ||
| Contrast Ratio | 700:1 | ||
| Support Colors | 16.2M | ||
| Pixel Pitch (H/Vmm) | 0.297x0.297 | ||
| Viewing Angle | H: 140~160 degree V: 100~120 degree |
||
| ‧ Touch Panel | 5-wire resistive touch panel | ||
| ‧ System Processor | CPU | Intel® Atom™ Processor D2550, Dual Core | |
| Frequency | 1.86 GHz | ||
| L2 Cache | 1MB | ||
| CPU Type | BGA | ||
| Chipset | Intel® NM10 Express | ||
| BIOS | AMI | ||
| ‧ Memory | Technology | Single-channel DDR3 1066MHz | |
| Max. Capacity | Up to 4GB | ||
| Socket | 1 x 204-pin SO-DIMM | ||
| ‧ Graphic | Controller | Intel® GMA3650 Graphics | |
| Graphic Memory | Shared system memory up to 759 MB SDRAM | ||
| Multiple Display | 2 independent displays | ||
| Display Interface | HDMI™ up to 1920 x 1200 VGA up to 1920 x 1200 |
||
| ‧ Ethernet | Controller | 2 x Realtek® RTL8111E GbE LAN | |
| ‧ Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧ H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| Smart Fan | N/A | ||
| ‧ Expansion Slot | Mni-PCIe | 1 x Full-size (w/ mSATA) | |
| ‧ Storage | SATA | 320G 2.5" HDD | |
| mSATA | 1 | ||

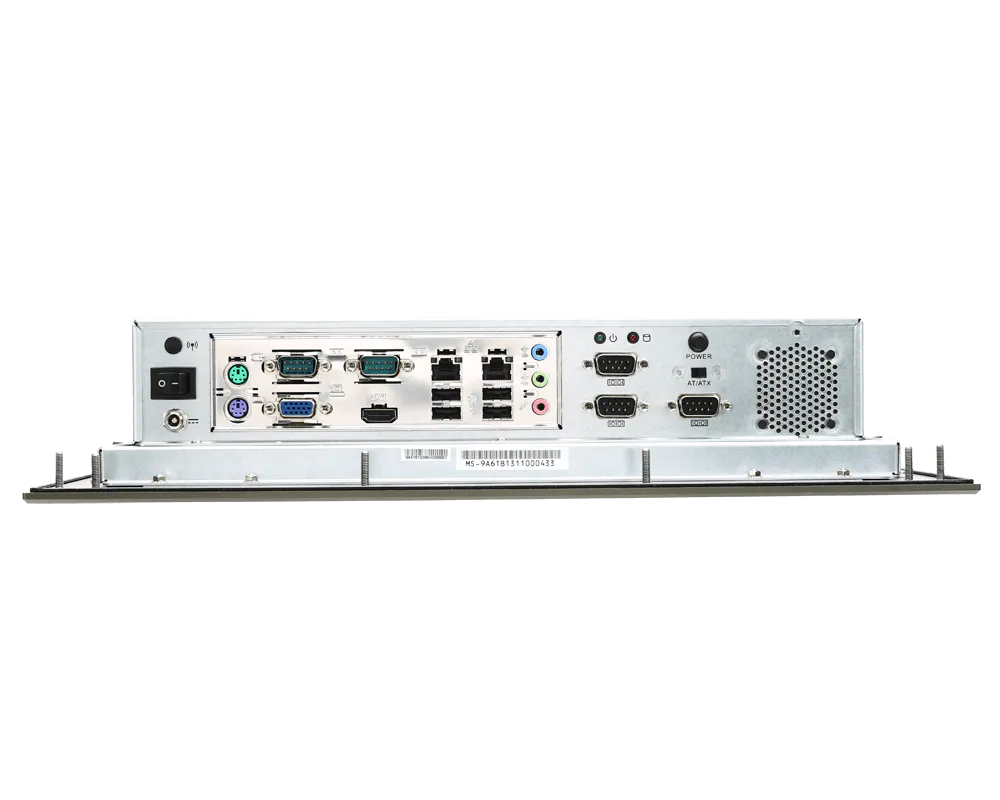

| ‧ I/O Interface | |||
| RJ-45 | 2 | ||
| Audio | 1 x Line-out, 1 x Line-in, 1 x Mic-in | ||
| USB | 4 x USB 2.0 | ||
| Serial | 5 x COM COM1: RS-232/422/485 (0V/5V/12V) COM 2~5: RS-232 (0V/5V/12V) |
||
| PS/2 | 2 | ||
| HDMI™ | 1 | ||
| VGA | 1 | ||
| Antenna | 3 openings reserved for antennas | ||
| ‧ Power Supply | DC Input | DC-in 12V pluggable connectors with latch (GND, V-, V+) |
|
| AC Input | Optional 84W external AC-DC adapter for AC input | ||
| ‧ Environment | Operating Temperature | 0~45°C (HDD) 0~50°C (SSD) |
|
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| Vibration | Operating, 0.25 Grms, 5-300 Hz, 3 axes | ||
| Shock | Operating, 3 G, half sine 11 ms | ||
| ‧ Physical Characteristics | Housing | SGCC, open frame | SGCC, aluminum |
| Dimensions | 380.2mm x 290mm x 78mm | 410mm x 340mm x 79.78mm | |
| Weight | 4.9 kg (without bezel) | 5.6 Kg (with bezel) | |
| Mounting | VESA 75/100, Panel Mount | ||
| ‧ Certification | EMC | FCC, CE, C-Tick, VCCI | |
| Safety | TUV, CB | ||
| ‧Software Platform | OS Support | Windows XP (32-bit) | |
 |
|||
| ‧ Part Number | Description | ||
| 9S9-9A61-001 | D2550, MSI Bezel, 320GB HDD, 2G memory, 12V 84W DC-in Adaptor, EU Power Cord | ||
| 9S9-9A61-003 | D2550, Open Frame, 320GB HDD, 2G memory, 12V 84W DC-in Adaptor, EU Power Cord | ||
 |
|||
| ‧ Part Number | Description | ||
| G71-SEDC119-X03 | Driver CD | ||
| K33-3001005-I45 | Power Cord, EU, 1830mm | ||
| S93-0401650-S14 | Adaptor | ||
| E2B-9A61010-P65 | Nut | ||
| E2B-9A61020-P65 | Nut | ||
| E22-9A61070-LA2 | Plate | ||
| E22-9A61030-LA2 | Plate | ||
Product Specifications
- Part Number
- MS-9A61-D2550
