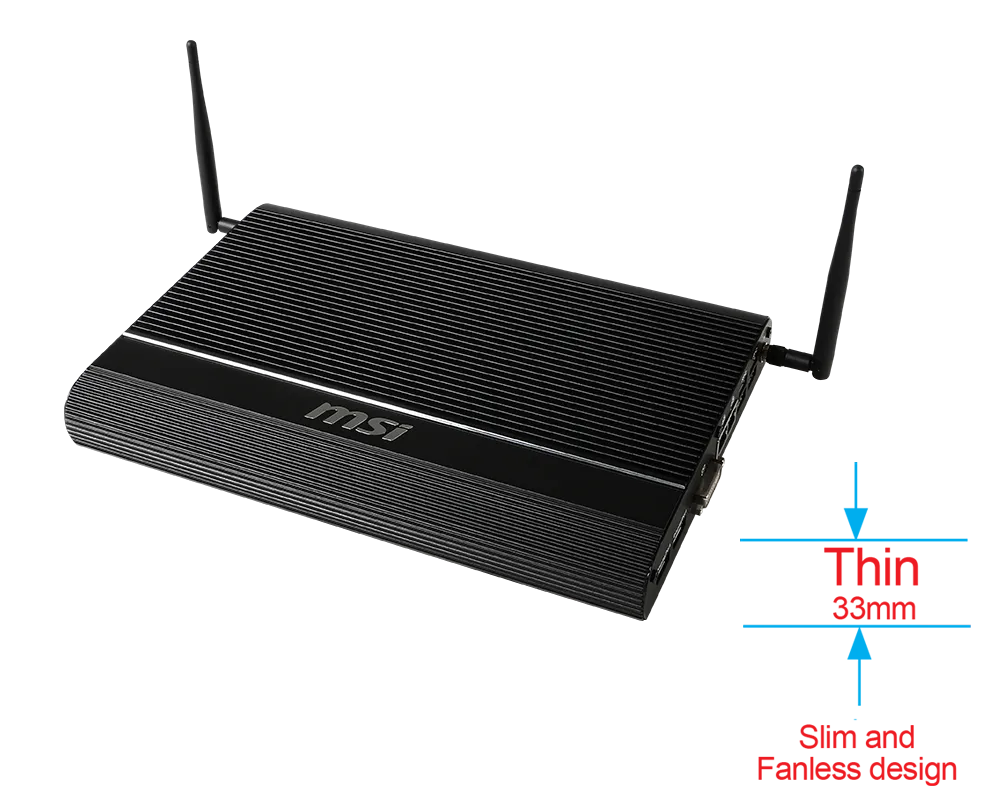

Slim Industrial Fanless Box PC with Intel® BDW ULT, High Performance & Low-Power for 4K2K Digital Signage
- Slim and fanless system design with 33mm thinness
- 5th Gen Intel® Broadwell ULT Core i7/i5/i3, Celeron Processor
- Support DDR3L SO-DIMM up to 16GB memory

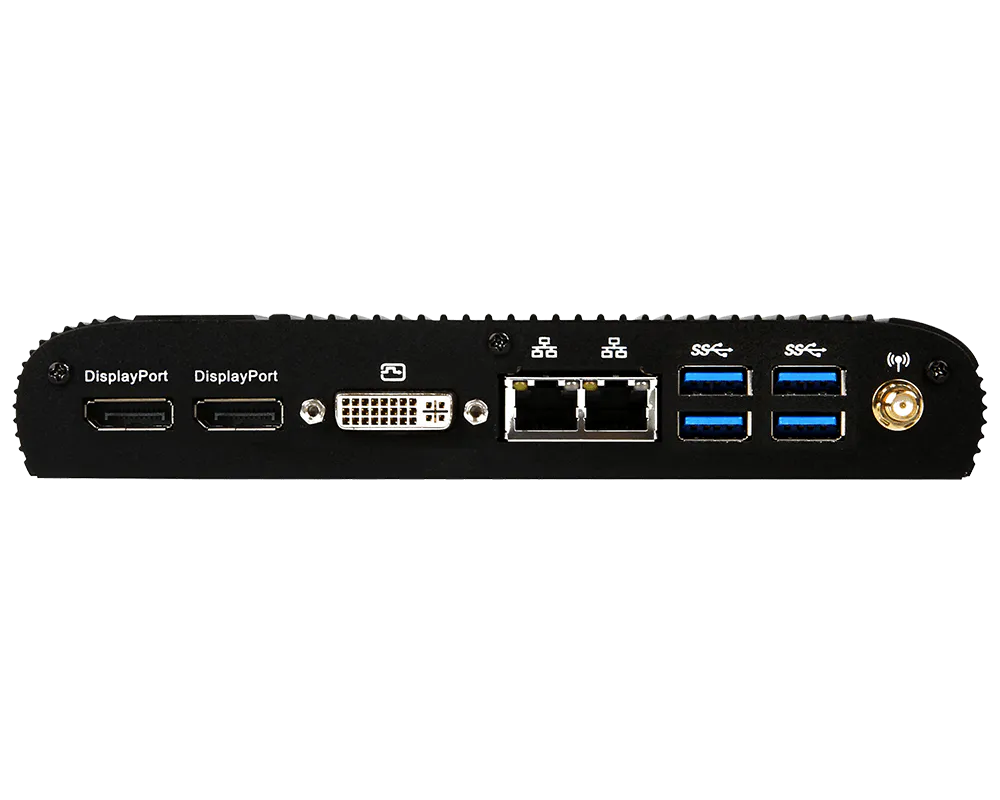

- 3 independent displays: 2 DP and 1 DVI-I (support DVI-D and VGA via Y cable)
- 2 x GbE LAN, 4 x USB 3.0 and 2 x USB2.0, 1 x COM, audio, and lockable DC jack
- Mini-PCIe slots for WiFi, 3G, or mSATA cards
- Flexible design for easy maintenance on 2.5” HDD/SSD, memory & 2 full size mini-PCIe
- DC-in 19V/65W adaptor
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
 |
|||
| ‧ System Processor | CPU | Intel® BDW ULT Core™ i5-5200U Processor, Dual Core, 15W | |
| Frequency | 2.2 GHz, up to 2.7 GHz | ||
| L2 Cache | 3MB | ||
| CPU Type | BGA | ||
| Chipset | N/A | ||
| BIOS | AMI | ||
| ‧Memory | Technology | Dual-channel for DDR3L 1333/1600 MHz | |
| Max. Capacity | Up to 16GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Graphic | Controller | Intel® HD Graphics 5500 | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| Multiple Display | 3 independent displays | ||
| Display Interface | DP up to 3840 x 2160 DVI-D up to 1920 x 1200 VGA up to 1920 x 1200 |
||
| ‧Ethernet | Controller | 1 x Intel® I218LM GbE LAN PHY 1 x Intel® I210-AT GbE LAN |
|
| ‧Audio | Controller | Realtek® ALC887/888S HD Audio Codec | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | Infineon SLB9635TT 1.2 | |
| ‧Expansion Slot | M.2 | N/A | |
| Mni-PCIe | 2 x Full-size (one w/ SIM holder or mSATA) | ||
| ‧Storage | SATA | 1 x 2.5" HDD/SSD | |
| mSATA | 1 (shared with mini-PCIe) | ||
| ‧I/O Interface | RJ-45 | 2 | |
| PoE | N/A | ||
| Audio | 1 x Mic-in 1 x Line-out |
||
| USB | SKU1: 4 x USB 3.0; 2 x USB 2.0 SKU2: 4 x USB 3.0 |
||
| Serial | SKU1: 1 x COM port, RS-232/422/485 SKU2: 2 x COM ports COM1: RS-232/422/485 COM2: RS-232 |
||
| GPIO | N/A | ||
| CANbus | N/A | ||
| HDMI™ | N/A | ||
| DVI | 1 (DVI-I) | ||
| DisplayPort | 2 | ||
| VGA | 1 (from DVI-I) | ||
| Antenna | 2 | ||
| ‧ Power Supply | DC Input | DC-in 12V/19V/24V | |
| AC Input | N/A | ||
| ‧ Environment | IP Rating | Full IP40 | |
| Operating Temperature | -10 ~ 50°C (SSD) -10 ~40°C (HDD) |
||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| Vibration | Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD) | ||
| Shock | Operating, 3 G, half sine 11 ms duration (w/ HDD) | ||
| ‧ Physical Characteristics | Dimensions | 196mm x 285mm x 33mm | |
| Weight | 2.60 Kg | ||
| Mounting | VESA mounting | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| Safety | BSMI, CB, Energy Star | ||
| ‧ Software Platform | OS Support | Windows 7 (32/64-bit) Windows 8.1 (32/64-bit) Windows 10 (32/64-bit) Linix Fedora Core 21 Ubuntu 15.04 |
|
 |
|||
| ‧ Part Number | Description | ||
| 9S9-9A75-001 | I5-5200U, 1*COM, MEMORY 2GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD EU | ||
| 9S9-9A75-003 | I5-5200U, 1*COM, MEMORY 2GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA | ||
| 9S9-9A75-004 | I5-5200U, 2*COM, MEMORY 4GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA | ||
| 939-9A75-001 | I5-5200U, 1*COM, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD EU | ||
| 939-9A75-002 | I5-5200U, 1*COM, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA | ||
 |
|||
| ‧ Part Number | Description | ||
| E22-9A95080-C22 | VESA Mounting Bracket | ||
| K33-3001020-I45/ K33-3001021-I45 |
Power Cord, USA, 1800mm/ Power Cord, EA, 1800mm |
||
| S79-0000360-V03 | RF Antenna | ||
| S93-0401690-S14 | Adaptor | ||
| G71-SEDC141-X03 | Driver CD | ||
Product Specifications
- Part Number
- MS-9A75
System Processor
- CPU
- Intel® BDW ULT Core™ i5-5200U Processor, Dual Core, 15W
- Frequency
- 2.2 GHz, up to 2.7 GHz
- L2 Cache
- 3MB
- CPU Type
- BGA
- BIOS
- AMI
Memory
- Technology
- Dual-channel for DDR3L 1333/1600 MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
Graphic
- Controller
- Intel® HD Graphics 5500
- Graphic Memory
- Shared system memory up to 1.7 GB SDRAM
- Multiple Display
- 3 independent displays
- Display Interface
- DP up to 3840 x 2160
DVI-D up to 1920 x 1200
VGA up to 1920 x 1200
Ethernet
- Controller
- 1 x Intel® I218LM GbE LAN PHY 1 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887/888S HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon SLB9635TT 1.2
I/O Interface
- VGA
- 1 (from DVI-I)
- RJ-45
- 2
- Audio
- 1 x Mic-in
1 x Line-out
- USB
- SKU1: 4 x USB 3.0; 2 x USB 2.0
SKU2: 4 x USB 3.0
- Serial

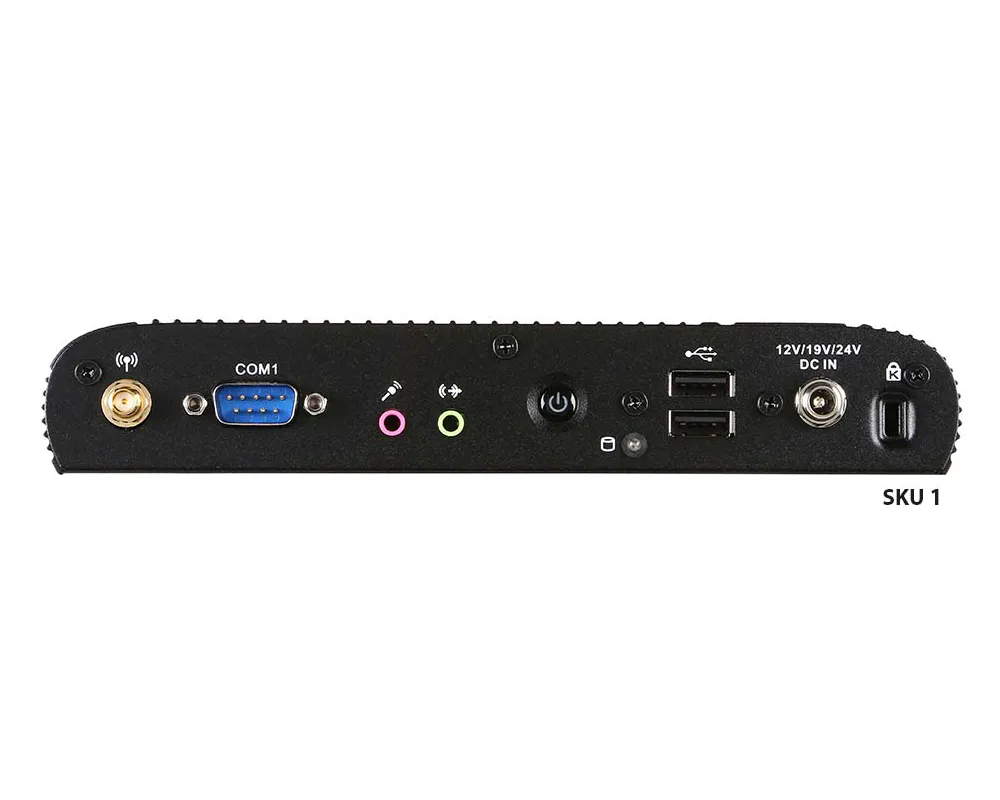

- SKU1: 1 x COM port, RS-232/422/485

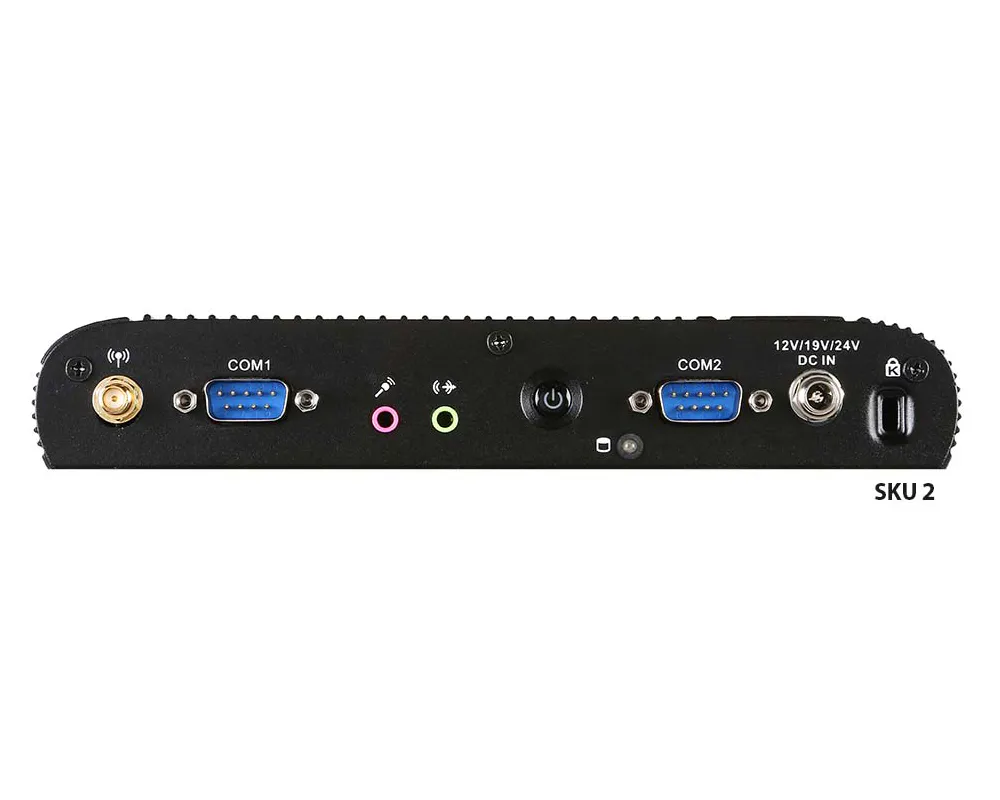

SKU2: 2 x COM ports
COM1: RS-232/422/485
COM2: RS-232
- DVI
- 1 (DVI-I)
- DisplayPort
- 2
- Antenna
- 2
Expansion Slot
- Mini-PCIe
- 2 x Full-size (one w/ SIM holder or mSATA)
Storage
- SATA
- 1 x 2.5" HDD/SSD
- mSATA
- 1 (shared with mini-PCIe)
Power Supply
- DC Input
- DC-in 12V/19V/24V
Environment
- IP Rating
- Full IP40
- Operating Temperature
- -10 ~ 50°C (SSD)
-10 ~40°C (HDD)
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
- Shock
- Operating, 3 G, half sine 11 ms duration (w/ HDD)
Physical Characteristics
- Dimensions
- 196mm x 285mm x 33mm
- Weight
- 2.60 Kg
- Mounting
- VESA mounting
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
- Safety
- BSMI, CB, Energy Star
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (32/64-bit)
Linix Fedora Core 21
Ubuntu 15.04
Ordering Information
- Part Number
- Description
- 9S9-9A75-001
- I5-5200U, 1*COM, MEMORY 2GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD EU
- 9S9-9A75-003
- I5-5200U, 1*COM, MEMORY 2GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA
- 9S9-9A75-004
- I5-5200U, 2*COM, MEMORY 4GB, HDD 500GB, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA
- 939-9A75-001
- I5-5200U, 1*COM, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD EU
- 939-9A75-002
- I5-5200U, 1*COM, WIRELESS LAN, 19V/65W ADAPTER, POWER CORD USA
Packing List
- Part Number
- Description
- E22-9A95080-C22
- VESA Mounting Bracket
- K33-3001020-I45
- Power Cord, USA, 1800mm
- K33-3001021-I45
- Power Cord, EA, 1800mm
- S79-0000360-V03
- F Antenna
- S93-0401690-S14
- Adaptor
- G71-SEDC141-X03
- Driver CD
