MS-9A84

M12 Waterproof Connector Box PC with Intel® Kaby Laby-U Series Processor for Ultra Low-Power & Fanless Solution

  • Intel® 7th Gen Kaby Lake-U Series
  • 1 DDR4 2133 MHz SODIMM Slots up to 16GB
  • HDMI™ up to 1920x1080@60Hz

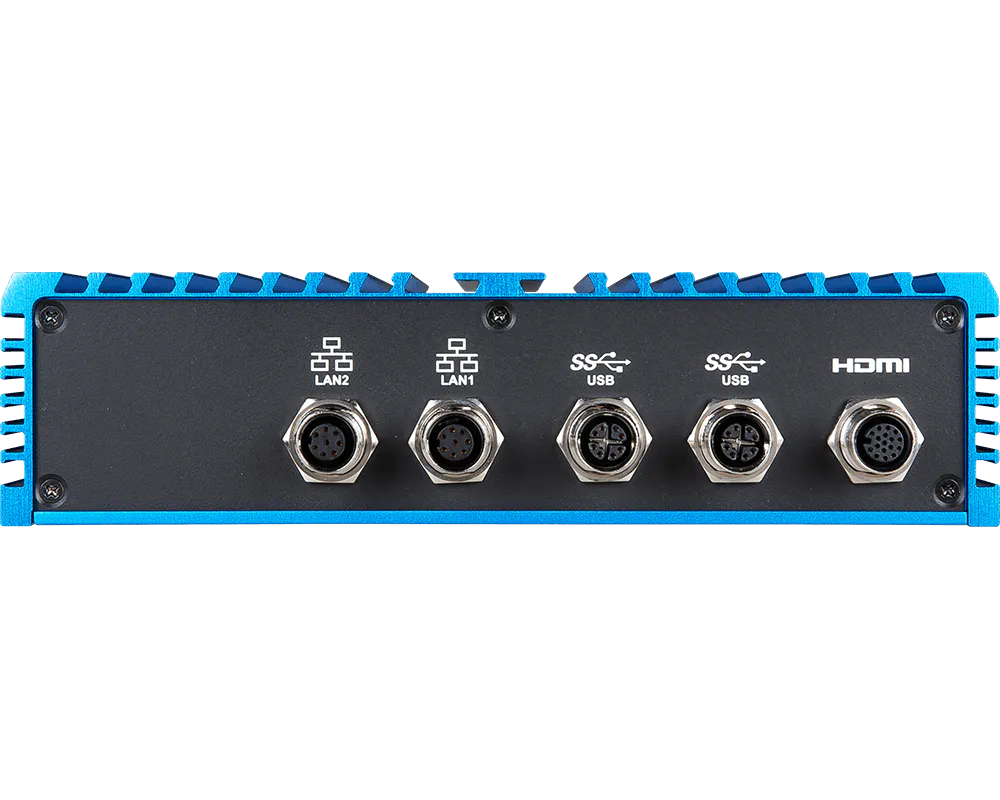

  • 2 GbE LAN with M12
  • 1 Mini-PCIe (Full size, with SIM Holder), 1 Mini-PCIe (Full size, with mSATA) slots
  • mSATA, SATA 3.0 for storage
  • 2 USB 3.2 Gen 1, 2 COM (1 RS-485)

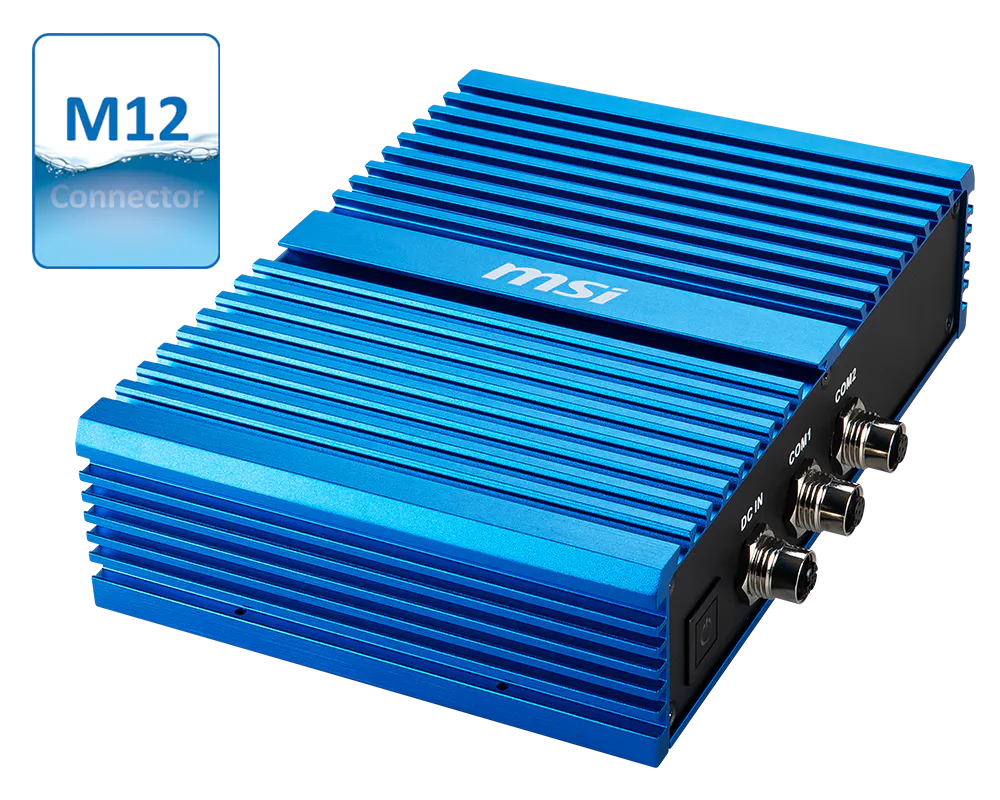

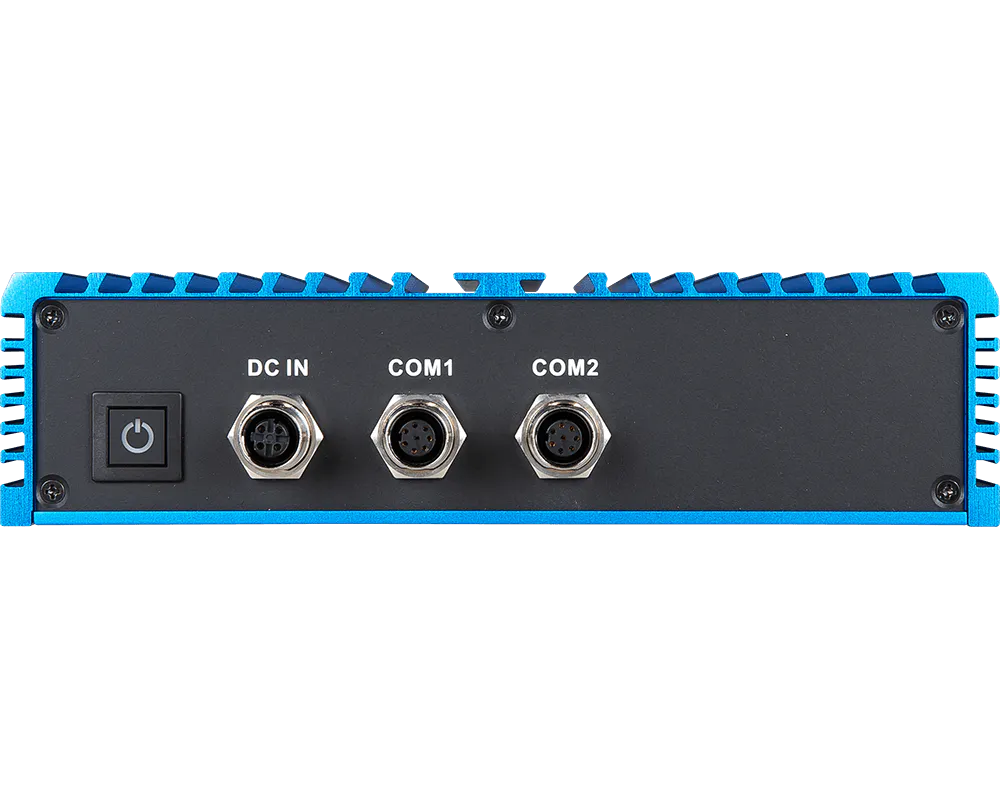

  • M12 type waterproof I/O connector design
  • Wide Voltage DC-IN 12~24V
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9A84

Processor

  • CPU
  • Intel® Kaby Lake-U Core™ i3-7100U Processor, DC, 15W
  • Frequency
  • 2.4GHz
  • L2 Cache
  • 3MB
  • CPU Type
  • BGA
  • Chipset
  • Integrated in Process
  • BIOS
  • AMI

Memory

  • Technology
  • Single channel for DDR4 2133 MHz
  • Max. Capacity
  • Up to 16GB
  • Socket
  • 1 x 260-pin SO-DIMMs

Graphic

  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Multiple Display
  • 1 independent display
  • Display Interface
  • HDMI™1.4 up to 1920 x 1080 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I210-AT GbE LAN
    1 x Intel® I219-LM GbE LAN PHY

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size
    (Mini-PCIe1 Slot w/ NANO SIM-Holder)
    (Mini-PCIe2 Slot w/ mSATA)

Storage

  • SATA
  • 1 x 2.5" HDD/SSD Bay
  • mSATA
  • 1 x Full-size

I/O Interface

  • RJ-45
  • 2
  • USB
  • 2 x USB 3.2 Gen 1
  • Serial
  • 2 x COM ports
    COM1:RS-232/422/485 (without power)
    COM2:RS-232 (without power)
  • HDMI
  • 1

Power Supply

  • DC Input
  • DC-in 12V~24V

Environment

  • Operating Temperature
  • -10~45°C (HDD)
    -10~60°C (w/ WT Memory, SSD/mSATA)
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • Vibration
  • Operating: 0.5 Grms, 5-500Hz, 3axes (w/ HDD)
  • Shock
  • Operating: 3 G, half sine 11 ms duration (w/ HDD)

Form Factor

  • Dimensions
  • 215 x 155 x 55 mm
  • Weight
  • 1.66 kg

Certification

  • EMC
  • FCC Class A, CE, RCM, VCCI, BSMI
  • Safety
  • BSMI

Software Platform

  • OS Support
  • Windows 10 (64-bit)
    Linux Fedora 25 (by request)
    Linux Ubuntu 16.04 (by request)

Ordering Information

  • Part Number
  • Description
  • 939-9A84-002
  • MS-9A84\709-9A84-020 \829-9A84-005\ BAREBONE, STD VER 11, W/CPU CORE i3-7100U, 1*SATA CABLE, W/O LOGO, for Channel

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-1012064-V03
  • SATA CABLE, 200mm
  • 1

Optional Item

  • Part Number
  • Description
  • K39-3001183-V03
  • External M12 DC Cable,1000mm
  • K3C-3001033-V03
  • External M12 HDMI™ Cable,2100mm
  • K37-3001058-V03
  • External M12 USB 3.0 Cable,1000mm
  • K3B-3001017-V03
  • External M12 RJ45 Cable,1800mm
  • K3B-3001018-V033
  • External M12 RJ45 Cable,500mm
  • K3A-3001015-V03
  • External M12 RS232 Cable,1800mm

BIOS

Attention:

Users who download BIOS from here (not using Live Update) should use the flash utility included in the downloaded compressed file when doing the BIOS update. To avoid BIOS update failure, please do not use older versions of the update utility or utilities not provided by MSI. We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2019-06-26

Version

200

File Size

4.73 MB

Type

BIOS

OS

Note

Driver

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

OS
  • All
  • Win10 64
VGA Driver
Release Date

2019-06-26

Version

25.20.100.6373

File Size

370.19 MB

Type

On-Board VGA Drivers

OS

Win10 64

Note

Serial IO
Release Date

2019-06-26

Version

30.100.1746.4

File Size

2.45 MB

Type

Others Drivers

OS

Win10 64

Note

RST Driver
Release Date

2019-06-26

Version

16.7.0.1009

File Size

20.97 MB

Type

Others Drivers

OS

Win10 64

Note

Lan Driver
Release Date

2019-06-26

Version

23.4

File Size

73.26 MB

Type

LAN Drivers

OS

Win10 64

Note

AMT Driver
Release Date

2019-06-26

Version

11.7.0.3290

File Size

104.4 MB

Type

Others Drivers

OS

Win10 64

Note

for KBL SKU / OS Windows 10 IoT Enterprise 2019 SAC

Utility

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

MSI HIDAC Utility
Release Date

2020-01-31

Version

20200131

File Size

0.43 MB

Type

Utility

OS

Note

Manual

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.An easy guide for you to assemble your PC step by step, please refer to "Quick Installation Guide"..

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2019-06-26

Version

1.0

File Size

3.08 MB

Type

Manual

Data Sheet

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.

Release Date

2020-02-11

Version

File Size

0.58 MB

Language

Inquiry
