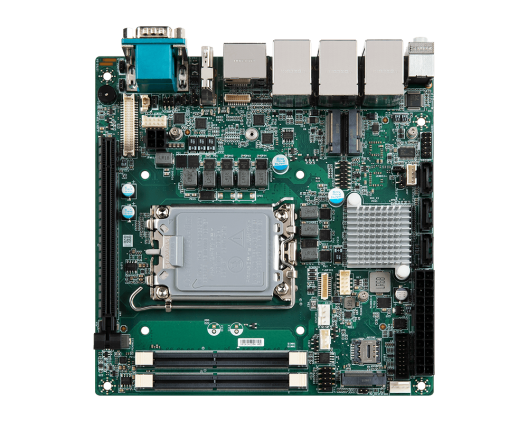

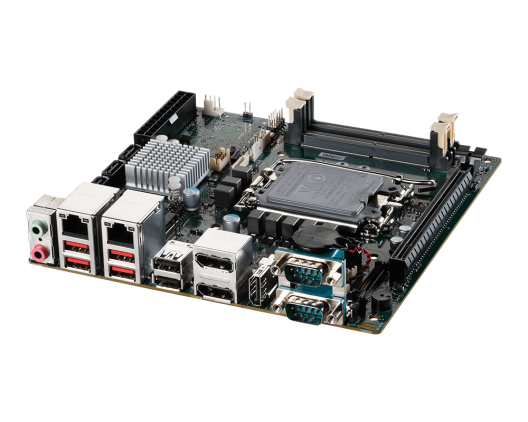

MS-CF02

Mini-ITX with 13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution

  • Intel® 13th/12th Gen Raptor Lake-S/Alder Lake-S Series with R680E/Q670E/H610E
  • 2 DDR4 3200 MT/s ECC/non-ECC SODIMM slots up to 64GB
  • Quadruple independent displays: 2DP, HDMI, LVDS/eDP
  • 3/2 2.5GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 4) Slot, 1 M.2 E key (with CNVi), 1 M.2 B key (with SIM Holder) slots
  • M.2 M key, 3 SATA 3.0 for storage
  • SATA RAID 0/1/5
  • 6 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 2 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, System FAN
  • Onboard TPM 2.0
  • SMBus, iAMT 16.x
  • ATX Power

Products Specifications

  • Part Number
  • MS-CF02-SKU1
  • MS-CF02-SKU2
  • MS-CF02-SKU3

Processor

  • CPU
  • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
    12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
    12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
    12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • Frequency
  • 1.6 GHz~5.1 GHz (Depends on CPU)
  • 1.6 GHz~5.1 GHz (Depends on CPU)
  • 1.6 GHz~5.1 GHz (Depends on CPU)
  • L2 Cache
  • 2MB~30MB (Depends on CPU)
  • 2MB~30MB (Depends on CPU)
  • 2MB~30MB (Depends on CPU)
  • CPU Type
  • Socket (LGA 1700)
  • Socket (LGA 1700)
  • Socket (LGA 1700)
  • Chipset
  • Intel® R680E
  • Intel® Q670E
  • Intel® H610E
  • BIOS
  • AMI UEFI
  • AMI UEFI
  • AMI UEFI

Memory

  • Technology
  • Dual-channel
    DDR4 (ECC/non-ECC) 3200MT/s
  • Dual-channel DDR4 (non-ECC) 3200MT/s
  • Dual-channel DDR4 (non-ECC) 3200MT/s
  • Max. Capacity
  • Up to 64GB
  • Up to 64GB
  • Up to 64GB
  • Socket
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs

Display

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • eDP
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • VGA
  • --
  • --
  • --
  • DVI
  • --
  • --
  • --
  • HDMI
  • 1
  • 1
  • 1
  • DisplayPort
  • 2
  • 2
  • 2
  • Multiple Display
  • 4 independent displays
  • 4 independent displays
  • 3 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200@60Hz
    eDP up to 4096 x 2304@60Hz
    HDMI up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz
  • LVDS up to 1920 x 1200@60Hz
    eDP up to 4096 x 2304@60Hz
    HDMI up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz
  • LVDS up to 1920 x 1200@60Hz
    eDP up to 4096 x 2304@60Hz
    HDMI up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz

Ethernet

  • Controller
  • 3 x Intel® I225-LM 2.5GbE LAN
  • 3 x Intel® I225-LM 2.5GbE LAN
  • 2 x Intel® I225-V 2.5GbE LAN

Audio

  • Controller
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)

Super I/O

  • Controller
  • Fintek F81966D-I
  • Fintek F81966D-I
  • Fintek F81966D-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB 9670VQ2.0
  • Infineon SLB 9670VQ2.0
  • Infineon SLB 9670VQ2.0

I/O Interface

  • PS/2
  • --
  • --
  • --

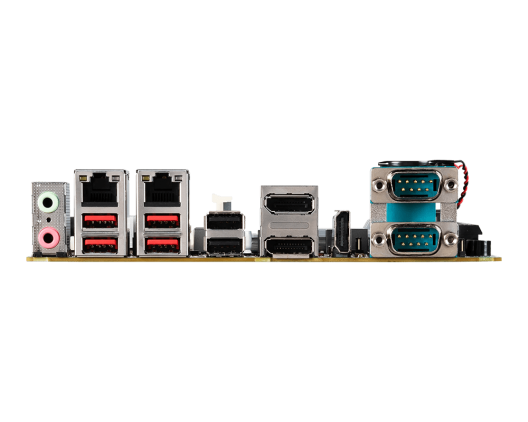

  • USB
  • 6 x USB 3.2 Gen 2 (rear)
    2 x USB 3.2 Gen 1 (internal)
    2 x USB 2.0 (internal)
  • 6 x USB 3.2 Gen 2 (rear)
    2 x USB 3.2 Gen 1 (internal)
    2 x USB 2.0 (internal)
  • 2 x USB 3.2 Gen2 (rear)
    2 x USB 3.2 Gen1 (rear)
    2 x USB 2.0 (rear)
    2 x USB 2.0 (internal)
  • Parallel
  • --
  • --
  • --
  • Serial
  • 4 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2~4: RS-232/422/485, 0V/5V/12V, Auto-flow Control
  • 4 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2~4: RS-232/422/485, 0V/5V/12V, Auto-flow Control
  • 4 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2: RS-232/422/485, 0V/5V/12V, Auto-flow Control
    COM3~4: RS-232, 0V/5V/12V (RS-232/422/485 by option)
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

  • PCIe x16
  • 1 x PCIe x16 (Gen 4)
  • 1 x PCIe x16 (Gen 4)
  • 1 x PCIe x16 (Gen 4)
  • PCIe x8
  • --
  • --
  • --
  • PCIe x4
  • --
  • --
  • --
  • PCIe x1
  • --
  • --
  • --
  • PCI
  • --
  • --
  • --
  • M.2
  • 1 x M key (PCIe x4 NVMe), 2242/2280
    1 x E key (PCIe x1, USB 2.0, CNVi), 2230
    1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
    (with SIM Holder)
  • 1 x M key (PCIe x4 NVMe), 2242/2280
    1 x E key (PCIe x1, USB 2.0, CNVi), 2230
    1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
    (with SIM Holder)
  • 1 x M key (PCIe x4 NVMe), 2242/2280
    1 x E key (PCIe x1, USB 2.0, CNVi), 2230
  • Mini-PCIe
  • --
  • --
  • --

Storage

  • SATA
  • 3 x SATA 3.0 (Support RAID 0/1/5)
  • 3 x SATA 3.0 (Support RAID 0/1/5)
  • 3 x SATA 3.0 (Support AHCI Mode)
  • eSATA
  • --
  • --
  • --
  • CFast
  • --
  • --
  • --
  • mSATA
  • --
  • --
  • --
  • CompactFlash
  • --
  • --
  • --

Power Supply

  • DC Input
  • --
  • --
  • --
  • ATX
  • ATX-Power 24P, 12V-4P
  • ATX-Power 24P, 12V-4P
  • ATX-Power 24P, 12V-4P

Environment

  • Operating Temperature
  • 0 ~ 60°C
    Note: Thermal Test w/ Airflow:0.7m/s
  • 0 ~ 60°C
    Note: Thermal Test w/ Airflow:0.7m/s
  • 0 ~ 60°C
    Note: Thermal Test w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • Weight
  • 0.43 Kg
  • 0.43 Kg
  • 0.41 Kg

Certification

  • EMC
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit)
    Windows 11 IoT Enterprise LTSC (64-bit)
    Linux Kernel 5.15 (ADL-S)/ Linux Kernel 5.19 (RPL-S)(by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit)
    Windows 11 IoT Enterprise LTSC (64-bit)
    Linux Kernel 5.15 (ADL-S)/ Linux Kernel 5.19 (RPL-S)(by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit)
    Windows 11 IoT Enterprise LTSC (64-bit)
    Linux Kernel 5.15 (ADL-S)/ Linux Kernel 5.19 (RPL-S)(by request)
