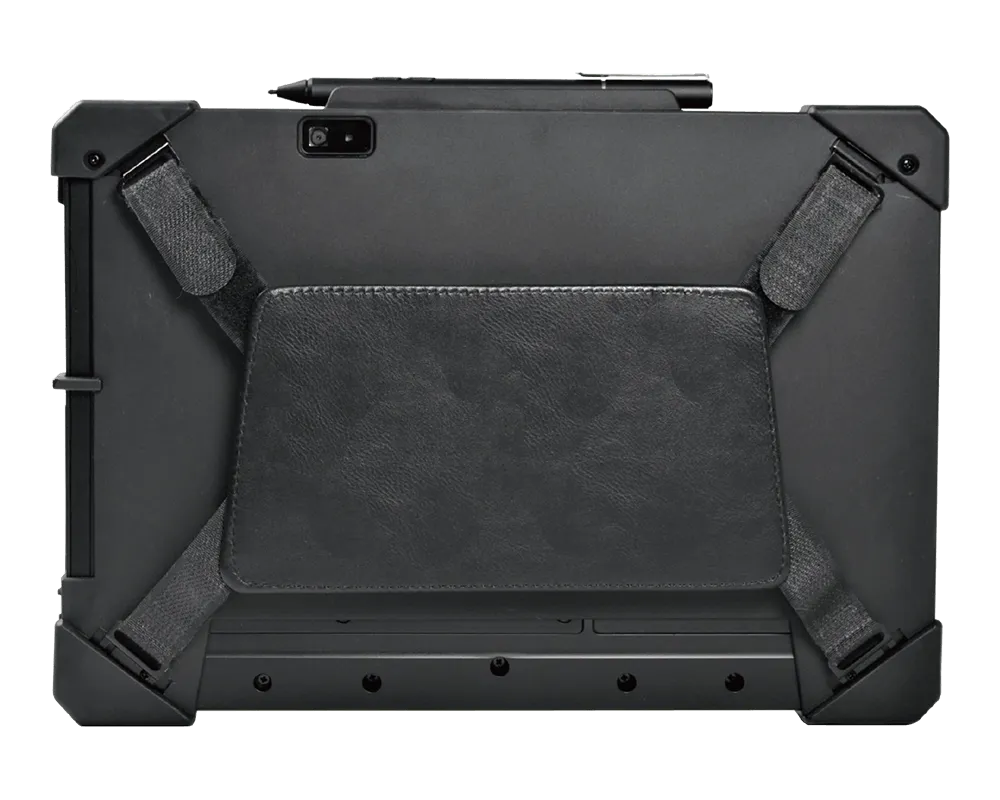

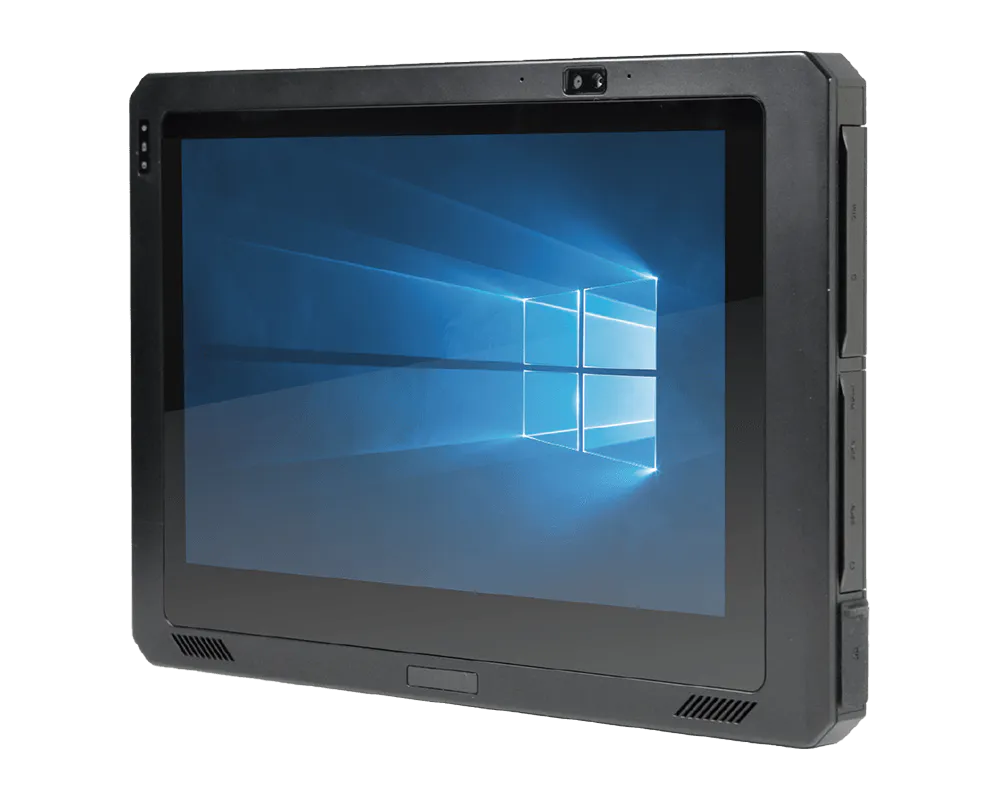

MS-N0T1
IP65 Semi-Rugged tablet with Intel® Apollo Lake N4200
- Intel® Apollo lake Pentium N4200
- 1 x DDR3L SO-DIMM slot Up to 8GB
- 10.1" 1280 x 800 w/Pcap touch +MPP1.51 pen soultion
- 2 x USB 3.0 , 1 x Micro HDMI , 1 Audio combo jack , 1 x RJ-45 LAN
- 1 x Smart card reader, 1 x SD card reader
- 2M Pixel front camera, 5M Pixel rear camera
- Option for Office Docking I/O : 2 x USB 3.0, 2 x USB 2.0, 1 x LAN ,1 x VGA , 1 X RS232 (Option for NFC, Barcode Scanner)
- DC-IN 12~24V
- Accessories : Protection cover
Product Specifications
- Part Number
- MS-N0T1
Key features
- Dimension
- 279 x 192.5 x 17.9 mm
- Weight
- 990g
- Display
- 10 inch, 16:10 ratio
- Sealing
- IP65
- Drop/Shock
- MIL-STD-810G 4-feet drop
- Battery life
- Up to 9 hours
- Operating Temp
- 0~40 degree
- Storage Temp
- -20~60 degree
Specification
- CPU
- Intel Apollolake Pentium N4200
- System Memory
- Default DDR3L 4GB. Max 8GB
- Storage
- 10.1” 800 x 1280
Projected Capacitive Touch Screen.
Multi touch 10 points
Microsoft pen protocol (MPP) supported
- Button
- Power, Barcode Scanner
- Power
- AC: support 100~240V
DC: support 12/19/24V
- Audio
- 1w x 2, Stereo type
Internal Microphone: Stereo (set with Camera module)
- Sensors
- Light Sensor, E-Compass Sensor, G-Sensor, Gyro Sensor
- I/O ports
- USB x2 (Ver.3.0)
Headphone out x1 (headphone/microphone combo jack, 3.5Ø, iPhone Type)
Power jack x 1(19V & 24V )
Mirco SD slot x1, SDXC type, (SD 4.0)
SIM Slot
Pogo pin: x1
RJ45: x1, Intel WGI211AT
Micro HDMI (Output) x 1
- Battery
- Battery 1 Li-Polymer, 41W/h, 5550mAh, Pack swappable
Battery Life: over: 9 hrs
- Security
- Kensington x1, TPM 2.0
- Wireless LAN + BT
- 802.11 ac/a/b/g/n, Intel 8260 , Ver4.2
Data collection
- Camera
- 2M Pixel front camera w/ ALS and D-MIC*2
5M Pixel rear camera +Auto Focus
- Smart card reader
- Support
- Option
- NFC / Barcode scanner / LTE
- OS
- Microsoft® Windows 10 IoT / Ubunto

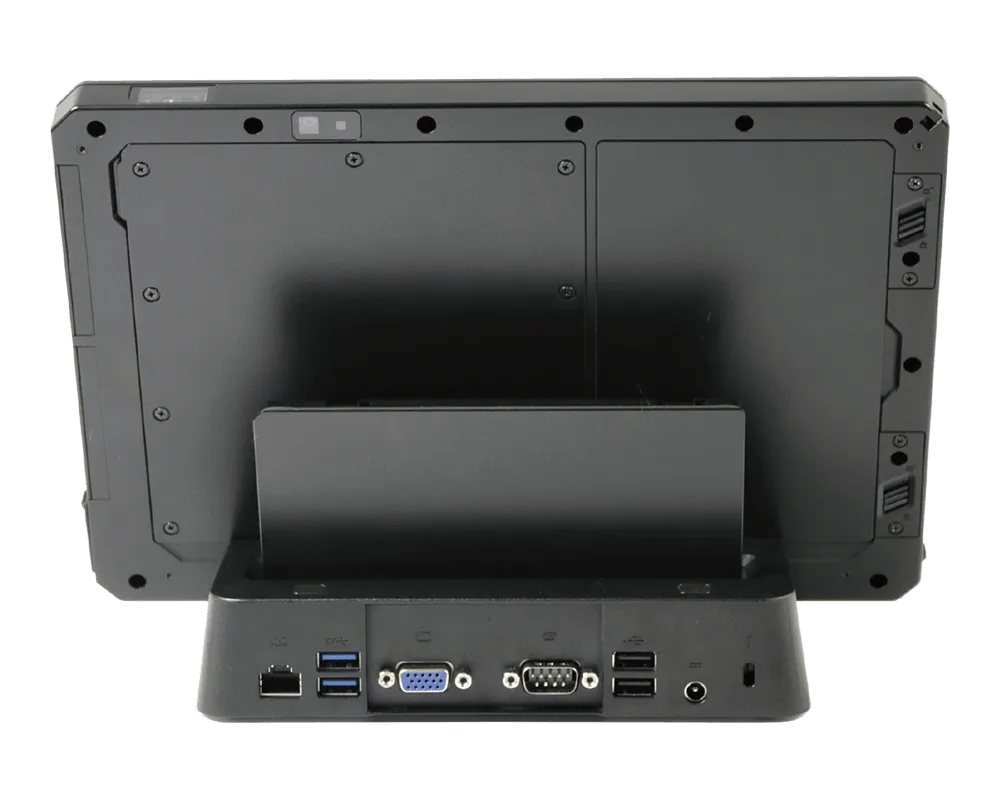

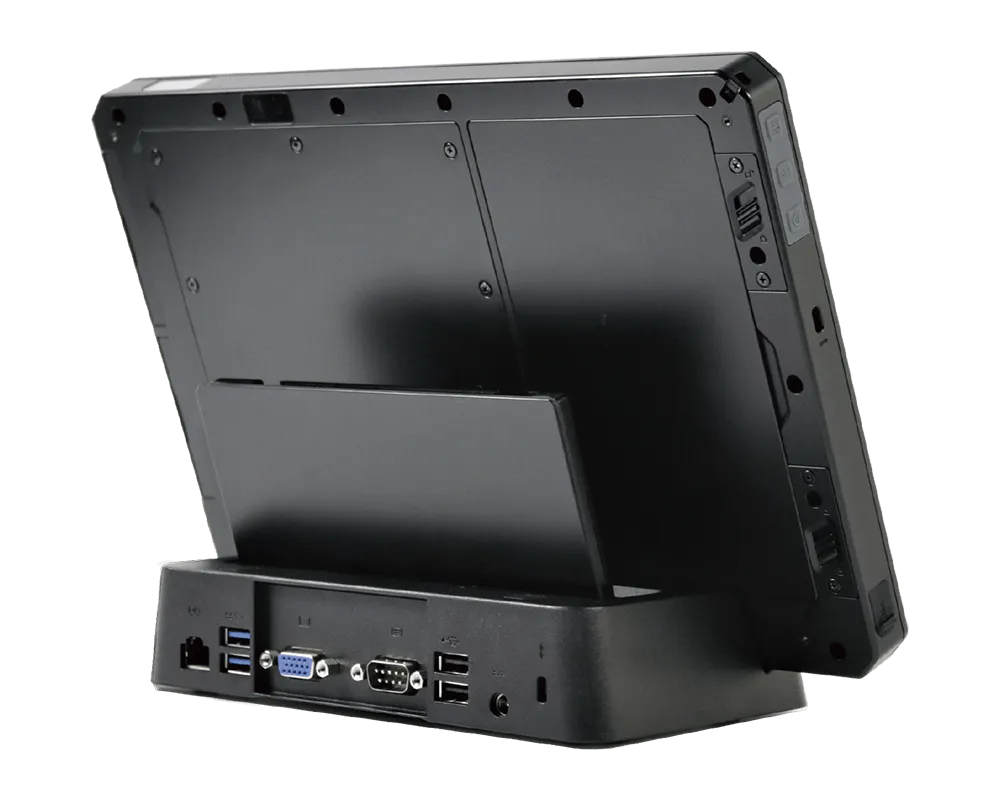

- Office Docking I/O
- USB 3.0 x 2, USB 2.0 x 2, Power Jack x 1, LAN Port x1, POGO Pin x 1, VGA output x1, RS232 x 1
- Accessories
- Protection cover
Vesa mount
Active Stylus
MS-N0T1 tablet PC: It features an Intel® Apollo Lake Pentium N4200 processor, up to 8GB of DDR3L RAM, and a 10.1" 1280 x 800 display with Pcap touch and MPP1.51 pen support. It includes 2 USB 3.0 ports, 1 Micro HDMI port, 1 Audio combo jack, and 1 RJ-45 LAN port. Additional features include a smart card reader, SD card reader, 2M Pixel front camera, and 5M Pixel rear camera. It supports DC-IN 12~24V and offers an option for Office Docking I/O with USB, LAN, VGA, RS232 (with optional NFC and Barcode Scanner). Accessories include a protection cover.
