Turnkey Vision Control Platform for Machine Vision Workstations Powered by MS-98K9 + 4U Industrial Chassis + Intel® Core™ i7 Processor
MS-98K9 ATX motherboard drives intelligent automation and reliable performance in demanding machine vision applications.
Background
Our customer, a leading provider of industrial automation solutions, is expanding its smart manufacturing profile by developing machine vision-enabled workstations. These workstations integrate SCARA robots and high-resolution vision modules to handle tasks such as alignment, inspection, and precision assembly.
To meet the demand for stable, high-performance edge computing at the production line level, the customer selected a complete PC-based controller solution built around the MSI MS-98K9 industrial ATX motherboard, housed in a robust 4U industrial chassis and powered by Intel® Core™ i7-8700.
System Configuration
Application Scenario

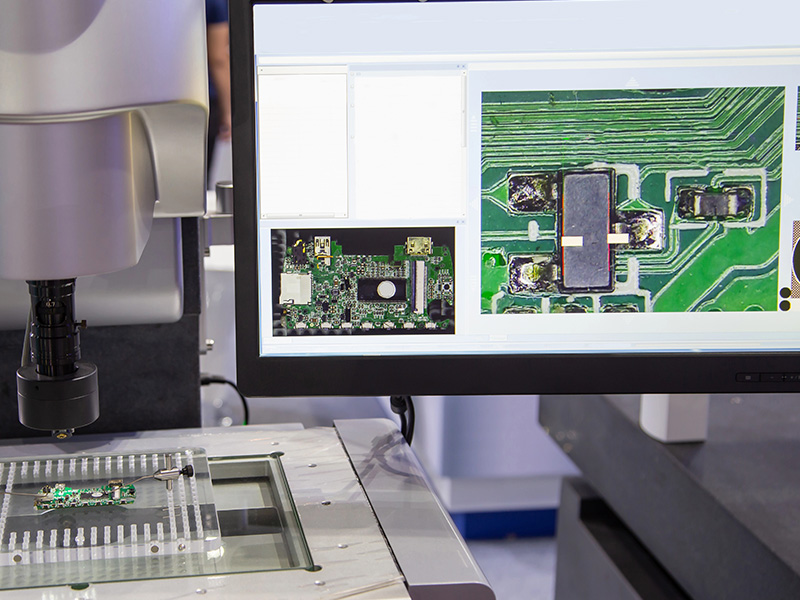

The vision controller is deployed in SCARA-based production workstations for the following use cases:
- Component alignment and part orientation
- Vision-guided screw fastening
- Surface defect and missing-part inspection
- Barcode and QR code recognition
- Real-time communication with PLCs and robotic arms via COM/LAN
Key Benefits
Deployment Results
- 25% improvement in inspection cycle time, due to faster image processing
- Defect detection accuracy exceeding 99.5%, across multiple product lines
- Streamlined integration and easy field maintenance, reducing downtime
- Scalable system architecture, supports additional I/O or GPU if needed
Conclusion
The combination of MSI's MS-98K9 industrial motherboard, a 4U high-reliability chassis, and the Intel® Core™ i7 platform forms a robust and scalable computing solution for machine vision. This system enables the factory to accelerate its deployment of intelligent automation and ensures consistent performance in demanding production environments.
