MSI IPC Introduces MS-CF20 V2.0 in a Powerful and Versatile ATX Motherboard for Next Generation Industrial Applications
Product News
Tue, 02 December 2025

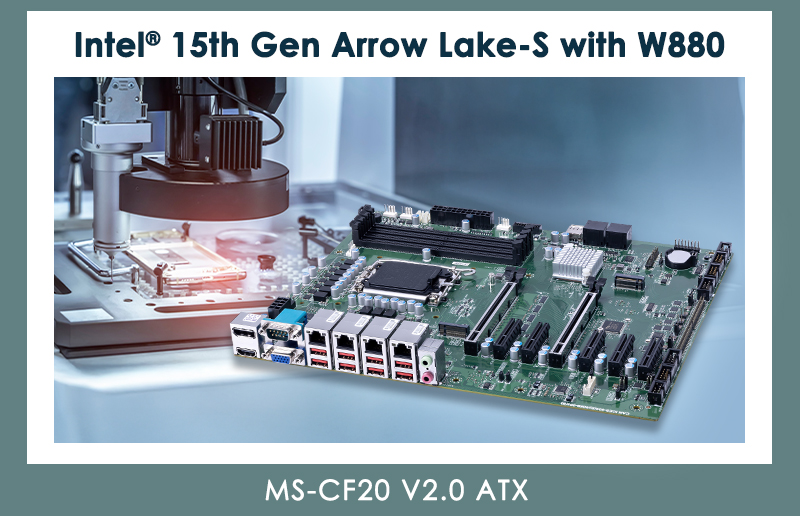

The MS-CF20 V2.0, a high-performance industrial ATX motherboard built for the demands of modern computing. With native support for 15th Gen Intel® Arrow Lake-S processors and extensive I/O options, this board brings together cutting-edge performance and legacy compatibility in a single rugged platform.
MSI IPC’s MS-CF20 V2.0 is optimized to support the latest Intel® Arrow Lake S processors, including Core Ultra U9, U7, U5, Pentium and Celeron models, by using the Intel® W880 chipset. It provides exceptional memory bandwidth through 4 DDR5 UDIMM slots that support both ECC and non-ECC memory, at speeds up to 5600 MT/s and with a maximum capacity of 256 GB.
On the visual front, the MS-CF20 V2.0 supports 3 independent displays via VGA, DP, and HDMI connectors, making it ideal for environments that require multiple simultaneous outputs.
In addition to strong display capabilities, this motherboard offers robust networking, featuring 4 2.5 GbE RJ-45 LAN ports that support high-throughput and redundant connections. Its storage architecture is similarly flexible: 2 M.2 M-Key slots, 4 SATA 3.0 ports, and support for RAID 0/1/5/10 enable both high-speed and redundant data handling.
For expansion, the board provides 1 PCIe x16 Gen 5 slot or 2 PCIe x8 Gen 5 slots along with 5 PCIe x4 Gen 4 slots. I/O connectivity is extensive, offering 8 USB 3.2 Gen 2 ports, 2 USB 3.2 Gen 1 ports, 3 USB 2.0 ports and 10 COM ports including 2 RS 485 and 8 RS-232. The board also features GPIO, PS/2 and audio, along with a TPM 2.0 module for enhanced security.
To ensure reliability in industrial settings, the MS-CF20 V2.0 supports SMBus, I2C, PMBus, and Intel® AMT 19.x for remote management, and includes chassis intrusion detection along with multiple system fan connectors.
Key Features:
- Support for 15th Gen Intel® Arrow Lake-S processors (Core Ultra U9/U7/U5, Pentium, Celeron)
- Intel® W880 chipset for workstation-grade performance
- 4 DDR5 memory slots (ECC/non-ECC) up to 5600 MT/s, up to 256 GB
- 3 independent display outputs: VGA, DP, HDMI
- 4 2.5 GbE LAN ports for high-speed networking
- Expansion flexibility: PCIe Gen 5 x16 or x8, 5 Gen 4 x4
- Storage options: 2 M.2 M-Key, 4 SATA 3.0 with RAID support
- Rich I/O: USB 3.2 (Gen 2 and Gen 1), USB 2.0, 10 COM ports, GPIO, PS/2, audio, TPM 2.0
- Industrial reliability: SMBus, I2C, PMBus, Intel® AMT 19.x, chassis intrusion detection, multiple fan headers
Suggested Solution Applications:
1. Industrial Automation & Machine Control
The board’s strong I/O capabilities (10 COM ports, GPIO) and legacy support (PS/2) make it ideal for controlling factory machinery, robotic arms, or PLC systems. Its processing power and reliable memory capacity help handle real-time automation, predictive maintenance, and process orchestration.
2. Edge Computing & AI Inference
With support for Intel 15th Gen Arrow Lake-S processors and up to 256 GB of DDR5 memory, the board is well suited for running AI inference, computer vision, or edge-AI workloads right on site. This application is particularly useful where latency and data locality matter.
3. Network Gateway / Edge Server
Thanks to its four 2.5 Gb Ethernet ports, it can serve as a high-throughput data aggregation node or local edge server. It can collect data from industrial sensors or devices, pre-process it, and then forward it to the cloud or central servers.
4. Multi-Display Control & HMI (Human-Machine Interface)
The triple independent display output (VGA, HDMI, and DisplayPort) allows building rich, multi-monitor control panels, dashboards, or user interfaces. This is useful in control rooms, digital signage, or visualization centers.
5. Legacy System Integration & Long-Lifecycle Deployment
Because the board retains legacy features (RS-232/422/485 serial ports, PS/2 connectors), it is very suitable for environments with long lifecycles where older industrial devices still need to be supported. It allows modern computing power to be integrated without discarding existing infrastructure.
The MS-CF20 V2.0 addresses a clear problem: many industrial systems require both high-performance computing and compatibility with legacy devices. MSI IPC solves this by delivering a single motherboard that supports state-of-the-art Intel processors while retaining legacy I/O and expansion options. Its unique value proposition lies in this blend of modern power and industrial resilience. The target audience includes industrial automation integrators, AI edge-computing developers, control system designers, and system builders who need a reliable, future-proof platform. With the MS-CF20 V2.0, these users benefit from high performance, flexible connectivity, long-life support, and robust system management.
