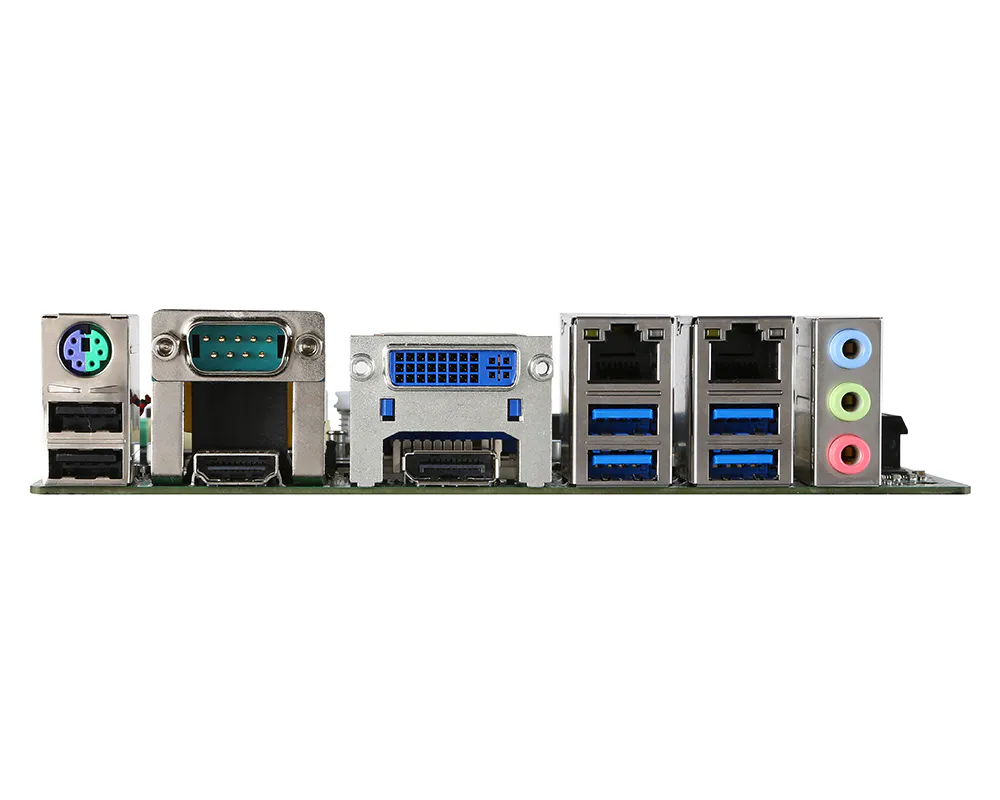

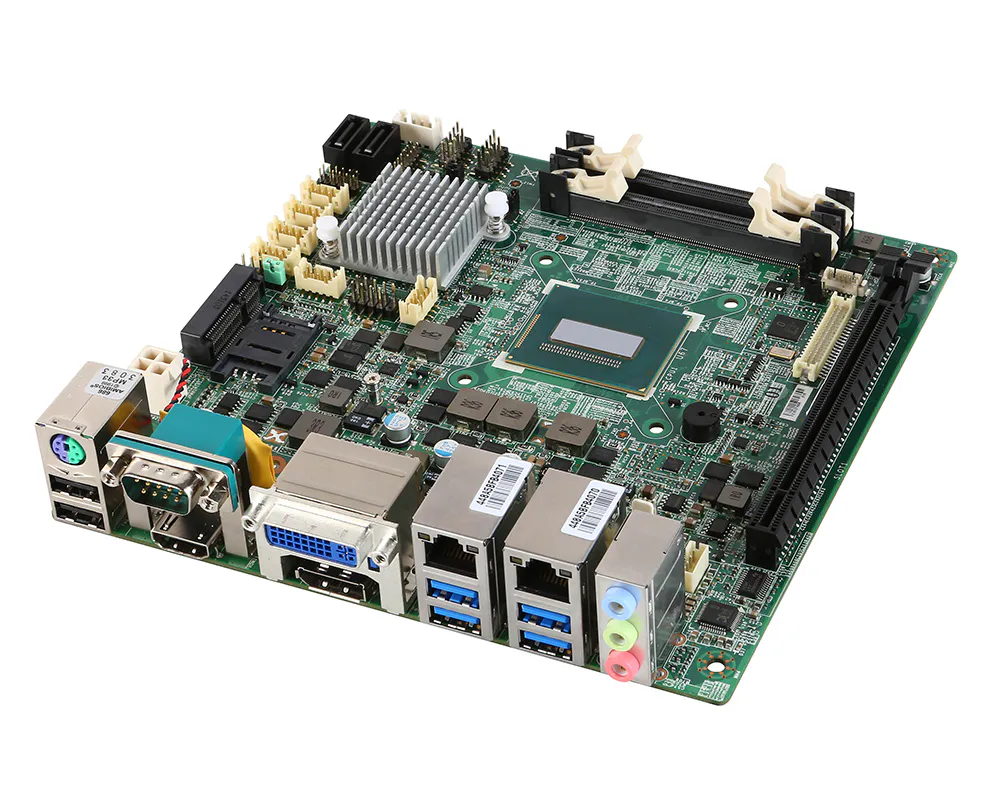

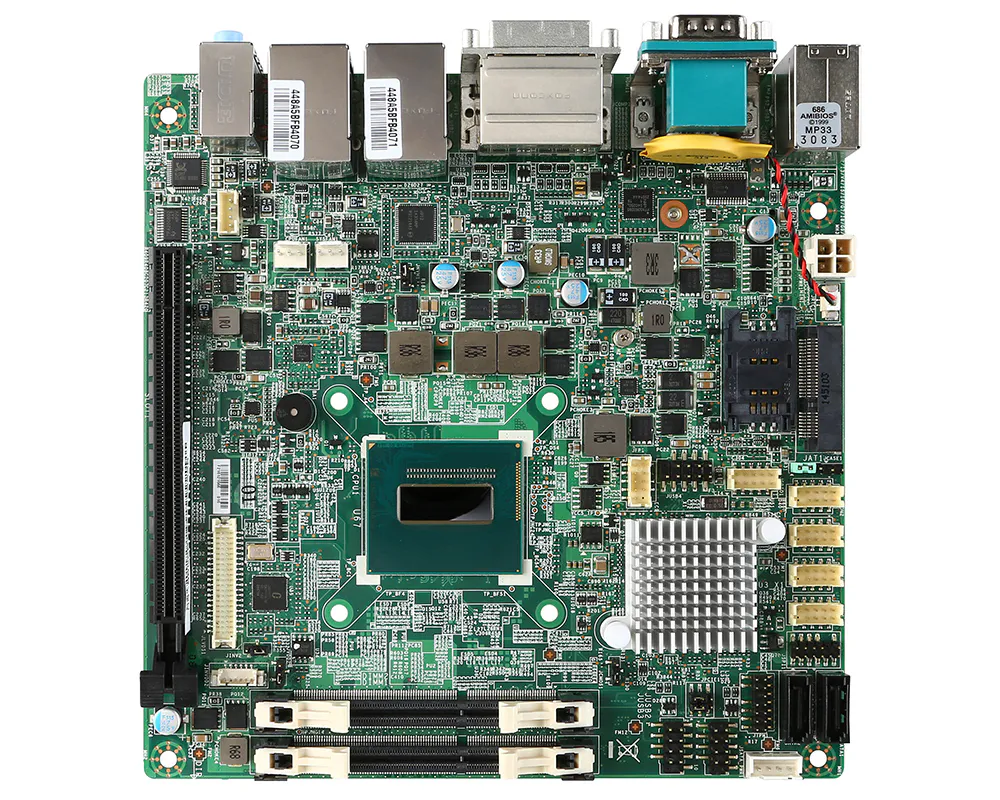

MS-98G5
Mini-ITX SBC with 4th Gen Intel® Core™, Intel® HM86/QM87, Multi-Displays & High-Performance for Digital Signage & Gaming Solution
- Embedded Motherboard for high graphic performance application, medical, gaming or high-end digital signage
- Intel Haswell/Broadwell Mobile Core i7/i5/i3/Celeron Processor
- 3 independent displays with HDMI, DP, DVI-I, and LVDS
- Dual GbE LAN with iAMT (EIA+QM87)
- 2 x DDR3L 1333/1600 MHz memory up to 16GB
- 1 x PCIe(x16) with riser card extends to x8+x8 or x8+x4+x4
- 8 x USB 2.0; 4 x USB 3.0; 5 x COM; SATA 3.0 supported
- 2 x full-size Mini-PCIe (one shared mSATA or SIM holder)
- Auto-switch DC power 12/19V
Overview
 |
||
| ‧ Processor | CPU | 4th Gen Intel® Mobile Haswell-H Core™ i7/i5/i3/Celeron® Mobile Processor, Max. 47W |
| Frequency | 2.2GHz~3.6 GHz (Depends on CPU) | |
| L2 Cache | 3M~6M (Depends on CPU) | |
| CPU Type | BGA | |
| Chipset | Intel® QM87/HM86 Express | |
| BIOS | AMI | |
| ‧Memory | Technology | Dual-channel DDR3L 1333/1600 MHz SDRAM |
| Max. Capacity | Up to 16GB | |
| Socket | 2 x 204-pin SO-DIMMs | |
| ‧Display | Controller | Intel® HD Graphics |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | |
| LVDS | Dual channel 24-bit | |
| DVI | 1 (DVI-I) | |
| HDMI | 1 | |
| DisplayPort | 1 | |
| Multiple Display | 3 independent displays | |
| Display Interface | LVDS up to 1920 x 1200 DVI up to 1920 x 1200 DP up to 3840 x 2160 HDMI up to 4096 x 2304 |
|
| ‧Ethernet | Controller | 1 x Intel® I217-LM LAN PHY 1 x Intel® I210 LAN |
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec |
| ‧Super I/O | Controller | Fintek F81866AD-I |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer |
| Smart Fan | Yes | |
| ‧TPM | Controller | Pin header |
| ‧I/O Interface | USB | 4 x USB 3.0 (rear) 8 x USB 2.0 (6 x internal; 2 x rear) |
| Serial | 5 x COM (COM1: rear; COM2~5: internal) COM1: RS-232/422/485, 0V/5V/12V COM2~5: RS-232 |
|
| PS/2 | 1 | |
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | |
| ‧Expansion Slot | PCIe x16 | 1 (up to 75W, w/ riser card to extend to x8+x8 or x8+x4+x4) |
| PCI | N/A | |
| M.2 | N/A | |
| Mini-PCIe | QM87: 1 x Full size, mSATA (w/ SIM Holder) 1 x Half size HM86: 1 x Half size |
|
| ‧Storage | SATA | QM87: 2 x SATA 3.0 HM86: 1 x SATA 3.0; 1 x SATA 2.0 |
| mSATA | 1 | |
| ‧ Power Supply | DC | DC-in 12V/19V |
| ATX | N/A | |
| ‧ Environment | Operating Temperature | 0 ~ 60°C |
| Operating Humidity | 10 ~ 90%, non-condensing | |
| Storage Temperature | -20 ~ 80°C | |
| Storage Humidity | 10 ~ 90%, non-condensing | |
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) |
| Weight | 0.35 Kg | |
| ‧ Certification | EMC | FCC, CE, RCM, VCCI |
| ‧ Software Platform | OS Support | Windows 7 (32/64-bit) Windows 8 (32 bit) |
 |
||
| ‧ Part Number | Description | |
| 919-98G5-001 | MS-98G5\609-98G5-010\809-98G5-003 STD VER 1.0, OPT A, Intel i5-4210H, HM86, 2*DDR3L, 1*COOLER, 1*COM CABEL, 1*I/O SHIELD, 1*SATA CABLE, 1*PS2 Y CABLE | |
| 919-98G5-002 | MS-98G5\609-98G5-020\809-98G5-003 STD VER 1.0, OPT E, Intel i5-4410E, QM87, 2*DDR3L, 1*COOLER, 1*COM CABEL, 1*I/O SHIELD, 1*SATA CABLE, 1*PS2 Y CABLE | |
| 919-98G5-003 | MS-98G5\609-98G5-030\809-98G5-003 STD VER 1.0, OPT F, Intel i7-4700EQ, QM87, 2*DDR3L, 1*COOLER, 1*COM CABEL, 1*I/O SHIELD, 1*SATA CABLE, 1*PS2 Y CABLE | |
 |
||
| ‧ Part Number | Description | Quantity |
| E32-2100030-K08 | Cooler | |
| E21-98G5010-C22 | I/O Shielding | |
| K39-3002004-E06 | PS2 Y-cable, 190mm | |
| K14-1018003-V03 | COM Port Cable, 300mm | |
| K1D-1012064-V03 | SATA Cable, 200mm | |
| G71-SEDC140-X03 | CD | |
