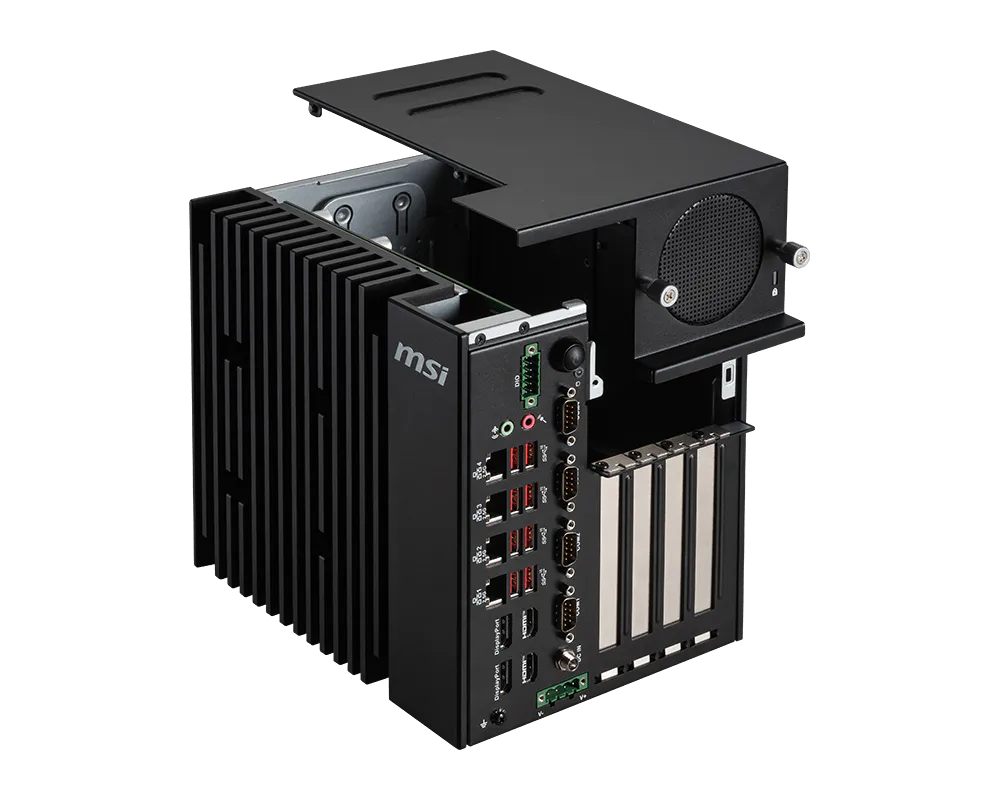

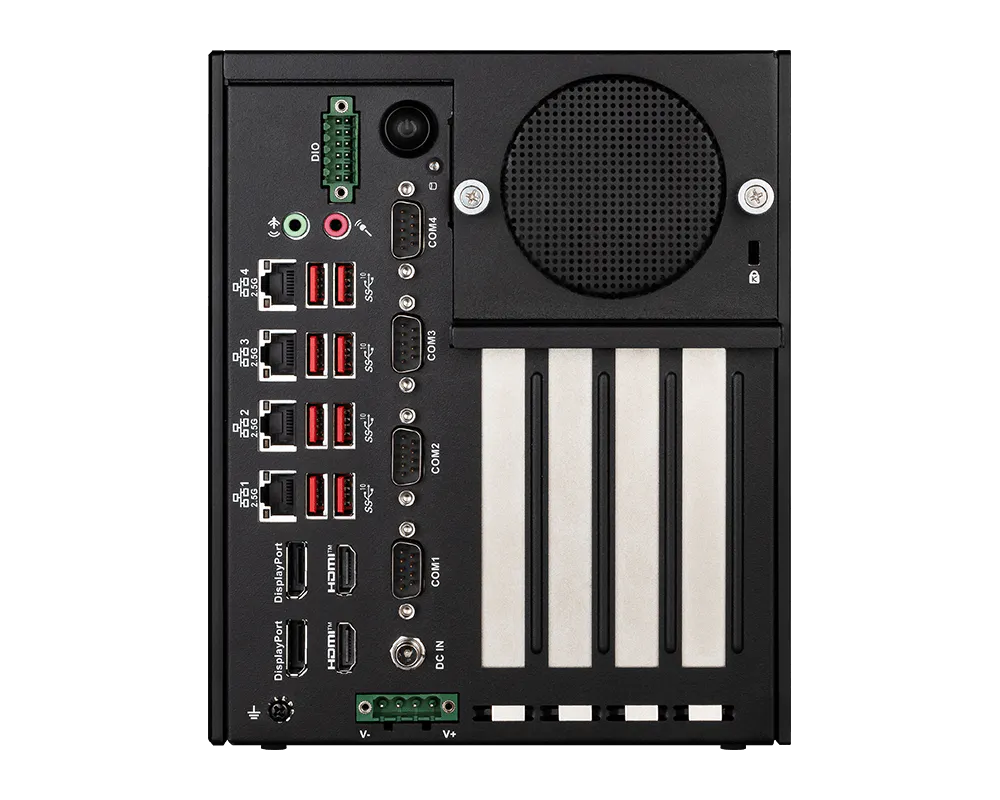

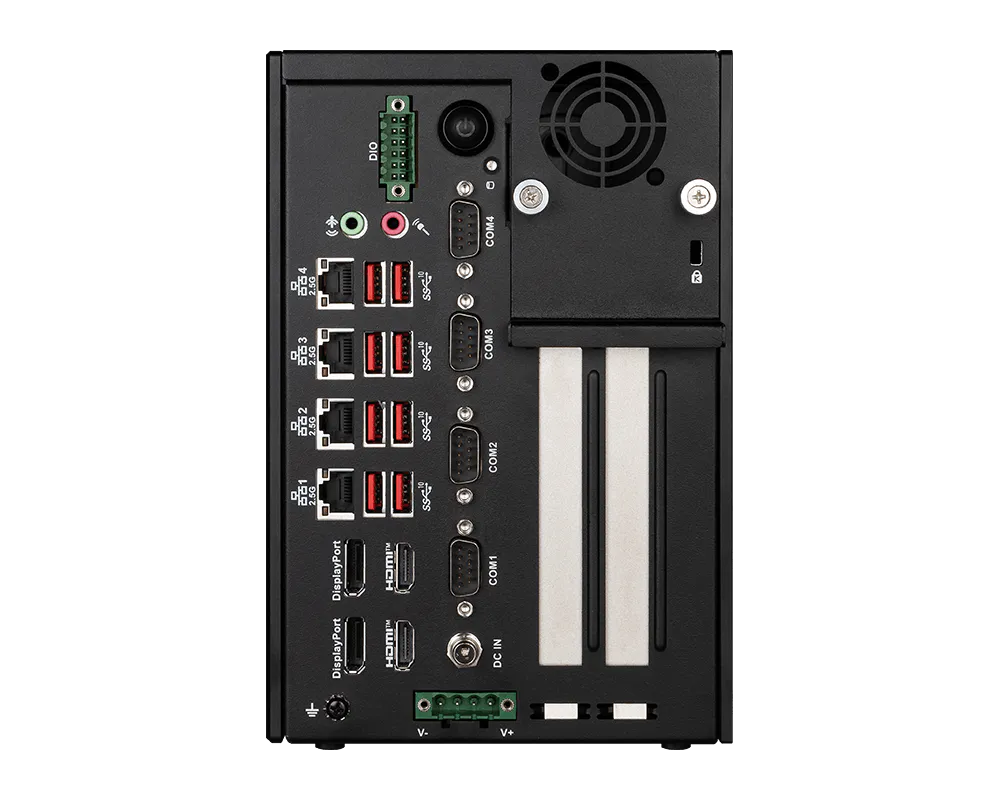

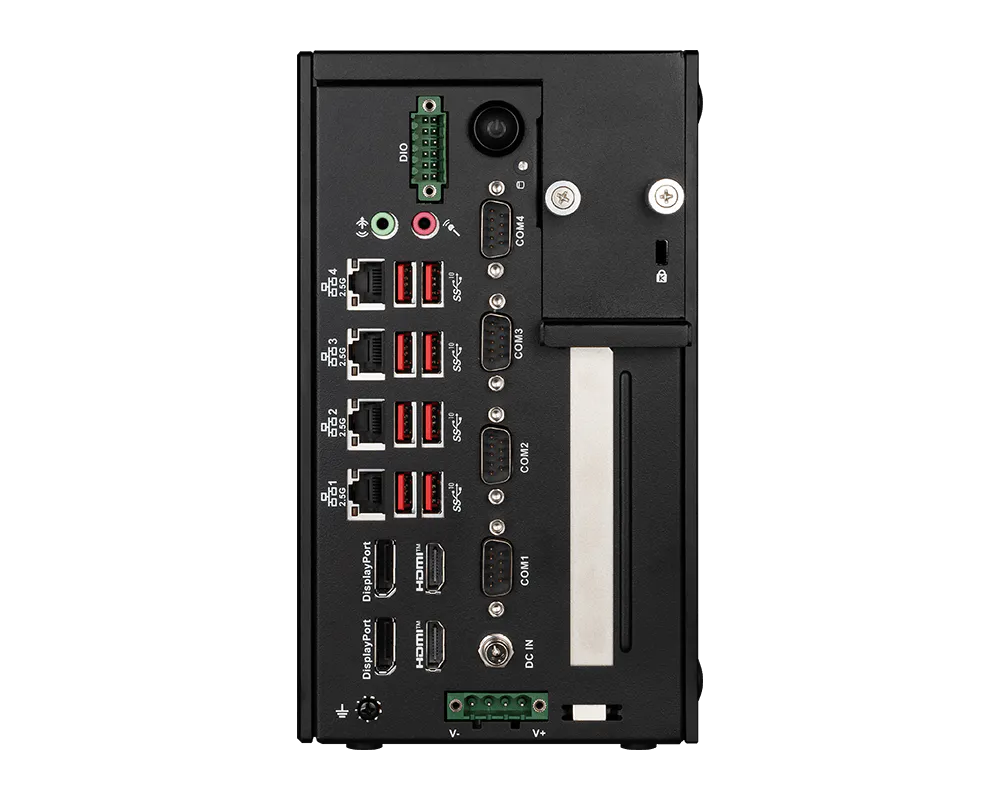

MS-C910

Outperform Fanless Box PC with 12th/13th/14th Gen Intel® Core™ i Processor for Rugged, Scalable & Versatile Solution

  • Intel® 12th/13th/14th Gen Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh Series with R680E
  • 2 DDR5 5600 MHz ECC/non-ECC SODIMM slots up to 64GB
  • Quadruple independent displays: 2 HDMI, 2 DP
  • 4 2.5 GbE LAN with RJ-45
  • SKU1: 1 PCIe x16 (Gen 4), 3 PCI, PCIe E Key (Gen 4) x1
    SKU2: 1 PCIe x16 (Gen 4), 1 PCI, 1 x Mini-PCIe (Full-size)
    SKU3: 1 PCIe x16 (Gen 4)
    SKU4: 2 PCIe x8 (Gen 4)
    SKU5: 2 PCIe x8 (Gen 4)
  • 2 SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
  • SATA RAID 0/1
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 4 COM, Audio, GPIO, System FAN
  • Onboard TPM 2.0
  • GPIO 8-bit supports, 5~35V, Isolation 1.3KV
  • Easy access CPU, HDD, memory, expansion slots
  • Anti-Vibration & Shockproof Design to Compliance IEC 60068-2
  • Wide Voltage DC-IN 8~48V
  • Fanless design

Product Specifications

  • Part Number
  • MS-C910-SKU1
  • MS-C910-SKU2
  • MS-C910-SKU3
  • MS-C910-SKU4
  • MS-C910-SKU5

System Processor

  • CPU
  • Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 35W
    Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W
    Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
  • Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 35W
    Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W
    Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
  • Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 35W
    Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W
    Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
  • Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 35W
    Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W
    Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
  • Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 35W
    Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W
    Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
  • Frequency
  • P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
    E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
  • P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
    E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
  • P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
    E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
  • P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
    E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
  • P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
    E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
  • L2 Cache
  • 4M~36M (Depends on CPU)
  • 4M~36M (Depends on CPU)
  • 4M~36M (Depends on CPU)
  • 4M~36M (Depends on CPU)
  • 4M~36M (Depends on CPU)
  • CPU Type
  • Socket (LGA1700)
  • Socket (LGA1700)
  • Socket (LGA1700)
  • Socket (LGA1700)
  • Socket (LGA1700)
  • Chipset
  • Intel® R680E chipset
  • Intel® R680E chipset
  • Intel® R680E chipset
  • Intel® R680E chipset
  • Intel® R680E chipset
  • BIOS
  • AMI
  • AMI
  • AMI
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR5(ECC/non-ECC) 5600MHz
    (ECC support & Frequency will depend on CPU)
  • Dual-channel DDR5(ECC/non-ECC) 5600MHz
    (ECC support & Frequency will depend on CPU)
  • Dual-channel DDR5(ECC/non-ECC) 5600MHz
    (ECC support & Frequency will depend on CPU)
  • Dual-channel DDR5(ECC/non-ECC) 5600MHz
    (ECC support & Frequency will depend on CPU)
  • Dual-channel DDR5(ECC/non-ECC) 5600MHz
    (ECC support & Frequency will depend on CPU)
  • Max. Capacity
  • Up to 64GB
  • Up to 64GB
  • Up to 64GB
  • Up to 64GB
  • Up to 64GB
  • Socket
  • 2 x 262-pin SO-DIMMs
  • 2 x 262-pin SO-DIMMs
  • 2 x 262-pin SO-DIMMs
  • 2 x 262-pin SO-DIMMs
  • 2 x 262-pin SO-DIMMs

Graphic

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 4 Independent displays
  • 4 Independent displays
  • 4 Independent displays
  • 4 Independent displays
  • 4 Independent displays
  • Display Interface
  • HDMI up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
  • HDMI up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
  • HDMI up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
  • HDMI up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
  • HDMI up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
    3 x Intel® I226V 2.5GbE LAN
  • 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
    3 x Intel® I226V 2.5GbE LAN
  • 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
    3 x Intel® I226V 2.5GbE LAN
  • 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
    3 x Intel® I226V 2.5GbE LAN
  • 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
    3 x Intel® I226V 2.5GbE LAN

Audio

  • Controller
  • Realtek® ALC897 HD Audio Codec
  • Realtek® ALC897 HD Audio Codec
  • Realtek® ALC897 HD Audio Codec
  • Realtek® ALC897 HD Audio Codec
  • Realtek® ALC897 HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB9672VU2.0
  • Infineon SLB9672VU2.0
  • Infineon SLB9672VU2.0
  • Infineon SLB9672VU2.0
  • Infineon SLB9672VU2.0

I/O Interface

  • PS/2
  • --
  • --
  • --
  • --
  • --
  • CANbus
  • --
  • --
  • --
  • --
  • --
  • LVDS
  • --
  • --
  • --
  • --
  • --
  • VGA
  • --
  • --
  • --
  • --
  • --
  • RJ-45
  • 4
  • 4
  • 4
  • 4
  • 4
  • PoE
  • --
  • --
  • --
  • --
  • --
  • Audio
  • 1 x Mic-in
    1 x Line-out
  • 1 x Mic-in
    1 x Line-out
  • 1 x Mic-in
    1 x Line-out
  • 1 x Mic-in
    1 x Line-out
  • 1 x Mic-in
    1 x Line-out
  • USB
  • 8 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    3 x USB 2.0 (internal, Type-A)
  • 8 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    3 x USB 2.0 (internal, Type-A)
  • 8 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    3 x USB 2.0 (internal, Type-A)
  • 8 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    3 x USB 2.0 (internal, Type-A)
  • 8 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    3 x USB 2.0 (internal, Type-A)
  • Parallel
  • --
  • --
  • --
  • --
  • --
  • Serial
  • 4 x COM ports
    COM1~2: RS232/422/485, 0V/5V/12V
    COM3~4: RS-232, 0
  • 4 x COM ports
    COM1~2: RS232/422/485, 0V/5V/12V
    COM3~4: RS-232, 0
  • 4 x COM ports
    COM1~2: RS232/422/485, 0V/5V/12V
    COM3~4: RS-232, 0
  • 4 x COM ports
    COM1~2: RS232/422/485, 0V/5V/12V
    COM3~4: RS-232, 0
  • 4 x COM ports
    COM1~2: RS232/422/485, 0V/5V/12V
    COM3~4: RS-232, 0
  • HDMI
  • 2
  • 2
  • 2
  • 2
  • 2
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
  • 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
  • 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
  • 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
  • 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
  • DVI
  • --
  • --
  • --
  • --
  • --
  • DisplayPort
  • 2
  • 2
  • 2
  • 2
  • 2
  • Antenna
  • 2 openings reserved for antennas
  • --
  • --
  • --
  • 2 openings reserved for antennas

Expansion Slot

  • PCIe x16
  • 1
  • 1
  • 1
  • --
  • --
  • PCIe x8
  • --
  • --
  • --
  • 2
  • 2
  • PCIe x4
  • --
  • --
  • --
  • --
  • --
  • PCIe x1
  • --
  • --
  • --
  • --
  • --
  • PCI
  • 3
  • 1
  • --
  • --
  • --
  • M.2
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
    1 x M.2 E key (PCIe Gen4 x1, USB2.0), 2230
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
  • Mini-PCIe
  • --
  • 1 x Full-size
  • --
  • --
  • --

Storage

  • SATA
  • 2 x 2.5" HDD/SSD
  • 2 x 2.5" HDD/SSD
  • 2 x 2.5" HDD/SSD
  • --
  • 2 x 2.5" HDD/SSD
  • CFast
  • --
  • --
  • --
  • --
  • --
  • mSATA
  • --
  • --
  • --
  • --
  • --
  • CompactFlash
  • --
  • --
  • --
  • --

Power Supply

  • DC Input
  • DC-In 8-48V Wide-Range
    Pluggable connectors with latch (V+, V-)
  • DC-In 8-48V Wide-Range
    Pluggable connectors with latch (V+, V-)
  • DC-In 8-48V Wide-Range
    Pluggable connectors with latch (V+, V-)
  • DC-In 8-48V Wide-Range
    Pluggable connectors with latch (V+, V-)
  • DC-In 8-48V Wide-Range
    Pluggable connectors with latch (V+, V-)
  • AC Input
  • --
  • --
  • --
  • --

Environment

  • IP Rating
  • --
  • --
  • --
  • --
  • Operating Temperature
  • -10 ~ 50°C w/ industrial DC power Up to 35W CPU
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 50°C w/ industrial DC power Up to 35W CPU
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 50°C w/ industrial DC power Up to 35W CPU
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 50°C w/ industrial DC power Up to 35W CPU
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 50°C w/ industrial DC power Up to 35W CPU
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90% , non-condensing
  • 10 ~ 90% , non-condensing
  • 10 ~ 90% , non-condensing
  • 10 ~ 90% , non-condensing
  • 10 ~ 90% , non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Vibration
  • Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
  • Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
  • Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
  • Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
  • Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
  • Shock
  • Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)
  • Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)
  • Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)
  • Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)
  • Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)

Physical Characteristics

  • Dimensions
  • 176 x 226 x 217 mm
  • 143 x 226 x 217 mm
  • 123 x 240 x 217 mm
  • 127 x 240 x 217 mm
  • 127 x 240 x 217 mm
  • Weight
  • 5.0 kg
  • 4.4 kg
  • 4.3 kg
  • 4.4 kg
  • 4.4 kg
  • Mounting
  • Wall mount
  • Wall mount
  • Wall mount
  • Wall mount
  • Wall mount

Certification

  • EMC
  • FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
  • FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
  • FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
  • FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
  • FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
  • Safety
  • IEC 62368: CE(LVD) / BSMI
  • IEC 62368: CE(LVD) / BSMI
  • IEC 62368: CE(LVD) / BSMI
  • IEC 62368: CE(LVD) / BSMI
  • IEC 62368: CE(LVD) / BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)

Ordering Information

Packing List

Optional Item

The MSI MS-C910 is a rugged, fanless Box PC designed for industrial applications, powered by Intel's 12th/13th/14th Gen Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh Series processors with the R680E chipset. It supports up to 64GB of DDR5 5600 MHz ECC/non-ECC RAM and features quadruple independent displays (2 HDMI, 2 DP), along with 4 2.5 GbE LAN ports for high-speed networking. Storage options include dual SATA 3.0 ports for 2.5” SSD/HDD with RAID 0/1 support. Expansion capabilities are robust with PCIe x16 (Gen 4) slots, PCI slots, and Mini-PCIe slots. It offers extensive connectivity with USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports, complemented by COM ports, audio, GPIO, and TPM 2.0 for enhanced security. The MS-C910 ensures reliability with anti-vibration and shockproof design, operates silently with its fanless architecture, and supports a wide voltage DC-IN range from 8 to 48V, making it ideal for harsh industrial environments requiring durability, performance, and versatility.
