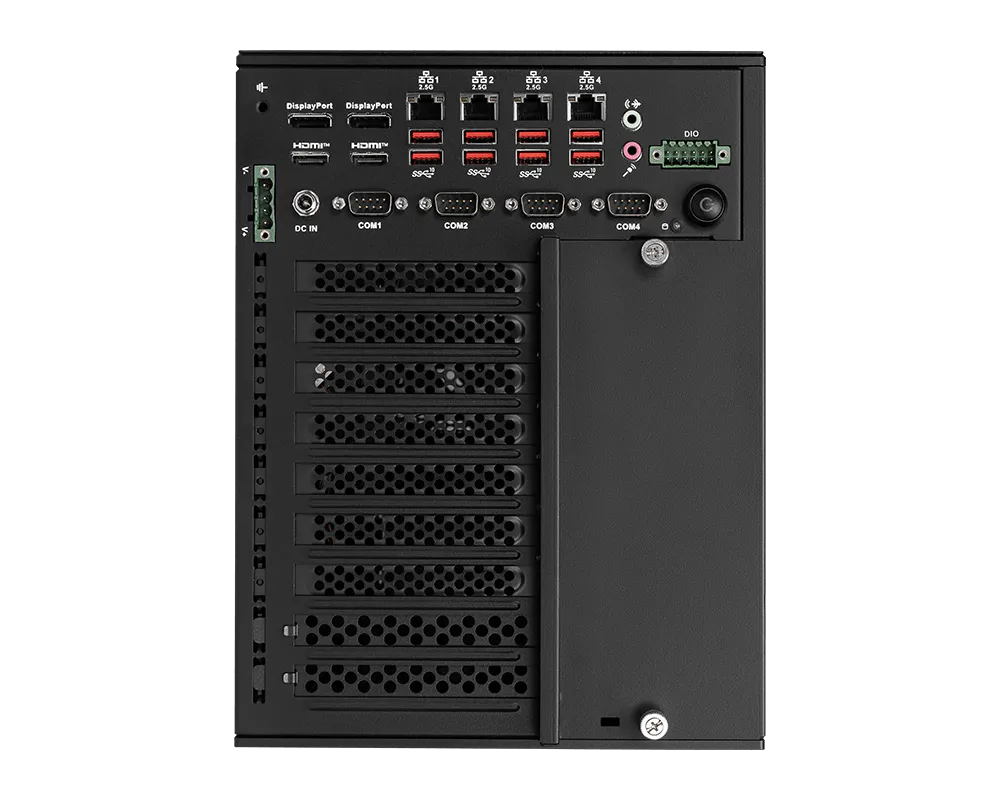

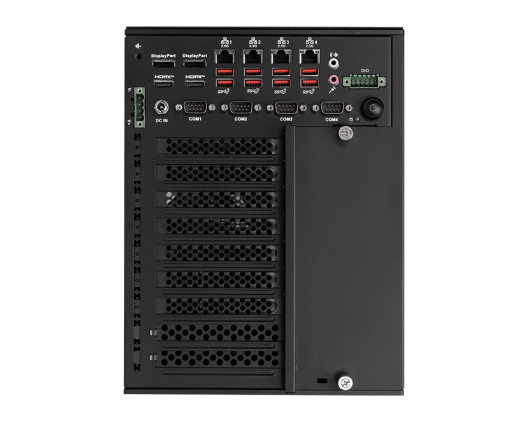

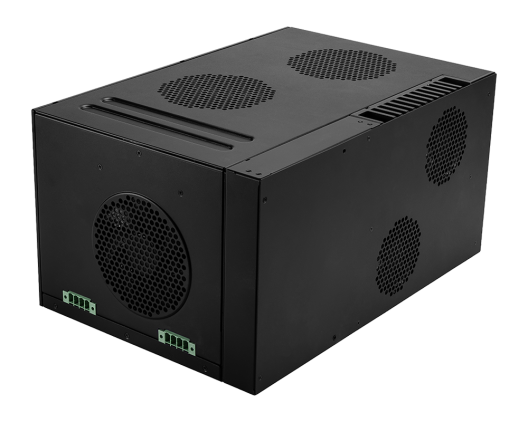

High Performance Box PC with 12th/13th/14th Gen Intel® Core™ i Processor & Core Processors Series 2 for Rugged, Scalable & Versatile Solution
- Intel® 12th/13th/14th Gen Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh/Bartlett Lake-S Series with R680E
- 2 DDR5 5600 MHz ECC/non-ECC SODIMM slots up to 96GB
- Quadruple independent displays: 2 HDMI, 2 DP
- 4 2.5 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5), 1 PCIe x8, 1 PCIe x1
- 2 SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
- SATA RAID 0/1
- 8 USB 3.2 Gen 2, 2 USB 2.0, 4 COM, Audio, GPIO, CPU FAN, System FAN
- Onboard TPM 2.0
- GPIO 8-bit supports, 5~35V, Isolation 1.3KV
- Easy access CPU, HDD, memory, expansion slots
- Anti-Vibration Design to Compliance IEC 60068-2
- Wide Voltage DC-IN 12~48V

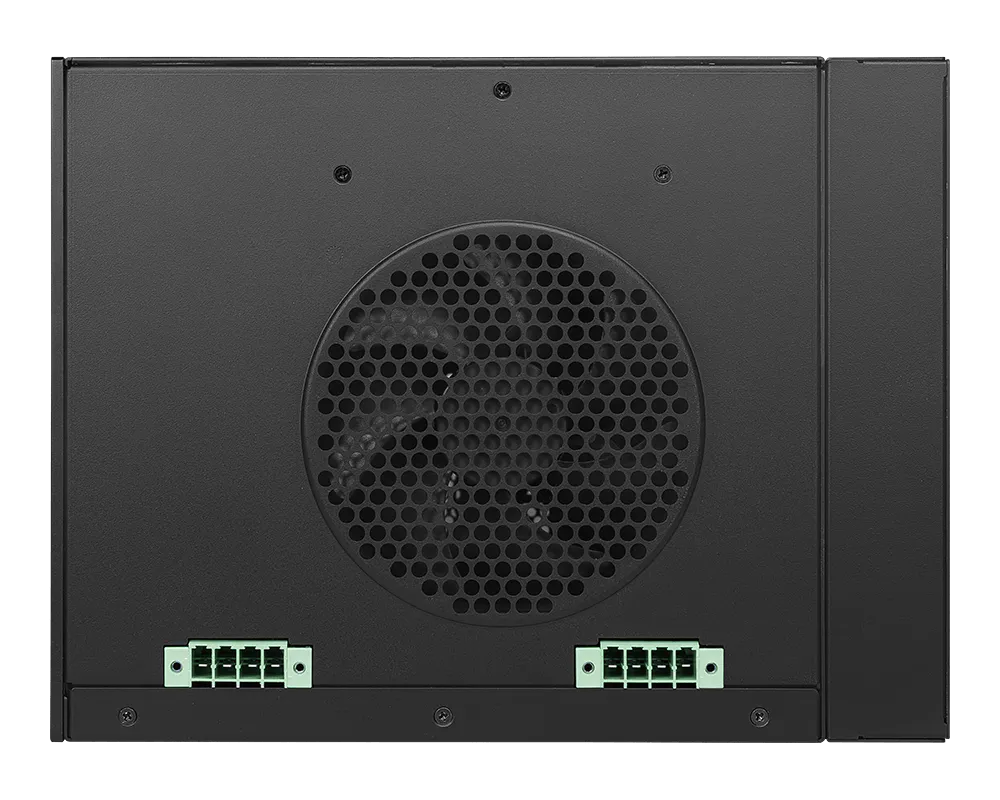

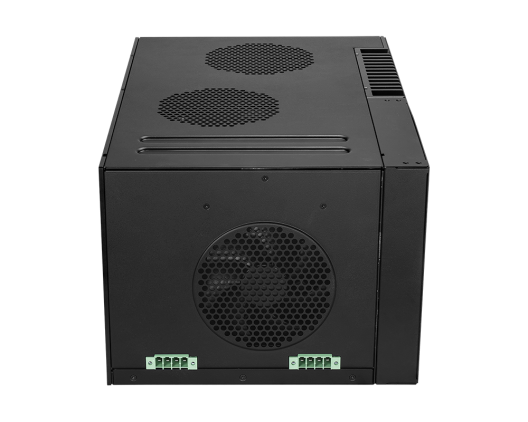

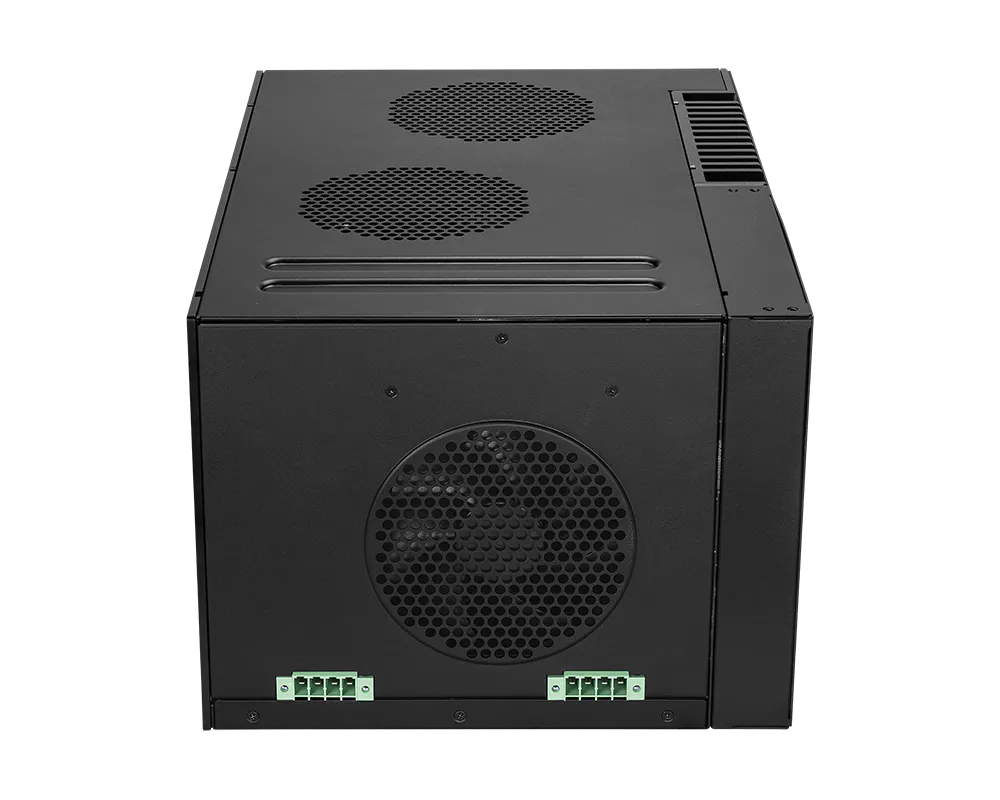

- Fan design
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
- MS-C910E-SKU
System Processor
- CPU
- Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron® Processor, Max. 65W
Intel® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 65W
Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 65W
Intel® Core 200S series processors (Bartlett Lake S, Max 65W)
Intel® Core Processors Series 2 Bartlett Lake-S Core 7/5/3, Max 65W
- Frequency
- P-Core 1.1 GHz~5.5 GHz (Depends on CPU)
E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
- L2 Cache
- 4M~36M (Depends on CPU)
- CPU Type
- Socket (LGA1700)
- Chipset
- Intel® R680E chipset
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR5(ECC/non-ECC) 5600MHz
(ECC support & Frequency will depend on CPU
- Max. Capacity
- Up to 96GB
- Socket
- 2 x 262-pin SO-DIMMs
Graphic
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Multiple Display
- 4 Independent displays
- Display Interface
- HDMI up to 4096 x 2304 @60Hz
DP up to 4096 x 2304 @60Hz
Ethernet
- Controller
- 1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT)
3 x Intel® I226V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon SLB9672VU2.0
I/O Interface
- PS/2
- --
- CANbus
- --
- LVDS
- --
- VGA
- --
- RJ-45
- 4
- PoE
- --
- Audio
- 1 x Mic-in
1 x Line-out
- USB
- 8 x USB 3.2 Gen 2
2 x USB 2.0 (internal)
- Parallel
- --
- Serial
- 4 x COM ports
COM1~2: RS232/422/485, 0V/5V/12V
COM3~4: RS-232, 0V
- HDMI
- 2
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
- DVI
- --
- DisplayPort
- 2
- Antenna
- --
Expansion Slot
- PCIe x16
- 1
- PCIe x8
- 1
- PCIe x4
- --
- PCIe x1
- 1
- PCI
- --
- M.2
- 1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
- Mini-PCIe
- --
Storage
- SATA
- 2 x 2.5" HDD/SSD
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- DC-In 12-48V Wide-Range
Pluggable connectors with latch (V+, V-)
- AC Input
- --
Environment
- IP Rating
- --
- Operating Temperature
- -10 ~ 40°C w/ industrial DC power, Up to 65W CPU with Fan and Graphic Card
- Operating Humidity
- 10 ~ 90% , non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
- Shock
- Operating, 6G, half sine, 11ms (w/ Graphic Card)
Physical Characteristics
- Dimensions
- 285 x 217 x 431.1 mm
- Weight
- 11 kg
- Mounting
- Wall mount
Certification
- EMC
- FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
- Safety
- IEC 62368: CE(LVD) / BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit, 24H2)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 936-C910-006
- MS-C910E 1.1 Bare Bone, Fanless, Intel R680E, PCIex16*1,PCIe x8*1, PCIex1*1,HDMI*2, DP*2, COM*4, USB3.2 Gen2 *8, Intel 2.5GbE LAN*4, GPIO, DC 12~48V
Packing List
- Part Number
- Description
- Quantity
- NA1-2060011-SR2
- Phoenix Terminal Plug for DIO, 2*6pin
- 1
- NA1-1040063-SR2
- Phoenix Terminal Plug for DC-in, 1*4pin
- 1
- NA1-1040073-SR2
- Phoenix Terminal Plug for Graphic card DC-in, 1*4pin
- 2
- E22-9A66200-LA2
- Wall Mount Bracket
- 2
- E26-C910010-F49
- Thermal Pad for CPU
- 1
- E26-C910030-Z36
- Thermal Pad for M.2 SSD, 7.5mm
- 1
- E26-C910020-Z36
- Thermal Pad for M.2 SSD, 6.25mm
- 1
- E26-C910110-Z36
- Thermal Pad for Memory, Bottom
- 1
- E26-C910090-Z36
- Thermal Pad for Single-side Memory, Top
- 1
- E26-C910080-Z36
- Thermal Pad for Double-side Memory, Top
- 1
- E26-9A66031-F49
- Thermal Pad for HDD
- 2
- 309-9A51214-MF1
- HDD Plastic Support Kit
- 1
- E22-9A66290-LA2
- HDD Support Tray
- 2
- K1D-3008091-V03
- SATA Cable, 700mm
- 1
- K1D-3008092-V03
- SATA Cable, 605mm
- 1
- K1D-3008093-V03
- SATA Power Cable, 130/640mm
- 1
- K1G-3008119-A43
- Graphic Card Power Cable, 8P
- 8
- S98-0800390-A43
- Graphic Card Power Adaptor Cable, 16P
- 2
- E22-C910950-LA2
- Graphic Card Support Bracket
- 2
- E22-C910970-LA2
- CPU Fan Cover
- 1
- E24-9A66030-K23
- Wall Plug
- 4
- E33-0801880-PC6
- CPU Fan
- 2
Optional Item
- Part Number
- Description
- S93-0404420-S14
- Adaptor 19V/180W (without Graphic card)
- K33-3001020-I45
- Power cord (TWN type)
