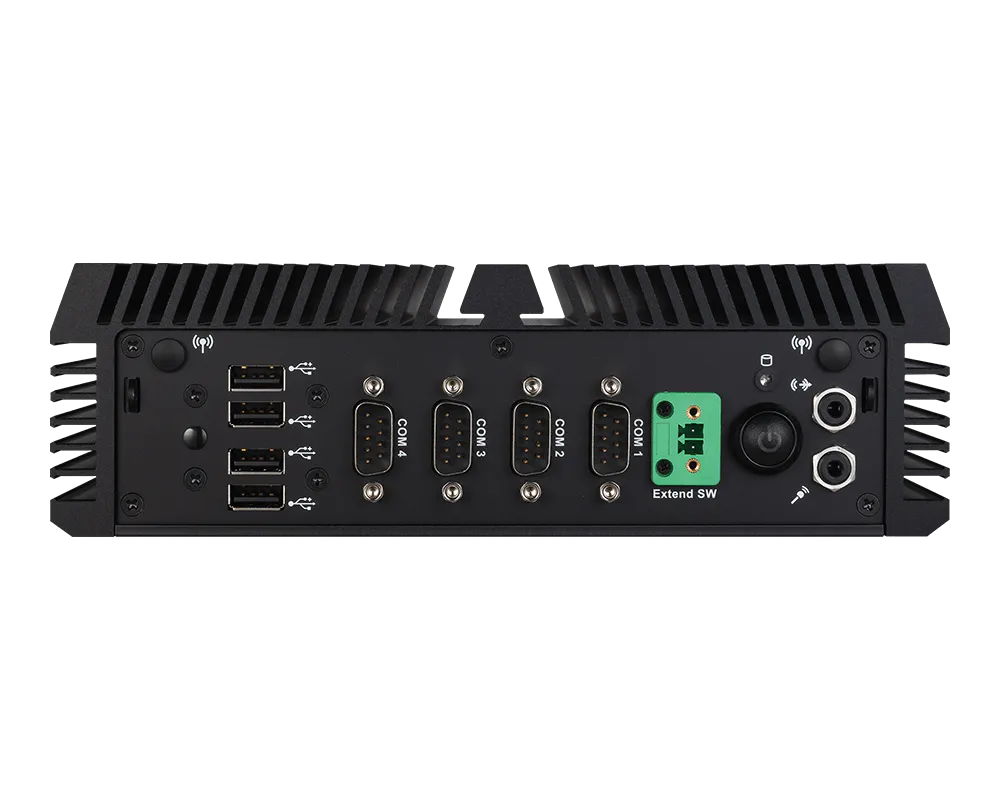

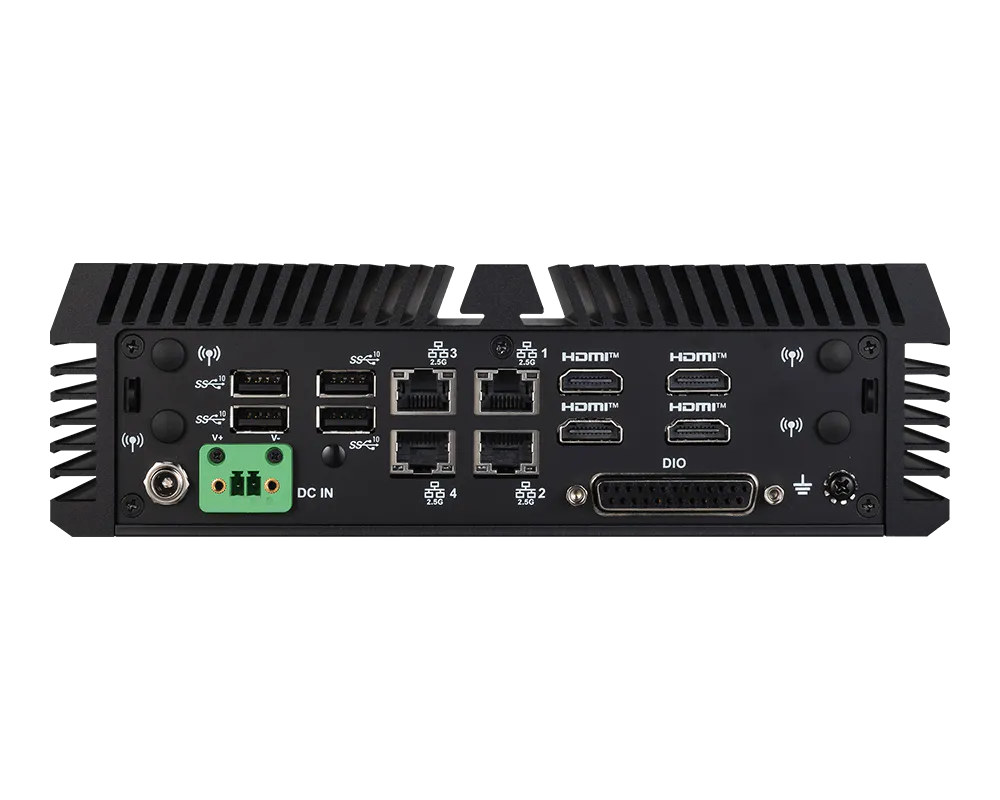

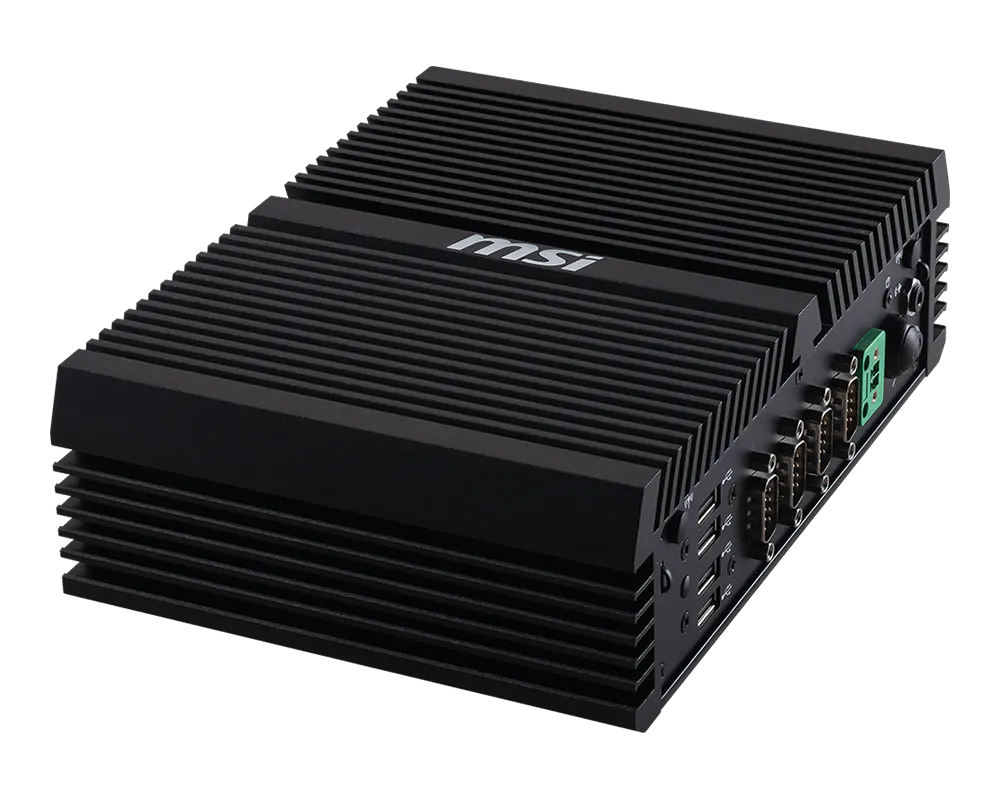

Compact-Size Box PC with Intel® Raptor Lake-P U Series Processor for Ultra Low-Power Fanless Solution

  • Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
  • 1 DDR5 5200 MHz SODIMM Slots up to 32GB
  • Quadruple independent displays: 4 HDMI
  • 4 2.5GbE LAN with RJ-45
  • 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
  • 1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
  • 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM, Audio
  • Onboard TPM 2.0
  • 6 opening resrved for antennas
  • Anti-Vibration & Shockproof Design to Compliance IEC 61373
  • Wide operating temperature: -20~70°C
  • Wide Voltage DC-IN 12~24V (OCP & OVP)
  • Ultra-Compact with fanless design
  • Support EDID Lock Display Function
  • Product Specifications
  • Ordering-Information
  • Packing-List
  • Optional-Items

Product Specifications

  • Part Number
  • MS-C906-Embedded SKUs
  • MS-C906-Industrial SKUs

System Processor

  • CPU
  • Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i5-1345UE / i3-1315UE
  • Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i5-1345URE / i3-1315URE
  • Frequency
  • 3.30 GHz~4.6 GHz (Depends on CPU)
  • 3.30 GHz~4.6 GHz (Depends on CPU)
  • L2 Cache
  • 6M~12M (Depends on CPU)
  • 6M~12M (Depends on CPU)
  • CPU Type
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC Process
  • Integrated in SoC Process
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel DDR5 5200 MHz
  • Single-channel DDR5 5200 MHz
  • Max. Capacity
  • Up to 32 GB
  • Up to 32 GB
  • Socket
  • 1 x 262-pin SO-DIMM
  • 1 x 262-pin SO-DIMM

Graphic

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 4 independent displays
  • 4 independent displays
  • Display Interface
  • HDMI 2.0 up to 4096 x 2340 @60Hz
  • HDMI 2.0 up to 4096 x 2340 @60Hz

Ethernet

  • Controller
  • 4 x Intel® I226-LM GbE LAN
  • 4 x Intel® I226-IT 2.5 GbE LAN

Audio

  • Controller
  • Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • --
  • --

TPM

  • Controller
  • Infineon SLB9672VU2.0
  • Infineon SLB9672XU2.0

I/O Interface

  • PS/2
  • --
  • --
  • CANbus
  • --
  • --
  • LVDS
  • --
  • --
  • VGA
  • --
  • --
  • RJ-45
  • 4
  • 4
  • PoE
  • --
  • --
  • Audio
  • 1 x Mic-in
    1 x Line-out
  • 1 x Mic-in
    1 x Line-out
  • USB
  • 4 x USB 2.0
    4 x USB 3.2 Gen 2
  • 4 x USB 2.0
    4 x USB 3.2 Gen 2
  • Parallel
  • --
  • --
  • Serial
  • 4 x COM ports
    COM1~4 RS-232/422/485, 0V/5V/12V
  • 4 x COM ports
    COM1~4 RS-232/422/485, 0V/5V/12V
  • HDMI
  • 4
  • 4
  • GPIO
  • 16-bit (Default 8 x GPI, 8 x GPO), 5V
  • 16-bit (Default 8 x GPI, 8 x GPO), 5V
  • DVI
  • --
  • --
  • DisplayPort
  • --
  • --
  • Antenna
  • 6 openings reserved for antennas
  • 6 openings reserved for antennas

Expansion Slot

  • PCIe x16
  • --
  • --
  • PCIe x8
  • --
  • --
  • PCIe x4
  • --
  • --
  • PCIe x1
  • --
  • --
  • PCI
  • --
  • --
  • M.2
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
    1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
    1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
    1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
    1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
  • Mini-PCIe
  • --

Storage

  • SATA
  • 1 x 2.5" SSD Bay
  • 1 x 2.5" SSD Bay
  • CFast
  • --
  • --
  • mSATA
  • --
  • --
  • CompactFlash
  • --
  • --

Power Supply

  • DC Input
  • DC-in 12V~24V Wide-Range (OCP & OVP)
    Phoenix pluggable connectors with latch (V+, V-)
  • DC-in 12V~24V Wide-Range (OCP & OVP)
    Phoenix pluggable connectors with latch (V+, V-)
  • AC Input
  • --
  • --

Environment

  • IP Rating
  • --
  • --
  • Operating Temperature
  • 0 ~ 50°C (w/ 2.5" SATA SSD(Ta: 85°C))
    0 ~ 45°C (w/ M.2 NVMe SSD(Ta: 85°C))
    Note: Thermal w/ Airflow:0.7m/s
  • '-20 ~ 70°C (w/ M.2 NVMe SSD(Ta: 85°C), w/ WT MEM(Ta: 95°C))
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Vibration
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B
  • Shock
  • IEC61373 Category 1, Class B
  • IEC61373 Category 1, Class B

Physical Characteristics

  • Dimensions
  • 215 x 155 x 65 mm
  • 215 x 155 x 65 mm
  • Weight
  • 2.25 kg
  • 2.25 kg
  • Mounting
  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
  • Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)

Certification

  • EMC
  • FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
  • FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
  • Safety
  • BSMI
  • BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 936-C906-001
  • MS-C906\706-C906-010\826-C906-010 VER 11, Barebone, Fanless, Intel Raptor Lake-P i3-1315UE, 19V/90W ADAPTER, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
  • 936-C906-002
  • MS-C906\706-C906-020\826-C906-011 VER 11, Barebone, Fanless, Intel Raptor Lake-P i5-1345UE, 19V/90W ADAPTER, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
  • 936-C906-003
  • MS-C906\706-C906-030\826-C906-014 VER 11, Barebone, Fanless, Intel Raptor Lake-P i3-1315URE, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK
  • 936-C906-004
  • MS-C906\706-C906-040\826-C906-015 VER 11, Barebone, Fanless, Intel Raptor Lake-P i5-1345URE, 1*SATA CABLE, 1*WALL MOUNT, 1*DIN-RAIL, 2*TERMINAL BLOCK, BLACK w/o LOGO msi, SINGLE 6-PACK

Packing List

  • Part Number
  • Description
  • Quantity
  • S93-0406700-S14
  • Adaptor 19V/90Wm
  • 1
  • K1D-3011007-V03
  • SATA Cable with Power, 300mm
  • 1
  • E22-9A59010-LA2
  • Wall Mounting Bracket
  • 2
  • E49-1065009-P65
  • Screw for Wall Mounting
  • 4
  • E25-9B01030-K23
  • Rubber for Wall Mounting
  • 4
  • E24-9B02010-P09
  • DIN Rail
  • 2
  • E41-1356002-P65
  • Screw for DIN Rail
  • 4
  • NA1-1020141-SR2
  • Phoenix Terminal Plugged
  • 2
  • E49-1303007-P65
  • Screw for HDD
  • 4

Optional Item

  • Part Number
  • Description
  • E22-9A95080-C22
  • VESA Mounting
The MSI MS-C906 is a compact-size Box PC powered by the Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series processor, offering ultra-low-power fanless operation. It supports up to 32GB of DDR5 5200 MHz RAM and features quadruple independent HDMI displays for versatile visual output. Connectivity includes four 2.5GbE LAN ports, M.2 B key with Nano SIM-holder for 5G/LTE support, M.2 E key, and M.2 M key slots for storage expansion. It includes USB 3.2 Gen 2 and USB 2.0 ports, along with COM ports and audio interfaces. Designed to withstand industrial environments, it complies with IEC 61373 standards for anti-vibration and shockproof durability. The device operates in a wide temperature range from -20°C to 70°C and supports a wide voltage DC-IN from 12V to 24V with overcurrent and overvoltage protection. Its fanless design and EDID Lock Display Function further enhance reliability and suitability for industrial applications requiring compact, robust, and efficient computing solutions.
