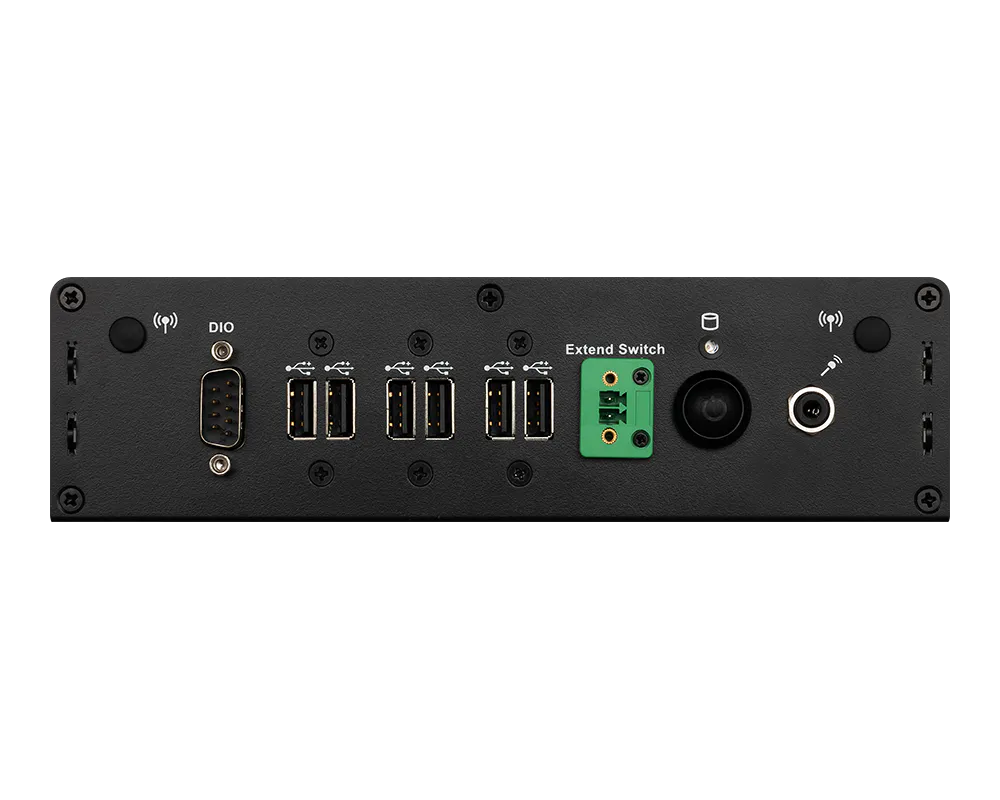

Compact-Size Box PC with Intel® IOTG Alder Lake-N Processor for Ultra Low-Power Fanless Solution
- Intel® Alder Lake-N PC Client Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Dual independent displays: DP, HDMI
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- SATA 3.0 for storage(2.5” SSD/HDD)
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 6 USB 2.0, 2 COM (1 RS-485), GPIO, Audio, Amplifier-6W
- 2 COM or 2 CANbus (Option by M.2 Module)
- 4 opening reserved for antennas
- Anti-Vibration & Shockproof Design to Compliance IEC 61373
- Wide Voltage DC-IN 9~36V
- Ultra-Compact with fanless design
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
- MS-C907-SKU1
- MS-C907-SKU2
System Processor
- CPU
- Intel® IOTG Alder Lake-N Processor N97, QC, 12W
- Intel® IOTG Alder Lake-N Core i3-N305, OC, 12W up to 15W
- Frequency
- 2 GHz, up to 3.6 GHz
- 1.8 GHz, up to 3.8 GHz
- L2 Cache
- 6MB
- 6MB
- CPU Type
- BGA
- BGA
- Chipset
- Integrated in SoC Process
- Integrated in SoC Process
- BIOS
- AMI
- AMI
Memory
- Technology
- Single-channel DDR5 4800 MHz
- Single-channel DDR5 4800 MHz
- Max. Capacity
- Up to 16GB
- Up to 16GB
- Socket
- 1 x 262-pin SO-DIMM
- 1 x 262-pin SO-DIMM
Graphic
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Multiple Display
- 2 independent displays
- 2 independent displays
- Display Interface
- HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz - HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz
Ethernet
- Controller
- 2 x Intel® I225-V 2.5 GbE LAN
- 2 x Intel® I225-V 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec
- Realtek® ALC897 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
- --
TPM
- Controller
- Infineon SLB9672VU2.0
- Infineon SLB9672VU2.0

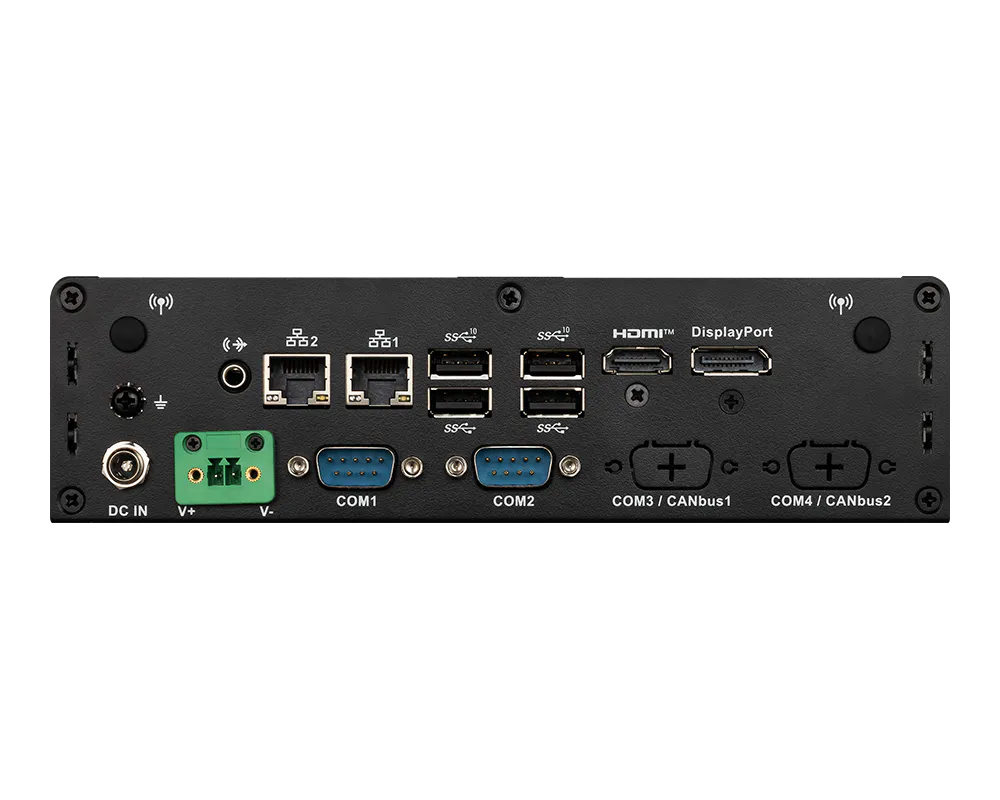

I/O Interface
- PS/2
- --
- --
- CANbus
- 2 (Option by M.2 Module)
- 2 (Option by M.2 Module)
- LVDS
- --
- --
- VGA
- --
- --
- RJ-45
- 2
- 2
- PoE
- --
- --
- Audio
- 1 x Line-out
1 x Mic-in - 1 x Line-out
1 x Mic-in
- USB
- 6 x USB 2.0
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1 - 6 x USB 2.0
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
- Parallel
- --
- --
- Serial
- 4 x COM ports
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232
COM3~4: Option by M.2 Module - 4 x COM ports
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232
COM3~4: Option by M.2 Module
- HDMI
- 1
- 1
- GPIO
- 8-bit (4*GPI; 4*GPO), 5V
- 8-bit (4*GPI; 4*GPO), 5V
- DVI
- --
- --
- DisplayPort
- 1
- 1
- Antenna
- 4 openings reserved for antennas
- 4 openings reserved for antennas
Expansion Slot
- PCIe x16
- --
- --
- PCIe x8
- --
- --
- PCIe x4
- --
- --
- PCIe x1
- --
- --
- PCI
- --
- --
- M.2
- 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230 - 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230
- Mini-PCIe
- --
- --
Storage
- SATA
- 1 x 2.5" HDD/SSD Bay
- 1 x 2.5" HDD/SSD Bay
- CFast
- --
- --
- mSATA
- --
- --
- CompactFlash
- --
- --
Power Supply
- DC Input
- DC-in 9~36V with Lockable DC Jack
Phoenix pluggable connectors with latch (V+, V-) - DC-in 9~36V with Lockable DC Jack
Phoenix pluggable connectors with latch (V+, V-)
- AC Input
- --
- --
Environment
- IP Rating
- --
- --
- Operating Temperature
- -10 ~ 40°C
-10 ~ 55°C (w/ WT devices)
Note: Thermal w/ Airflow:0.7m/s - -10 ~ 40°C
-10 ~ 55°C (w/ WT devices)
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- Vibration
- IEC61373 Category 1, Class B
- IEC61373 Category 1, Class B
- Shock
- IEC61373 Category 1, Class B
- IEC61373 Category 1, Class B
Physical Characteristics
- Dimensions
- 200 x 150 x 55 mm
- 200 x 150 x 55 mm
- Weight
- 1.38 kg
- 1.38 kg
- Mounting
- Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
- Wall mount (STD)/DIN-rail mount(STD)/VESA mount(by BOM option)
Certification
- EMC
- CE, FCC, RCM, VCCI, BSMI, UKCA, IC
- CE, FCC, RCM, VCCI, BSMI, UKCA, IC
- Safety
- BSMI
- BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 936-C907-006
- MS-C907\706-C907-010\826-C907-013 10 STD, Intel Alder Lake-N N97, HDMI, DP, COM*2, USB3.2*4, USB2.0*6, DUAL INTEL 2.5GbE LAN, DIO, MIC-In, Line-out, ROHS, SINGLE, W/O MSI LOGO
- 936-C907-007
- MS-C907\706-C907-020\826-C907-014 10 OPT:A, Intel Alder Lake-N Core i3-N305, HDMI, DP, COM*2, USB3.2*4, USB2.0*6, DUAL INTEL 2.5GbE LAN, DIO, MIC-In, Line-out, ROHS, SINGLE, W/O MSI LOGO
- 936-C907-008
- MS-C907\706-C907-010\826-C907-015, 10 STD, Intel Alder Lake-N N97, HDMI, DP, COM*2, USB3.2*4, USB2.0*6, DUAL INTEL 2.5GbE LAN, DIO, MIC-In, Line-out, ROHS, SINGLE, W/ USA POWER CORD, W/O MSI LOGO,
- 936-C907-009
- MS-C907\706-C907-020\826-C907-016, 10 OPT:A, Intel Alder Lake-N Core i3-N305, HDMI, DP, COM*2, USB3.2*4, USB2.0*6, DUAL INTEL 2.5GbE LAN, DIO, MIC-In, Line-out, ROHS, SINGLE, W/ USA POWER CORD, W/O MSI LOGO,
Packing List
- Part Number
- Description
- Quantity
- S93-0401780-S14
- Adaptor (19V/65W)
- 1
- K1D-1012115-V03
- SATA Cable with Power, 230mm
- 1
- NA1-1020141-SR2
- Phoenix Terminal Plugged
- 2
- E22-9A69040-815
- Wall Mounting Bracket
- 2
- E24-9B02010-P09
- DIN Rail
- 2
- E41-1356002-P65
- Screw for DIN Rail
- 4
- E31-0005930-K08
- M.2 SSD Heat Spreader
- 1
- E26-C907020-Z36
- M.2 SSD Thermal Pad
- 1
- E26-C907010-Z36
- Memory Thermal Pad
- 1
Optional Item
- Part Number
- Description
- E22-9A95080-C22
- VESA Mounting
