Palm-Size Pocket PC with Intel® Alder Lake-N N100 & Twin Lake-N N150 Processor for Ultra Low-Power Fanless Solution
- Intel® Alder Lake-N N100 Processor & Twin Lake-N N150 Processor
- LPDDR5 4800 MHz up to 4GB

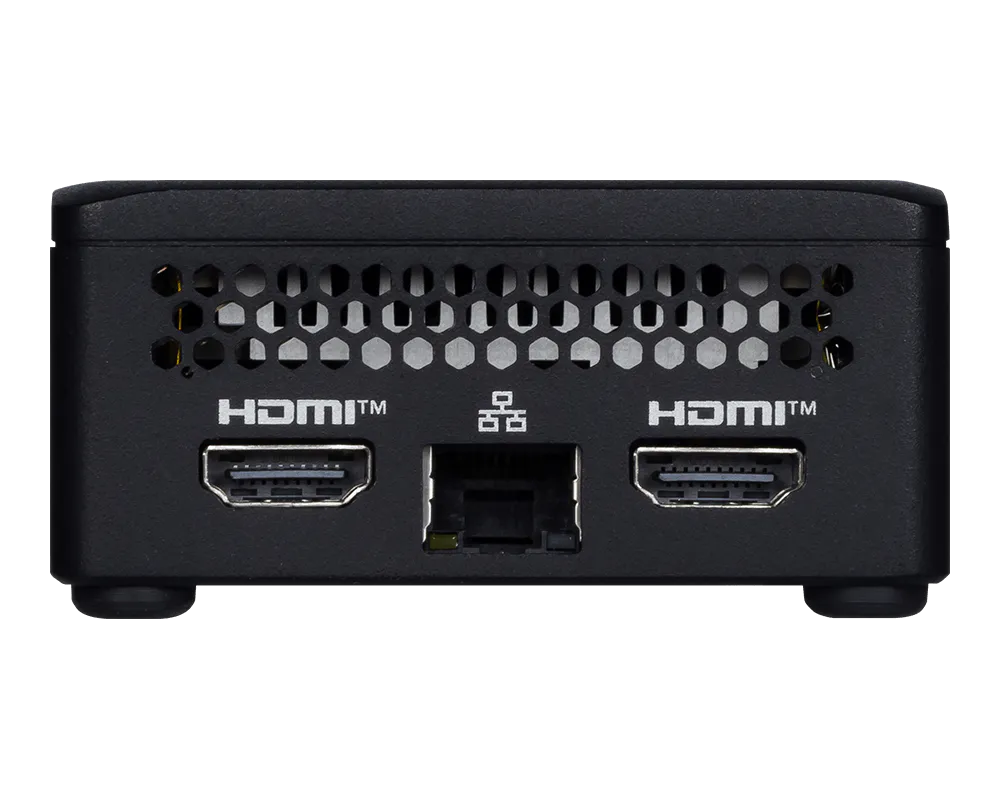

- Dual independent displays: 2 HDMI (1 HDMI 2.0 output support CEC Power On/Off)
- 1 GbE LAN with RJ-45
- eMMC 128G storage

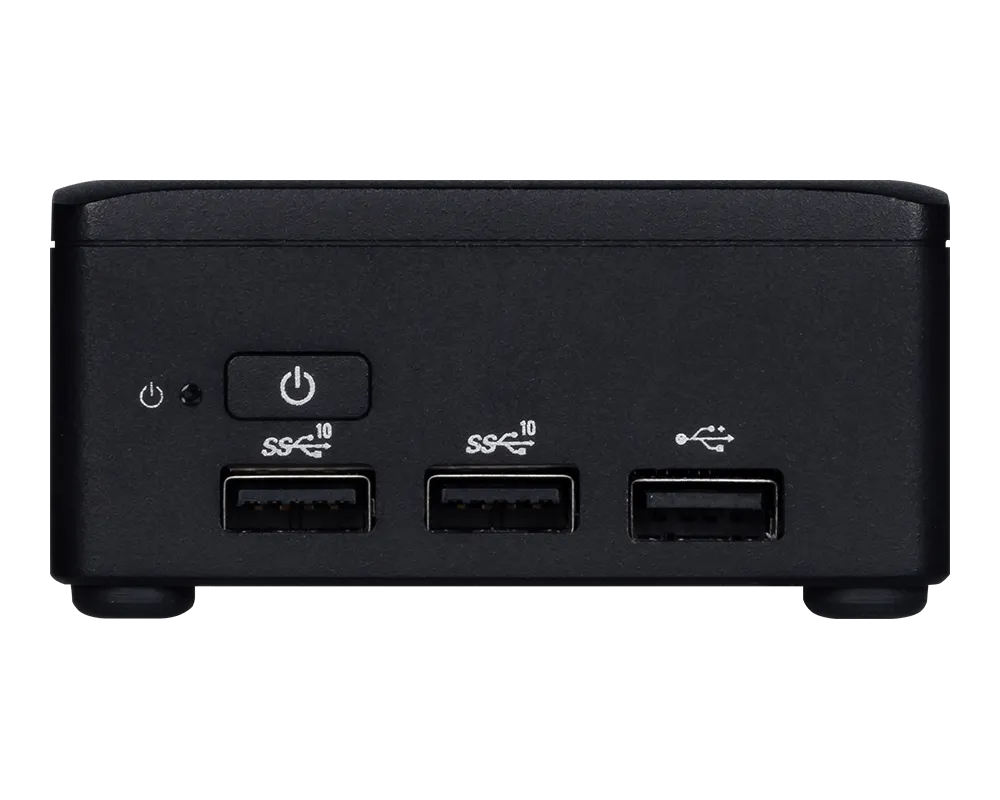

- 2 USB 10Gbps Type-A, 1 USB 2.0
- fTPM 2.0
- Palm-Sized 80 x 80 x 39.5 mm for easy handling and easily concealed behind your monitor

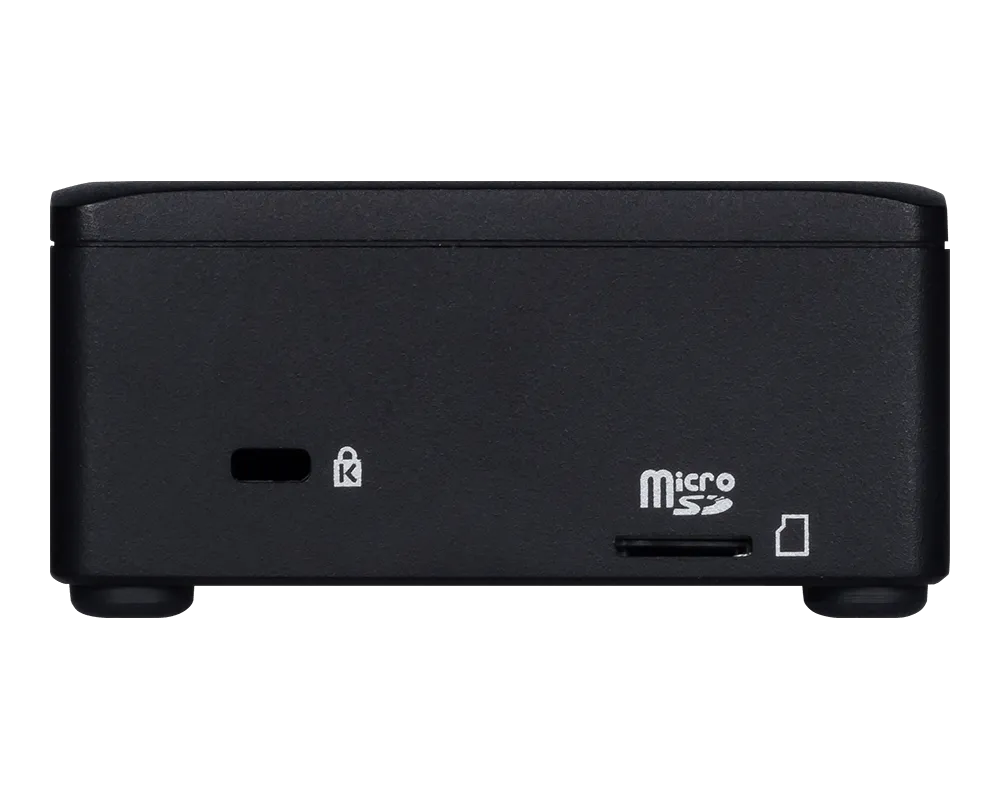

- SD Slot for external storage (Max. 2TB)
- WiFi 6E & BT 5.2 inside
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-C918
System Processor
- CPU
- Intel® Mobile Alder Lake-N N100 Processor, 6W
Intel® Mobile Twin Lake-N N150 Processor, 6W
- Frequency
- 0.8 GHz~3.4 GHz
- L2 Cache
- 6MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC Process
- BIOS
- AMI
Memory
- Technology
- Single-channel LPDDR5 4800 MHz
- Max. Capacity
- Up to 4 GB
Graphic
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Multiple Display
- 2 independent displays
- Display Interface
- HDMI 2.0b up to 4096 x 2160 @60Hz
Ethernet
- Controller
- 1 x Realtek® RTL8111H-CG
Audio
- Controller
- --
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
TPM
- Controller
- --
I/O Interface
- PS/2
- --
- CANbus
- --
- LVDS
- --
- VGA
- --
- RJ-45
- 1
- PoE
- --
- Audio
- --
- USB
- 1 x USB 2.0
2 x USB 10Gbps
- Parallel
- --
- Serial
- --
- HDMI
- 2
- GPIO
- --
- DVI
- --
- DisplayPort
- --
- Antenna
- 2 internal reserved for antennas
Expansion Slot
- PCIe x16
- --
- PCIe x8
- --
- PCIe x4
- --
- PCIe x1
- --
- PCI
- --
- M.2
- --
Storage
- SATA
- --
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input

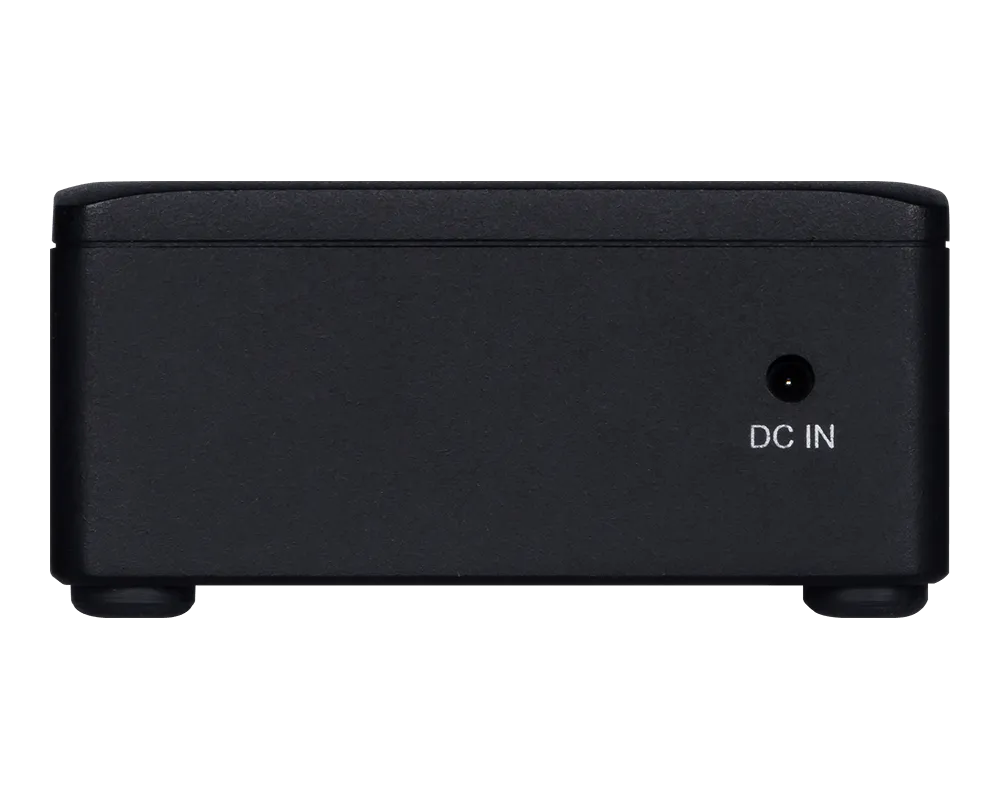

- DC-in 12V
- AC Input
- --
Environment
- IP Rating
- --
- Operating Temperature
- 0 ~ 40°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- 0 ~ 60°C
- Vibration
- Operating: 0.25 Grms, 5-300Hz, 3axes
- Shock
- Operating: 3 G, half sine 11 ms duration
Physical Characteristics
- Dimensions
- 80 x 80 x 39.5 mm
- Weight
- 0.22 kg
- Mounting
- VESA mount
Certification
- EMC
- FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
- Safety
- BSMI
Software Platform
- OS Support
- Windows 11 IoT Enterprise 24H2 LTSC
Ordering Information
- Part Number
- Description
- 9S6-C91812-001
- MS-C918, Black, FAN, Intel Alder Lake-N N100, HDMI*2, USB3.2*2, USB2.0*1, WIFI 6E, 1Gb LAN, SD slot, DC-IN 12V,MS-C918-ADL-N1,BAN, 8in1 w/Pallet, ROHS SINGLE, W/O MSI LOGO
- 9S6-C91812-003
- MS-C918, Black, FAN, Intel Alder Lake-N N100, HDMI*2, USB3.2*2, USB2.0*1, WIFI 6E, 1Gb LAN, SD slot, DC-IN 12V, MS-C918-ADL-N1,BAN, 2in1 W/O Pallet, ROHS SINGLE, W/O MSI LOGO
- 9S6-C91812-011
- MS-C918, Black, FAN, Intel Alder Lake-N N100, HDMI*2, USB3.2*2, USB2.0*1, WIFI 6E, 1Gb LAN, SD slot, DC-IN 12V, MS-C918-ADL-N1,BAN, 2in1 W/O Pallet, ROHS SINGLE, W/O MSI LOGO, MSI TY
- 9S6-C91812-013
- MS-C918, Black, FAN, Intel Twin Lake-N N150, HDMI*2, USB3.2*2, USB2.0*1, WIFI 6E, 1Gb LAN, SD slot, DC-IN 12V, MS-C918-TWL1,BAN, 2in1 W/O Pallet, ROHS SINGLE, W/O MSI LOGO
- 9S6-C91812-014
- MS-C918, Black, FAN, Intel Twin Lake-N N150, HDMI*2, USB3.2*2, USB2.0*1, WIFI 6E, 1Gb LAN, SD slot, DC-IN 12V, MS-C918-TWL1,BAN, 8in1 W/O Pallet, ROHS SINGLE, W/O MSI LOGO
Packing List
- Part Number
- Description
- Quantity
- E43-1303022-P65
- MS-C918 VESA (WALL) SCREW
- 2
- S93-0405900-AA0
- 24W/2A ADAPTOR
- 1
- E22-C918010-D79
- VESA MOUNT
- 1
