Palm-Size Box PC with Intel® Alder Lake-N N100 Processor for Ultra Low-Power Fanless Solution
- Intel® Alder Lake-N N100 Processor
- LPDDR5 4800 MHz up to 4GB
- Dual independent displays: 1 HDMI 2.0 output support CEC Power On/Off, 1 DP or HDMI (option)
- 1 GbE LAN with RJ-45
- eMMC 128G Storage
- 2 USB 10Gbps Type-A, 1 USB 2.0
- fTPM 2.0
- Palm-Sized 80 x 78 x 48 mm for easy handling and easily concealed behind your monitor

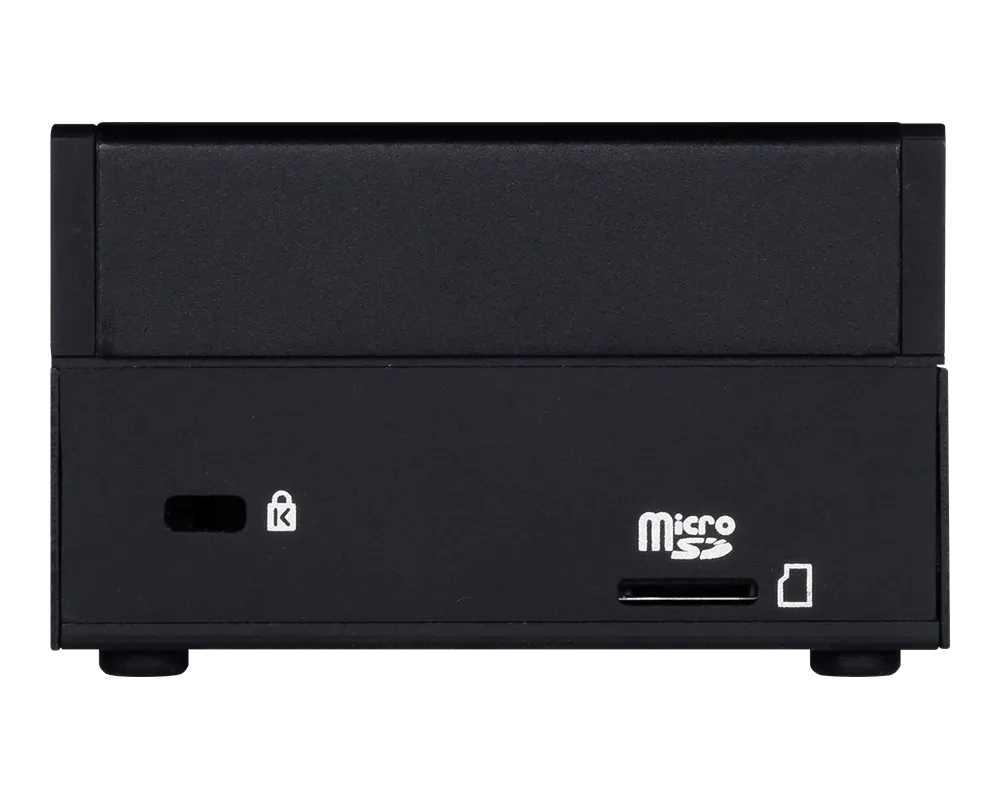

- SD Slot for external sotrage (Max. 2TB)
- WiFi 6E & BT 5.2 inside
- Product Specifications
Product Specifications
- Part Number
- MS-C918S-SKU1
System Processor
- CPU
- Intel® Mobile Alder Lake-N N100 Processor, 6W
- Frequency
- 0.8 GHz~3.4 GHz
- L2 Cache
- 6MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC Process
- BIOS
- AMI
Memory
- Technology
- Single-channel LPDDR5 4800 MHz
- Max. Capacity
- Up to 4 GB
Graphic
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- DisplayPort
- HDMI 2.0b up to 4096 x 2160 @60Hz
DP 1.4a up to 4096 x 2304 @60Hz (option)
- Multiple Display
- 2 independent displays
Ethernet
- Controller
- 1 x Realtek® RTL8111H-CG
Audio
- Controller
- --
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
TPM
- Controller
- --
I/O Interface
- PS/2
- --
- CANbus
- --
- LVDS
- --
- VGA
- --
- RJ-45
- 1
- PoE
- --
- Audio
- --

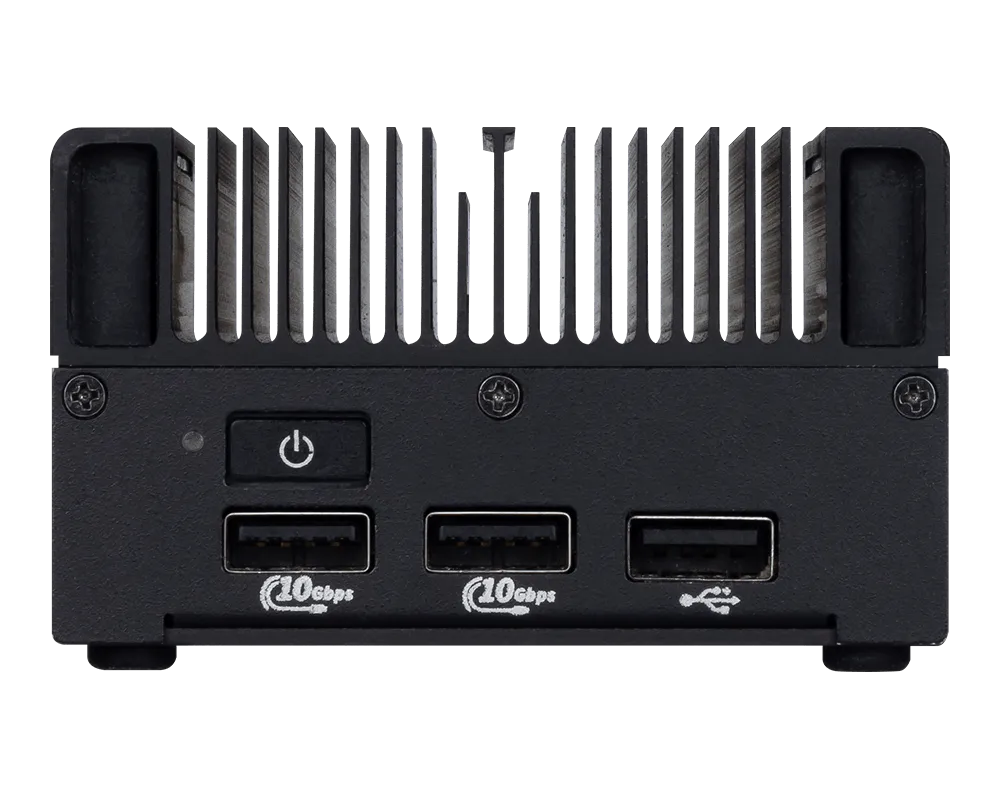

- USB
- 1 x USB 2.0
2 x USB 10Gbps
- Parallel
- --
- Serial
- --
- HDMI
- 2 or 1 (option)
- GPIO
- --
- DVI
- --
- DisplayPort
- 1 (option)
- Antenna
- 2 internal reserved for antennas
Expansion Slot
- PCIe x16
- --
- PCIe x8
- --
- PCIe x4
- --
- PCIe x1
- --
- PCI
- --
- M.2
- --
- Mini-PCIe
- --
Storage
- SATA
- --
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input

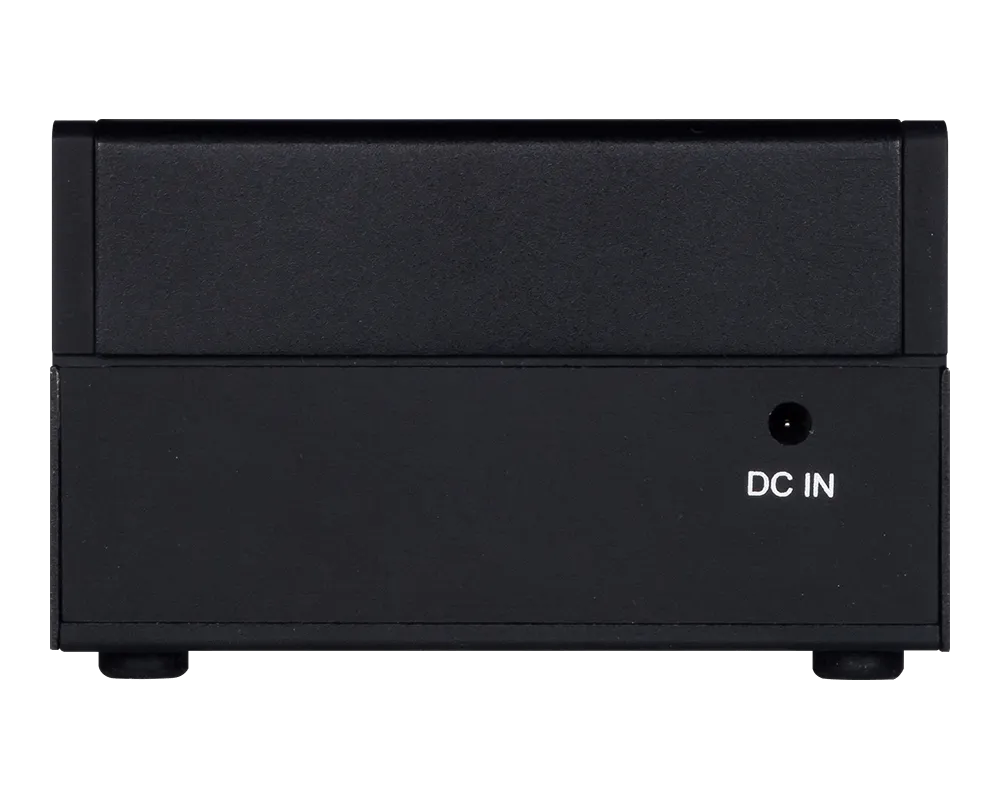

- DC-in 12V
- AC Input
- --
Environment
- IP Rating
- --
- Operating Temperature
- 0 ~ 55°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- 0 ~ 60°C
- Vibration
- Operating: 0.25 Grms, 5-300Hz, 3axes
- Shock
- Operating: 3 G, half sine 11 ms duration
Physical Characteristics
- Dimensions
- 80 x 78 x 48 mm
- Weight
- 0.35 kg
- Mounting
- VESA mount
Certification
- EMC
- FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
- Safety
- BSMI
Software Platform
- OS Support
- Windows 11 IoT Enterprise LTSC (Pre-test)
