MS-9B05
Slim Fanless Box PC with Intel® Whiskey Lake ULT, 3 Display Outputs & Easy Maintenance for Digital Signage Player & Automation
- Intel® 8th Gen Whiskey Lake-U Series
- 2 DDR4 2400 MHz (by option) SODIMM slots up to 32GB
- Triple independent displays: HDMI™(DVI-D by option), 2 HDMI™(DP by option)
- HDMI™ 2.0
- 2 GbE LAN with RJ-45
- Expansion slots: 1 M.2 E Key, 1 M.2 M Key, 1 Mini-PCIe (Full/Half size, with SIM Holder), 1 Mini-PCIe (Full/Half size, with mSATA) slots
- mSATA, M.2 M key, SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
- 2 USB 3.2 Gen 2 (by option), 4 USB 2.0, 2 COM(2 RS485), Audio
- Onboard TPM 2.0 (by option)
- ESD: Contact 8KV/ Air 15KV
- Easy access:
Only 2 screws to fix/remove bottom cover within 6 secs - Quick Assembly all on bottom side: 2 x Memory, 2 x Mini-PCIe, 2 x M.2, 1 x 2.5” HDD/SSD, SIM Card Slot
- 4 openings reserved for WiFi/BT/LTE antennas
- Compliance IEC 61373
- Wide Voltage DC-IN 9~36V
- Ultra-Slim & fanless design with thinness 27mm
Products Specifications
- Part Number
- MS-9B05
Processor
- CPU
- 8th Gen Intel® Mobile Whiskey Lake-U Core™ i5 Processor, QC, 15W
- Frequency
- Depends on CPU
- L2 Cache
- Depends on CPU
- CPU Type
- BGA
- Chipset
- Integrated
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR4 2400 MHz
- Max. Capacity
- Up to 32GB
- Socket
- 2 x 260-pin SO-DIMMs
Display
- Controller
- Intel® UHD Graphics 620
- Graphic Memory
- Depends on CPU
- Multiple Display
- 3 independent displays
- Display Interface
- HDMI™ 2.0 up to 4096 x 2160 @60Hz HDMI™ 1.4 up to 4096 x 2160 @24Hz
Ethernet
- Controller
- 1 x Intel® I219LM GbE LAN PHY 1 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
H/W Monitor
- Smart Fan
- 256-level Watchdog Timer
TPM
- Controller
- Infineon SLB9665TT2.0 (by BOM option)
Expansion Slot
- M.2
- 1 x E key (2x PCIe x1, USB 2.0), 2230 1 x M key (PCIe x4), 2242
- Mini-PCIe
- 1 x Half/Full-size (w/ mSATA) 1 x Half/Full-size (w/ Nano-SIM holder)
Storage
- SATA
- 1 x 2.5" HDD/SSD
- mSATA
- 1 x Full-size (shared with mini-PCIe)

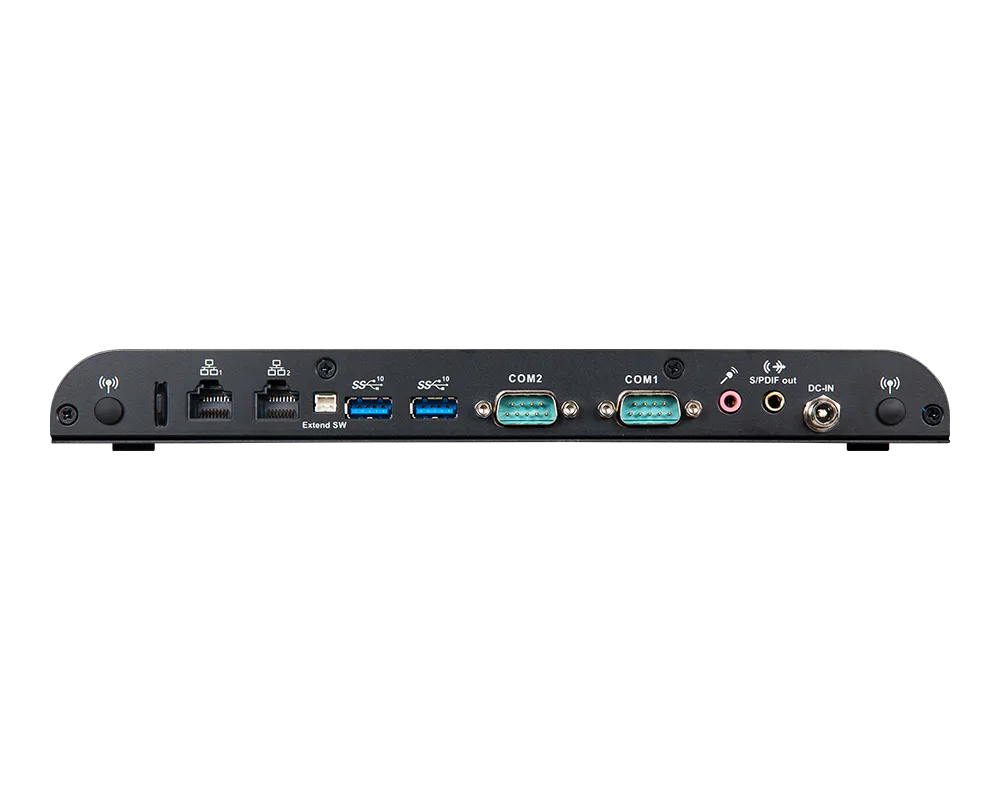

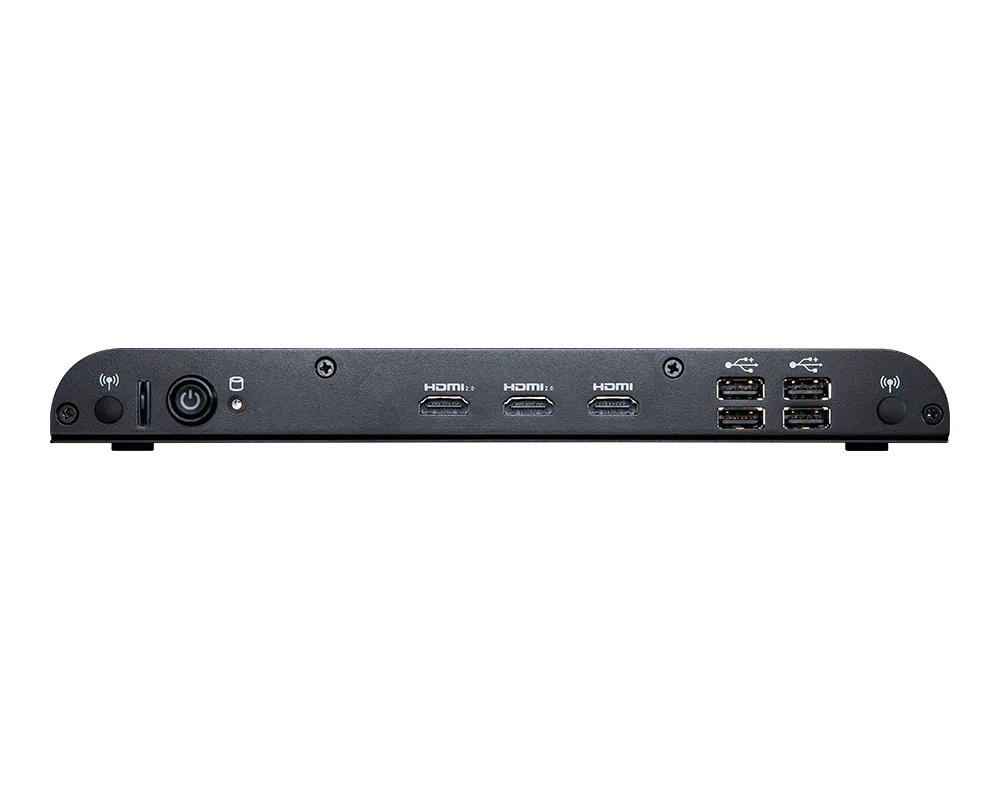

I/O Interface
- RJ-45
- 2
- Audio
- 1 x SPDIF-out/Line-out 1 x Mic-in/Line-in
- USB
- 4 x USB 2.0 2 x USB 3.2 Gen 2
- Serial
- 2 x COM ports COM1/2: RS-232/422/485, 0V/5V/12V
- HDMI
- 3
- Antenna
- 4 openings reserved for antennas
Power Supply
- DC Input
- DC-in 9~36V with Lockable DC Jack
Environment
- IP Rating
- Full IP40
- Operating Temperature
- -10 ~ 40°C (HDD) -10 ~ 50°C (SSD) Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- IEC61373 Category 1, Class A Operating: IEC 60068-2-64: 2 Grms, 5 ~ 500 Hz, 1hr/axis (w/ SSD)
- Shock
- IEC61373 Category 1, Class A Operating: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)
Form Factor
- Dimensions
- 260 x 185 x 27 mm
- Weight
- 1.77 kg VESA/DIN Rail(STD), Wall mount (by BOM option)
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI Class A
- Safety
- BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request)
Ordering Information
Packing List
Optional Item
MS-9B05 is a slim and fanless Box PC powered by the Intel® 8th Gen Whiskey Lake-U Series processor. It supports up to 32GB of DDR4 2400 MHz (optional) SODIMM RAM and features triple independent displays with HDMI™ 2.0 and options for HDMI™ (DVI-D), and HDMI™ (DP). It includes 2 GbE LAN ports, expansion slots for 1 M.2 E Key, 1 M.2 M Key, 1 Full/Half-size Mini-PCIe with SIM Holder, and 1 Full/Half-size Mini-PCIe with mSATA. Storage options include mSATA, M.2 M key, and SATA 3.0 for 2.5” SSD/HDD (7mm). Connectivity features are 2 USB 3.2 Gen 2 ports (optional), 4 USB 2.0 ports, 2 COM ports (2 RS485), and Audio. Optional onboard TPM 2.0 enhances security. It supports ESD protection (Contact 8KV/ Air 15KV), easy access with only 2 screws to fix/remove the bottom cover quickly, and quick assembly for memory, Mini-PCIe, M.2, and HDD/SSD on the bottom side. It features 4 openings reserved for WiFi/BT/LTE antennas, complies with IEC 61373 standards, operates on wide voltage DC-IN 9~36V, and boasts an ultra-slim, fanless design with a thinness of 27mm.
