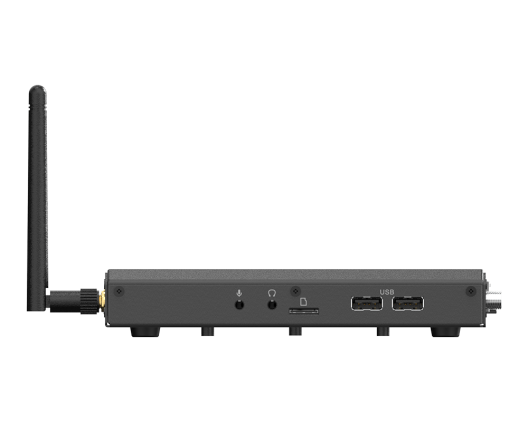

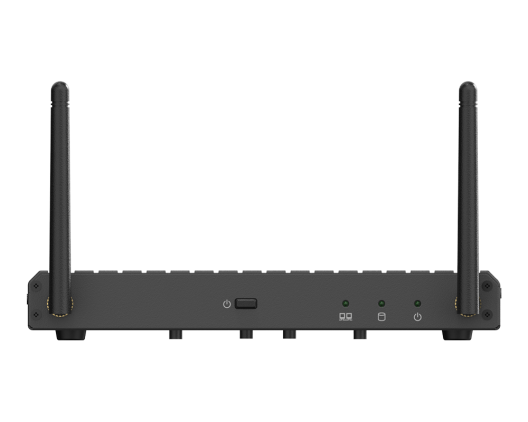

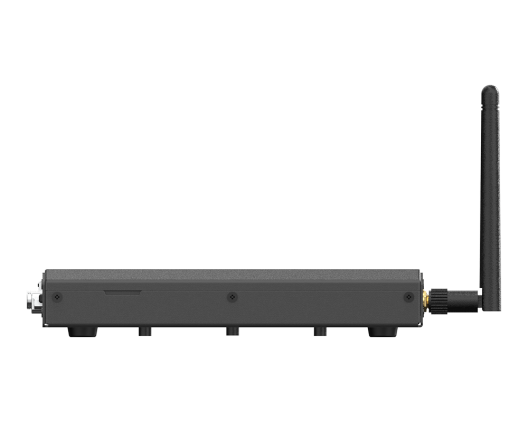

Ultra Slim Fanless Box PC with Intel® IOTG Alder Lake-N Processor for Ultra Low-Power Solution
- Intel® Alder Lake-N PC Client Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Dual independent displays: DP, HDMI
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- 4 USB 3.1 , 2 USB 2.0, 1 COM (1 RS-485), Audio
- 2 opening reserved for antennas
- DC-IN 12~24V

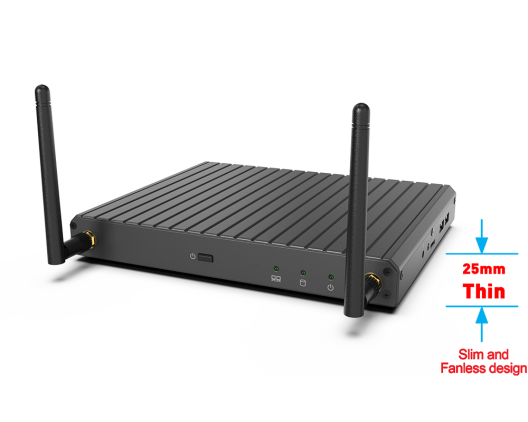

- Ultra Slim with fanless design
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
- MS-C924-SKU1
- MS-C924-SKU2
- MS-C924-SKU3
System Processor
- CPU
- Intel® IOTG Alder Lake-N Processor N97, QC, 12W
- Intel® IOTG Alder Lake-N Atom® X7425E, QC, 12W
- Intel® IOTG Alder Lake-N Core i3-N305, OC, to 15W
- Frequency
- 2 GHz, up to 3.6 GHz
- 3.4 GHz
- 1.8 GHz, up to 3.8 GHz
- L2 Cache
- 6MB
- 6MB
- 6MB
- CPU Type
- BGA
- BGA
- BGA
- Chipset
- Integrated in SoC Process
- Integrated in SoC Process
- Integrated in SoC Process
- BIOS
- AMI
- AMI
- AMI
Memory
- Technology
- Single-Channel DDR5 4800 MHz
- Single-Channel DDR5 4800 MHz
- Single-Channel DDR5 4800 MHz
- Max. Capacity
- Up to 16 GB
- Up to 16 GB
- Up to 16 GB
- Socket
- 1 x 262-pin SO-DIMM
- 1 x 262-pin SO-DIMM
- 1 x 262-pin SO-DIMM
Graphic
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Depends on CPU
- Multiple Display
- 2 independent displays
- 2 independent displays
- 2 independent displays
- Display Interface
- HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz - HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz - HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz
Ethernet
- Controller
- 2 x Intel® I226-V 2.5 GbE LAN
- 2 x Intel® I226-V 2.5 GbE LAN
- 2 x Intel® I226-V 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC256 HD Audio Codec
- Realtek® ALC256 HD Audio Codec
- Realtek® ALC256 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
- --
- --
TPM
- Controller
- Infineon SLB9672VU2.0
- Infineon SLB9672VU2.0
- Infineon SLB9672VU2.0
I/O Interface
- PS/2
- --
- --
- --
- CANbus
- --
- --
- --
- LVDS
- --
- --
- --
- VGA
- --
- --
- --
- RJ-45
- 2 x 2.5GbE LAN
- 2 x 2.5GbE LAN
- 2 x 2.5GbE LAN
- PoE
- --
- --
- --
- Audio
- 1 x Line-out
1 x Mic-in - 1 x Line-out
1 x Mic-in - 1 x Line-out
1 x Mic-in
- USB
- 4 x USB 3.1
2 x USB 2.0 - 4 x USB 3.1
2 x USB 2.0 - 4 x USB 3.1
2 x USB 2.0
- Parallel
- --
- --
- --
- Serial
- 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V - 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V - 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V
- HDMI
- 1
- 1
- 1
- GPIO
- --
- --
- --
- DVI
- --
- --
- --
- DisplayPort
- 1
- 1
- 1
- Antenna
- 2 openings reserved for antennas
- 2 openings reserved for antennas
- 2 openings reserved for antennas
Expansion Slot
- PCIe x16
- --
- --
- --
- PCIe x8
- --
- --
- --
- PCIe x4
- --
- --
- --
- PCIe x1
- --
- --
- --
- PCI
- --
- --
- --
- M.2
- 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230 - 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230 - 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230
- Mini-PCIe
- --
- --
- --
Storage
- SATA
- --
- --
- --
- CFast
- --
- --
- --
- mSATA
- --
- --
- --
- CompactFlash
- --
- --
- --
Power Supply
- DC Input
- DC-in 12~24V with Lockable DC Jack
- DC-in 12~24V with Lockable DC Jack
- DC-in 12~24V with Lockable DC Jack
- AC Input
- --
- --
- --
Environment
- IP Rating
- --
- --
- --
- Operating Temperature
- 0 ~ 40°C
- 0 ~ 40°C
- 0 ~ 40°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
- Vibration
- --
- --
- --
- Shock
- --
- --
- --
Physical Characteristics
- Dimensions
- 197 x 162.8 x 25 mm
- 197 x 162.8 x 25 mm
- 197 x 162.8 x 25 mm
- Weight
- 0.91 kg
- 0.91 kg
- 0.91 kg
- Mounting
- Stand/VESA mount(by BOM option)
- Stand/VESA mount(by BOM option)
- Stand/VESA mount(by BOM option)
Certification
- EMC
- CE, FCC, RCM, VCCI, BSMI
- CE, FCC, RCM, VCCI, BSMI
- CE, FCC, RCM, VCCI, BSMI
- Safety
- BSMI
- BSMI
- BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 9S6-C924-001
- Intel Alder Lake-N N97, 8G DDR5, 128G SSD, 1*HDMI, 1*DP, 2*2.5GbE, 4*USB 3.1 , 2*USB 2.0, 1*COM, 20V/100W Adapter, Power Cord US, DC-in 12-24V
- 9S6-C924-002
- Intel Alder Lake-N I3-N305, 8G DDR5, 128G SSD, 1*HDMI, 1*DP, 2*2.5GbE, 4*USB 3.1 , 2*USB 2.0, 1*COM, 20V/100W Adapter, Power Cord US, DC-in 12-24V
Packing List
- Part Number
- Description
- Quantity
- K33-3001002-I45
- Power cord
- 1
- S93-0406680-C54
- Adapter
- 1
- E2P-D732011-G40
- Mylar for optional WiFi module
- 1
Optional Item
- Part Number
- Description
- OE2-1A21001-000
- VESA Mount
- S79-2900580-V03
- WiFi Antenna x2
- 307-P170111-F89
- Stand
