Slim Fanless Box PC with Intel® Raptor Lake-P Refresh Platform U-Series, High Performance & Low-Power for 4K2K Digital Signage, KIOSK, Automation & AIoT Edge Computer
- Intel® Raptor Lake-P Refresh U-series
- 2 DDR5 5200 MHz SODIMM slots up to 96GB
- Quadruple independent displays: 2 HDMI, 2 DP
- 2 2.5GbE LAN with RJ-45
- 1 M.2 B key (with NANO SIM-holder), 1 M.2 E key
- 1 M.2 M key, 1 SATA 3.0 (2.5” SSD, 7mm) for storage
- 4 USB 3.2 Gen 2, 6 USB 2.0, 2 COM, Line-out
- Onboard TPM 2.0
- Easy access all on bottom side for 2 Memory, 3 M.2, 2.5”SSD
- Cableless design with proprietary board
- DC-IN 12V/19V

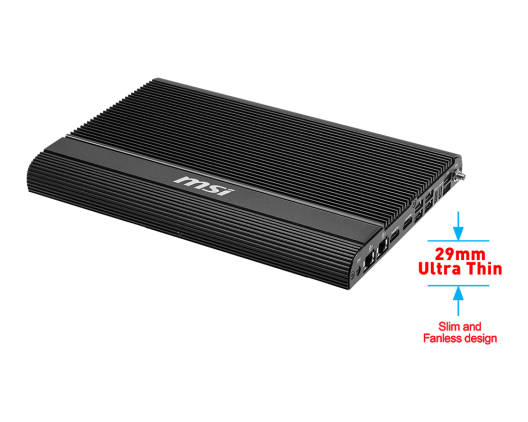

- Slim & fanless design with thinness 29mm
- Anti-Vibration & Shockproof Design to Compliance IEC 60068-2
- Product Specifications
Product Specifications
- Part Number
- MS-C936-SKU
System Processor
- CPU
- Intel® Raptor Lake-P Refresh U Series Processor, Core™ 5 120U, 15W
- Frequency
- 1.4 GHz, up to 5.0 GHz
- L2 Cache
- 12MB
- CPU Type
- BGA
- Chipset
- Integrated
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR5 5200 MHz
- Max. Capacity
- Up to 96GB
- Socket
- 2 x 262-pin SO-DIMMs
Graphic
- Controller
- Intel® Graphics
- Graphic Memory
- 1.25 GHz
- Multiple Display
- 4 independent displays
- Display Interface
- HDMI 2.0 up to 4096 x 2304 @60Hz
DP up to to 7680 x 4320 @60Hz
Ethernet
- Controller
- 2 x Intel® I226-LM 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
TPM
- Controller
- Infineon SLB9670VQ 2.0
Expansion Slot
- M.2
- 1 x M.2 M key (PCIe Gen4 x4 NVMe, SATA 3.0), 2242/2280
1 x M.2 B key (PCIe x1, USB 3.2, USB 2.0 w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
Storage
- SATA
- 1 x 2.5" SSD (7mm)

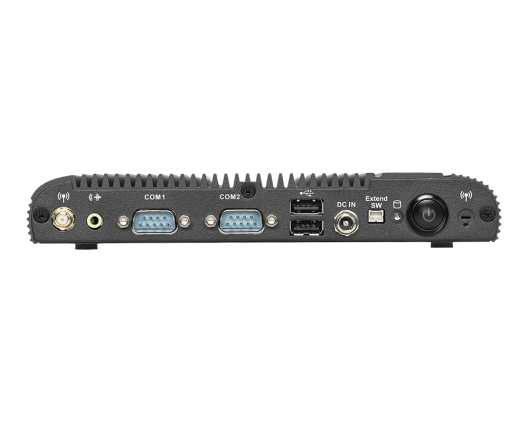

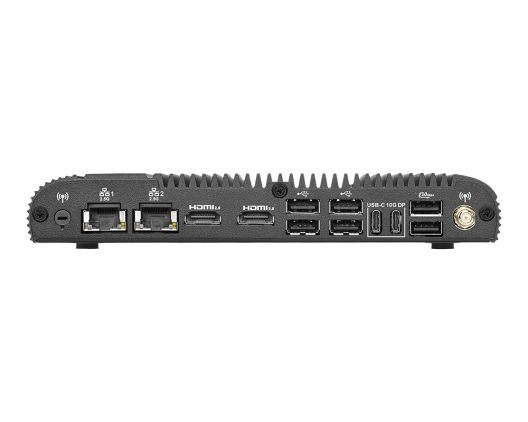

I/O Interface
- RJ-45
- 2
- Audio
- 1 x Line-out (Mic-in by AP driver)
- USB
- 2 x USB 3.2 Gen2, Type-A
2 x USB 3.2 Gen2, Type-C
6 x USB 2.0, Type-A
- Serial
- 2 x COM ports
COM1~2: RS-232/422/485, 0V/5V/12V
- HDMI
- 2
- DisplayPort
- 2 via USB-C
- Antenna
- 4 openings reserved for antennas
Power Supply
- DC Input
- DC-in 12V/19V with Lockable DC Jack
Environment
- IP Rating
- Full IP40
- Operating Temperature
- -10 ~ 50°C (SSD)
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating: IEC 60068-2-64: 2 Grms, 5 ~ 500 Hz, 1hr/axis (w/ SSD)
- Shock
- Operating: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)
Physical Characteristics
- Dimensions
- 196 x 285 x 29 mm
- Weight
- 2.22 kg
- Mounting
- VESA/Wall mount
Certification
- EMC
- FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
- Safety
- BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
Linux (Support by request)
