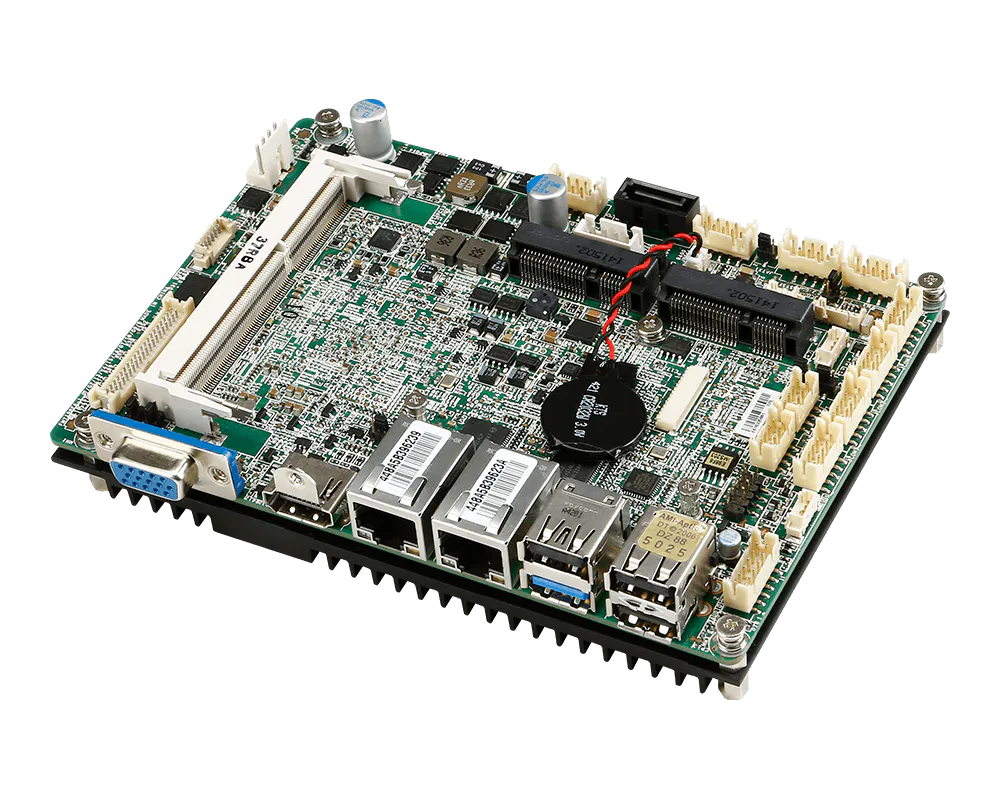

MS-98F6
3.5" SBC with Intel® Bay Trail-D/M Series Platform for High-Performance, Low-Power & Fanless Solution
- Intel® Bay Trail-D/M Series SoC
- DDR3L 1333/1600 MHz SODIMM up to 8GB
- Triple independent displays: VGA, HDMI™, LVDS
- 2 GbE LAN with RJ-45
- 2 Mini-PCIe (Full size, 1 with mSATA)
- SATA 2.0 for storage
- USB 3.2 Gen 1, 7 USB 2.0, 6 COM (1 RS-485), GPIO, PS/2, Audio
- DC-IN 12/19/24V
Products Specifications
- Part Number
- MS-98F6
Processor
- CPU
- Intel® Celeron® Processor J1900, QC, 10W
Intel® Celeron® Processor N2930, QC, 7.5W
- Frequency
- J1900, 2 GHz
N2930, 1.83 GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- Chipset
- AMI
Memory
- Technology
- Single-channel DDR3L 1333 MHz
- Max. Capacity
- Up to 8GB
- Socket
- 1 x 204-pin SO-DIMM
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual channel 18/24-bit
- VGA
- 1
- HDMI
- 1
- Multiple Display
- 2 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
HDMI™ up to 2560 x 1600 @60Hz
LVDS up to 1920 x 1200 @60Hz
DP up to 3840 x 2160 @60Hz
Ethernet
- Controller
- 2 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 255-level Watchdog Timer
I/O Interface
- PS/2
- 1 (wafer connector)
- USB
- 7 x USB 2.0 (4 x internal; 3 x rear)
1 x USB 3.2 Gen 1 (rear)
- Serial
- 6 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~6: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- Mini-PCIe
- 2 x Full-size (one w/ mSATA)
Storage
- SATA
- 1 x SATA 2.0
- mSATA
- 1
Power Supply
- DC Input
- DC-in 12V/19V/24V
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- Weight
- 0.31 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (32/64-bit)
Linux (Support by request)
Ordering Information
Packing List

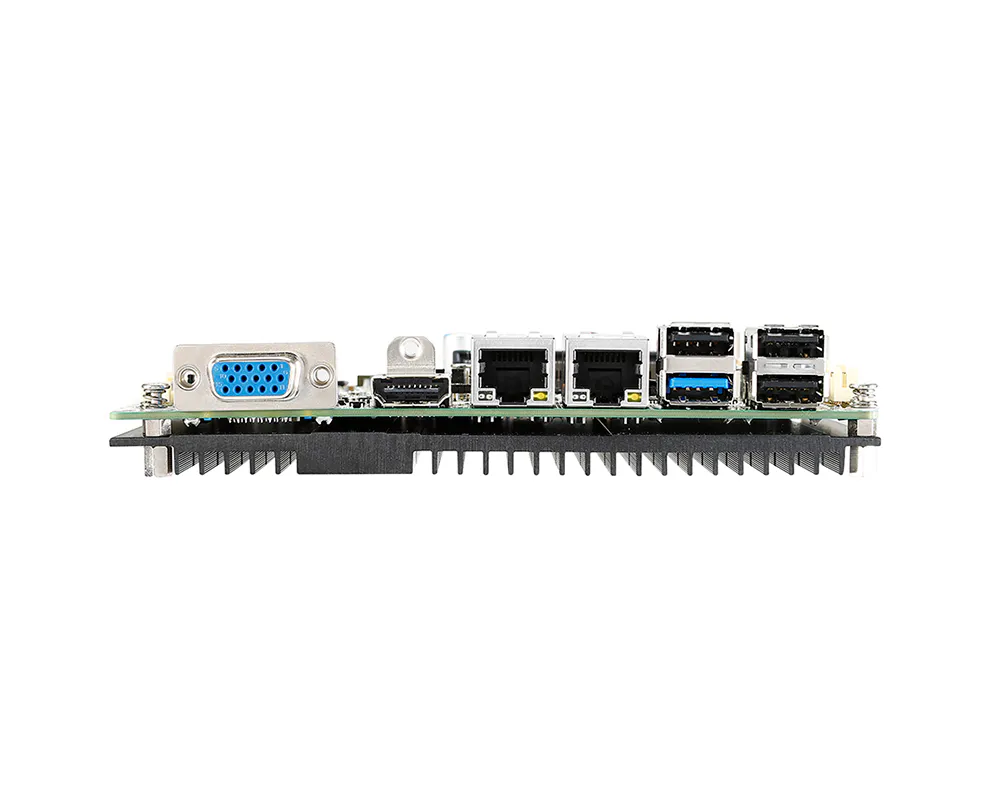

The MSI MS-98F6 is a 3.5” Single Board Computer (SBC) designed for high-performance, low-power, fanless applications, utilizing the Intel® Bay Trail-D/M Series SoC. It supports up to 8GB of DDR3L memory through a single 1333/1600 MHz SODIMM slot. The board enables triple independent displays via VGA, HDMI™, and LVDS. Networking capabilities include two GbE LAN ports with RJ-45. Expansion options feature two full-size Mini-PCIe slots, one with mSATA support. For storage, it provides a SATA 2.0 port. Connectivity options include one USB 3.2 Gen 1 port, seven USB 2.0 ports, six COM ports (including one RS-485), GPIO, PS/2, and audio. The board operates with a DC-IN range of 12/19/24V, making it suitable for various industrial applications.
