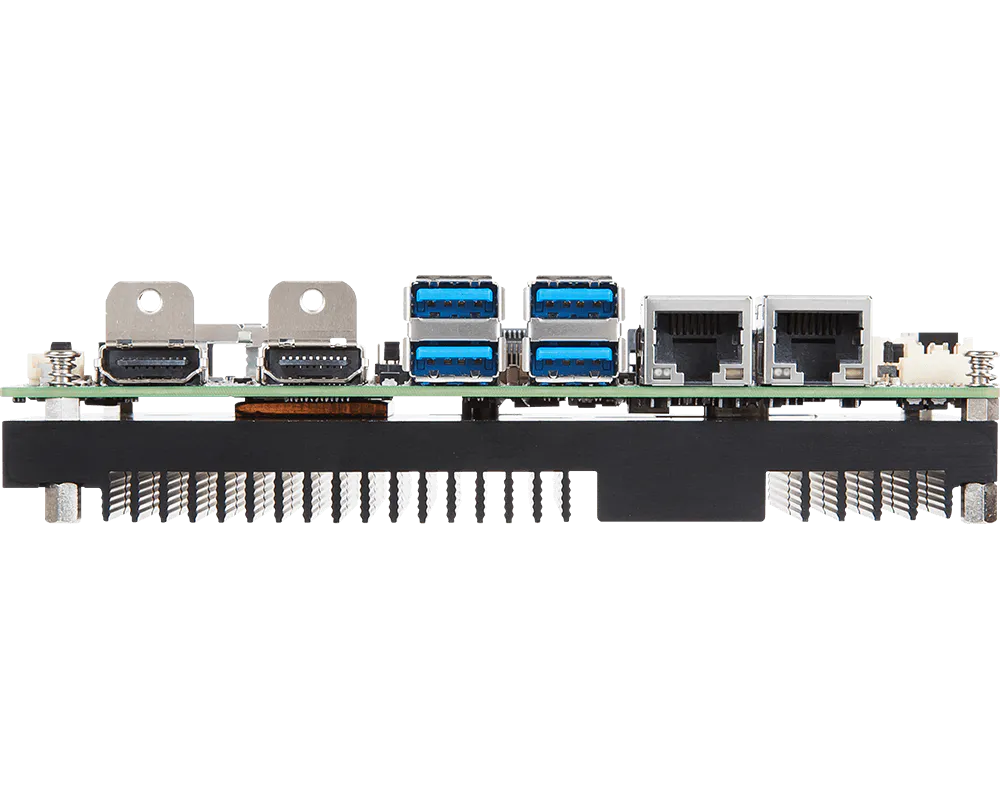

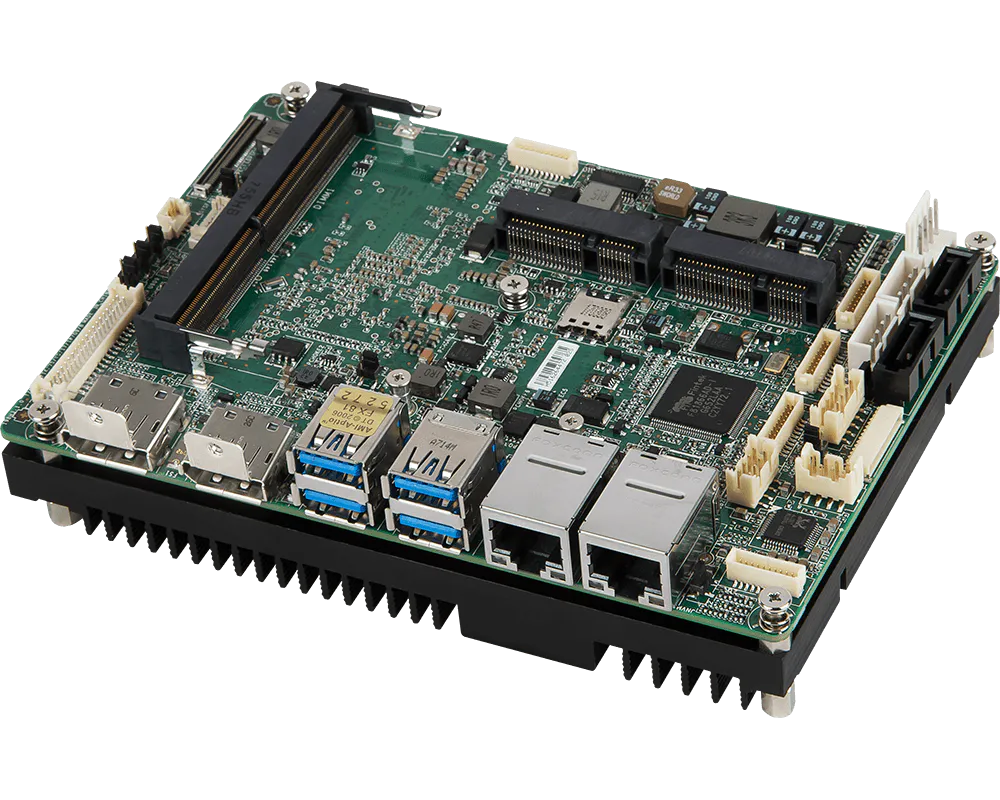

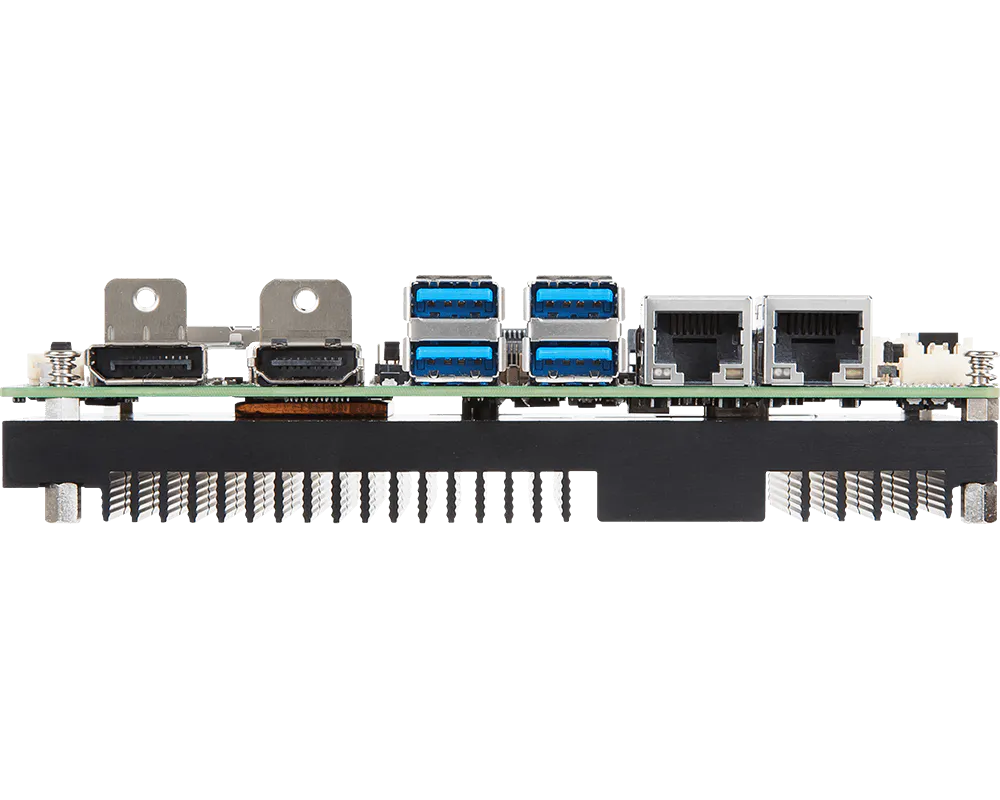

MS-98H3
3.5" SBC with Intel® Kaby Lake-U/Skylake-U for Fanless, Ultra Low-Power & High-Performance Solution
- Intel® 7th Gen Kaby Lake-U/Skylake-U Series
- DDR4 2133 MHz SODIMM Slot up to 16GB
- Triple independent displays: DP++ , HDMI™, LVDS, eDP
- 2 GbE LAN with RJ-45
- 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Full size, with Nano SIM Holder) Slots
- 2 SATA 3.0, Micro SD for storage SATA RAID 0/1
- 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM(1 RS-485), GPIO, Audio
- Wide Voltage DC-IN 12~24V
Products Specifications
- Part Number
- MS-98H3
Processor
- CPU
- 7th/6th Gen Intel® Embedded Mobile Kaby Lake-U/Skylake-U Core™ i7/i5/i3/ Celeron® Processor, DC, 15W
- Frequency
- 2.0GHz~3.4GHz (Depends on CPU)
- L2 Cache
- 2MB~4MB (Depends on CPU)
- CPU Type
- BGA
- BIOS
- AMI
Memory
- Technology
- Single-channel DDR4 2133MHz
- Max. Capacity
- Up to 16 GB
- Socket
- 1 x 260-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual Channel 18/24-bit
- eDP
- 1 (Share with LVDS Singnal)
- HDMI
- 1 (HDMI™1 Co-lay DP1 by Optional, HDMI™2 Co-lay DP2 by Optional)
- DisplayPort
- 1 (Support DP++, DP1 Co-lay HDMI™1 & DP2 Co-lay HDMI™2 by option)
- Display Interface
- LVDS up to 1920 x 1200 @ 60 Hz
eDP up to 4096 x 2304 @ 60 Hz
HDMI™1/HDMI™2 HDMI™1.4 up to 4096 x 2160 @ 24 Hz
DP1/DP2 up to 4096 x 2304@60hz
Graphic
- Multiple Display
- 3 independent displays
Ethernet
- Controller
- 1 x Intel® I210-AT GbE LAN
1 x Intel® I219LM GbE-PHY LAN (AMT 11.x supported)
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header
Expansion Slot
- Mini-PCIe
- 2 x Full-size (one w/NANO SIM-Holder & one w/mSATA)
Storage
- SATA
- 2 x SATA3.0
- mSATA
- 1 (Shared with Mini-PCIe2)
I/O Interface
- USB
- 4 x USB 2.0 (internal)
4 x USB 3.2 Gen 1 (rear)
- Serial
- 6 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V, support auto flow control
COM2~6: RS-232, 0V/5V/12V (RS-422/485 Optional)
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
Power Supply
- DC Input
- DC-in 12V~24V
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- Weight
- 0.59 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows 7 (32/64-bit) (Skylake-ULT Only)
Windows 8.1 (64-bit) (Skylake-ULT Only)+H55+H55:I55
Ordering Information
Packing List
Optional Item
The MSI MS-98H3 is a 3.5” Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, featuring the Intel® 7th Gen Kaby Lake-U and Skylake-U Series processors. It supports up to 16GB of DDR4 2133 MHz memory through a single SODIMM slot. The board enables triple independent displays via DP++, HDMI™, LVDS, and eDP. Networking capabilities include two GbE LAN ports with RJ-45. Expansion options include two full-size Mini-PCIe slots, one with mSATA and one with a Nano SIM holder. For storage, it offers two SATA 3.0 ports and a Micro SD slot, with support for SATA RAID 0/1. Connectivity options feature four USB 3.2 Gen 1 ports, four USB 2.0 ports, six COM ports (including one RS-485), GPIO, and audio. The board supports a wide voltage DC-IN range of 12-24V, making it versatile for various industrial applications.
