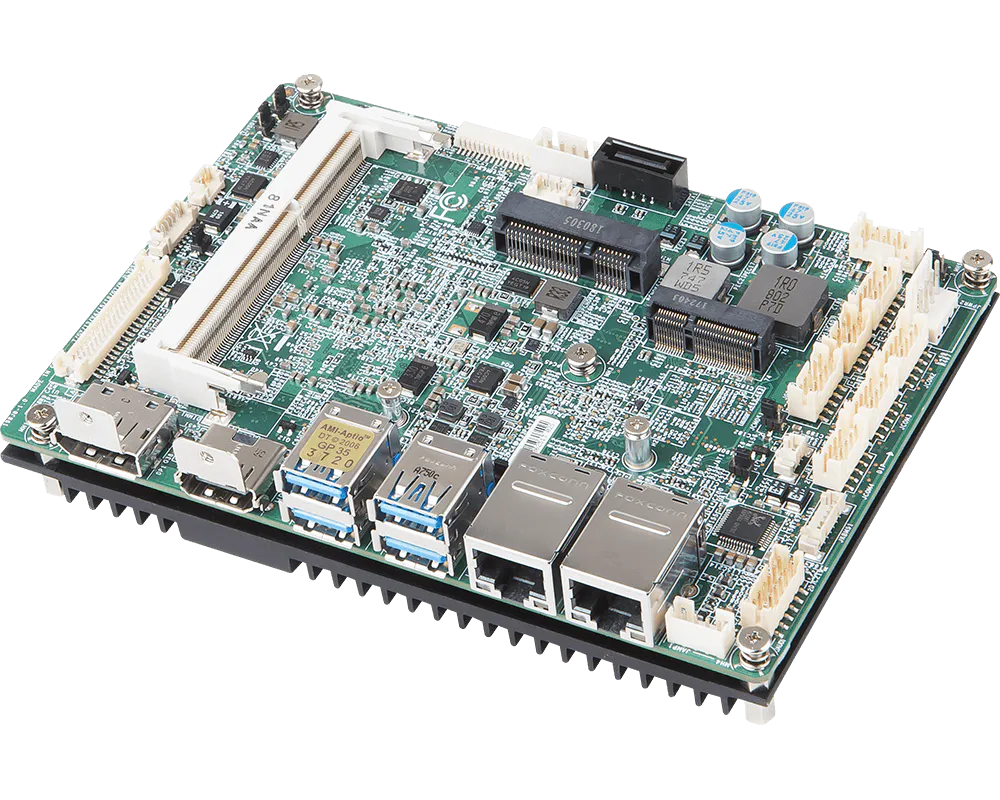

MS-98J8
3.5" SBC with Intel® Apollo Lake/Apollo Lake-I for Fanless, Ultra Low-Power, Wide Voltage Range & High-Performance Solution
- Intel® Apollo Lake/Apollo Lake-I Series SoC
- DDR3L 1866/1600 MHz SODIMM Slot up to 8GB

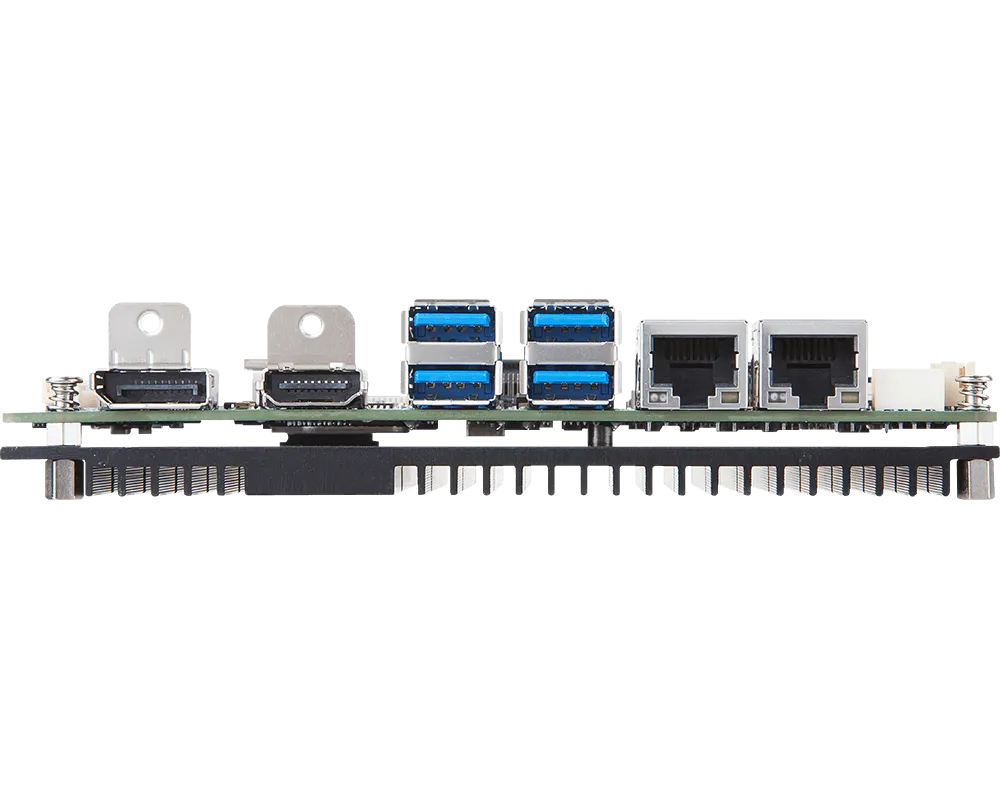

- Triple independent displays: DP, HDMI™, LVDS
- 2 GbE LAN with RJ-45
- 1 M.2 E Key, Mini-PCIe (Full size, with mSATA) Slot
- SATA 3.0 for storage
- 4 USB 3.2 Gen 1, 2 USB 2.0, 4 COM (1 RS-485), GPIO, PS/2, Audio
- Wide Voltage DC-IN 9~36V
Products Specifications
- Part Number
- MS-98J8
Processor
- CPU
- Intel® Pentium® Processor N4200, QC, 6W
Intel® Celeron® Processor N3350, DC, 6W
Intel® Celeron® Processor J3455, QC, 10W
Intel® Atom™ X5-E3940 Processor, QC, 9.5W
Intel® Atom™ X5-E3930 Processor, DC, 6.5W
- Frequency
- N4200, 1.1 GHz, up to 2.5 GHz
N3350, 1.1 GHz, up to 2.4 GHz
J3455, 1.5 GHz, up to 2.3 GHz
E3940, 1.6 GHz, up to 1.8 GHz
E3930, 1.3 GHz, up to 1.8 GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC
- BIOS
- AMI
Memory
- Technology
- Single Channel for DDR3L 1866/1600 MHz
- Max. Capacity
- Up to 8 GB
- Socket
- 1 x 204pin SO-DIMM
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual Channel 18/24-bit
- HDMI
- 1
- DisplayPort
- 1
- Multiple Display
- 3 independent displays
- Display Interface
- LVDS up to 1920 x 1200 @60Hz
HDMI™ up to 3840 x 2160 @30Hz
DP up to 4096 × 2160 @60Hz
Ethernet
- Controller
- 2 x Realtek® RTL8111H GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81867AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header (Default)
Infineon SLB9665TT 2.0 (by BOM option)
I/O Interface
- PS/2
- 1 (wafer connector)
- USB
- 2 x USB 2.0 (internal)
4 x USB 3.2 Gen 1 (rear)
- Serial
- 4 x COM ports (Internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- M.2
- 1 x E Key ( PCIe x1, USB 2.0), 2230
- Mini-PCIe
- 1 x Full-size (w/ mSATA)
Storage
- SATA
- 1 x SATA3.0
- mSATA
- 1 (Shared with Mini-PCIe)
Power Supply
- DC Input
- DC-in 9~36V
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- Weight
- 0.33 kg
Certification
- EMC
- CE, FCC Class B, BSMI, VCCI, RCM
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Ordering Information
Packing List
Optional Item
The MSI MS-98J8 is a 3.5” Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, and capable of operating within a wide voltage range. It is powered by the Intel® Apollo Lake/Apollo Lake-I Series SoC and supports up to 8GB of DDR3L memory through a single 1866/1600 MHz SODIMM slot. The board enables triple independent displays via DisplayPort, HDMI™, and LVDS. Networking capabilities include two GbE LAN ports with RJ-45. Expansion options feature an M.2 E Key slot and a full-size Mini-PCIe slot with mSATA. For storage, it provides a SATA 3.0 port. Connectivity options include four USB 3.2 Gen 1 ports, two USB 2.0 ports, four COM ports (including one RS-485), GPIO, PS/2, and audio. The board supports a wide voltage DC-IN range of 9-36V, making it versatile for various industrial applications.
