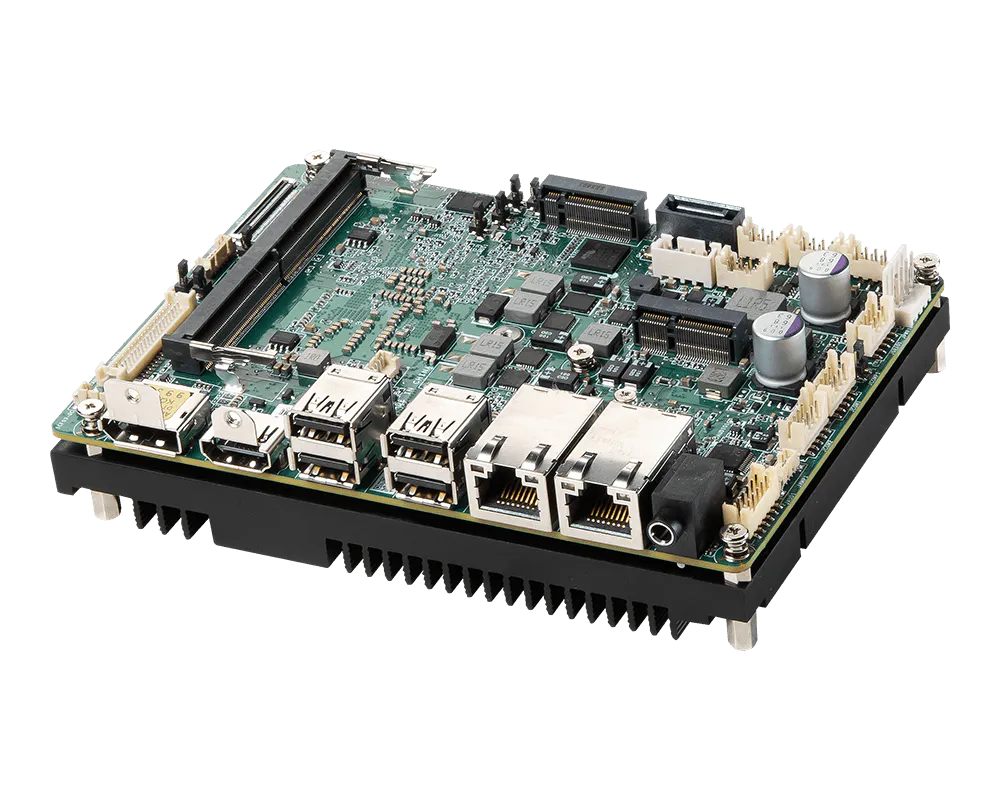

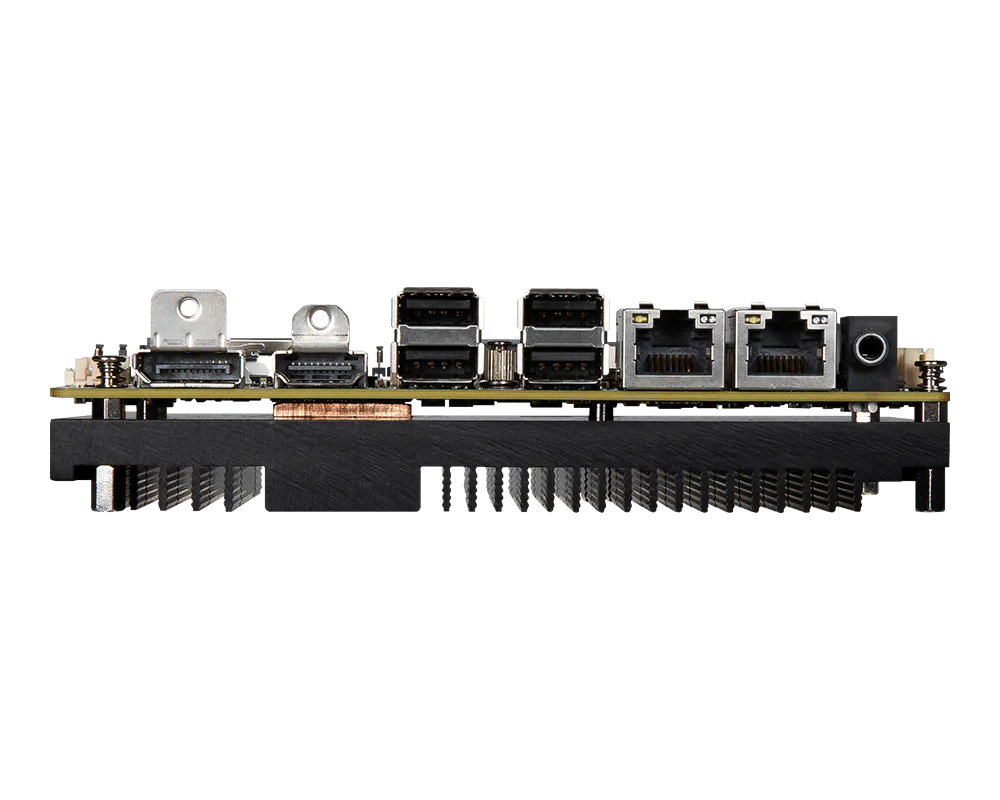

3.5” SBC with Intel® Alder Lake-N for Fanless, Ultra Low-Power, Wide Voltage Range & High-Performance Solution
- Intel® Alder Lake-N PC Client & Embedded Series SoC
- DDR5 4800 MT/s SODIMM Slot up to 16GB
- Triple independent displays: DP, HDMI, LVDS, eDP
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- SATA 3.0 for storage
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 6 USB 2.0, 2 COM (1 RS-485), GPIO, Audio, Amplifier-6W
- Wide Voltage DC-IN 9~36V
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
- MS-CF03
Processor
- CPU
- Intel® IOTG Alder Lake-N Processor N97, QC, 12W
Intel® IOTG Alder Lake-N Processor N200, QC, 6W
Intel® IOTG Alder Lake-N Core i3-N305, OC, 9W up to 15W
Intel® IOTG Alder Lake-N Atom x7425E, QC, 12W
- Frequency
- N97, 2.0GHz, up to 3.6GHz
N200, 1.0GHz, up to 3.7GHz
i3-N305, 1.8GHz, up to 3.8GHz
x7425E, 1.5GHz, up to 3.4GHz
- L2 Cache
- 6MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC
- BIOS
- AMI
Memory
- Technology
- Single Channel for DDR5 4800MT/s
- Max. Capacity
- Up to 16GB
- Socket
- 1 x 262-pin SO-DIMM
Display
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- 1 x Dual Channel 18/24-bit
- VGA
- --
- DVI
- --
- HDMI
- 1
- DisplayPort
- 1
- Multiple Display
- 3 independent displays
- Display Interface
- LVDS up to 1920 x 1200 @60Hz
eDP up to 1920 x 1080 @60Hz
HDMI up to 3840 x 2160 @30Hz
DP up to 4096 × 2304 @60Hz
Ethernet
- Controller
- 2 x Intel® I225-V 2.5 GbE LAN
Audio
- Controller
- Realtekl® ALC897 HD Audio Codec
Super I/O
- Controller
- Fintek F81966AB-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Infineon SLB9672VU2.0
I/O Interface
- PS/2
- --
- USB
- 6 x USB 2.0 (internal)
2 x USB 3.2 Gen 2 (rear)
2 x USB 3.2 Gen 1 (rear)
- Parallel
- --
- Serial
- 2 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232
- GPIO
- 8-bit (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- --
- PCIe x8
- --
- PCIe x4
- --
- PCIe x1
- --
- PCI
- --
- M.2
- 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230
Storage
- SATA
- 1 x SATA 3.0
Power Supply
- DC Input
- DC-in 9~36V
- ATX
- --
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- Weight
- 0.58 kg
Certification
- EMC
- CE, FCC Class B, BSMI, VCCI, RCM, UKCA
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit, 24H2)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 911-CF03-007
- MS-CF03\601-CF03-150\801-CF03-016 10 OPT:K, Intel ADL-N N97,1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2 B key,2*2.5GbE LAN,1*SATA 3.0, 4*USB 3.2,6*USB 2.0,2*COM,TPM2.0,DC 9-36V,3.5 inch
- 911-CF03-008
- MS-CF03\601-CF03-160\801-CF03-017 10 OPT:K, Intel ADL-N Core i3-N305, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2 B key,2*2.5GbE LAN,1*SATA 3.0, 4*USB 3.2,6*USB 2.0,2*COM,TPM2.0,DC 9-36V, 3.5 inch
- 911-CF03-009
- MS-CF03\601-CF03-170\801-CF03-018 10 OPT:M, Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2 B key,2*2.5GbE LAN,1*SATA 3.0, 4*USB 3.2,6*USB 2.0,2*COM,TPM2.0,DC 9-36V, 3.5 inch
- 911-CF03-010
- MS-CF03\601-CF03-180\801-CF03-019 10 OPT:N, Intel ADL-N N200, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2 B key,2*2.5GbE LAN,1*SATA 3.0, 4*USB 3.2,6*USB 2.0,2*COM,TPM2.0,DC 9-36V, 3.5 inch
Packing List
- Part Number
- Description
- Quantity
- K14-1009062-V03
- COM Port Cable, 250mm
- 1
- K1G-3004069-V03
- DC Power Cable, 150mm
- 1
- K1D-1012115-V03
- SATA Cable with Power, 230mm
- 1
- K1B-3008067-V03
- USB Cable, 150mm
- 1
Optional Item
- Part Number
- Description
- E31-0807460-K08
- Heatspreader
