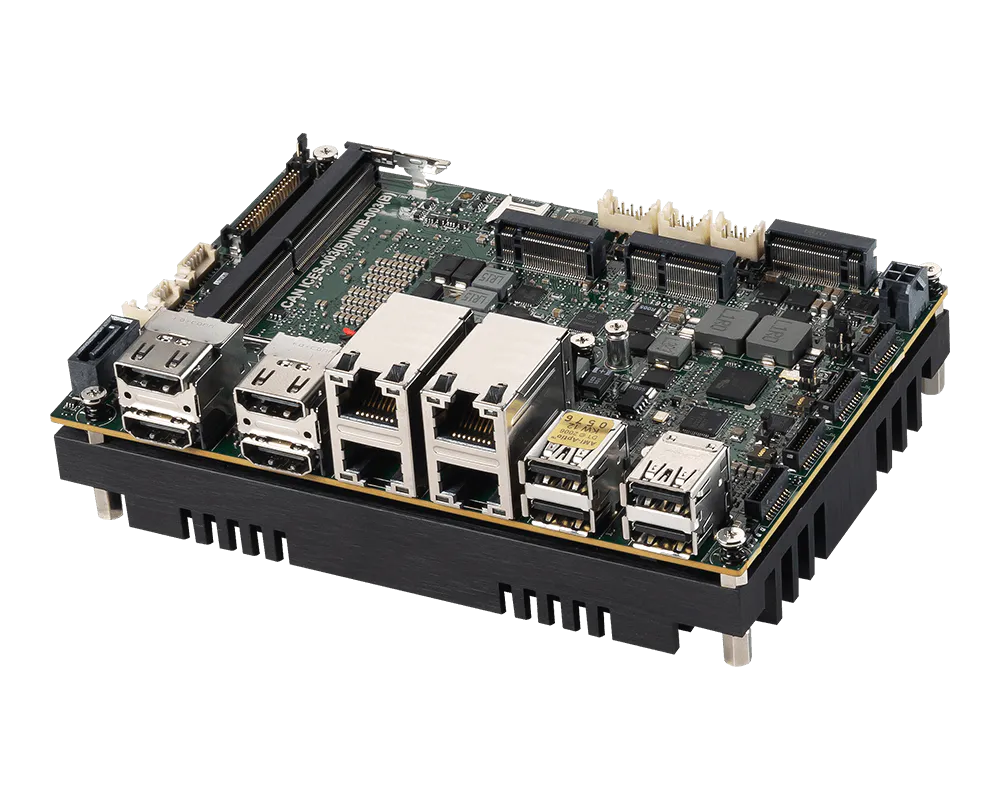

MS-CF17
3.5" SBC with Intel® Raptor Lake-P for Fanless, Ultra Low-Power, High-Performance & Wide Temperature Solution
- Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
- 1 DDR5 5200 MHz SODIMM Slot up to 32GB
- Quadruple independent displays: 4HDMI, 1 LVDS/eDP
- 4 2.5GbE LAN with RJ-45
- 1 M.2 B key (with NANO SIM-holder), 1 M.2 E key
- 1 M.2 M key, 1 SATA 3.0 for storage
- 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), DIO, Audio
- Onboard TPM 2.0
- Wide Voltage DC-IN 12~24V (OCP & OVP)
- Wide operating temperature supported
Products Specifications
- Part Number
- MS-CF17 Embedded SKUs
- MS-CF17 Industrial SKUs
Processor
- CPU
- Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i7-1365UE / i5-1345UE / i5-1335UE / i3-1315UE / U300E, 28W
- Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, Core™ i7-1365URE / i5-1345URE / i3-1315URE, 28W
- Frequency
- P-Core: 4.3 GHz~4.9 GHz (Depends on CPU)
E-Core: 3.2 GHz~3.7 GHz (Depends on CPU) - P-Core: 4.3 GHz~4.9 GHz (Depends on CPU)
E-Core: 3.2 GHz~3.7 GHz (Depends on CPU)
- L2 Cache
- 8M~12M (Depends on CPU)
- 8M~12M (Depends on CPU)
- CPU Type
- BGA
- BGA
- Chipset
- Integrated in SoC Process
- Integrated in SoC Process
- BIOS
- AMI
- AMI
Memory
- Technology
- Single-channel DDR5 5200 MHz
- Single-channel DDR5 5200 MHz
- Max. Capacity
- Up to 32 GB
- Up to 32 GB
- Socket
- 1 x 262-pin SO-DIMM
- 1 x 262-pin SO-DIMM
Display
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- LVDS
- 1
- 1
- eDP
- 1 x eDP (Connector shared with LVDS)
- 1 x eDP (Connector shared with LVDS)
- VGA
- --
- --
- DVI
- --
- --
- HDMI
- 4
- 4
- DisplayPort
- --
- --
- Multiple Display
- 4 independent displays
- 4 independent displays
- Display Interface
- LVDS up to 1920 x 1200 @60 Hz
eDP up to 4096 x 2160 @60 Hz
HDMI 2.0 up to 4096 x 2340 @60Hz - LVDS up to 1920 x 1200 @60 Hz
eDP up to 4096 x 2160 @60 Hz
HDMI 2.0 up to 4096 x 2340 @60Hz
Ethernet
- Controller
- 4 x Intel® I226-LM GbE LAN
- 4 x Intel® I226-IT 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- Fintek F81966AB-I
- Fintek F81966AB-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
TPM
- Controller
- Infineon SLB9672VU2.0
- Infineon SLB9672XU2.0
I/O Interface
- PS/2
- --
- --
- USB
- 4 x USB 2.0 (internal)
4 x USB 3.2 Gen 2 (rear) - 4 x USB 2.0 (internal)
4 x USB 3.2 Gen 2 (rear)
- Parallel
- --
- --
- Serial
- 4 x COM ports (internal)
COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control - 4 x COM ports (internal)
COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- --
- --
- PCIe x8
- --
- --
- PCIe x4
- --
- --
- PCIe x1
- --
- --
- PCI
- --
- --
- M.2
- 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 - 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
- Mini-PCIe
- --
- --
Storage
- SATA
- 1 x SATA 3.0
- 1 x SATA 3.0
- IDE
- --
- --
- eSATA
- --
- --
- CFast
- --
- --
- mSATA
- --
- --
- CompactFlash
- --
- --
Power Supply
- DC Input
- DC-in 12~24V (OCP & OVP)
- DC-in 12~24V (OCP & OVP)
- ATX
- --
- --
Environment
- Operating Temperature
- 0 ~ 60°C
Note:
1. Thermal w/ Airflow:0.7m/s
2. The standard thermal solution only supports TDP up to 15W. - -40 ~ 70°C
Note:
1. Thermal w/ Airflow:0.7m/s
2. The standard thermal solution only supports TDP up to 15W.
3. -40 ~ 85°C by request
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -40 ~ 85°C
Form Factor
- Dimensions
- 146 x 102 mm (3.5")
- 146 x 102 mm (3.5")
- Weight
- 0.67 kg
- 0.67 kg
Certification
- EMC
- CE, FCC Class A, RCM, VCCI, BSMI, UKCA, IC
- CE, FCC Class A, RCM, VCCI, BSMI, UKCA, IC
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request)
Ordering Information
Packing List
Optional Item

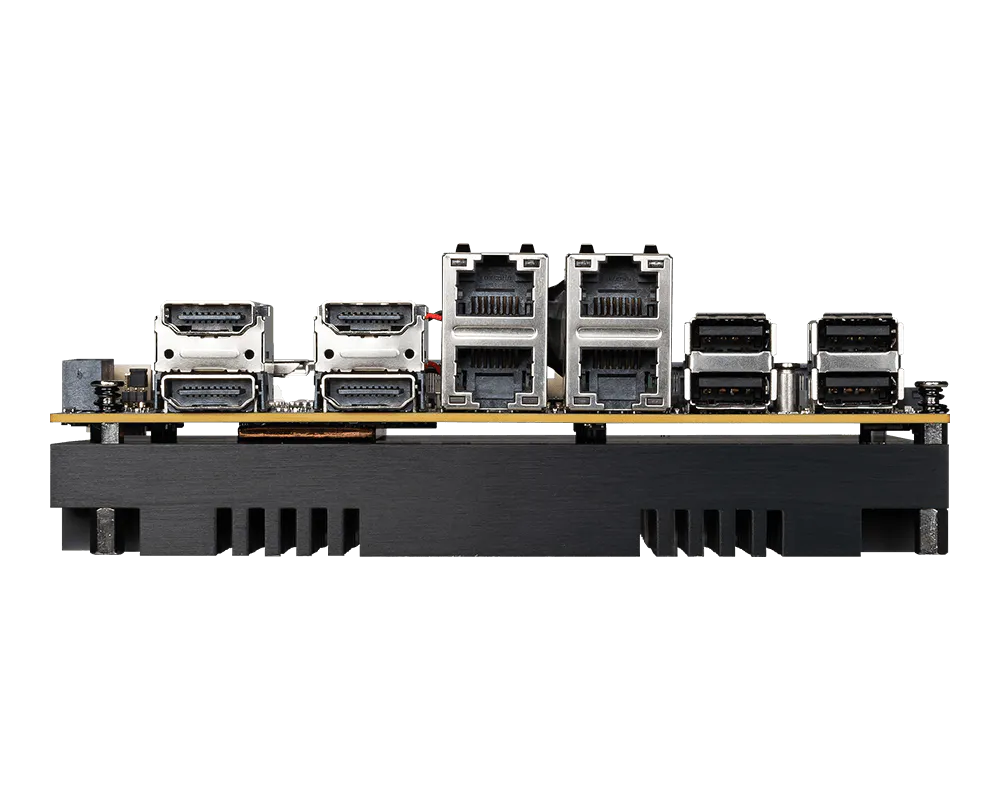

The MSI MS-CF17 is a 3.5" Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, and capable of operating in wide temperature ranges. It utilizes the 13th Gen Intel® Raptor Lake-P Embedded/Industrial SKU series processors. The board supports up to 32GB of memory through a single DDR5 5200 MHz SODIMM slot. It enables quadruple independent displays via four HDMI ports and one LVDS/eDP. Networking capabilities include four 2.5GbE LAN ports with RJ-45. Expansion options feature an M.2 B Key (with NANO SIM-holder), an M.2 E Key, an M.2 M Key, and one SATA 3.0 port for storage. Connectivity options include four USB 3.2 Gen 2 ports, four USB 2.0 ports, four COM ports (RS-485), DIO, and audio. The board also integrates onboard TPM 2.0 for enhanced security and supports a wide voltage DC-IN range of 12-24V with Over-Current Protection (OCP) and Over-Voltage Protection (OVP).
