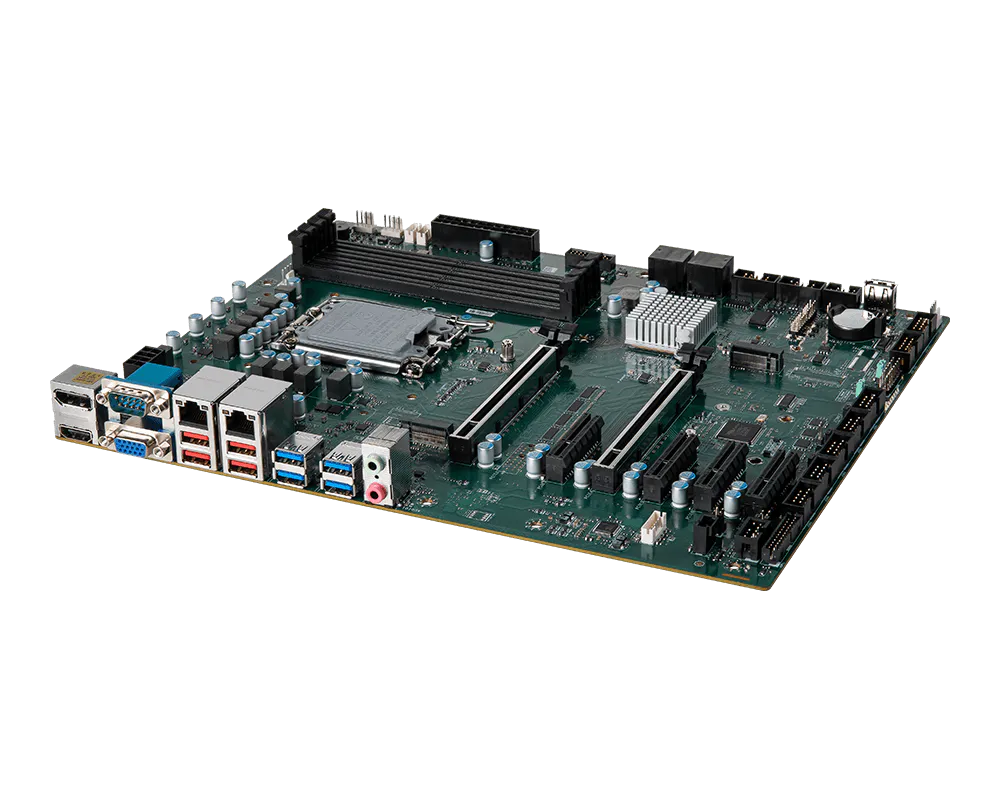

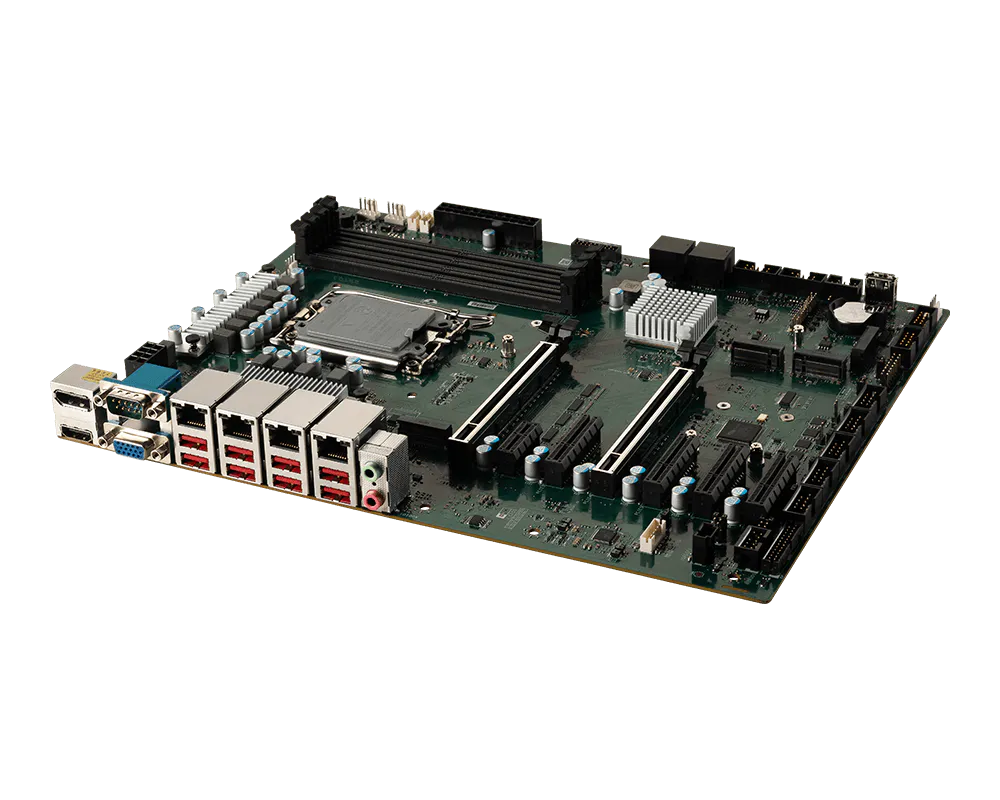

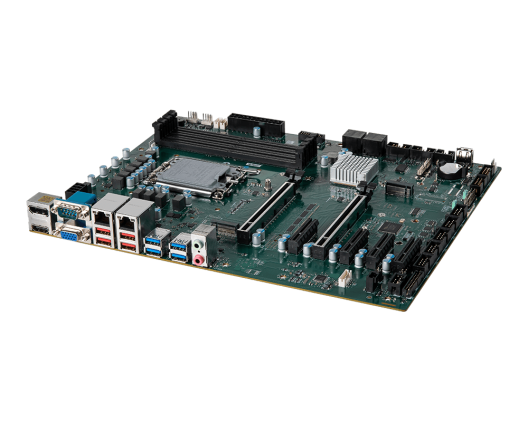

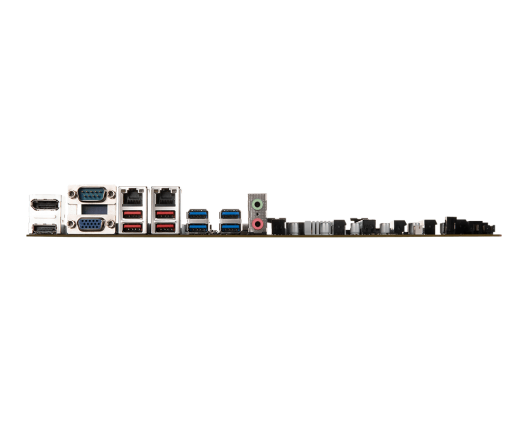

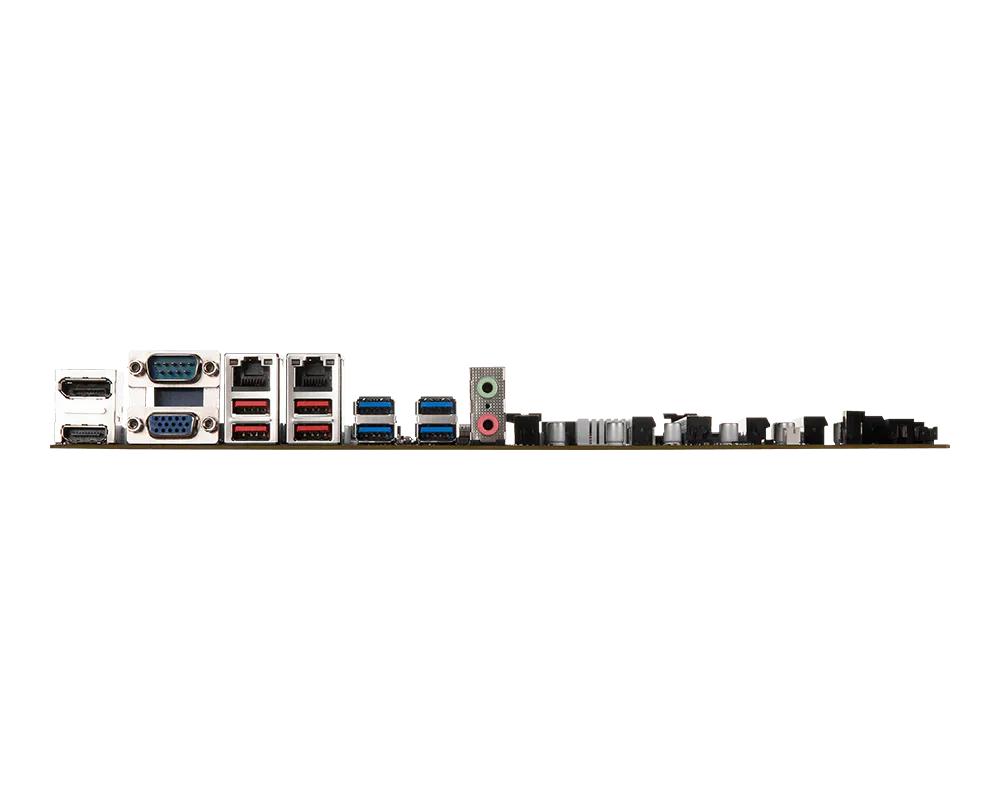

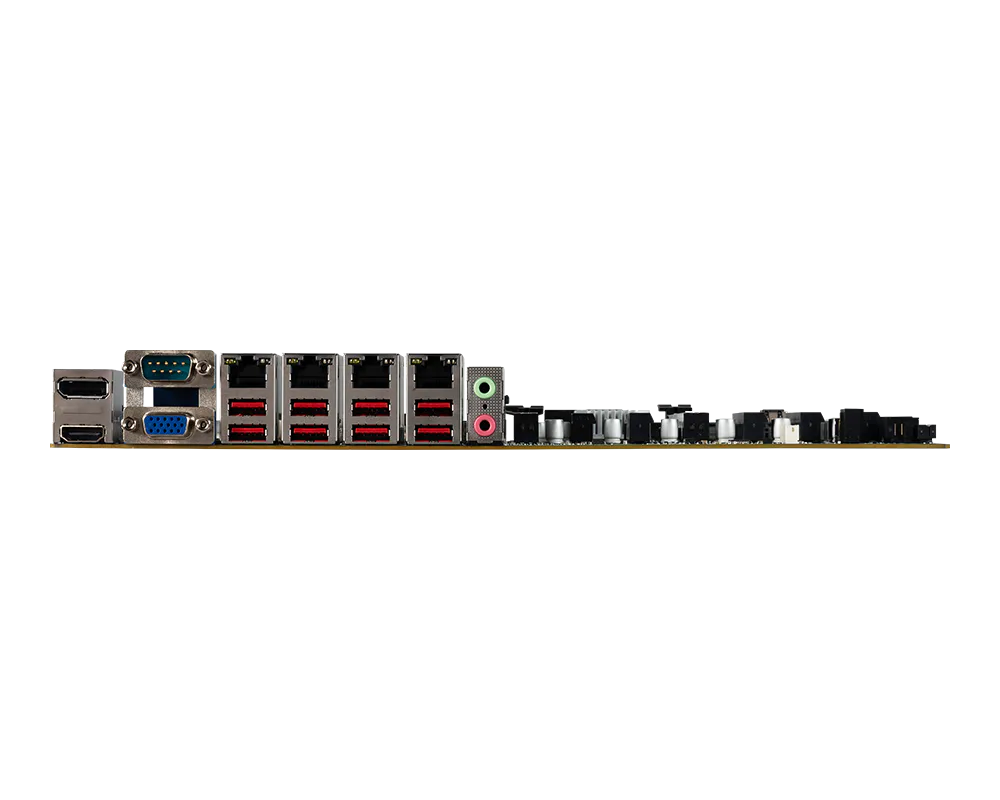

ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E for High-Performance Solution

  • Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Alder Lake-S Series with R680E/Q670E
  • 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB
  • Triple independent displays: VGA, DP, HDMI
  • 4 2.5GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 1 PCIe x4 (Gen 4), 3 PCIe x4 (Gen 3), 1 M.2 E key, 1 M.2 B key slots
  • 2 M.2 M key, 4 SATA 3.0 for storage
  • SATA RAID 0/1/5/10
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
  • Onboard TPM 2.0
  • SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
  • ATX Power
  • Product Specifications
  • Ordering-Information
  • Packing-List

Product Specifications

  • Part Number
  • MS-CF05-SKU1
  • MS-CF05-SKU2

Processor

  • CPU
  • 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
    13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
    14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
  • 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
    13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
    14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
  • Frequency
  • P-Core 1.1GHz~5.0GHz (Depends on CPU)
  • P-Core 1.1GHz~5.0GHz (Depends on CPU)
  • L2 Cache
  • 4MB~30MB (Depends on CPU)
  • 4MB~30MB (Depends on CPU)
  • CPU Type
  • Socket (LGA1700)
  • Socket (LGA1700)
  • Chipset
  • Intel® R680E Express
  • Intel® Q670E Express
  • BIOS
  • AMI UEFI
  • AMI UEFI

Memory

  • Technology
  • Dual-channel DDR5 (ECC/non-ECC) 4400 MT/s
    (ECC support will depend on CPU)
  • Dual-channel DDR5 (non-ECC) 4400 MT/s
  • Max. Capacity
  • Up to 128GB
  • Up to 128GB
  • Socket
  • 4 x 288-pin UDIMMs
  • 4 x 288-pin UDIMMs

Display

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • --
  • --
  • eDP
  • --
  • --
  • VGA
  • 1
  • 1
  • DVI
  • --
  • --
  • HDMI
  • 1
  • 1
  • DisplayPort
  • 1
  • 1
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • VGA up to 1920 x 1200 @60Hz
    HDMI up to 4096 x 2160 @60Hz
    DP up to 4096 x 2304 @60Hz
  • VGA up to 1920 x 1200 @60Hz
    HDMI up to 4096 x 2160 @60Hz
    DP up to 4096 x 2304 @60Hz

Ethernet

  • Controller
  • 4 x Intel® I225-LM 2.5GbE LAN
  • 2 x Intel® I225-LM 2.5GbE LAN

Audio

  • Controller
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)

Super I/O

  • Controller
  • FINTEK F81966D-I
  • FINTEK F81966D-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Infineon® SLB9672VU2.0
  • Infineon® SLB9672VU2.0

I/O Interface

  • PS/2
  • 1 x PS/2 port by Y-cable for keyboard and mouse
  • 1 x PS/2 port by Y-cable for keyboard and mouse
  • USB
  • 8 x USB 3.2 Gen 2 x1 (8 x rear)
    2 x USB 3.2 Gen 1 Ports (2 x internal)
    3 x USB 2.0 (3 x internal with one Vertical Type-A Connector)
  • 8 x USB 3.2 Gen 2 x1 (8 x rear)
    2 x USB 3.2 Gen 1 Ports (2 x internal)
    3 x USB 2.0 (3 x internal with one Vertical Type-A Connector)
  • Parallel
  • Yes
  • Yes
  • Serial
  • 6 x COM ports (1 x rear, 5 x internal)
    COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
    COM3~6: RS-232/422/485, 0V/5V/12V, Auto-flow Control
  • 6 x COM ports (1 x rear, 5 x internal)
    COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
    COM3~6: RS-232, 0V/5V/12V
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

  • PCIe x16
  • 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
  • 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
  • PCIe x8
  • --
  • --
  • PCIe x4
  • 4
  • 4
  • PCIe x1
  • 1
  • --
  • PCI
  • --
  • M.2
  • 1 x M key (Signal from CPU) 2280/22110, 1 x M key (Signal Shared by PCIe Slot5) 2242/2280
    1 x E key (PCIe x1), 2230
    1 x B key (PCIe x2), 2242/2280
  • 1 x M key (Signal from CPU) 2280/22110, 1 x M key (Signal Shared by PCIe Slot5) 2242/2280
  • Mini-PCIe
  • --
  • --

Storage

  • SATA
  • 4 x SATA 3.0 (RAID 0/1/5/10)
  • 4 x SATA 3.0 (RAID 0/1/5/10)
  • eSATA
  • --
  • --
  • CFast
  • --
  • --
  • mSATA
  • --
  • --
  • CompactFlash
  • --
  • --

Power Supply

  • DC Input
  • --
  • --
  • ATX
  • ATX-Power 24P, 12V-8P
  • ATX-Power 24P, 12V-8P

Environment

  • Operating Temperature
  • 0 ~ 60°C
  • 0 ~ 60°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 305 x 244 mm (ATX)
  • 305 x 244 mm (ATX)
  • Weight
  • 0.779 Kg
  • 0.779 Kg

Certification

  • EMC
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit)
    Windows 11 IoT Enterprise 22H2 (64-bit)
    Linux (Support by request)
    Noted : All driver base on Intel & chip vendor supported
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit)
    Windows 11 IoT Enterprise 22H2 (64-bit)
    Linux (Support by request)
    Noted : All driver base on Intel & chip vendor supported

Ordering Information

  • Part Number
  • Description
  • 911-CF05-001
  • Intel ADL-S,RPL-S,R680E,4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 B key,2*M.2 E key,1*PCIe x16,1*PCIe x8,4*PCIe x4,1*PCIe x1,4*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,3*USB 2.0,6*COM,TPM2.0,ATX SINGLE
  • 911-CF05-002
  • Intel ADL-S,RPL-S,Q670E,4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*PCIe x16,1*PCIe x8,4*PCIe x 4,2*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,3*USB 2.0,6*COM,TPM2.0,ATX SINGLE
  • 911-CF05-101
  • Intel ADL-S,RPL-S,R680E,4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 B key,2*M.2 E key,1*PCIe x16,1*PCIe x8,1*PCIe x1,4*PCIe x1,4*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,3*USB 2.0,6*COM,TPM2.0,ATX BULK
  • 911-CF05-102
  • Intel ADL-S,RPL-S,Q670E,4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*PCIe x16,1*PCIe x8,4*PCIe x 4,2*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,3*USB 2.0,6*COM,TPM2.0,ATX BULK

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-1008261-V03
  • SATA Cable 500mm
  • 2
  • K1B-3008012-E06
  • USB 2.0 Cable, 330mm
  • 1
  • E21-CF05010-C22
  • I/O SHIELDING For 4 LANs
  • 1
  • E21-CF05020-C22
  • I/O SHIELDING For 2 LANs
  • 1
MS-CF05 ATX motherboard supports Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Alder Lake-S Series, with R680E/Q670E chipsets. supports up to 128GB of DDR5 4400 MHz ECC/non-ECC UDIMM memory across four slots. It features triple independent displays via VGA, DP, and HDMI, and includes four 2.5GbE LAN ports with RJ-45 connectors. Expansion options include one PCIe x16 (Gen 5) slot, two PCIe x8 (Gen 5) slots, one PCIe x4 (Gen 4) slot, three PCIe x4 (Gen 3) slots, and two M.2 M key slots, with additional M.2 E and B key slots. Storage capabilities encompass four SATA 3.0 ports supporting RAID 0/1/5/10. Connectivity options include eight USB 3.2 Gen 2, two USB 3.2 Gen 1, three USB 2.0, and six COM ports. Additional features include GPIO, PS/2, audio, three system fans, onboard TPM 2.0, SMBus, I2C, PMBus, iAMT 16.x, chassis intrusion detection, and ATX power support.
