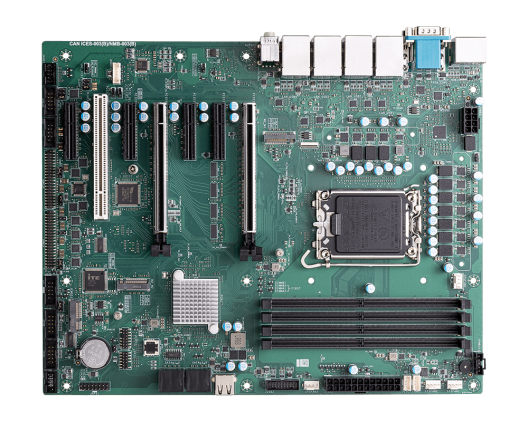

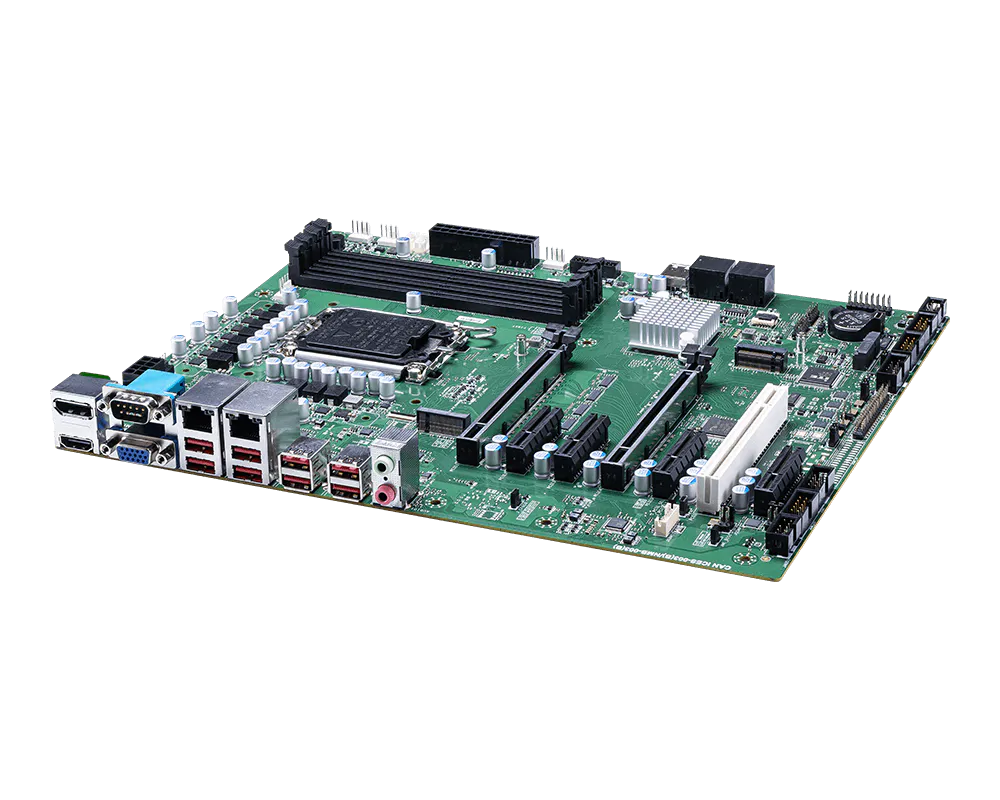

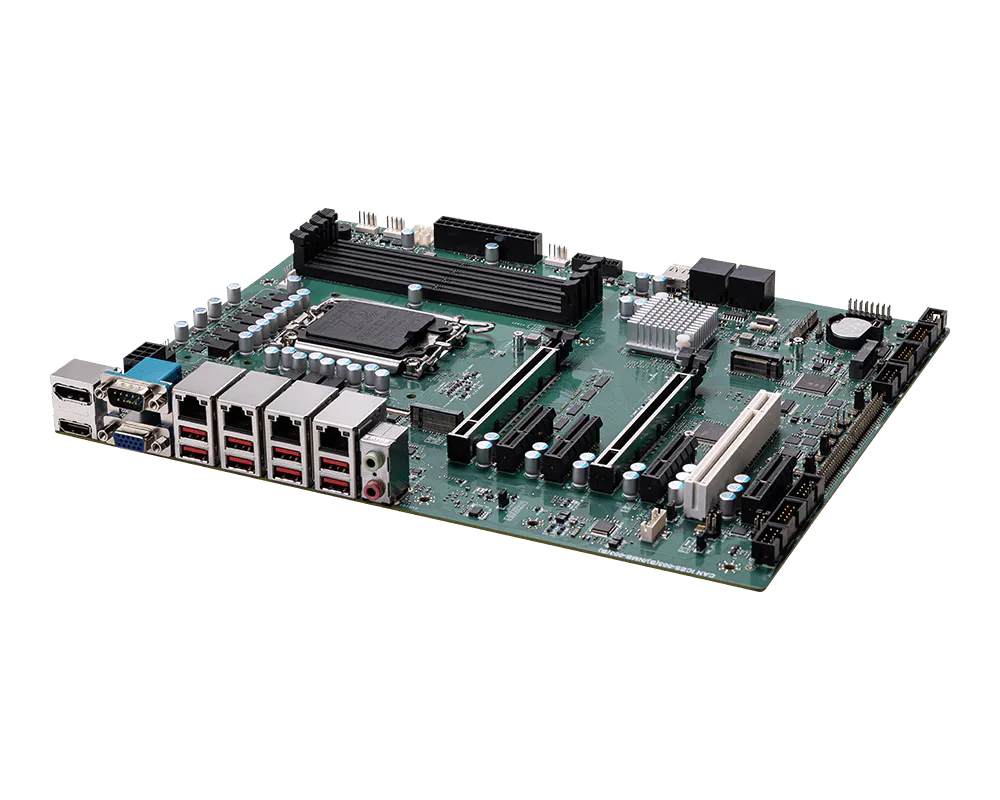

ATX with Intel® Arrow Lake-S , Core™ U9/U7/U5 & Intel® W880 for High-Performance Solution
- Intel® Arrow Lake-S Series with W880
- 4 DDR5 5600 MT/s ECC/non-ECC UDIMM slots up to 192GB

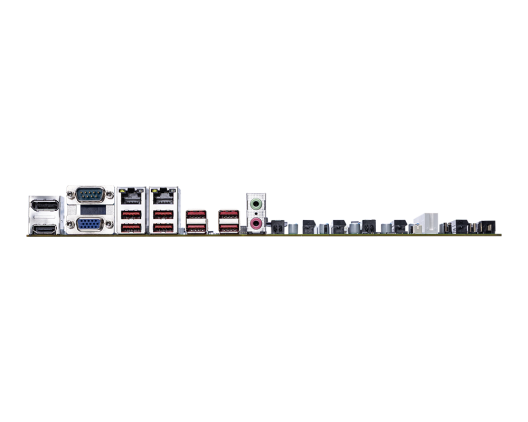

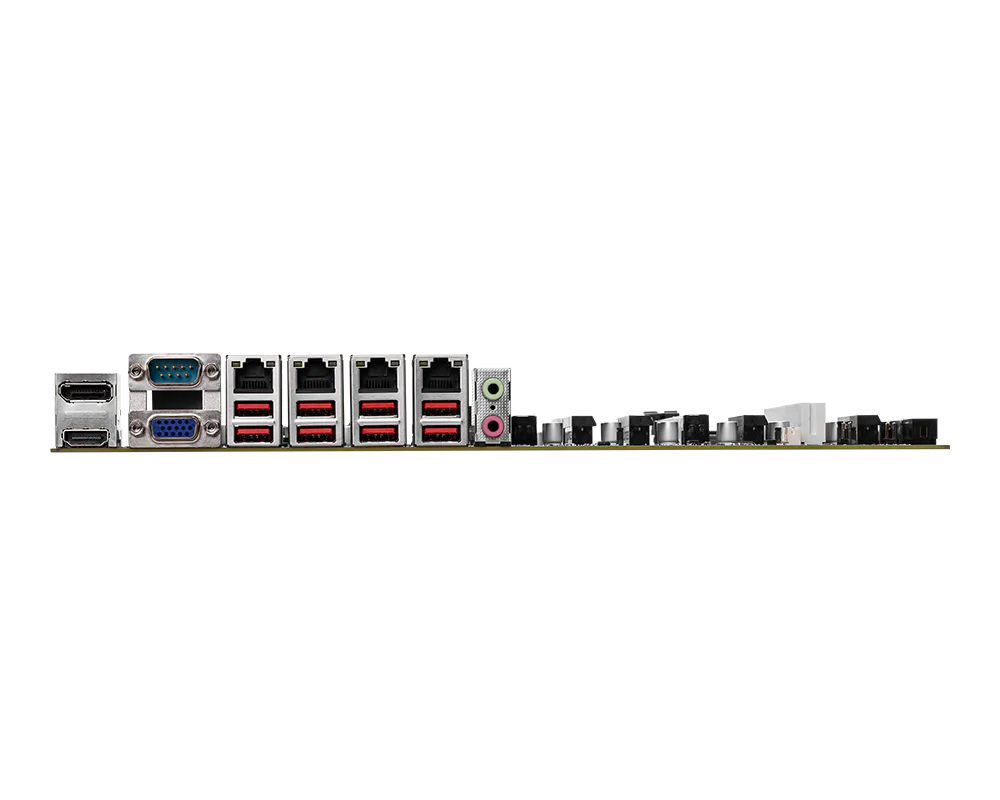

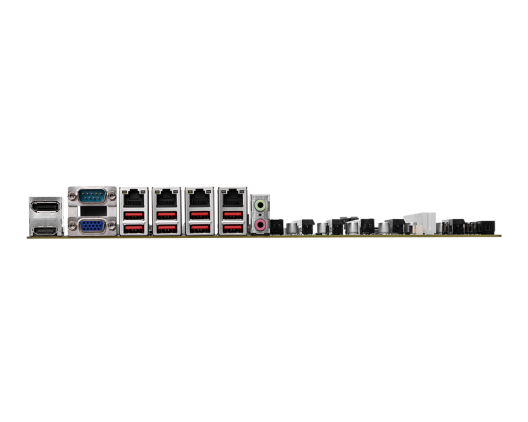

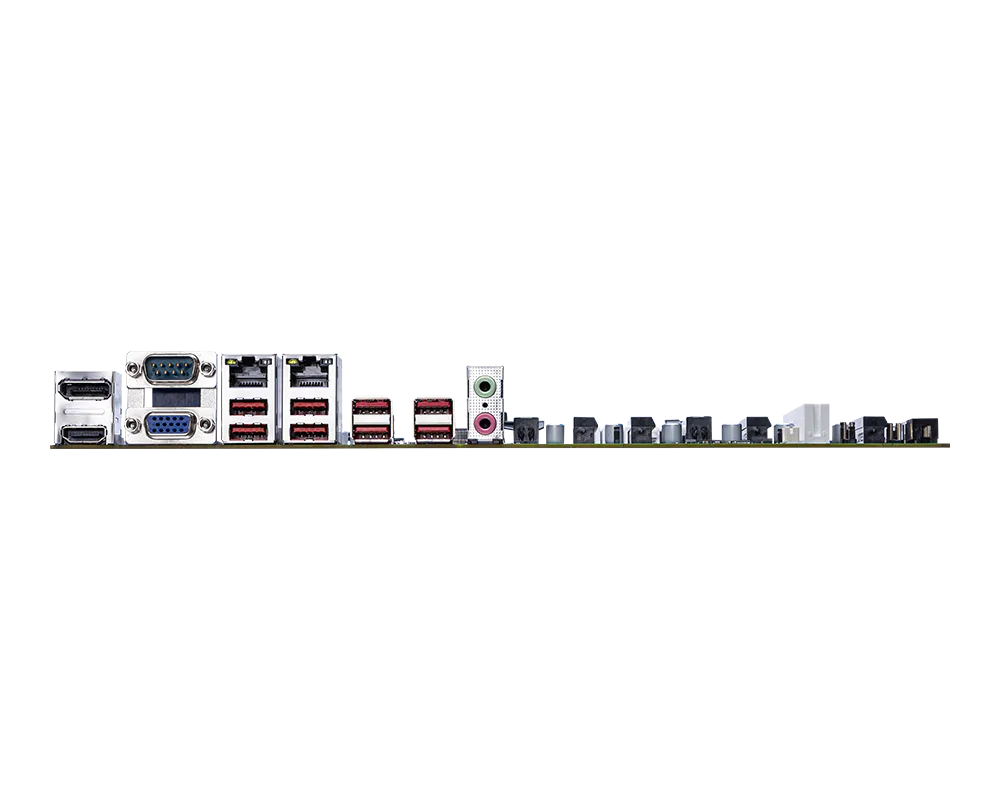

- Triple independent displays: VGA, DP, HDMI
- 4 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 4 PCIe x4 (Gen 4, 1 signal from CPU, 3 signal from PCH), 1 PCI slot, 1 M.2 E key slot
- 2 M.2 M key, 4 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 10 COM (2 RS-485 / 8 RS-232), GPIO, PS/2, Audio, 3 System FAN
- Onboard TPM 2.0
- SMBus, I2C, PMBus, iAMT 19.x, Chassis Intrusion
- ATX Power
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-CF20-SKU1
- MS-CF20-SKU2
Processor
- CPU
- Intel® Arrow Lake-S Core™ Ultra 9/7/5, Max 125W
- Intel® Arrow Lake-S Core™ Ultra 9/7/5, Max 125W
- Frequency
- P-Core 1.4GHz~5.6GHz (Depends on CPU)
E-Core 1.2GHz~4.6GHz (Depends on CPU) - P-Core 1.4GHz~5.6GHz (Depends on CPU)
E-Core 1.2GHz~4.6GHz (Depends on CPU)
- L2 Cache
- 3MB~36MB (Depends on CPU)
- 3MB~36MB (Depends on CPU)
- CPU Type
- Socket (LGA1851)
- Socket (LGA1851)
- Chipset
- Intel® W880
- Intel® W880
- BIOS
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel DDR5 (ECC/non-ECC) 5600 MT/s
(ECC support will depend on CPU) - Dual-channel DDR5 (ECC/non-ECC) 5600 MT/s
(ECC support will depend on CPU)
- Max. Capacity
- Up to 192GB
- Up to 192GB
- Socket
- 4 x 288-pin UDIMMs
- 4 x 288-pin UDIMMs
Display
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- LVDS
- --
- --
- eDP
- --
- --
- VGA
- 1
- 1
- DVI
- --
- --
- HDMI
- 1
- 1
- DisplayPort
- 1
- 1
- Multiple Display
- 3 independent displays
- 3 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz - VGA up to 1920 x 1200 @60Hz
HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
Ethernet
- Controller
- 4 x Intel® I226-LM 2.5GbE LAN
- 2 x Intel® I226-LM 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec
- Realtek® ALC897 Audio Codec
Super I/O
- Controller
- FINTEK F81967D-I
- FINTEK F81967D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
TPM
- Controller
- Infineon® SLB9672VU2.0
- Infineon® SLB9672VU2.0
I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 8 x USB 3.2 Gen 2 x1 (8 x rear)
2 x USB 3.2 Gen 1 (2 x internal)
3 x USB 2.0 (3 x internal with one Right Angle Type-A Connector) - 8 x USB 3.2 Gen 2 x1 (8 x rear)
2 x USB 3.2 Gen 1 (2 x internal)
3 x USB 2.0 (3 x internal with one Right Angle Type-A Connector)
- Parallel
- --
- --
- Serial
- 10 x COM ports (1 x rear, 9 x internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
COM3~6: RS-232, 0V/5V/12V, Auto-flow Control
COM7~10: RS-232, 0V/5V/12V, Auto-flow Control - 6 x COM ports (1 x rear, 5 x internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
COM3~6: RS-232, 0V/5V/12V, Auto-flow Control
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
- 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
- PCIe x8
- --
- --
- PCIe x4
- 4
- 4
- PCIe x1
- --
- --
- PCI
- 1
- 1
- M.2
- 1 x M key (Signal from CPU) 2280, 1 x M key (Signal Shared by PCIe Slot5) 2280
1 x E key (PCIe x1), 2230 - 1 x M key (Signal from CPU) 2280, 1 x M key (Signal Shared by PCIe Slot5) 2280
1 x E key (PCIe x1), 2230
- Mini-PCIe
- --
- --
Storage
- SATA
- 4 x SATA 3.0 (RAID 0/1/5/10)
- 4 x SATA 3.0 (RAID 0/1/5/10)
- IDE
- --
- --
- eSATA
- --
- --
- CFast
- --
- --
- mSATA
- --
- --
- CompactFlash
- --
- --
Power Supply
- DC Input
- --
- --
- ATX
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 305 x 244 mm (ATX)
- 305 x 244 mm (ATX)
- Weight
- 0.777 kg
- 0.744 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
Linux (Support by request)
Noted : All driver base on Intel & chip vendor supported - Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
Linux (Support by request)
Noted : All driver base on Intel & chip vendor supported
Ordering Information
- Part Number
- Description
- 916-CF20-001
- MS-CF20\606-CF20-010,10\806-CF20-001 MS-CF20 10 ARL-S,W880, 4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 E key,1*PCIe x16,1*PCIe x8,4*PCIe x4, 1*PCI,4*2.5GbE LAN,4*SATA 3.0,8*USB 3.2,10*COM,TPM2.0,ATX SINGLE,5pcs/box
- 916-CF20-002
- MS-CF20\606-CF20-010,10\806-CF20-003 MS-CF20 10 ARL-S,W880, 4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 E key,1*PCIe x16,1*PCIe x8,4*PCIe x4, 1*PCI,4*2.5GbE LAN,4*SATA 3.0,8*USB 3.2,10*COM,TPM2.0,ATX SINGLE,2pcs/box
- 916-CF20-003
- MS-CF20\606-CF20-020,10\806-CF20-002 MS-CF20 10 OPT:A ARL-S,W880, 4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 E key,1*PCIe x16,1*PCIe x8,4*PCIe x4, 1*PCI,2*2.5GbE LAN,4*SATA 3.0,8*USB 3.2,6*COM,TPM2.0,ATX SINGLE, 5pcs/box
- 916-CF20-004
- MS-CF20\606-CF20-020,10\806-CF20-004 MS-CF20 10 OPT:A ARL-S,W880, 4*DDR5,HDMI+DP+VGA,2*M.2 M key,1*M.2 E key,1*PCIe x16,1*PCIe x8,4*PCIe x4,1*PCI,2*2.5GbE LAN,4*SATA 3.0,8*USB 3.2,6*COM,TPM2,ATX SINGLE,2pcs/box
Packing List
- Part Number
- Description
- Quantity
- K1B-3008012-E06
- USB2.0 cable, 330mm
- 1
- K1D-1008261-V03
- SATA Cable, 500mm
- 2
- E21-CF05010-C22
- IO shielding for SKU1 (4 LAN)
- 1
- E21-CF05020-C22
- IO shielding for SKU2 (2 LAN)
- 1
