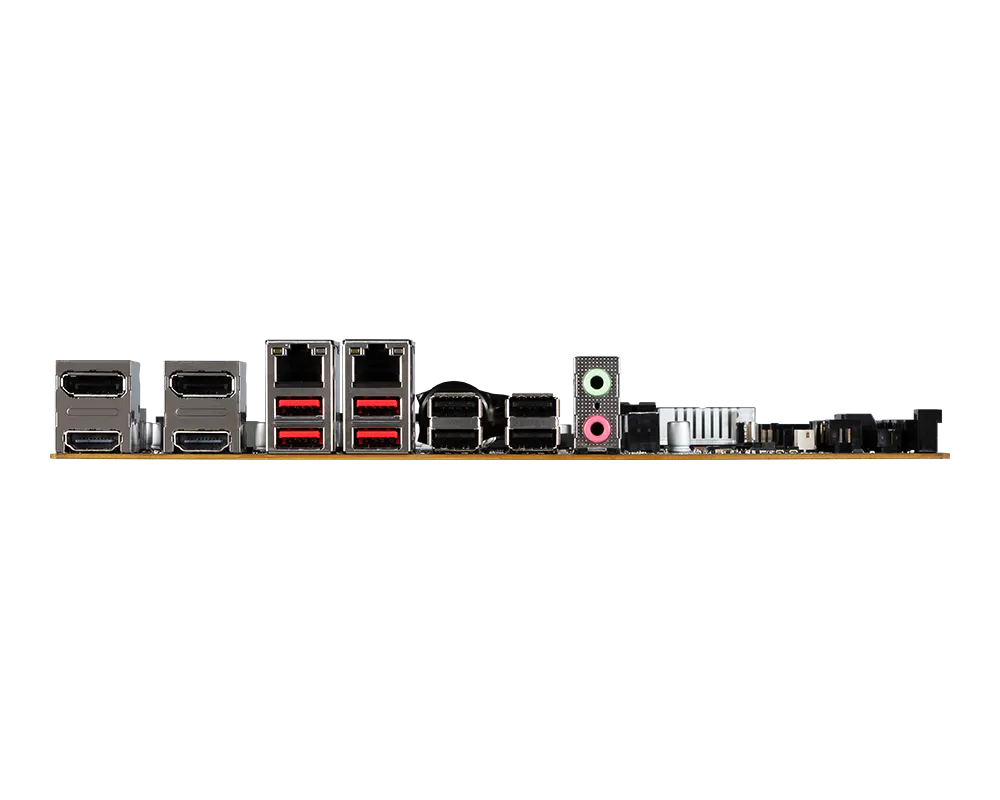

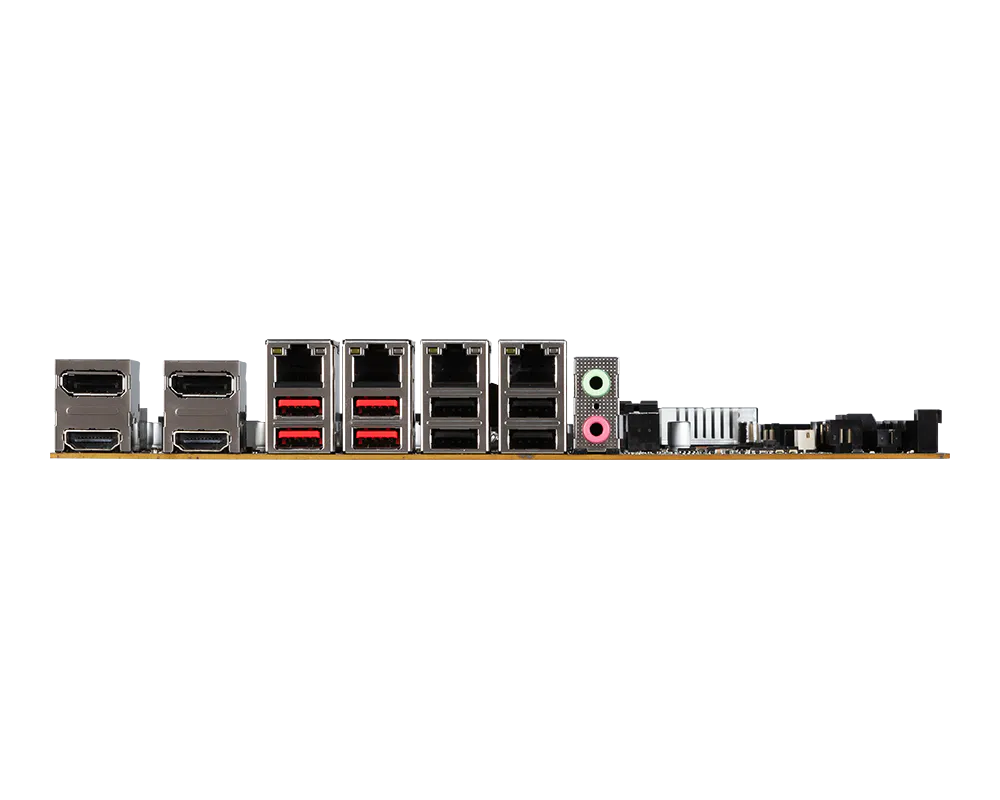

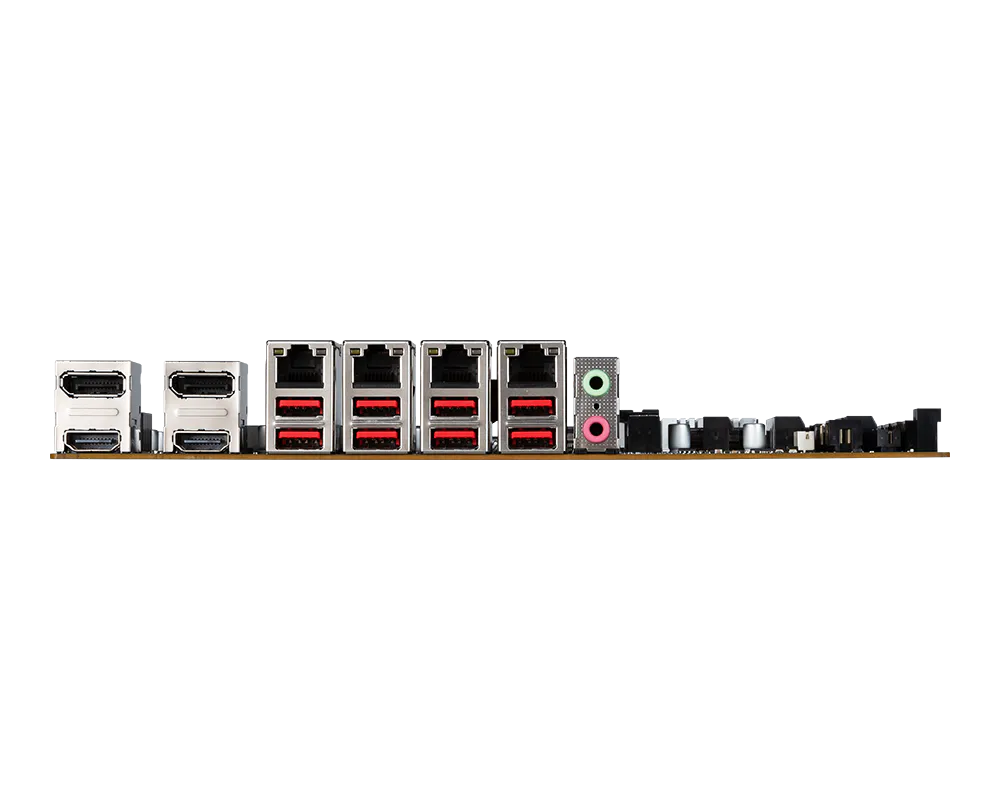

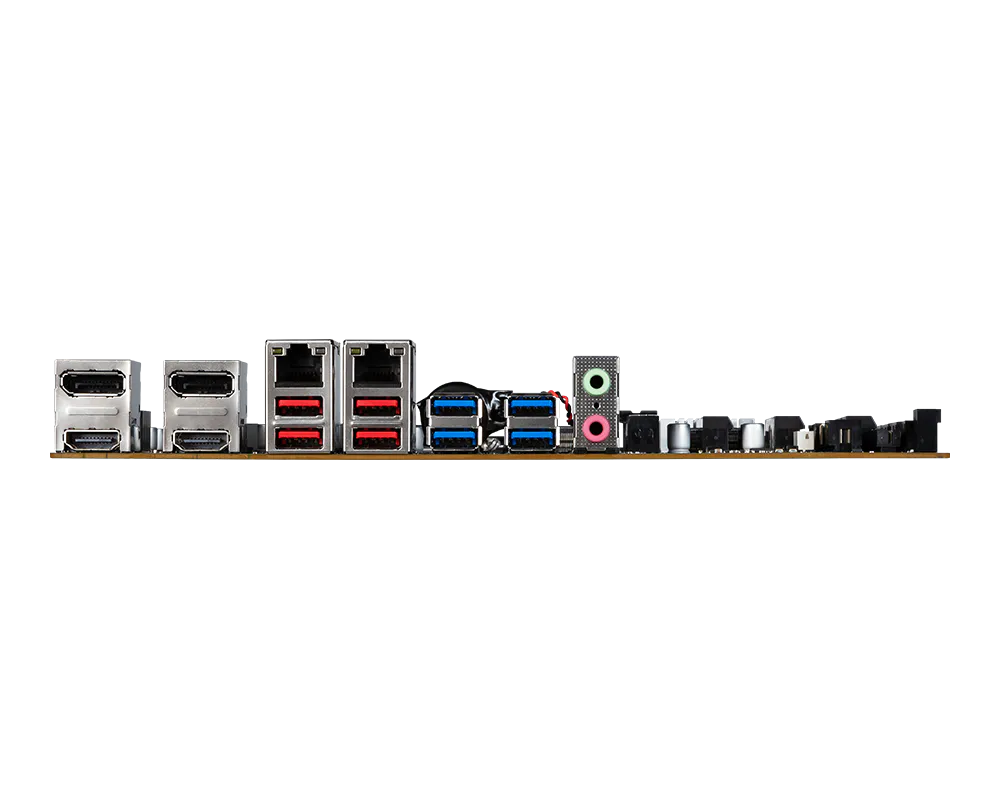

Micro-ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution
- Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series with R680E/Q670E/H610E
- 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB
- Quadruple independent displays: 2DP, 2HDMI, eDP
- 4 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot, 2 PCIe x4 (Gen 4), 1 PCIe x4 (Gen 3) slots
- 3 M.2 M key, 4 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
- Onboard TPM 2.0
- SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
- ATX Power
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-CF09-SKU1
- MS-CF09-SKU2
- MS-CF09-SKU3
- MS-CF09-SKU4
Processor
- CPU
- 12th Gen Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 13th Gen Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
- 12th Gen Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 13th Gen Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
- 12th Gen Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 13th Gen Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
- 12th Gen Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 13th Gen Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron, Max 125W 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
- Frequency
- P-Core 1.1GHz~5.0GHz (Depends on CPU)
E-Core 0.9GHz~3.8GHz (Depends on CPU) - P-Core 1.1GHz~5.0GHz (Depends on CPU)
E-Core 0.9GHz~3.8GHz (Depends on CPU) - P-Core 1.1GHz~5.0GHz (Depends on CPU)
E-Core 0.9GHz~3.8GHz (Depends on CPU) - P-Core 1.1GHz~5.0GHz (Depends on CPU)
E-Core 0.9GHz~3.8GHz (Depends on CPU)
- L2 Cache
- 4MB~30MB (Depends on CPU)
- 4MB~30MB (Depends on CPU)
- 4MB~30MB (Depends on CPU)
- 4MB~30MB (Depends on CPU)
- CPU Type
- Socket (LGA1700)
- Socket (LGA1700)
- Socket (LGA1700)
- Socket (LGA1700)
- Chipset
- Intel® R680E Express
- Intel® Q670E Express
- Intel® H610E Express
- Intel® H610E Express
- BIOS
- AMI UEFI
- AMI UEFI
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel DDR5 (ECC/non-ECC) 4400 MHz
- Dual-channel DDR5 (non-ECC) 4400 MHz
- Dual-channel DDR5 (non-ECC) 4400 MHz
- Dual-channel DDR5 (non-ECC) 4400 MHz
- Max. Capacity
- Up to 128GB
- Up to 128GB
- Up to 64GB
- Up to 64GB
- Socket
- 4 x 288-pin UDIMMs
- 4 x 288-pin UDIMMs
- 2 x 288-pin UDIMMs
- 2 x 288-pin UDIMMs
Display
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Depends on CPU
- Depends on CPU
- LVDS
- --
- --
- --
- --
- eDP
- 1
- 1
- 1
- 1
- VGA
- --
- --
- --
- --
- DVI
- --
- --
- --
- --
- HDMI
- 2
- 2
- 2
- 2
- DisplayPort
- 2
- 2
- 2
- 2
- Multiple Display
- 4 independent displays
- 4 independent displays
- 3 independent displays
- 3 independent displays
- Display Interface
- HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2160 @60Hz - HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2160 @60Hz - HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2160 @60Hz - HDMI up to 4096 x 2160 @60Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2160 @60Hz
Ethernet
- Controller
- 4 x Intel® i226-LM 2.5GbE LAN
- 2 x Intel® i226-LM 2.5GbE LAN
- 4 x Intel® i226-V 2.5GbE LAN
- 2 x Intel® i226-V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec
- Realtek® ALC897 Audio Codec
- Realtek® ALC897 Audio Codec
- Realtek® ALC897 Audio Codec
Super I/O
- Controller
- Fintek F81966D-I
- Fintek F81966D-I
- Fintek F81966D-I
- Fintek F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
- Yes
- Yes
TPM
- Controller
- Infineon® SLB9672VU2.0
- Infineon® SLB9672VU2.0
- Infineon® SLB9672VU2.0
- Infineon® SLB9672VU2.0
I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 8 x USB 3.2 Gen 2 x1 Ports (8 x rear)
2 x USB 3.2 Gen 1 Ports (2 x internal)
4 x USB 2.0 Ports (2 x internal, 2 x Vertical Type-A Connector) - 8 x USB 3.2 Gen 2 x1 Ports (8 x rear)
2 x USB 3.2 Gen 1 Ports (2 x internal)
4 x USB 2.0 Ports (2 x internal, 2 x Vertical Type-A Connector) - 2 x USB 3.2 Gen 2 x1 Ports (2 x rear)
2 x USB 3.2 Gen 1 Ports (2 x rear)
6 x USB 2.0 Ports (4 x rear, 2 x internal) - 2 x USB 3.2 Gen 2 x1 Ports (2 x rear)
2 x USB 3.2 Gen 1 Ports (2 x rear)
6 x USB 2.0 Ports (4 x rear, 2 x internal)
- Parallel
- Yes
- Yes
- Yes
- Yes
- Serial
- 6 x COM ports (internal)
COM1~2: RS-232/422/485 with Ring/0V/5V/12V Auto-flow Control
COM3~6: RS-232/422/485 with 0V/5V/12V Auto-flow Control - 6 x COM ports (internal)
COM1~2: RS-232/422/485 with Ring/0V/5V/12V Auto-flow Control
COM3~6: RS-232 with 0V/5V/12V - 4 x COM ports (internal)
COM1: RS-232/422/485 with Ring/0V/5V/12V Auto-flow Control
COM2~4: RS-232 with 0V/5V/12V - 4 x COM ports (internal)
COM1: RS-232/422/485 with Ring/0V/5V/12V Auto-flow Control
COM2~4: RS-232 with 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 1
- 1
- 1
- 1
- PCIe x8
- --
- --
- --
- --
- PCIe x4
- 3
- 3
- 1
- 1
- PCIe x1
- --
- --
- --
- --
- PCI
- --
- --
- --
- --
- M.2
- 1 x M.2 M key (PCIe x4 NVMe; Signal
from CPU), 2280/22110
2 x M.2 M key (PCIe x4 NVMe; Signal
from PCH), 2242/2280 - 1 x M.2 M key (PCIe x4 NVMe; Signal
from CPU), 2280/22110
1 x M.2 M key (PCIe x4 NVMe; Signal
from PCH), 2242/2280 - --
- --
- Mini-PCIe
- --
- --
- --
- --
Storage
- SATA
- 4 x SATA 3.0 (RAID 0/1/5/10)
- 4 x SATA 3.0 (RAID 0/1/5/10)
- 4 x SATA 3.0
- 4 x SATA 3.0
- IDE
- --
- --
- --
- --
- eSATA
- --
- --
- --
- --
- CFast
- --
- --
- --
- --
- mSATA
- --
- --
- --
- --
- CompactFlash
- --
- --
- --
- --
Power Supply
- DC Input
- --
- --
- --
- --
- ATX
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 244 x 244mm (uATX)
- 244 x 244mm (uATX)
- 244 x 244mm (uATX)
- 244 x 244mm (uATX)
- Weight
- 0.659 kg
- 0.659 kg
- 0.659 kg
- 0.659 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 911-CF09-001
- MS-CF09\601-CF09-010\801-CF09-010 VER 10 OPT:STD Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,4*USB 2.0,6*COM,TPM2.0,Micro-ATX For Channel
- 911-CF09-002
- MS-CF09\601-CF09-020\801-CF09-011 VER 10 OPT:A Intel RPL-S,Q670E,4*DDR5,HDMI+DP+eDP,2*M.2 M key,1*PCIe x16,3*PCIe x4,2*2.5GbE LAN,4*SATA 3.0,10*USB 3.2,4*USB 2.0,6*COM,TPM2.0,Micro-ATX For Channel
- 911-CF09-003
- MS-CF09\601-CF09-030\801-CF09-012 VER 10 OPT:B Intel RPL-S,H610E,2*DDR5,HDMI+DP+eDP,1*PCIe x16,1*PCIe x4,4*2.5GbE LAN,4*SATA 3.0,4*USB 3.2,6*USB 2.0,4*COM,TPM2.0,Micro-ATX For Channel
- 911-CF09-004
- MS-CF09\601-CF09-040\801-CF09-013 VER 10 OPT:C Intel RPL-S,H610E,2*DDR5,HDMI+DP+eDP,1*PCIe x16,1*PCIe x4,2*2.5GbE LAN,4*SATA 3.0,4*USB 3.2,6*USB 2.0,4*COM,TPM2.0,Micro-ATX For Channel
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA Cable ,500mm
- 2
- E21-CF09010-C22
- I/O SHIELDING For R680E SKU
- 1
- E21-CF09020-C22
- I/O SHIELDING For Q670E 2LANs SKU
- 1
- E21-CF09030-C22
- I/O SHIELDING For H610E 4LANs SKU
- 1
- E21-CF09040-C22
- I/O SHIELDING For H610E 2LANs SKU
- 1
