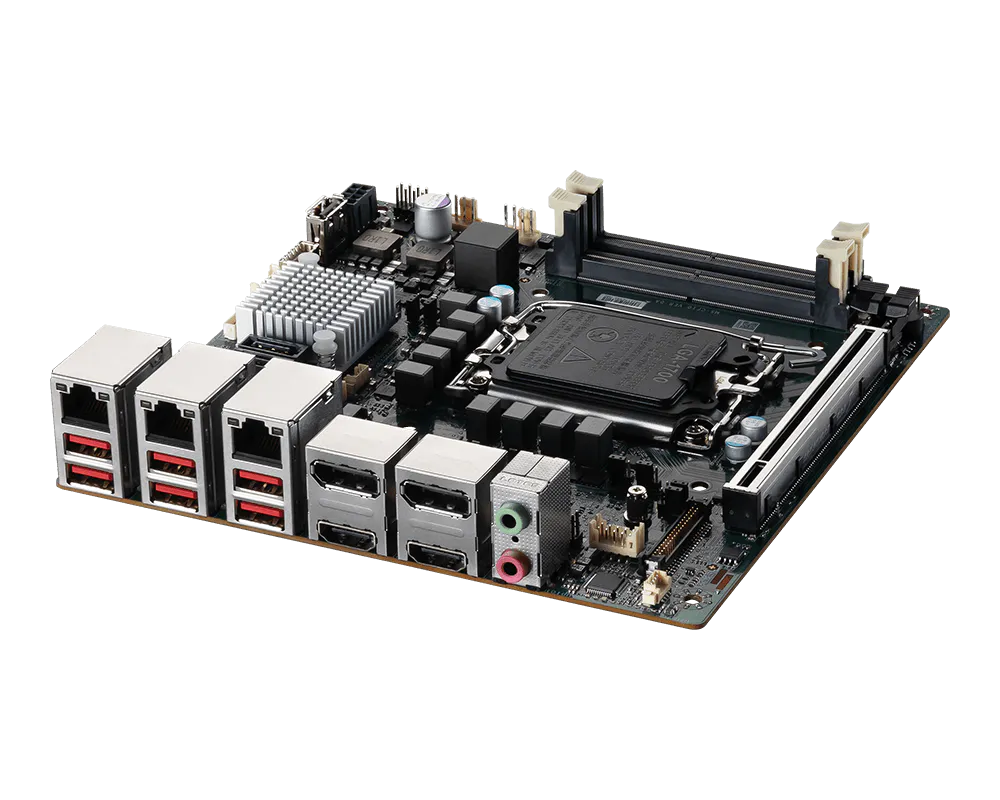

Mini-ITX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance & DC Power Solution
- Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series with R680E/Q670E/H610E
- 2 DDR5 5200 MT/s ECC/non-ECC SODIMM slots up to 64GB
- Quadruple independent displays: 2DP, HDMI 2.0, LVDS/eDP
- 3 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot, 1 M.2 E key (with CNVi), 1 M.2 B key (with SIM Holder) slots
- M.2 M key, 2 SATA 3.0 for storage
- SATA RAID 0/1/5
- 6 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, System FAN
- Onboard TPM 2.0
- SMBus, iAMT 16.x
- Wide Voltage DC-IN 8-48V
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-CF10-SKU1
- MS-CF10-SKU2
- MS-CF10-SKU3
Processor
- CPU
- 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3 IOTG Series Processor, Max 65W
13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W - 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3 IOTG Series Processor, Max 65W
13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W - 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3 IOTG Series Processor, Max 65W
13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
- Frequency
- 1.6GHz~5.1GHz (Depends on CPU)
- 1.6GHz~5.1GHz (Depends on CPU)
- 1.6GHz~5.1GHz (Depends on CPU)
- L2 Cache
- 2MB~30MB (Depends on CPU)
- 2MB~30MB (Depends on CPU)
- 2MB~30MB (Depends on CPU)
- CPU Type
- Socket (LGA 1700)
- Socket (LGA 1700)
- Socket (LGA 1700)
- Chipset
- Intel® R680E
- Intel® Q670E
- Intel® H610E
- BIOS
- AMI UEFI
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel
DDR5 (ECC/non-ECC) 5200MT/s - Dual-channel DDR5 (non-ECC) 5200MT/s
- Dual-channel DDR5 (non-ECC) 5200MT/s
- Max. Capacity
- Up to 64GB
- Up to 64GB
- Up to 64GB
- Socket
- 2 x 262-pin DDR5 SO-DIMMs
- 2 x 262-pin DDR5 SO-DIMMs
- 2 x 262-pin DDR5 SO-DIMMs
Display
- Controller
- Intel® UHD Graphics
- Inte®® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Depends on CPU
- LVDS
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- eDP
- 1 (Connector shared with LVDS)
- 1 (Connector shared with LVDS)
- 1 (Connector shared with LVDS)
- VGA
- --
- --
- --
- DVI
- --
- --
- --
- HDMI
- 1
- 1
- 1
- DisplayPort
- 2
- 2
- 2
- Multiple Display
- 4 independent displays
- 4 independent displays
- 4 independent displays
- Display Interface
- LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI 2.0 up to 4096 x 2304@60Hz
DP up to 4096 x 2304@60Hz - LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI 2.0 up to 4096 x 2304@60Hz
DP up to 4096 x 2304@60Hz - LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI 2.0 up to 4096 x 2304@60Hz
DP up to 4096 x 2304@60Hz
Ethernet
- Controller
- 3 x Intel® I226-LM 2.5GbE LAN
- 1 x Intel® I226-LM 2.5GbE LAN
2 x Intel® I226-V 2.5GbE LAN - 3 x Intel® I226-V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- Fintek F81966D-I
- Fintek F81966D-I
- Fintek F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
- Yes
TPM
- Controller
- Infineon® SLB 9672VU2.0
- Infineon® SLB 9672VU2.0
- Infineon® SLB 9672VU2.0

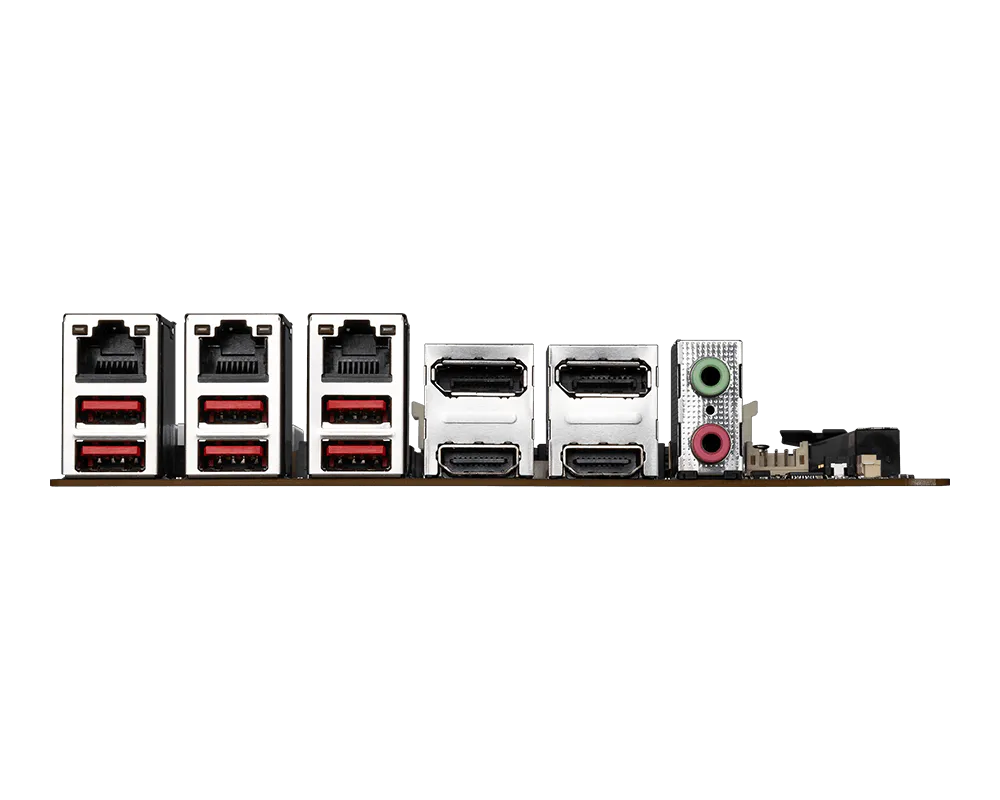

I/O Interface
- PS/2
- --
- --
- --
- USB
- 6 x USB 3.2 Gen 2 (rear)
2 x USB 3.2 Gen 1 (internal)
3 x USB 2.0 (internal with one Vertical Type-A) - 6 x USB 3.2 Gen 2 (rear)
2 x USB 3.2 Gen 1 (internal)
3 x USB 2.0 (internal with one Vertical Type-A) - 2 x USB 3.2 Gen2 (rear)
2 x USB 3.2 Gen1 (rear)
2 x USB 2.0 (rear)
3 x USB 2.0 (internal with one Vertical Type-A)
- Parallel
- --
- --
- --
- Serial
- 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2~4: RS-232/422/485, 0V/5V/12V, Auto-flow Control - 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2~4: RS-232, 0V/5V/12V - 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2~4: RS-232, 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 3.3V
- 16-bits (8 x GPI; 8 x GPO), 3.3V
- 16-bits (8 x GPI; 8 x GPO), 3.3V
Expansion Slot
- PCIe x16
- 1 x PCIe x16 (Gen 5)
- 1 x PCIe x16 (Gen 5)
- 1 x PCIe x16 (Gen 5)
- PCIe x8
- --
- --
- --
- PCIe x4
- --
- --
- --
- PCIe x1
- --
- --
- --
- PCI
- --
- --
- --
- M.2
- 1 x M key (PCIe x4 NVMe, SATA-3.0), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
(with SIM Holder) - 1 x M key (PCIe x4 NVMe, SATA-3.0), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
(with SIM Holder) - 1 x M key (PCIe x4 NVMe, SATA-3.0), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
- Mini-PCIe
- --
- --
- --
Storage
- SATA
- 2 x SATA 3.0
(Support RAID 0/1/5, RAID 5 with M.2 M Key)
(Support AHCI Mode) - 2 x SATA 3.0
(Support RAID 0/1/5, RAID 5 with M.2 M Key)
(Support AHCI Mode) - 2 x SATA 3.0 (Support AHCI Mode)
- IDE
- --
- --
- --
- eSATA
- --
- --
- --
- CFast
- --
- --
- --
- mSATA
- --
- --
- --
- CompactFlash
- --
- --
- --
Power Supply
- DC Input
- DC-in 8-48V
- DC-in 8-48V
- DC-in 8-48V
- ATX
- --
- --
- --
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170 mm (Mini-ITX)
- 170 x 170 mm (Mini-ITX)
- 170 x 170 mm (Mini-ITX)
- Weight
- 0.42 KG
- 0.42 KG
- 0.42 KG
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 911-CF10-001
- 601-CF10-010\801-CF10-007 11,Intel Raptor Lake-S R680E,2*DDR5 SO-DIMM,2*HDMI+2*DP+1*eDP/LVDS,8*USB 3.2,3*USB 2.0,4*COM,3*2.5GbE LAN,2*SATA 3.0,1*M.2 E key,1*M.2 M key,1*M.2 B key,1*PCIe x16,TPM2.0,DC 8-48V, SINGLE For Channel
- 911-CF10-002
- 601-CF10-020\801-CF10-008 11,Intel Raptor Lake-S Q670E,2*DDR5 SO-DIMM,2*HDMI+2*DP+1*eDP/LVDS,8*USB 3.2,3*USB 2.0,4*COM,3*2.5GbE LAN,2*SATA 3.0,1*M.2 E key,1*M.2 M key,1*M.2 B key,1*PCIe x16,TPM2.0,DC 8-48V, SINGLE For Channel
- 911-CF10-003
- 601-CF10-030\801-CF10-009 11,Intel Raptor Lake-S,H610E,2*DDR5 SO-DIMM,2*HDMI+2*DP+1*eDP/LVDS,4*USB 3.2,5*USB 2.0,4*COM,3*2.5GbE LAN,2*SATA 3.0,1*M.2 E key,1*M.2 M key,1*PCIe x16,TPM2.0,DC 8-48V, SINGLE For Channel
Packing List
- Part Number
- Description
- Quantity
- K1D-3012023-V03
- SATA CABLE, 230mm
- 1
- K14-3018004-V03
- COM PORT CABLE, 250mm
- 1
- K1G-3008092-V03
- POWER CABLE, 250mm
- 1
- E21-CF10010-C22
- I/O SHIELDING, H610E
- 1
- E21-CF10020-C22
- I/O SHIELDING, R680E/Q670E
- 1
